INSTALLATION, OPERATION, & MAINTENANCE INSTRUCTIONS
1128 Sherborn Street ▪ Corona, CA 92879-2089 ▪ (951) 281-1830 ▪ FAX (951) 281-1879
All Imperial Mfg. Co. equipment is manufactured for use with the type of gas specified on the rating plate
and for installation in accordance with ANSI Z223.1/NFPA 54 (latest edition) of the National Fuel Gas Code, the
National Gas Installation Code, CSA/B149.1 or the Propane Installation code, CSA/B149.1, as applicable. Copies
may be obtained from the American Gas Association, 1515 Wilson Blvd, Arlington, VA 22209.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause property
damage, injury or death. Read the installation,
operating and maintenance instructions thoroughly
before installing or servicing this equipment.
Instructions to be followed in case the user smells gas are to be posted in a prominent location in the
kitchen area. This information shall be obtained by contacting the local gas company or gas supplier.
IMPORTANT
Safe and satisfactory operation of your equipment depends to a great extent on its proper installation.
Installation must conform to local codes, or in the absence of local codes, with the National Fuel Gas Code ANSI
Z223.1/NFPA 54, the National Gas Installation Code, CSA/B149.1or the Propane Installation code, CSA/B149.1, as
applicable.

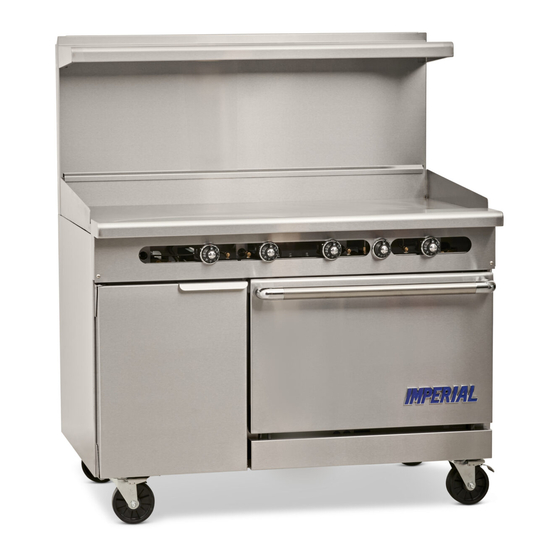

Imperial cooking appliances are restaurant grade. Ranges are free standing and available in widths from
two to six feet. A large number of different range top arrangements are assembled over one or two ovens or a
cabinet base. Installation is the same for any range top regardless of whether it has an oven below or not; in like
manner, installation is the same for all cooking equipment regardless of the top arrangement. This unit may also be
equipped with a salamander broiler. A Cheesemelter may be mounted on the high shelf as long as the Broiler is not
wider than the range.
IMPORTANT
Installing, Operating and Service Personnel:
Installation of the equipment should be performed by qualified, certified, licensed and/or authorized
personnel who are familiar with and experienced in state/local installation codes. Operation of the equipment should
be performed by qualified or authorized personnel who have read this manual and are familiar with the function of
the equipment. Service of the equipment should be performed by qualified personnel who are knowledgeable with
Imperial Ranges
OWNERS MANUAL
IR SERIES – RANGES & OVENS
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
®
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS OR LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER
1
FOR YOUR SAFETY
.
APPLIANCE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Imperial IR series
Summary of Contents for Imperial IR series
- Page 1 IR SERIES – RANGES & OVENS All Imperial Mfg. Co. equipment is manufactured for use with the type of gas specified on the rating plate and for installation in accordance with ANSI Z223.1/NFPA 54 (latest edition) of the National Fuel Gas Code, the National Gas Installation Code, CSA/B149.1 or the Propane Installation code, CSA/B149.1, as applicable.
-
Page 2: Shipping Damage Claim Procedure
Pilot lighting instructions (ovens only) are also located in the same area. The Salamander broiler or Cheesemelter (if provided) is supplied with its own rating plate located on the unit. IMPERIAL COOKING APPLIANCES MUST BE CONNECTED ONLY TO THE TYPE OF GAS IDENTIFIED ON THE RATING PLATE CLEARANCES The appliance area must be kept free and clear of all combustibles. -
Page 3: High Shelf Assembly
CONVECTION OVEN – ELECTRICAL CONNECTION Imperial ranges with CONVECTION OVEN requires a 120 volt supply to operate the ignition systems and circulating fan. The supply cord provided on the appliance is equipped with a three prong (grounding) plug for protection against shock hazard. - Page 4 GAS CONNECTION NOTE: The gas supply (service) line must be the same size or greater than the inlet line of the appliance. Imperial ranges and ovens use a ¾” NPT inlet. Sealant on all pipe joints must be resistive to LP gas.
-
Page 5: Initial Pilot Lighting
When lighting pilots and checking for leaks, do not Stand with your face close to the combustion chamber All Imperial Mfg. appliances are adjusted and tested before leaving the factory, effectively matching them to sea level conditions. Adjustments and calibrations to assure proper operation may be necessary on installation to meet local conditions, low gas characteristics, to correct possible problems caused by rough handling or vibration during shipment, and are to be performed only by qualified service personnel. - Page 6 (8) Turn the oven thermostat knob “on” and set to desired temperature setting, watch to make sure the oven burner ignites from the pilot and that there are no yellow flames from the burner. (9) Turn the oven thermostat to “pilot” and replace the lower kick plate. NOTE: It may be necessary to relight the pilot several times until the lines are purged of any trapped air and a constant gas flow is attained.
- Page 7 CLEANING AND MAINTENANCE Any piece of equipment works better and lasts longer when maintained properly. Cooking equipment is no exception. Your Imperial range and oven must be kept clean during the working day and thoroughly cleaned at the end of the day.
-
Page 8: Convection Oven
Lubricate the pivot pins of the oven door hinge where the right and left arms connect to the door. Use a multipurpose lubricating oil sparingly so as to not drip oil needlessly. Your Imperial range should be checked for safe and efficient operation at least yearly by a qualified service company.
