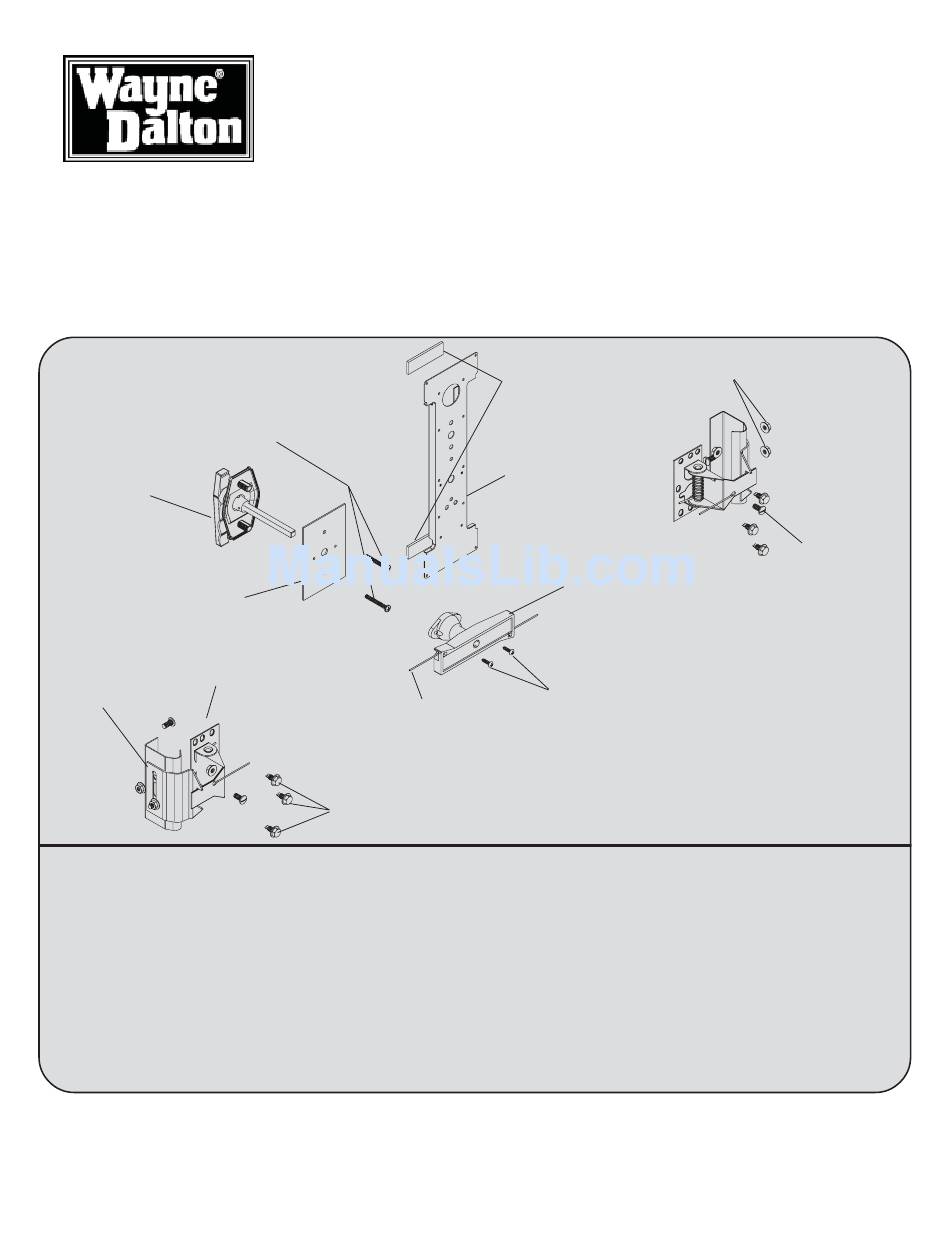

Keyed-in-Handle Autolatch ECR Lock Installation Instructions and Owner’s Manual Wayne-Dalton Corp. P.O. Box 67 Mt. Hope, OH 44660 (888) 827-3667 www.wayne-dalton.com All Residential Door Models: 8000/9000 Series & Wood Doors PHILLIPS HEAD MACHINE SCREWS (6) 1/4” -20 (2) FOAM TAPE (2) 1”...
Page 2
Step 1: Installing the ECR Lock CENTER STILE CAUTION DO NOT DRILL LOCK (3)PRE-PUNCHED SECTION OR INSTALL LOCK ON DOORS WITH HOLES OPENERS. THE DOOR AND/ OR OPENER MAY BE DAMAGED IF THE OPENER IS USED WHILE THE DOOR IS LOCKED. NOTE: Common practice for doors with the odd number of raised panels is to mount the lock towards (3) 3/4”...
Page 3
Step 2: Outside Lock Handle Assembly 8000/PR9000 & PR9050 Series doors (see Fig. 4), 3/4” DIA. HOLES align the outside handle assembly with the handle pointing towards the floor and insert the assembly OUTSIDE through the previously drilled 3/4” diameter holes in HANDLE the section.
Page 4
Step 4: Installing the Autolatch 8000/9000 Series & Wood doors (Fig.1-3), locate the inside handle and uncoil the lock cable, then thread the cable through the inside handle as illustrated (see Fig.1). Locate the autolatch striker plates over the pre-punched holes in the vertical track nearest the center of the lock section (see Fig.2).
