GA-X79S-UP5-WIFI
GA-X79S-UP5
User's Manual
Rev. 1002
12ME-X79SUP5-1002R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-X79S-UP5 User's and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigabyte GA-X79S-UP5 User's

Summary of Contents for Gigabyte GA-X79S-UP5 User's

  • Page 1 GA-X79S-UP5-WIFI GA-X79S-UP5 User's Manual Rev. 1002 12ME-X79SUP5-1002R...

  • Page 3: Identifying Motherboard Revision

    GIGABYTE's prior written permission. Documentation Classifications In order to assist in the use of this product, GIGABYTE provides the following types of documentations: „ For quick set-up of the product, read the Quick Installation Guide included with the product.

  • Page 4: Table Of Contents

    Table of Contents Box Contents ........................6 Optional Items .........................6 GA-X79S-UP5-WIFI/GA-X79S-UP5 Motherboard Layout..........7 GA-X79S-UP5-WIFI/GA-X79S-UP5 Motherboard Block Diagram .........8 Chapter 1 Hardware Installation ..................9 Installation Precautions ................... 9 1-2 Product Specifications ................... 10 Installing the CPU and CPU Cooler............... 13 1-3-1 Installing the CPU ....................13 1-3-2 Installing the CPU Cooler ..................15 Installing the Memory ..................
  • Page 5 Download Center ................... 62 New Program ....................62 Chapter 4 Unique Features ...................63 BIOS Update Utilities ..................63 4-1-1 Updating the BIOS with the Q-Flash Utility ............63 4-1-2 Updating the BIOS with the @BIOS Utility ............66 EasyTune 6 ....................67 Q-Share ......................

  • Page 6: Box Contents

    Box Contents 5 GA-X79S-UP5-WIFI or GA-X79S-UP5 motherboard 5 Motherboard driver disk 5 User's Manual 5 Quick Installation Guide 5 Six SATA 6Gb/s cables 5 I/O Shield 5 One 2-Way SLI bridge connector 5 One 3-Way SLI bridge connector 5 One 2-Way CrossFireX bridge connector 5 One GC-WB300D (including two antennas, one USB 2.0 cable, driver disk, and user's manual) 5 3.5"...

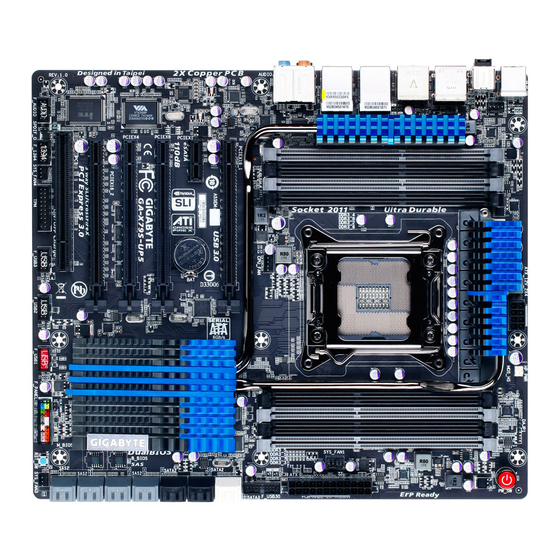

  • Page 7: Ga-X79S-Up5-Wifi/Ga-X79S-Up5 Motherboard Layout

    GA-X79S-UP5-WIFI/GA-X79S-UP5 Motherboard Layout ATX_12V_2X4 KB_MS_USB PW_SW SYS_FAN2 LGA2011 USB_1394_ESATA Marvell 88SE9172 USB_ESATA USB30_LAN2 USB30_LAN1 VL800 GA-X79S-UP5-WIFI AUDIO R e a l t e k GA-X79S-UP5 GbE LAN CPU_FAN F_USB30 Intel GbE LAN PCIEX16_1 Fresco SATA3 FL1009 PCIEX1 SATA2 CODEC PCIEX8 SATA2 SAS2 PCIEX4...

  • Page 8: Ga-X79S-Up5-Wifi/Ga-X79S-Up5 Motherboard Block Diagram

    GA-X79S-UP5-WIFI/GA-X79S-UP5 Motherboard Block Diagram 1 PCI Express x16 2 PCI Express x8 CPU CLK+/- (100 MHz) DDR3 2133/1866/1600/1333/1066 MHz 1 PCI Express x16 4 Channel Memory LGA2011 PCIe CLK (100 MHz) 4 USB 3.0/2.0 2 USB 3.0/2.0 DMI 2.0 PCIe x4 Uplink Switch Fresco FL1009...

  • Page 9: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 10: Product Specifications

    Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules Š Support for ECC memory modules Š Support for Extreme Memory Profile (XMP) memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Audio Realtek ALC898 codec Š High Definition Audio Š...
  • Page 11 Storage Interface Š Marvell 88SE9172 chip: 2 x eSATA 6Gb/s connectors (including 1 eSATA/USB Combo) on the back panel supporting up to 2 SATA 6Gb/s devices Support for RAID 0 and RAID 1 Chipset: Š Up to 12 USB 2.0/1.1 ports (6 ports on the back panel, including 1 eSATA/ USB Combo, 6 ports available through the internal USB headers) VIA VL800 chip: Š...
  • Page 12 * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. * Please visit GIGABYTE's website to check the supported operating system(s) for the software listed in the "Unique Features" and "Bundled Software" columns.

  • Page 13: Installing The Cpu And Cpu Cooler

    Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
  • Page 14 B. Follow the steps below to correctly install the CPU into the motherboard CPU socket. • Before installing the CPU, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the CPU. •...

  • Page 15: Installing The Cpu Cooler

    1-3-2 Installing the CPU Cooler Refer to the steps below to correctly install the CPU cooler on the motherboard. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for your CPU cooler.) Step 1: Step 2: Apply an even and thin layer of thermal grease on...

  • Page 16: Installing The Memory

    • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 17: Installing A Memory

    Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode. For optimum performance, when enabling Dual Channel mode with two memory modules, we recommend that you install them in the DDR3_1 and DDR3_2 sockets. When installing the memory, make sure to begin with the first socket of each channel, such as DDR3_1, DDR3_2, DDR3_3, and DDR3_4.

  • Page 18: Installing An Expansion Card

    Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.

  • Page 19: Setting Up Amd Crossfirex™/Nvidia Sli Configuration

    1-6 Setting up AMD CrossFireX™/NVIDIA SLI Configuration A. System Requirements - Windows 7 or Windows Vista operating system - A CrossFireX/SLI-supported motherboard with two/three PCI Express x16 slots and correct driver - Two/three CrossFireX/SLI-ready graphics cards of identical brand and chip and correct driver (Current GPUs that support 3-Way CrossFireX technology include the ATI Radeon HD 3800, HD 4800, HD 5800 series, and AMD Radeon HD 6800 and HD 6900 series.

  • Page 20: Back Panel Connectors

    Back Panel Connectors O.C. USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc. PS/2 Keyboard/Mouse Port Use this port to connect a PS/2 mouse or keyboard. CPU Overclocking Button Press this button to overclock your CPU.
  • Page 21 RJ-45 LAN Port (LAN2) The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of the LAN port LEDs. Connection/ Connection/Speed LED: Activity LED: Speed LED Activity LED State Description State Description Orange...

  • Page 22: Onboard Buttons

    Onboard Buttons Quick Buttons This motherboard has 2 quick buttons: power button and reset button. The power button and reset button allow users to quickly turn on/off or reset the computer in an open-case environment when they want to change hardware components or conduct hardware testing.

  • Page 23: Internal Connectors

    Internal Connectors ATX_12V_2X4 CLR_CMOS F_PANEL CPU_FAN F_AUDIO SYS_FAN1/2/3/4 SPDIF_O F_USB1/F_USB2/F_USB3 SATA3 0/1 F_USB30 SATA2 2/3/4/5 F_1394 SAS2 0/1/2/3/4/5/6/7 Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •...
  • Page 24 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.

  • Page 25: Bat Battery

    3/4) CPU_FAN/SYS_FAN1/SYS_FAN2/SYS_FAN3/SYS_FAN4 (Fan Headers) The motherboard has a 4-pin CPU fan header (CPU_FAN), a 4-pin (SYS_FAN1/2) and the 3-pin (SYS_FAN3/4) system fan headers. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The speed control function requires the use of a fan with fan speed control design.
  • Page 26 6) SATA3 0/1 (SATA 6Gb/s Connectors, Controlled by Intel C606 Chipset) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. The "SATA3 0" and "SATA3 1" connectors support RAID 0 and RAID 1. RAID 5 and RAID 10 can be implemented on the two connectors with the "SATA2 2/3/4/5"...

  • Page 27: Clear Cmos Jumper

    8) SAS2 0/1/2/3/4/5/6/7 (SAS 3Gb/s Connectors, Controlled by Intel C606 Chipset) The SAS connectors conform to SAS 3Gb/s standard and are compatible with SAS 1.5Gb/s standard. Each SAS connector supports a single SAS or SATA device. The Intel C606 Chipset supports RAID 0, RAID 1, and RAID 10. Refer to Chapter 5, "Configuring SAS Hard Drive(s)," for instructions on configuring a RAID array.

  • Page 28: Front Panel Header

    10) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. Message/Power/ Sleep LED Power Switch...
  • Page 29 11) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header.
  • Page 30 13) F_USB1/F_USB2/F_USB3 (USB 2.0/1.1 Headers) The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer. Pin No. Definition Power (5V) Power (5V) USB DX- USB DY-...
  • Page 31 15) F_1394 (IEEE 1394a Header) The header conforms to IEEE 1394a specification. The IEEE 1394a header can provide one IEEE 1394a port via an optional IEEE 1394a bracket. For purchasing the optional IEEE 1394a bracket, please contact the local dealer. Pin No.
  • Page 32 Hardware Installation - 32 -...

  • Page 33: Chapter 2 Bios Setup

    To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating system.

  • Page 34: Startup Screen

    Startup Screen The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or to access the Q-Flash utility in BIOS Setup. <F9>: SYSTEM INFORMATION Press the <F9>...

  • Page 35: The Main Menu

    A. The 3D BIOS Screen (Default) On GIGABYTE's uniquely designed 3D BIOS screen, you can use your mouse to move through the motherboard image and click to enter the function menu in each area for quick configuration. For example, pass your mouse arrow over the CPU and memory sockets and enter the System Tuning menu to configure CPU/memory frequency, memory timings, and voltage settings.
  • Page 36 BIOS Setup Program Function Keys <f><g> Move the selection bar to select a setup menu <h><i> Move the selection bar to select an configuration item on a menu <Enter> Execute command or enter a menu <+>/<Page Up> Increase the numeric value or make changes <->/<Page Down>...

  • Page 37: M.i.t

    M.I.T. Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory and reduce the useful life of these components. This page is for advanced users only and we recommend you not to alter the default settings to prevent system instability or other unexpected results.
  • Page 38 ` M.I.T. Current Status This screen provides information on CPU/memory frequencies/parameters. ` Advanced Frequency Settings & CPU/PCIe Base Clock Allows you to manually set the CPU base clock and PCIe bus frequency in 0.01 MHz increments. (Default: Auto) Important: It is highly recommended that the CPU frequency be set in accordance with the CPU specifications.

  • Page 39: Cpu Frequency

    & CPU Frequency This value is determined by multiplying the Processor Base Clock value by the CPU Clock Ratio value. ` Advanced CPU Core Features & CPU Clock Ratio, CPU Frequency The settings under the two items above are synchronous to those under the same items on the Advanced Frequency Settings menu.
  • Page 40 & CPU Core Enabled (Note 1) Allows you to determine whether to enable all CPU cores. Auto lets the BIOS automatically configure this setting. (Default: Auto) & Hyper-Threading Technology (Note 1) Allows you to determine whether to enable multi-threading technology when using an Intel CPU that supports this function.
  • Page 41 ` Advanced Memory Settings & Extreme Memory Profile (X.M.P.) System Memory Multiplier (SPD), Memory (Note), Frequency(Mhz) The settings under the three items above are synchronous to those under the same items on the Advanced Frequency Settings menu. & Performance Enhance Allows the system to operate at three different performance levels.
  • Page 42 ` Channel A/B/C/D Timing Settings This sub-menu provides memory timing settings for each channel of memory. The respective timing setting screens are configurable only when DRAM Timing Selectable is set to Quick or Expert. Note: Your system may become unstable or fail to boot after you make changes on the memory timings. If this occurs, please reset the board to default values by loading optimized defaults or clearing the CMOS values.
  • Page 43 ` 3D Power Control & PWM Phase Control Allows you to automatically change the PWM phase according to the CPU load. The power-saving levels are (from lowest to highest): eXm Perf (Extreme Performance ), High Perf (High Performance), Perf (Performance), Balanced, Mid PWR (Mid Power), and Lite PWR (Light Power). Auto lets the BIOS automatically configure this setting.
  • Page 44 & Vcore Loadline Calibration Allows you to set the Load-Line Calibration level for the Vcore. The levels are (from highest to lowest): Extreme, Turbo, High, Medium, and Standard. Selecting a higher level keeps the Vcore more consistent with what is set in BIOS under heavy load. Auto lets the BIOS automatically configure this setting and sets the voltage following Intel's specifications.
  • Page 45 & CPU Vtt Current Protection Allows you to set the current limit on the CPU Vtt voltage for over-current protection in terms of percentage. The adjustable range is from 50.0% to 155.0%. Auto lets the BIOS automatically configure this setting. (Default: Auto) &...
  • Page 46 ` Chipset Voltage Control This section provides Chipset voltage control options. ` PC Health Status & Reset Case Open Status Keeps or clears the record of previous chassis intrusion status. (Default) Disabled Clears the record of previous chassis intrusion status and the Case Open field will show Enabled "No"...
  • Page 47 & Case Open Displays the detection status of the chassis intrusion detection device attached to the motherboard CI header. If the system chassis cover is removed, this field will show "Yes", otherwise it will show "No". To clear the chassis intrusion status record, set Reset Case Open Status to Enabled, save the settings to the CMOS, and then restart your system.
  • Page 48 & 2nd System Fan Speed Control (SYS_FAN2 Connector) Allows you to determine whether to enable the system fan speed control function for the system fan connected to the SYS_FAN2 connector and adjust the fan speed. Allows the system fan to run at different speeds according to the system temperature. You Normal can adjust the fan speed with EasyTune based on your system requirements.

  • Page 49: System

    System This section provides information on your CPU, memory, motherboard model, and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & System Language Selects the default language used by the BIOS. &...

  • Page 50: Bios Features

    Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST. (Default: Enabled) & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) & PCI ROM Priority Allows you to determine which Option ROM to launch.

  • Page 51: Init Display First

    & Init Display First Specifies the first initiation of the monitor display from the installed PCI graphics card or the PCI Express graphics card. PCIe Slot 1 Sets the graphics card on the PCIEX16_1 slot as the first display. (Default) PCIe Slot 2 Sets the graphics card on the PCIEX4 slot as the first display.

  • Page 52: Peripherals

    Peripherals & VIA 1394 Controller Enables or disables the onboard IEEE 1394 function. (Default: Enabled) & LAN PXE Boot Option ROM Allows you to decide whether to activate the boot ROM integrated with the onboard LAN chip. (Default: Disabled) & LAN Controller (Intel GbE LAN Chip, LAN1) Enables or disables the Intel GbE LAN function.

  • Page 53: Trusted Computing

    & SAS Controller (Intel C606 Chipset) Enables or disables the integrated SAS controllers. (Default: Disabled) & Audio Device Control Enables or disables the onboard audio function. (Default: Enabled) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled.
  • Page 54 & VIA USB3.0 Controller (VIA VL800 USB Controller, USB 3.0/2.0 ports on the back panel) Enables or disables the VIA VL800 USB 3.0/2.0 controller. (Default: Enabled) & Realtek LAN Controller (Realtek GbE LAN Chip, LAN2) Enables or disables the Realtek GbE LAN function. (Default: Enabled) If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to Disabled.

  • Page 55: Power Management

    Power Management & AC BACK Determines the state of the system after the return of power from an AC power loss. Always Off The system stays off upon the return of the AC power. (Default) Always On The system is turned on upon the return of the AC power. The system returns to its last known awake state upon the return of the AC power.
  • Page 56 & Wake on LAN from S5 Allows the system to be awakened from S5 ACPI sleep state by a wake-up signal from the onboard LAN. (Default: Enabled) & ErP Support Determines whether to let the system consume least power in S5 (shutdown) state. (Default: Disabled) Note: When this item is set to Enabled, the following functions will become unavailable: PME event wake up, power on by mouse, power on by keyboard, and wake on LAN.

  • Page 57: Save & Exit

    Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. &...
  • Page 58 BIOS Setup - 58 -...

  • Page 59: Chapter 3 Drivers Installation

    • After "Xpress Install" installs all of the drivers, a dialog box will appear asking whether to install new GIGABYTE utilities. Click Yes to automatically install the utilities. Or click No if you want to manually select the utilities to install on the Application Software page later.

  • Page 60: Application Software

    Application Software This page displays all the utilities and applications that GIGABYTE develops and some free software. You can click the Install button on the right of an item to install it. Technical Manuals This page provides the content descriptions for this driver disk.

  • Page 61: Contact

    Contact For the detailed contact information of the GIGABYTE Taiwan headquarter or worldwide branch offices, click the URL on this page to link to the GIGABYTE website. System This page provides the basic system information. - 61 - Drivers Installation...

  • Page 62: Download Center

    The latest version of the BIOS, drivers, or applications will be displayed. New Program This page provides a quick link to GIGABYTE's lately developed utilities for users to install. You can click the Install button on the right of an item to install it.

  • Page 63: Chapter 4 Unique Features

    4-1-1 Updating the BIOS with the Q-Flash Utility A. Before You Begin From GIGABYTE's website, download the latest compressed BIOS update file that matches your motherboard model. Extract the file and save the new BIOS file (e.g. X79SUP5.F1) to your USB flash drive or hard drive. Note: The USB flash drive or hard drive must use FAT32/16/12 file system.
  • Page 64 B. Updating the BIOS In the main menu of Q-Flash, use the keyboard or mouse to select an item to execute. When updating the BIOS, choose the location where the BIOS file is saved. The following procedure assumes that you save the BIOS file to a USB flash drive.
  • Page 65 Step 4: During the POST, press <Delete> to enter BIOS Setup. Select Load Optimized Defaults on the Save & Exit screen and press <Enter> to load BIOS defaults. System will re-detect all peripheral devices after a BIOS update, so we recommend that you reload BIOS defaults. Select Yes to load BIOS defaults Step 5: Select Save &...

  • Page 66: Updating The Bios With The @Bios Utility

    B. Using @BIOS Update the BIOS Using the Internet Update Function: Click Update BIOS from GIGABYTE Server, select the @BIOS server site closest to your location and then download the BIOS file that matches your motherboard model. Follow the on-screen instructions to complete.

  • Page 67: Easytune 6

    EasyTune 6 GIGABYTE's EasyTune 6 is a simple and easy-to-use interface that allows users to fine-tune their system settings or do overclock/overvoltage in Windows environment. The user-friendly EasyTune 6 interface also includes tabbed pages for CPU and memory information, letting users read their system-related information without the need to install additional software.

  • Page 68: Q-Share

    Internet resources. Directions for using Q-Share After installing Q-Share from the motherboard driver disk, go to Start>All Programs>GIGABYTE>Q-Share.exe to launch the Q-Share tool. Find the Q-Share icon in the notification area and right-click on this icon to configure the data sharing settings.

  • Page 69: Chapter 5 Appendix

    Chapter 5 Appendix 5-1 Configuring SATA Hard Drive(s) RAID Levels RAID 0 RAID 1 RAID 5 RAID 10 Minimum Number of Hard ≥2 ≥3 ≥4 Drives Array Capacity Number of hard Size of the smallest (Number of hard (Number of hard drives * Size of the drive drives -1) * Size of drives/2) * Size of the...
  • Page 70 B. Configuring SATA controller mode in BIOS Setup Make sure to configure the SATA controller mode correctly in system BIOS Setup. Step 1: Turn on your computer and press <Delete> to enter BIOS Setup during the POST (Power-On Self-Test). To create RAID, set Intel SATA Controller Mode under the Peripherals menu to RAID Mode (Figure 1). If you do not want to create RAID, set this item to IDE Mode or AHCI Mode.
  • Page 71 C. Configuring a RAID array in RAID BIOS Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and proceed with the installation of Windows operating system for a non-RAID configuration. Step 1: After the POST memory test begins and before the operating system boot begins, look for a message which says "Press <Ctrl-I>...
  • Page 72 Step 3: After entering the CREATE VOLUME MENU screen, enter a volume name with 1~16 letters (letters cannot be special characters) under the Name item and press <Enter>. Then, select a RAID level (Figure 4). RAID levels supported include RAID 0, RAID 1, RAID 10, and RAID 5 (the selections available depend on the number of the hard drives being installed).
  • Page 73 Step 5: Enter the array capacity and press <Enter>. Finally press <Enter> on the Create Volume item to begin creating the RAID array. When prompted to confirm whether to create this volume, press <Y> to confirm or <N> to cancel (Figure 6). Intel(R) Rapid Storage Technology enterprise - SATA Option ROM - 3.0.0.1184 Copyright(C) 2003-11 Intel Corporation.
  • Page 74 Delete RAID Volume To delete a RAID array, select Delete RAID Volume in MAIN MENU and press <Enter>. In the DELETE VOLUME MENU section, use the up or down arrow key to select the array to be deleted and press <Delete>. When prompted to confirm your selection (Figure 8), press <Y> to confirm or <N> to abort. Intel(R) Rapid Storage Technology enterprise - SATA Option ROM - 3.0.0.1184 Copyright(C) 2003-11 Intel Corporation.

  • Page 75: Configuring Marvell 88Se9172 Sata Controllers

    5-1-2 Configuring Marvell 88SE9172 SATA Controllers A. Installing SATA hard drive(s) in your computer Attach one end of the SATA signal cable to the rear of the SATA hard drive and the other end to available SATA port on the motherboard. The Marvell 88SE9172 SATA controllers control the onboard eSATA connectors. Then connect the power connector from your power supply to the hard drive.
  • Page 76 Figure 2 Step 2: Save changes and exit BIOS Setup. C. Configuring a RAID array in RAID BIOS Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and proceed to the installation of Windows operating system for a non-RAID configuration. After the POST memory test begins and before the operating system boot begins, look for a message which says "Press <Ctrl>+<M>...
  • Page 77 On the main screen of the RAID setup utility (Figure 4), use the left or right arrow key to move through tabs. Marvell BIOS Setup (c) 2009 Marvell Technology Group Ltd. [ Adapter ] [ Devices ] [ RAID ] Adapter 0 Vendor ID Device ID: 1B4B:91A2...
  • Page 78 Step 2: The next screen displays the two hard drives you installed. Press <Enter> or <Space> on the two hard drives respectively to add them into the RAID array. Selected hard drives are marked with an asterisk (Figure 6). Then press <Enter> on NEXT. Marvell BIOS Setup (c) 2009 Marvell Technology Group Ltd.
  • Page 79 6. NEXT: After completing the settings above, move to NEXT and press <Enter> to begin creating the array. When prompted to confirm, press <Y> to confirm or <N> to cancel (Figure 8). Marvell BIOS Setup (c) 2009 Marvell Technology Group Ltd. [ Adapter] [ Devices] [ RAID ]...
  • Page 80 Delete the RAID Array: To deleted the existing array, press <Enter> on the RAID tab and select Delete VD. When the Delete VD menu appears, press <Enter> on the array to select it and then press <Enter> on NEXT. When prompted, press <Y> to confirm (Figure 10).

  • Page 81: Installing The Sata Raid/Ahci Driver And Operating System

    5-1-3 Installing the SATA RAID/AHCI Driver and Operating System With the correct BIOS settings, you are ready to install the operating system. A. Installing Windows 7/Vista (The following instructions use Windows 7 as the example operating system.) Step 1: Boot from the Windows 7/Vista setup disk and perform standard OS installation steps. When you arrive at the "Where do you want to install Windows?"...
  • Page 82 B. Rebuilding an Array Rebuilding is the process of restoring data to a hard drive from other drives in the array. Rebuilding applies only to fault-tolerant arrays such as RAID 1, RAID 5, and RAID 10 arrays. The procedures below assume a new drive is added to replace a failed drive to rebuild a RAID 1 array. (Note: The new drive must have equal or greater capacity than the old one.) For the Intel C606: Turn off your computer and replace the failed hard drive with a new one.
  • Page 83 • Performing the Rebuild in the Operating System While in the operating system, make sure the Chipset driver and Intel Rapid Storage Technology Enterprise RAID Port Drivers have been installed from the motherboard driver disk. Then launch Intel Rapid Storage Technology enterprise from All Programs in the Start menu. Step 2: Select a new drive to rebuild the RAID and click Rebuild.
  • Page 84 For the Marvell 88SE9172: Turn off your computer and replace the failed hard drive with a new one. Restart your computer. To enable an automatic rebuild in the operating system, you have to set the new hard drive as a Spare drive in the RAID setup utility first.
  • Page 85 Step 3: Make sure you have installed the Marvell RAID driver and Marvell Storage Utility from the motherboard driver disk. While in the operating system, launch the Marvell Storage Utility from Start\All Programs\Marvell Storage icon in the notification area, and select Open MSU. Then login the Utility\Marvell Tray, right-click on the Marvell Storage Utility.

  • Page 86: Configuring Sas Hard Drive(S)

    5-2 Configuring SAS Hard Drive(s) RAID Levels RAID 0 RAID 1 RAID 10 Minimum Number of Hard ≥2 ≥4 Drives Array Capacity Number of hard Size of the smallest (Number of hard drives * Size of the drive drives/2) * Size of the smallest drive smallest drive Fault Tolerance To configure SAS hard drive(s), follow the steps below:...
  • Page 87 B. Configuring SAS controller mode in BIOS Setup Make sure to configure the SAS controller mode correctly in system BIOS Setup. Step 1: Turn on your computer and press <Delete> to enter BIOS Setup during the POST (Power-On Self-Test). To create RAID, set SAS Controller under the Peripherals menu to Enabled (Figure 1). Figure 1 Step 2: Save changes and exit BIOS Setup.
  • Page 88 C. Configuring a RAID array in RAID BIOS Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and proceed with the installation of Windows operating system for a non-RAID configuration. Step 1: After the POST memory test begins and before the operating system boot begins, look for a message which says "Press <Ctrl-I>...
  • Page 89 Step 3: After entering the CREATE VOLUME MENU screen, enter a volume name with 1~16 letters (letters cannot be special characters) under the Name item and press <Enter>. Then, select a RAID level (Figure 4). RAID levels supported include RAID 0, RAID 1, and RAID 10 (the selections available depend on the number of the hard drives being installed).
  • Page 90 Step 5: Enter the array capacity and press <Enter>. Finally press <Enter> on the Create Volume item to begin creating the RAID array. When prompted to confirm whether to create this volume, press <Y> to confirm or <N> to cancel (Figure 6). Intel(R) Rapid Storage Technology enterprise - SCU Option ROM - 3.1.0.2101 Copyright(C) 2003-12 Intel Corporation.
  • Page 91 Delete RAID Volume To delete a RAID array, select Delete RAID Volume in MAIN MENU and press <Enter>. In the DELETE VOLUME MENU section, use the up or down arrow key to select the array to be deleted and press <Delete>. When prompted to confirm your selection (Figure 8), press <Y> to confirm or <N> to abort. Intel(R) Rapid Storage Technology enterprise - SCU Option ROM - 3.1.0.2101 Copyright(C) 2003-12 Intel Corporation.

  • Page 92: Installing The Sas Raid Driver And Operating System

    5-2-2 Installing the SAS RAID Driver and Operating System With the correct BIOS settings, you are ready to install the operating system. A. Installing Windows 7/Vista (The following instructions use Windows 7 as the example operating system.) Step 1: Boot from the Windows 7/Vista setup disk and perform standard OS installation steps. When you arrive at the "Where do you want to install Windows?"...
  • Page 93 B. Rebuilding an Array Rebuilding is the process of restoring data to a hard drive from other drives in the array. Rebuilding applies only to fault-tolerant arrays such as RAID 1 and RAID 10 arrays. The procedures below assume a new drive is added to replace a failed drive to rebuild a RAID 1 array. (Note: The new drive must have equal or greater capacity than the old one.) Turn off your computer and replace the failed hard drive with a new one.
  • Page 94 • Performing the Rebuild in the Operating System While in the operating system, make sure the Chipset driver and Intel Rapid Storage Technology Enterprise RAID Port Drivers have been installed from the motherboard driver disk. Then launch Intel Rapid Storage Technology enterprise from All Programs in the Start menu. Step 2: Select a new drive to rebuild the RAID and click Rebuild.

  • Page 95: Configuring Audio Input And Output

    5-3 Configuring Audio Input and Output 5-3-1 Configuring 2/4/5.1/7.1-Channel Audio The motherboard provides five audio jacks on the back panel which support 2/4/5.1/7.1-channel audio. (Note) The picture to the right shows the default audio jack Center/Subwoofer Line In assignments. Speaker Out Front Speaker Out The integrated HD (High Definition) audio provides jack Rear Speaker Out retasking capability that allows the user to change the Mic In...
  • Page 96 Step 2: Connect an audio device to an audio jack. The The current connected device is dialog box appears. Select the device according to the type of device you connect. Then click OK. Step 3: On the Speakers screen, click the Speaker Configuration tab. In the Speaker Configuration list, select Stereo, Quadraphonic, 5.1 Speaker, or 7.1 Speaker according to the type of speaker configuration you wish to set up.

  • Page 97: Configuring S/Pdif Out

    5-3-2 Configuring S/PDIF Out The S/PDIF Out jack can transmit audio signals to an external decoder for decoding to get the best audio quality. 1. Connecting a S/PDIF Out Cable: Connect a S/PDIF optical cable to the corresponding S/PDIF out connector as shown below and an external decoder for transmitting the S/PDIF digital audio signals.

  • Page 98: Configuring Microphone Recording

    5-3-3 Configuring Microphone Recording Step 1: After installing the audio driver, the HD Audio Manager icon will appear in the notification area. Double-click the icon to access the HD Audio Manager. Step 2: Connect your microphone to the Mic in jack (pink) on the back panel or the Mic in jack (pink) on the front panel. Then configure the jack for microphone functionality.
  • Page 99 Step 5: After completing the settings above, click Start, point to All Programs, point to Accessories, and then click Sound Recorder to begin the sound recording. * Enabling Stereo Mix If the HD Audio Manager does not display the recording device you wish to use, refer to the steps below. The following steps explain how to enable Stereo Mix (which may be needed when you want to record sound from your computer).

  • Page 100: Using The Sound Recorder

    Step 4: Now you can access the HD Audio Manager to configure Stereo Mix and use Sound Recorder to record the sound. 5-3-4 Using the Sound Recorder A. Recording Sound 1. Make sure you have connected the sound input device (e.g. microphone) to the computer. 2. To record the audio, click the Start Recording button 3.

  • Page 101: Troubleshooting

    5-4 Troubleshooting 5-4-1 Frequently Asked Questions To read more FAQs for your motherboard, please go to the Support & Downloads\FAQ page on GIGABYTE's website. Q: Why is the light of my keyboard/optical mouse still on after the computer shuts down? A: Some motherboards provide a small amount of standby power after the computer shuts down and that's why the light is still...

  • Page 102: Troubleshooting Procedure

    5-4-2 Troubleshooting Procedure If you encounter any troubles during system startup, follow the troubleshooting procedure below to solve the problem. START Turn off the power. Remove all peripherals, connecting cables, and power cord etc. Make sure the motherboard does not short-circuit with the chassis or Isolate the short circuit.
  • Page 103 The power supply, CPU or When the computer is turned on, is the CPU cooler running? CPU socket might fail. The problem is verified and solved. The graphics card, expansion slot, or monitor Check if there is display on your monitor. might fail. The problem is verified and solved. Turn off the computer. Plug in the keyboard and mouse and restart the computer.

  • Page 104: Regulatory Statements

    "end of life" product. Restriction of Hazardous Substances (RoHS) Directive Statement GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE and PBB). The parts and components have been carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE are continuing our efforts to develop products that do not use internationally banned toxic chemicals.
  • Page 105 - 105 - Appendix...
  • Page 106 Appendix - 106 -...
  • Page 107 - 107 - Appendix...
  • Page 108 Appendix - 108 -...
  • Page 109 - 109 - Appendix...
  • Page 110 Appendix - 110 -...
  • Page 111 Contact Us • GIGA-BYTE TECHNOLOGY CO., LTD. • NINGBO G.B.T. TECH. TRADING CO., LTD. - China Address: No.6, Bao Chiang Road, Hsin-Tien Dist., WEB address : http://www.gigabyte.cn Shanghai New Taipei City 231,Taiwan TEL: +886-2-8912-4000 TEL: +86-21-63410999 FAX: +886-2-8912-4003 FAX: +86-21-63410100 Tech. and Non-Tech. Support (Sales/Marketing) : Beijing http://ggts.gigabyte.com.tw TEL: +86-10-62102838 WEB address (English): http://www.gigabyte.com FAX: +86-10-62102848 WEB address (Chinese): http://www.gigabyte.tw...
  • Page 112 • Kazakhstan WEB address : http://www.gigabyte.com.gr WEB address : http://www.gigabyte.kz • Czech Republic You may go to the GIGABYTE website, select your language in WEB address : http://www.gigabyte.cz the language list on the top right corner of the website. GIGABYTE Global Service System •...
