Summary of Contents for Ocean Matrix OMX-ADA1x3

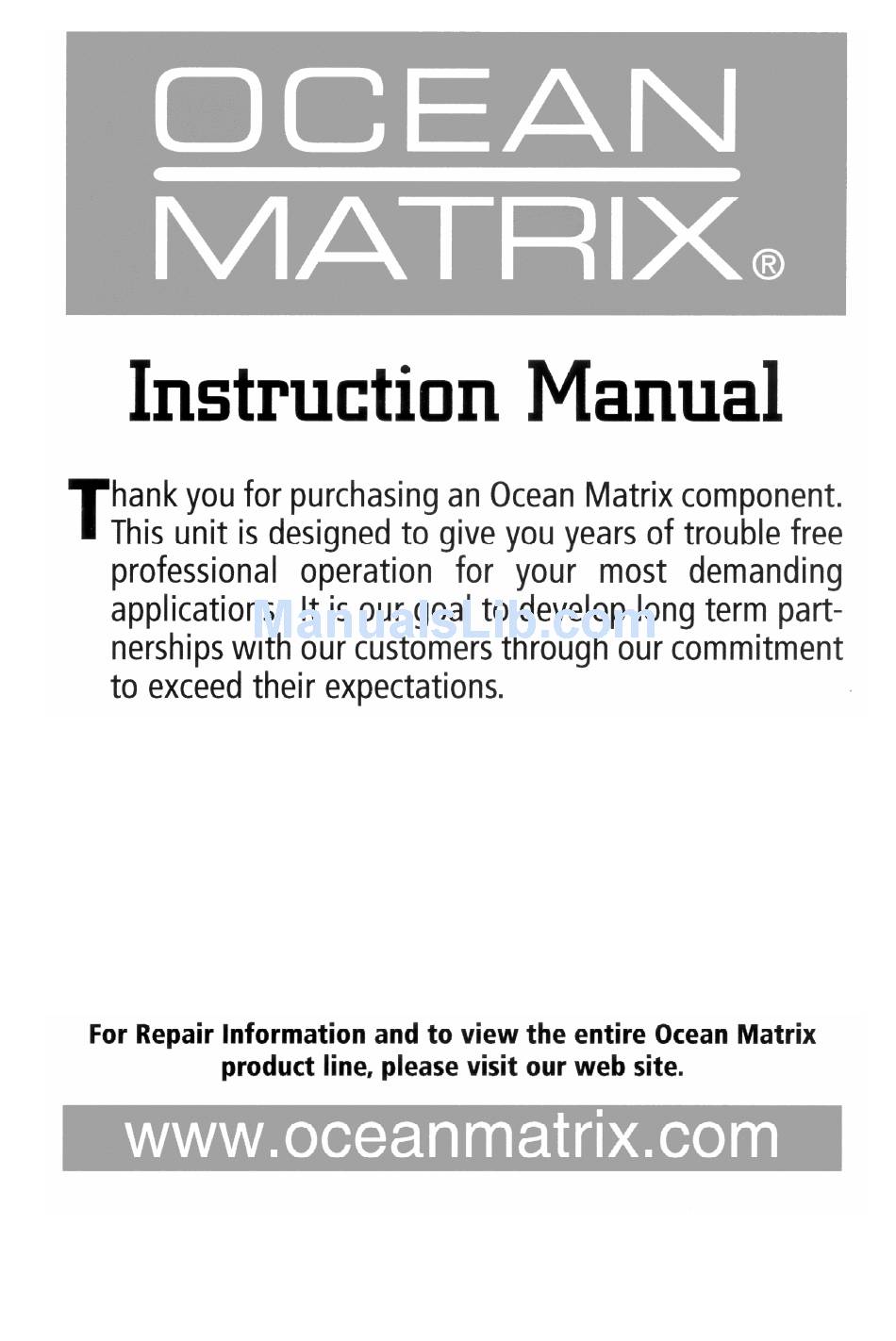

- Page 1 OMX-ADA1x3...
- Page 2 Introduction Getting Started Overview Your OMX-ADA1x3 Audio Distributor Connecting the OMX-ADA1x3 Technical Specifications Figures Figure 1: OMX-ADA1x3 Audio Distributor Figure 2: Connecting the OMX-ADA1x3 Audio Distributor Tables Table 1: OMX-ADA1x3 Features and Functions Table 2: Technical Specifications of the OMX-ADA1x3...
-
Page 3: Getting Started
Review the contents of this instruction manual Overview The OMX-ADA1x3 is a high quality 1:3 balanced stereo audio distribution amplifier. It accepts one balanced stereo input and distributes the signal to three identical stereo outputs with no discernible signal degradation. The... - Page 4 Your OMX-ADA1x3 Audio Distributor Your OMX-ADA1x3 Audio Distributor Figure 1 and Table 1 define the OMX-ADA1x3 Audio Distributor: INPUT OUT 1 OUT 2 OUT 3 12 VDC Figure 1: OMX-ADA1x3 Audio Distributor Table 1: OMX-ADA1x3 Features and Functions Feature Function...
- Page 5 Stereo Audio Acceptor 1 Figure 2: Connecting the OMX-ADA1x3 Audio Distributor 1 Switch OFF the power on each device before connecting it to your OMX-ADA1x3. After connecting your OMX-ADA1x3, switch on its power and then switch on the power on each device...
-
Page 6: Technical Specifications
Technical Specifications Technical Specifications Table 2 describes the technical specifications: Table 2: Technical Specifications of the OMX-ADA1x3 INPUT: 1 balanced audio stereo +4dBm/100k on detachable terminal blocks OUTPUTS: 3 balanced audio stereo +4dBm/50 on detachable terminal blocks MAX. OUTPUT LEVEL:...
