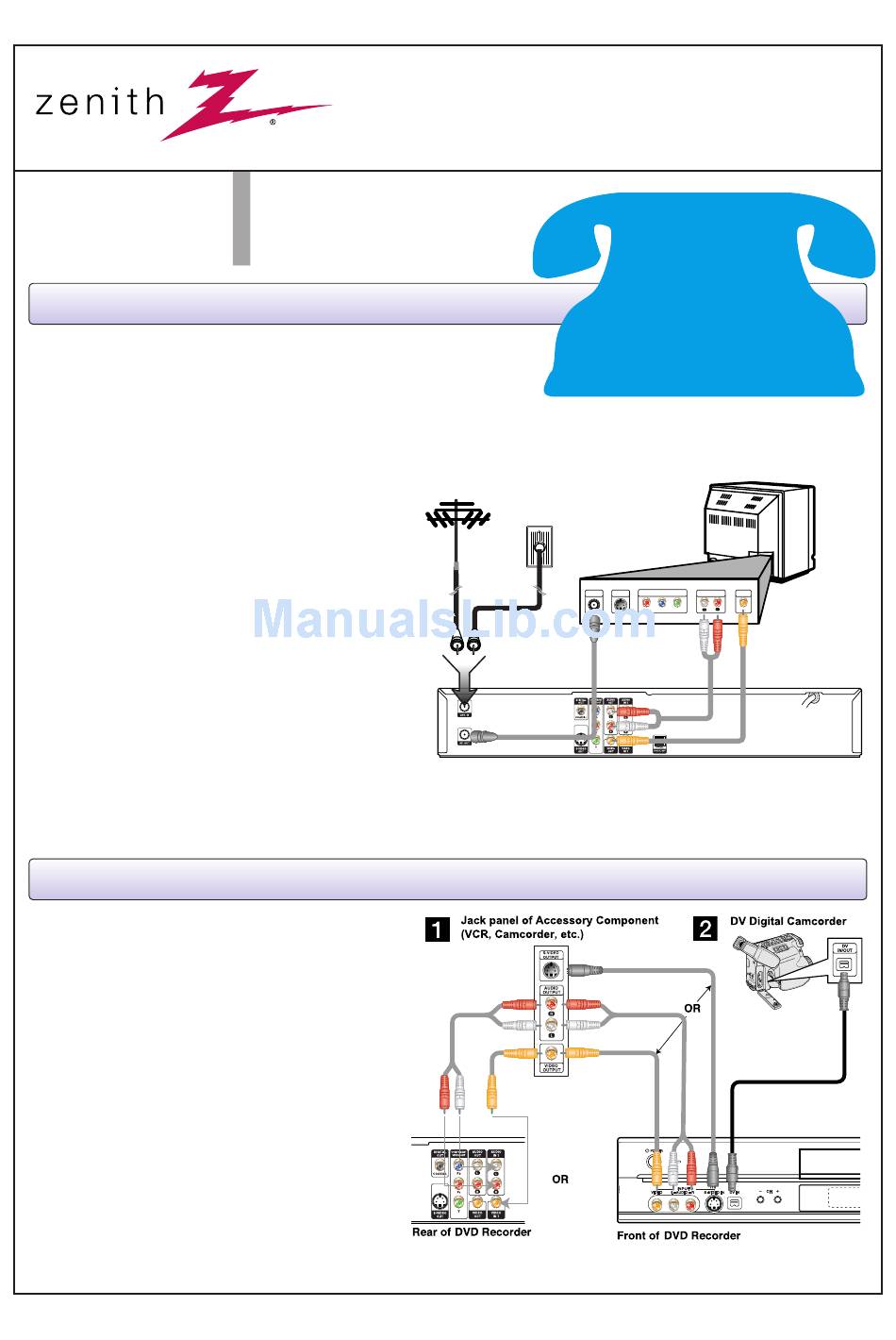

STEP 1
DVD Recorder to TV Connections
a Connect the "Antenna" or "Cable TV"
service wire to the "ANT. IN" jack on
the DVD Recorder using a coaxial
RF Cable.
b Connect the RF.OUT jack from the
DVD Recorder to the Antenna Input
jack on the TV using the RF Cable
supplied.
And/Or
Connect the "A/V OUT" jacks from
the DVD Recorder to the "VIDEO IN"
and "AUDIO IN" jacks on the TV
using the RCA-type Cables supplied.
c Turn the TV on and select the video
input source connected to the DVD
Recorder.
Antenna Input Connection: Tune the
TV to channel 3 or 4.
Audio/Video Connections: Tune the
TV to the video input source.
Connecting Accessory Equipment
a Connect the AV 1 IN or AV 2 IN jacks
from the DVD Recorder to the
Audio/Video out jacks on your exter-
nal A/V device, using optional
audio/video cables.
b Use a DV Cable (not supplied) to
connect the DV in/out jack from your
DV Digital Camcorder to the front
panel DV IN jack on the DVD
Recorder.
Note: See the owner's manual for
more detailed advanced connec-
tions.
Quick Setup Guide
Connections
Coaxial
RF Cable
C C a a l l l l 1 1 - - 8 8 7 7 7 7 - - 9 9 Z Z e e n n i i t t h h
( ( 1 1 - - 8 8 7 7 7 7 - - 9 9 9 9 3 3 - - 6 6 4 4 8 8 4 4 ) )
Antenna
Antenna/Cable TV
Wall Jack
OR
a
ANTENNA
INPUT
RF Cable
Call us and we will
guide you through
your first recording,
for free.
S-VIDEO
VIDEO
COMPONENT VIDEO INPUT
AUDIO INPUT
INPUT
INPUT
Y
Pr
Pb
R
L
Audio Cable
Video Cable
b
DVD Recorder's Connection Panel
P/NO: 3840R-Q031S
DVR413
c
