Planet Networking & Communication ENW-9702 Quick Installation Manual

PCI Express Gigabit Ethernet Adapter
Quick Installation Guide Version 1.0
Thank you for purchasing PLANET ENW-9702 PCI Express
Gigabit Ethernet adapter. It is a 10/100/1000Mbps
Ethernet adapter for PCI local bus-compliant PCs,
supports Auto-Negotiation for 10/100/1000Mbps
Ethernet connection. The PLANET ENW-9702 PCI Express
Gigabit Ethernet adapter provides a highly cost-effective
solution to upgrading to the Gigabit network with your
existing Ethernet infrastructures.
Operation System Support:
 Windows 98 / ME
 Windows 2000 / 2003 / 2003R2
 Windows XP
 Windows Vista
 Windows 7
 Windows 8
 Linux / MAC OS
- 1 -

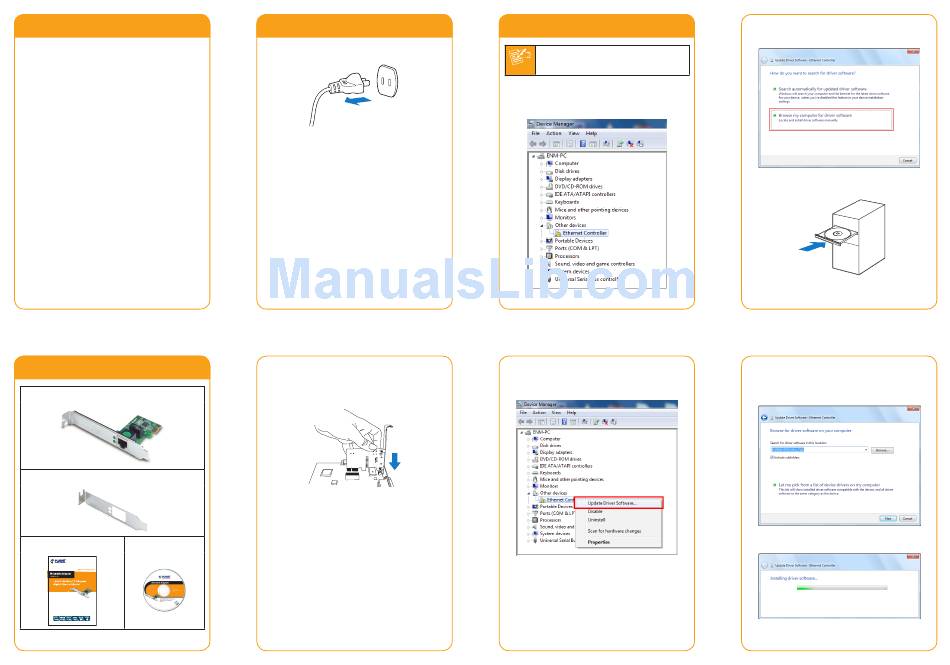

Package Content
ENW-9702 x 1
Low Profile Bracket x 1
Quick Installation Guide x 1 User's Manual CD x 1
- 2 -
Hardware Installation
Step 1: Please turn off your PC.
Step 2: Remove any metal decorations from your
hands and wrists.
Step 3: Remove the cover from your PC.
Step 4: Locate an empty PCI Express slot and remove
the corresponding back plate. Save the screw
for use in Step 6.
- 3 -
Step 5: Carefully insert the Gigabit Ethernet Adapter
into the chosen slot and press firmly with
proper push to ensure it is fully seated in the
slot.
Step 6: Secure the Gigabit Ethernet Adapter with the
screw you saved in step 4.
Step 7: Replace the PC cover.
Step 8: Power on your PC and refer to next section to
install driver.
- 4 -
Installation on Windows 7
This operation is under Win7, it is similar to
Windows Server 2008.
Note
1. After installing ENW-9702 to your PC and boot up,
Windows 7 will detect it and you have to install
driver.
- 5 -
2. Please Move and right click the mouse button for
Ethernet Controller item and select "Update Driver
Software".
- 6 -
3. Please select "Browse my computer for driver
software" for next step.
4. Insert the bundled CD into the CD-ROM driver.
- 7 -
5. Please click "Browse" to specify the driver location
to install. (Assume "E" is your CD-ROM drive, the
driver can be found in E:\ENW-9702\Win_7\64). Click
"Next" to continue.
The driver installs process.
