Gainsborough G+ KEY User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

G+ KEY
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G+ KEY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gainsborough G+ KEY

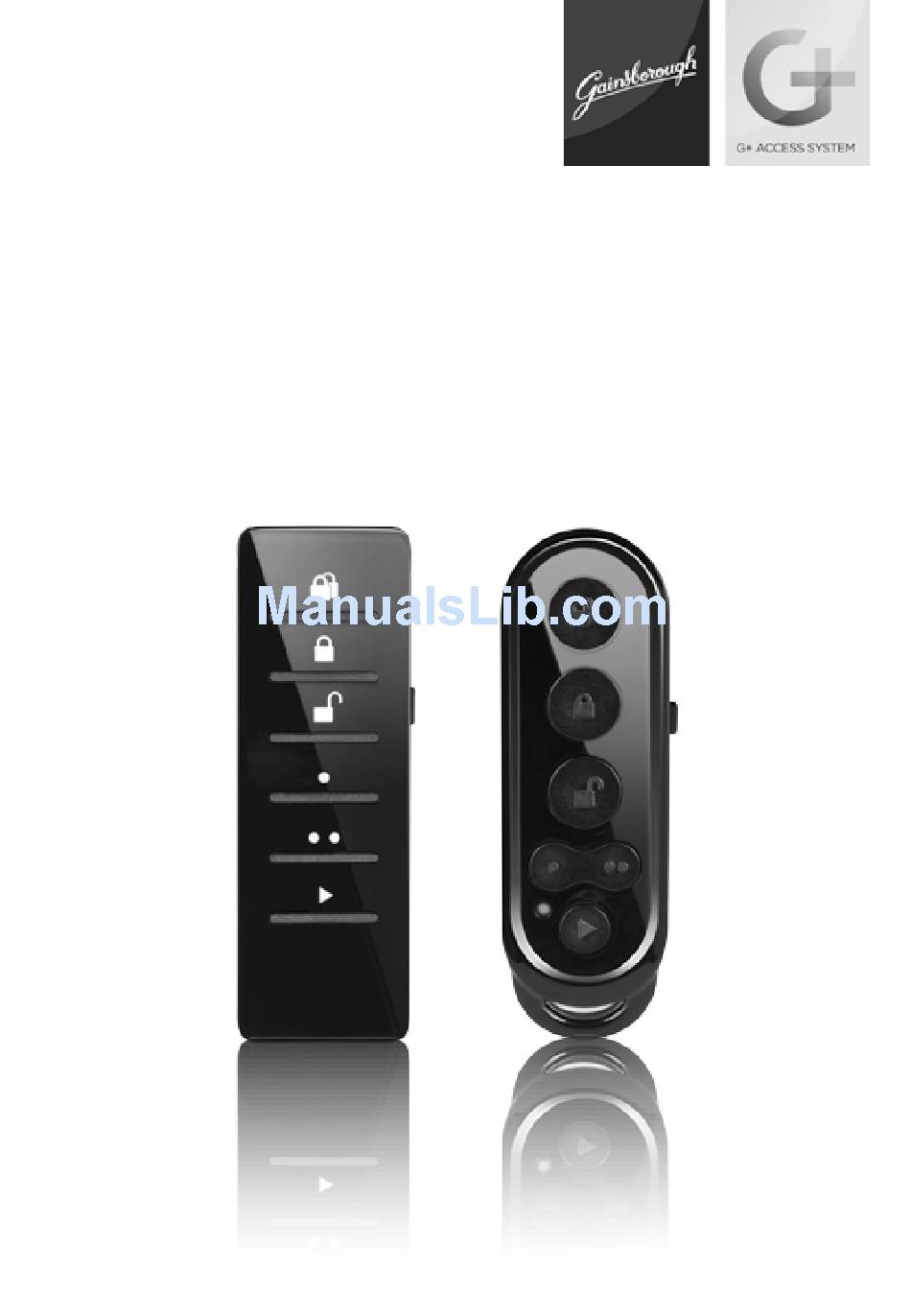

  • Page 1 G+ KEY User Guide...
  • Page 3 WELCOME TO THE EASIER WAY TO ACCESS YOUR HOME...
  • Page 4 This guide will show you how to use your G+ Key What’s IN your G+ KEy box? Premium G+ key 1 x Premium G+ key 2 x Cr2032 batteries basic G+ key 1 x basiC G+ key 2 x Cr2025 batteries...

  • Page 5: Table Of Contents

    2 Getting started ....................12 Installing the batteries Using the shift button Setting and using the unlock button Teaching a G+ Key to a G+ Device / Removing a G+ Key from a G+ Device sECtIoN 3 General specifications .................18...

  • Page 7: Overview

    OVERVIEW, LAYOUT, FUNCTIONS, FEEDBACK LIGHTS...
  • Page 8 Overview The Premium G+ Key is used within the G+ Access System to control G+ Devices. Premium G+ key basic G+ key G+ DEvICEs thE PrEmIum G+ KEy CaN CoNtrol INCluDE: • Electric G+ Lockset • Battery G+ Lockset • G+ Smart Box • G+ Enabled Gliderol Garage Doors...
  • Page 9 G+ Key from confirming status for feedback devices previously taught. shIFt buttoN The G+ Key has a shift button to allow the first 5 buttons to control a second set of devices, therefore providing a total of up to 10 devices which can be controlled independently.

  • Page 10: Layout

    Layout unlock button activation buttons shift button battery cover Lock switch enable (shown key ring disabled) attachment point section 1 Layout...
  • Page 11 unlock button activation buttons activation button shift button battery cover Lock switch enable (shown key ring disabled) attachment point section 1 Layout...

  • Page 12: Functions

    Functions Premium G+ key button 1 button 6: (shift) + 1 button 2 button 7: (shift) + 2 unlock button button 3 button 8: (shift) + 3 button 4 button 9: (shift) + 4 button 5 button 10: (shift) + 5...
  • Page 13 buttoN FuNCtIoNs G+ Lockset Activate for a G+ Smart Box/ Deadlock G+ Enabled Gliderol Garage Door G+ Lockset Activate for a G+ Smart Box/ Passage G+ Enabled Gliderol Garage Door G+ Lockset Activate for a G+ Smart Box/ Privacy G+ Enabled Gliderol Garage Door Activate for a G+ Smart Box / G+ Enabled Gliderol Garage Door Activate for a G+ Smart Box /...

  • Page 14: Feedback Lights

    • An error can be the result of: – The G+ Device not being able to perform the request – The Premium G+ Key no longer being in range to receive feedback from the G+ Device – The Premium G+ Key not receiving the feedback within 35 seconds.
  • Page 15 Deadlock, the green light to the left of the Deadlock button will illuminate. – If there is a problem with the lock, or the Premium G+ Key does not receive any feedback, the green light to the left of the Deadlock button will flash.

  • Page 17: Getting Started

    GETTING STARTED...

  • Page 18: Installing The Batteries

    Getting started INstallING thE battErIEs step 1: Rotate and remove battery cover step 2: Insert batteries “+” side up step 3: Replace cover and rotate to lock section 2 Getting Started...
  • Page 19 step 1: Rotate and remove battery cover step 2: Insert batteries “+” side up step 3: Replace cover and rotate to lock section 2 Getting Started...

  • Page 20: Using The Shift Button

    usING thE shIFt buttoN Pressing the Shift Button will allow buttons 1 to 5 to access a second group of devices for 5 seconds. After the 5 seconds, buttons 1 to 5 will revert back to controlling the first group of buttons.

  • Page 21: Teaching A G+ Key To A G+ Device / Removing A G+ Key From A G+ Device

    G+ KEy to a G+ DEvICE / rEmovING a G+ KEy From a G+ DEvICE. For a G+ Key to control a G+ Device it must first be taught to that Device. Refer to the specific G+ Device manual for method of teaching the G+ Key to that device, or, refer to Gainsborough’s website:...

  • Page 23: General Specifications

    GENERAL SPECIFICATIONS...
  • Page 24 Operating temperature range -10°C to 50°C Storage temperature range -40°C to 85°C The G+ Key is not waterproof and should be kept away from water. systEm raNGE The operating range of the G+ Key is approximately 30–50 metres in free air.
  • Page 25 NotEs...
  • Page 26 The availability of products set out in this document is not guaranteed and Gainsborough Hardware reserves the right to alter, amend or delete any part of this document without prior notice.
  • Page 28 Gainsborough Hardware industries Limited Hotline 13 14 18 Head Office 31–33 Alfred Street Blackburn, VIC 3130 PO Box 330, Blackburn VIC telephone 03 9877 1555 admin & export Fax +61 (0)3 9894 1599 email sales@gainsboroughhardware.com.au www.gainsboroughhardware.com.au Suite 1B, 433 Logan Rd 12 Juna Drv 31–33 Alfred St...
