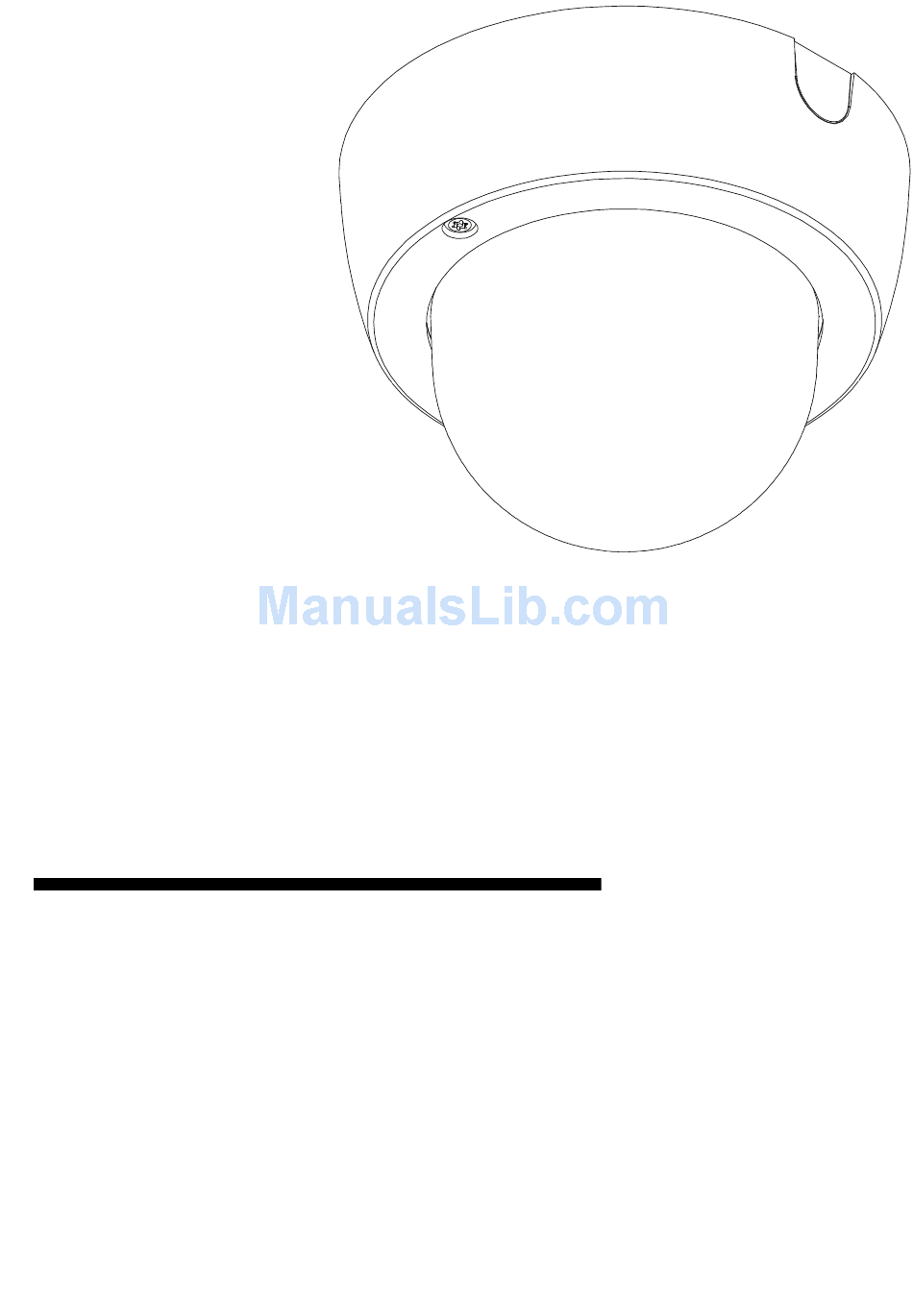

Installation Guide ClearPix High Definition H.264 IP Dome Camera: IDM12DN-H2, MIDM12DN-H2, IDM22DN-H2, MIDM22DN-H2, IDM32DN-H2-WDR, MIDM32DN-H2-WDR, IDM52DN-H2 and MIDM52DN-H2 920-0057B-Rev1...
Do not expose to rain or moisture. • For indoor use only. If used outdoors, an approved outdoor mounting adapter or enclosure is required. Consult with ClearPix for more information. • Installation must be performed by qualified personnel only, and must conform to all local codes.
Page 4
• Do not use strong or abrasive detergents when cleaning the device body. • Use only accessories recommended by ClearPix. • Use of controls or adjustments or performance of procedures other than those specified in this document may result in hazardous radiation exposure.
Changes or modifications made to this equipment not expressly approved by ClearPix Corporation or parties authorized by ClearPix Corporation could void the user’s authority to operate this equipment. Disposal and Recycling Information...
The contents of this manual and the specifications of this product are subject to change without notice. ClearPix reserves the right to make changes without notice in the specifications and materials contained herein and shall not be...
Overview Cover View Tamper Proof Screws Cable Entry Hole Dome Cover Feature Description Dome Cover Vandal proof dome cover constructed out of plastic with a polycarbonate bubble. Tamper Proof Screws TORX tamper-resistant captive screws to fix the dome cover to the base. Cable Entry Hole An entry hole for network, power and I/O cables.
Bottom View Cable Entry Hole Mounting Holes Serial Number Tag Feature Description Cable Entry Hole An entry hole for network, power and I/O cables. Mounting Holes Mounting points for the dome camera. Serial Number Tag Product serial number and part number label.
Front View Azimuth Control Tilt Lock Thumb Screw Link LED Connection Status LED Pan Lock Thumb Screw Ethernet Port Power Connector Block I/O Terminals Audio/Video Connector Feature Description Tilt Lock Thumb Provides a locking mechanism for the image tilt Screws adjustment.
Small slotted screwdriver with 5/64” or 2 mm blade width — for connecting power when not using Power over Ethernet. Camera Package Contents Ensure the package contains the following: • ClearPix High Definition IP Dome Camera • Terminal block • T20 TORX tamper resistant key •...
Mounting the Dome Camera Perform the following steps to mount the dome camera to the ceiling or wall: Use the drill template to drill four mounting holes and one cable entry hole in the ceiling or wall. Pull the cables through the cable entry hole in the ceiling or wall, then through the cable entry hole in the dome camera.
Connecting Cables Refer to the diagrams in the Overview section for the location of the different connectors. To connect the cables required for proper operation, complete the following: If there are external input or output devices that need to be connected to the camera (for example: door contacts, relays, etc), connect the devices to the camera I/O Terminals.
Zeroconf, the IP address is in the 169.254.0.0/16 subnet. The IP address settings can be changed using one of the following methods: • (Recommended) ClearPix Camera Installation Tool software application. • Camera's web browser interface: http://<camera IP address>/ •...
• In the ClearPix Camera Installation Tool, use the camera’s Image and Display settings to focus the camera lens. Click the Auto Focus button to focus the lens.
Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the dome camera needs to be powered through the removable power connector block. Refer to the diagrams in this guide for the location of the power connector block.
Connecting to External Devices External devices are connected to the camera through the I/O terminal. The pinout for the I/O terminal is shown in the following table and diagram. Table:External I/O Terminals Function Description Ground Ground Input To activate, connect the Input to the Ground pin.
When the camera flicker control is set to 60 Hz, the video output signal is NTSC. When the flicker control is set to 50 Hz, the video output signal is PAL. Use the ClearPix Camera Installation Tool to configure the camera’s flicker control in the Image and Display setup.
LED Indicators Once the camera is connected to the network, the Connection Status LED will display the camera’s progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Table:LED Indicators Connection Connection Description State Status LED Obtaining IP...
Reset to Factory Default Settings If the camera no longer functions as expected, you can choose to restore the camera to its factory default settings. Use the firmware revert button to reset the camera. Firmware Revert Button Figure: The firmware revert microswitch on the side of the dome camera.
Setting the IP Address Through the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. Open a Command Prompt window and enter the following commands: arp -s <New Camera IP Address>...
ClearPix’s entire liability and your exclusive remedy against ClearPix for any failure of this product to operate properly. In no event shall ClearPix be liable for any indirect, incidental, special, consequential, exemplary, or punitive damages whatsoever (including but not limited to, damages for loss of profits or confidential or other...
