Summary of Contents for Thermoptek FireAngel ST-625

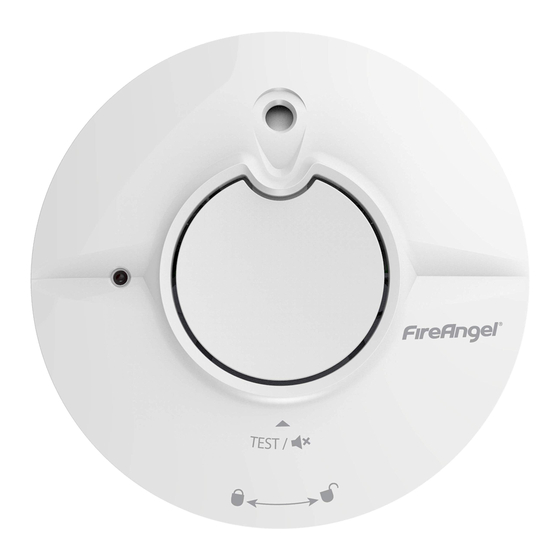

- Page 1 User Manual Smoke Alarm Model ST-625...
- Page 2 0333-CPR-292075 Smoke alarm devices EN 14604:2005 + AC:2008 0333 DOP: SADOPST-625-01 ST-625 GN3054R1 A Sprue Safety Products Brand Sprue Safety Products Ltd. Vanguard Centre, Sir William Lyons Road, Coventry CV4 7EZ UK Technical Support: 0800 141 2561 / UK Textphone users dial: 18001 0800 141 2561 EIRE dial: 1-800 523171 / Email: technicalsupport@sprue.com / Web: www.fireangel.co.uk...
-
Page 3: Table Of Contents
CONTENTS Introduction ... . 4 Alarm Smart Silence™ ..10 Sensor technology ..4 Sleep Easy™ ..11 Application . -
Page 4: Introduction
fires, and constant monitoring alternative traditional alarms. of temperature changes enables the Groundbreaking Thermoptek technology sensitivity of the alarm to be instantly ® combines the very latest in optical sensing increased thereby quickening the typical with thermal enhancement, providing... -
Page 5: Application
APPLICATION WARNING: Your FireAngel smoke alarm ® can be installed into a new build property as additional protection to an existing smoke detection system only. It cannot be BEDROOM HALL BEDROOM used as a substitute for a hard wired system as required in new build properties. -
Page 6: How To Install Your Smoke Alarm
boarding houses and dormitories. Your alarm as shown, making sure that the ST-625 smoke alarm can be used in positive and negative connections are in individual sleeping / resident rooms, the correct position. providing the same conditions are met as for a single-family residence. - Page 7 Base Plate Holes Fit Your FireAngel Smoke Alarm Ⓡ Hold the alarm up to the base plate and The base plate should be attached to the push and rotate the alarm clockwise into ceiling or wall using the screws and fixings position as shown.
-
Page 8: Operation
BATTERY Test Your FireAngel Smoke Ⓡ Alarm REPLACEMENT After fitting your alarm to the base plate, wait seconds IMPORTANT: Only the following batteries alarm to settle then test the alarm. See can be used for replacement. Use of a ‘Alarm Test’. battery other than those recommended below may have a detrimental effect on OPERATION... -
Page 9: Alarm Test
Remove existing batteries After fitting your alarm to the base plate, replace with new batteries from the list of wait for 5 seconds for the alarm to settle recommended batteries making sure that then test the alarm. the positive and negative connections are in the correct position. -
Page 10: Alarm Smart Silence
The unit will give an audible alarm or disable the smoke alarm in any way, as consisting of 2 cycles of 3 loud beeps, then this will remove your protection. Smoke stop automatically. alarms can sometimes react to cooking fumes or other non-emergency situations. Your smoke alarm... -
Page 11: Sleep Easy
DANGER: Never ignore alarm. Ignoring the alarm may result in injury or death. If your smoke alarm activates and you are not absolutely certain of the During the reduced sensitivity mode the source of the smoke, get everyone out of red LED on your alarm will continue to flash the house immediately. -
Page 12: Maintenance
MAINTENANCE WARNING: Your FireAngel smoke alarm ® may false alarm when it is being cleaned Your FireAngel smoke alarm has been using a vacuum cleaner. ® designed to be as maintenance-free as IMPORTANT: Do not use solvents or possible, however there are several things cleaners on your FireAngel smoke alarm, ®... -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Solution • If testing immediately after first activating the alarm or replacing the batteries, you should allow a few seconds for the alarm to settle before testing. • Make sure you push the centre of the test button Your FireAngel smoke ® firmly. alarm does not sound • If the unit has been silenced and is in low sensitivity during testing mode it may not test. Wait 15 minutes then try again. • If the alarm has been recently fitted and it still fails to self test then contact Technical Support on: 0800 141 2561 or e-mail: technicalsupport@sprue.com. - Page 14 Problem Solution • You can only silence the low battery warning chirp for a maximum of 10 times. Replace batteries. If the batteries have been recently fitted, and the alarm is The low battery warning still chirping, contact Technical Support. silence chirp does not silence when the test button • If the red LED flashes at a separate time from the is pressed chirp, a fault is indicated.
-
Page 15: Disposal
Unlike ionisation smoke alarms, transferable. Proof of purchase is required. which have been in the UK since 1987, your Thermoptek Ⓡ alarm does not contain This warranty does not cover damage resulting any radioactive material.
