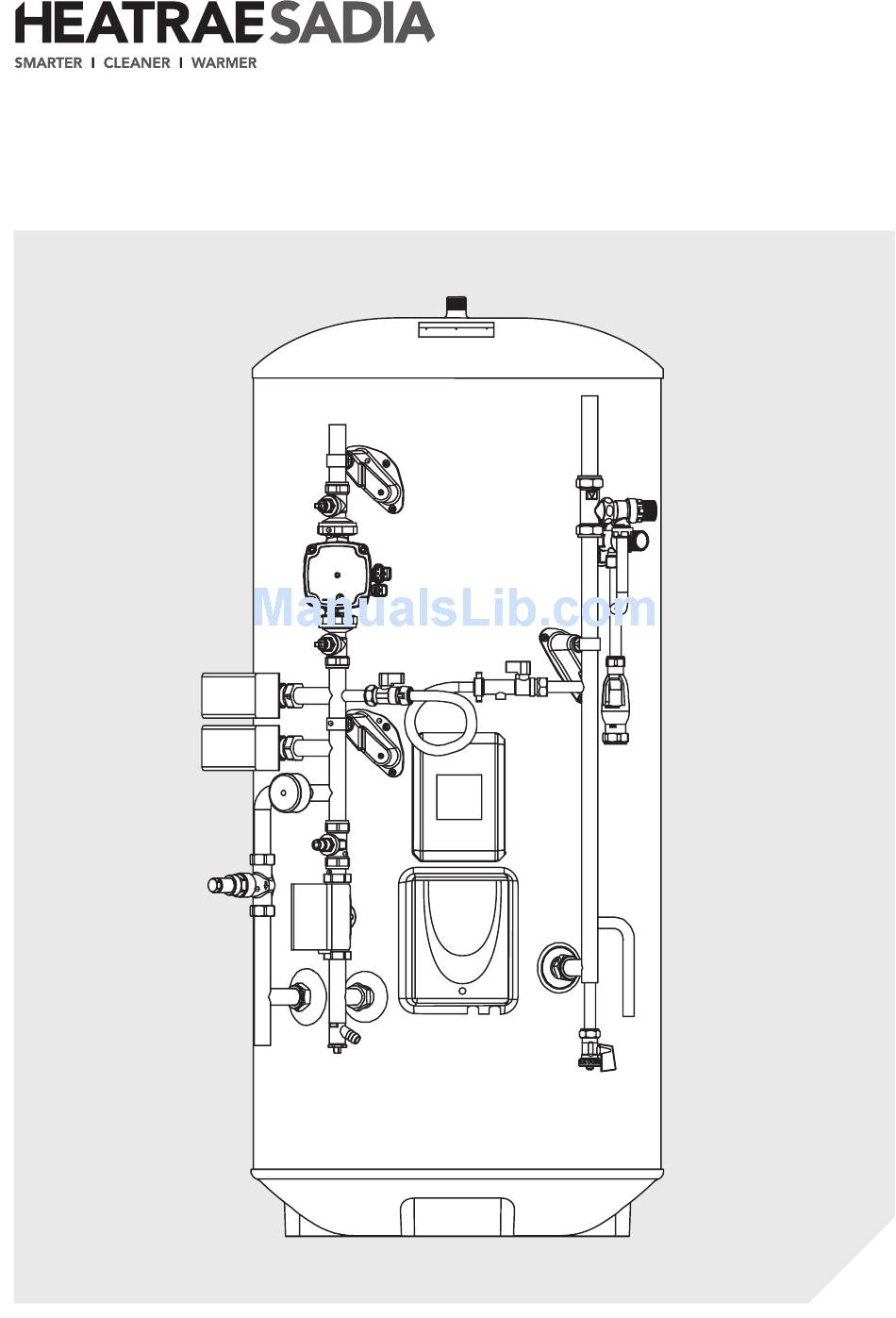

Page 1 PremierPlus SystemFit Unvented Indirect Hot Water Cylinder Installation and User Manual...
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..........................3 GENERAL REQUIREMENTS........................4 INSTALLATION – GENERAL........................9 INSTALLATION - DISCHARGE ......................12 INSTALLATION - PRIMARY CIRCUIT ....................15 COMMISSIONING ..........................18 MAINTENANCE ..........................19 USER INSTRUCTIONS .........................20 FAULT FINDING & SERVICING ......................22 SPARE PARTS ............................23 GUARANTEE ............................25 ENVIROMENTAL INFORMATION......................25 COMMISSIONING CHECK LIST ......................26 SERVICE RECORD ..........................27 TECHNICAL SUPPORT ........................28 THE BENCHMARK SCHEME...
Page 3: Introduction
The PremierPlus SystemFit primary circuit can be connected to a variety of gas or oil fired boiler types, either open vented or sealed system. It is not recommended for use with “system” boilers as these already incorporate their own circulating pump and controls.
Page 4: General Requirements
If you choose to install the PremierPlus SystemFit in the highest point in the property (e.g. loft space), it is advisable to install an additional automatic air vent (AAV) (not supplied - available as spare, part number 95 605 050) above the pump to enable air to be removed from the system.
Page 5 NOTE: Accessories, plumbing fittings and pipework should have a rated operating pressure of at least 6 bar. Outlets situated higher than the PremierPlus SystemFit unit will give outlet pressures lower than that at the heater, a 10m height difference will result in a 1 bar pressure reduction at the outlet fitting.
Page 6 Fig 1 - General Dimensions Table 2 - Dimensions and Performance DIMENSIONS (mm) COIL HEATING NOMINAL HOT WATER TIME IMM HEAT CAPACITY RATING DRAW-OFF HEATER UP TIME (litres) (kW) (litres) TO (mins) (mins) 40°C 936* 15.4 1119 15.9 1245 1039 17.3 1503 1300...
Page 7 Danfoss TP9000 Programmable thermostat with timed Domestic Hot Water (DHW) control: Programmer dimensions: 135mm (W) x 88mm (H) x 32mm (D) Room temperature sensor dimensions: 60mm (W) x 45mm (H) x 21mm (D) Power supply: 220V/240V ac, 50Hz Switch action 2 x SPDT, Type 1B. Switch rating 220/240V ac, 50/60Hz, 3(1)A Power reserve: Minimum 24 hours Memory back up retained for life of product Enclosure rating: IP30 Control temperature range: Selectable 5 to 30°C...
Page 8 Primary circulating pump: Model No: Grundfos Working pressure: 1 MPa (10 bar) max. Voltage rating: 230V ac, 50Hz Starting capacitor: 2µF Enclosure rating: IP42 Graph 2 - Pump performance curves Setting up the UPM3 pump When you switch on the pump it will run to the pre-set position or the last setting. The diagram opposite shows the current operation status.
Page 9 Control Mode explanation • PP1: lowest proportional pressure curve Propotion pressure The head pressure is reduced at falling heat demand • PP2: Intermediate proportional and increased at rising heat demand. pressure curve The duty point of the circulator will move up or down on the selected proportional pressure curve depending on the heat demand in the system.
Page 10: Installation - General
More flow noise may be experienced from small bore pipes due to the increased water velocity through them. A stopcock or servicing valve should be incorporated into the cold water supply to enable the PremierPlus SystemFit and its associated controls to be isolated and serviced.
Page 11 HOT WATER OUTLET Ideally the pipework from the PremierPlus SystemFit to the outlet fittings should be in 22mm pipe with short runs of 15mm pipe to showers and basin taps. Small bore pipe can also be used to suit some taps, but runs should be of minimum length.
Page 12 Fig 5 - Schematic installation diagram showing pressure reducing valve, pressure relief valve and positioning of cold balance draw off.
Page 13: Installation - Discharge
INSTALLATION - DISCHARGE It is a requirement of Building Regulation G3 that any discharge from an unvented system is conveyed to where it is visible, but will not cause danger to persons in or about the building. The tundish and discharge pipes should be fitted in accordance with the requirements and guidance notes of Building Regulation G3.
Page 14 Under no circumstances should the factory fitted temperature/pressure relief valve be removed other than by a competent person. To do so will invalidate any guarantee or claim. • The cold water combination valve assembly must be fitted on the PremierPlus SystemFit water supply to the PremierPlus SystemFit cylinder. • No control or safety valves should be tampered with or used for any other purpose.
Page 15 Table 3 - Sizing of copper discharge pipe (D2) for common temperature relief valve outlet sizes MAXIMUM RESISTANCE MINIMUM SIZE ALLOWED, RESISTANCE MINIMUM SIZE VALVE OUTLET OF DISCHARGE EXPRESSED AS CREATED BY OF DISCHARGE SIZE PIPE D2 FROM A LENGTH OF EACH ELBOW OR PIPE D1 TUNDISH...
Page 16: Installation - Primary Circuit
HEATING SYSTEM CONTROLS The controls provided with the PremierPlus SystemFit will ensure the safe operation of the unit within a central heating system. Connection to the various system components is made via the wiring centre fitted to the front of the PremierPlus SystemFit, refer to figure 8, page 17 and the terminal identification labels within the wiring centre to aid in connecting the various external system components such as the mains supply, programmer and boiler.
Page 17 Fig 7 - Adjustment details Thermal cut-out reset button Spindle positions = Minimum temp 10°C = Maximium temp 72°C = Approx 60°C Rotate spindle clockwise for temperature increase and counter-clockwise for temperature decrease Temperature adjusting spindle Fig 8 - Schematic wiring diagram - Indirect circuit PROGRAMMER - HEATING ZONE 1 PROGRAMMABLE INDIRECT...
Page 18: Commissioning
The pump should run and the boiler fire (a flame symbol appears in the controller display). The primary flow to the PremierPlus SystemFit and the radiator circuit should become hot, if it does not check for a wiring or piping error.
Page 19: Maintenance
NOTE: it may be necessary to cool the PremierPlus SystemFit down to allow the indirect thermostat to call for heat, it may also be necessary to increase the required room temperature setting if the room temperature has already reached that programmed. The pump should run and the boiler fire (both a tap symbol and a flame symbol should appear in the controller display).
Page 20: User Instructions
DOWN THE BOILER. DO NOT TURN OFF ANY WATER SUPPLY. CONTACT A COMPETENT INSTALLER FOR UNVENTED WATER HEATERS TO CHECK THE SYSTEM. DO NOT TAMPER WITH ANY OF THE SAFETY VALVES FITTED TO THE PREMIERPLUS SYSTEMFIT. IF A FAULT IS SUSPECTED, CONTACT A COMPETENT INSTALLER.
Page 21 HEATING BY BOILER The PremierPlus SystemFit cylinder units are fitted with an indirect thermostat and thermal cut-out. These controls must be wired in series with the 2 port motorised zone valve supplied to interrupt the flow of primary water around the heat exchanger coil when the control temperature has been reached.
Page 22: Fault Finding & Servicing
SPARE PARTS A full range of spare parts are available for the PremierPlus SystemFit cylinder range (see Table 5, page 22). Refer to the technical data label on the unit to identify the model installed and ensure the correct part is ordered. You will need to quote the serial number which is printed on the data label.
Page 23 Table 5 - Spares list A full range of spare parts are available for the PremierPlus SystemFit range. Refer to the Technical Data label on the unit to identify the model installed and ensure the correct part is ordered. DESCRIPTION PART NO.
Page 24 Fig 9 - Spares Diagram Fig 10 - Pressure Reducing valve 3.5 bar Fig 11 - Element spares Cold Mains Connection (22mm) Outlet Connection (22mm)
Page 25: Guarantee
The PremierPlus SystemFit has not been modified in any way other than by heateam approved engineers. The PremierPlus SystemFit has only been used for the storage of wholesome water (max. 250mg/l chloride). The PremierPlus SystemFit has not been subjected to frost, nor has it been tampered with or been subjected to misuse or neglect. No factory fitted parts have been removed for unauthorised repair or replacement.
Page 28 Electric Water Heating Co. 2 Horsecroft Place SPECIFICATION ADVICE HOTLINE Pinnacles t | 01603 420220 e | speciﬁer@heatraesadia.com Harlow Essex CM19 5BT AFTER SALES SERVICE Tel: 0845 0553811 t | 0344 871 1535 e | heatraesadiaservice@heateam.co.uk E-Mail: sales@ewh.co.uk w | heatraesadia.com Special Product Division Units 9 &...
