DCA 205
Service manual

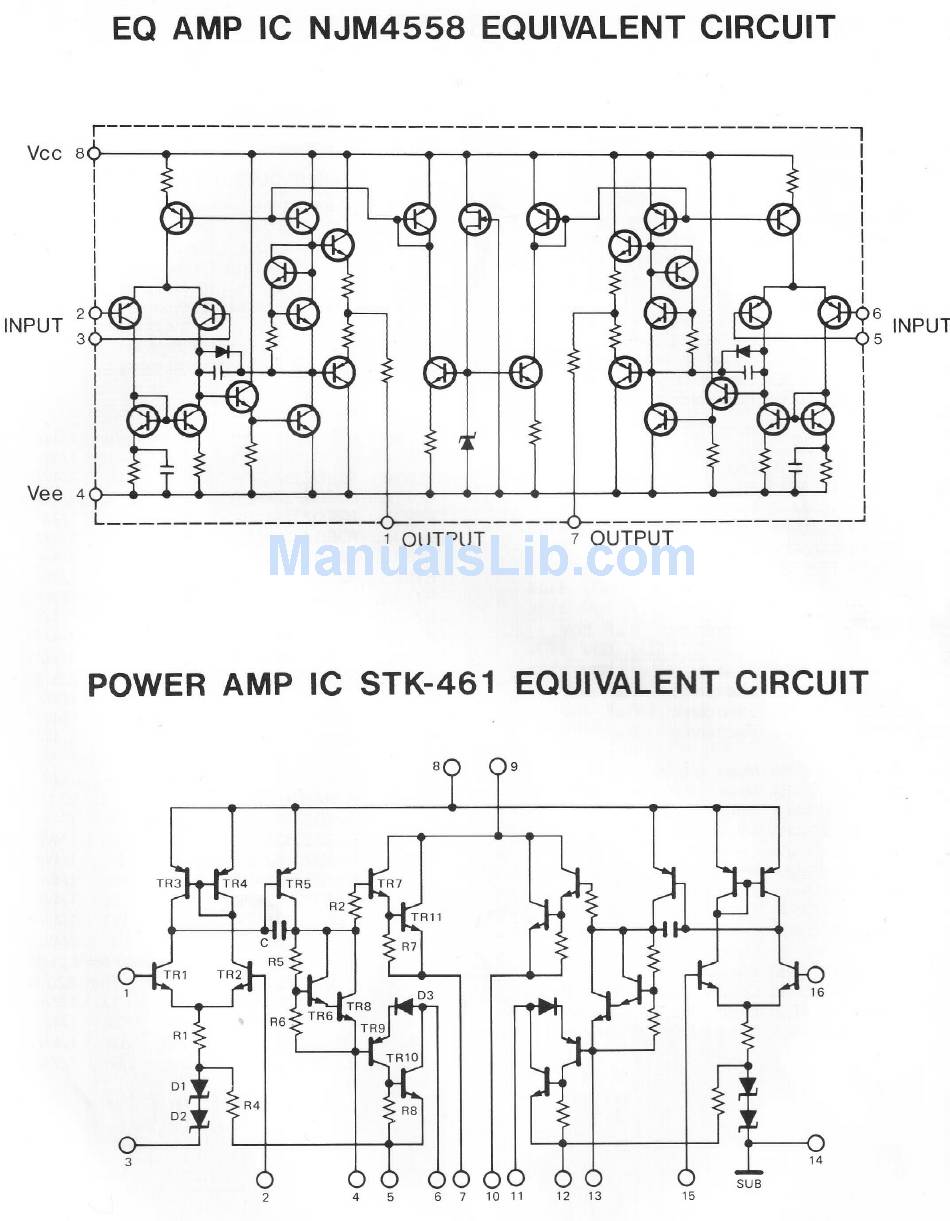

Eq Amp Ic Njm4558 Equivalent Circuit; Power Amp Ic Stk-461 Equivalent Circuit - Sanyo Dca 205 Service Manual
