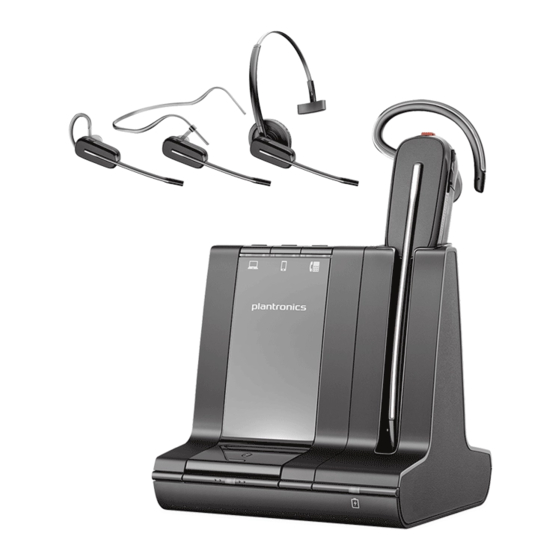

Poly Savi 8240 User Manual
Wireless headset system
Hide thumbs
Also See for Savi 8240:
- Quick start manual ,
- User manual (25 pages) ,
- User manual (23 pages)
Related Manuals for Poly Savi 8240
Summary of Contents for Poly Savi 8240
- Page 1 PLANTRONICS + POLYCOM. NOW TOGETHER AS Savi 8240/8245 UC Wireless Headset System User Guide...
-
Page 2: Table Of Contents
Contents DECT Information DECT Enhanced Security Overview Headset Basics DECT USB adapter Charge stand Charge accessory Fit and charge Customize Your Headset Charge Your Headset and Spare Battery Talk time Headset battery status Connect to PC Subscribe USB adapter again Configure USB adapter Load software Plantronics Hub configurable settings... -
Page 3: Dect Information
DECT Information DECT products should never be used outside the region in which they were originally purchased and intended to be used. The enclosed DECT wireless product uses restricted wireless radio frequencies which vary by country. Use of this DECT product in unauthorized countries is a violation of law, may disrupt telecommunications networks and devices, and can subject you to fines and penalties by regulatory agencies. -
Page 4: Overview
Overview Headset Basics 1 2 3 4 5 6 7 Earloop Call button Eartip Battery Mute button Headset LED Volume button Microphone Be safe Please read the safety guide for important safety, charging, battery and regulatory information before using your new headset. DECT USB adapter NOTE USB connection may vary but function is the same... -
Page 5: Charge Stand
Charge stand Savi 8240 UC Savi 8245 UC NOTE Charges headset NOTE Charges headset and battery Charge accessory Savi 8240 UC Savi 8245 UC NOTE Charges headset NOTE Charges headset and battery... -
Page 6: Fit And Charge
Fit and charge Customize Your Headset After you install the headset battery, choose one of the three headset wearing styles, over-the-ear, over-the-head or behind-the-head. Use the fit kit to assemble it and optimize the position of the microphone. Install the Headset Battery Position the battery as shown on the headset and slide into position until the battery snaps into place. - Page 7 To correctly position your headset, see Position Your Headset. Left Over-the-Ear Assembly Choose the size of earloop that fits most comfortably. Align the earloop as shown and insert it onto the headset. Rotate the earloop up 90°. 90º NOTE Ensure the earloop is flat against the headset before rotating. Choose the size and style of eartip that fits most comfortably.
- Page 8 Over-the-Head Assembly Hold the headband so it is aligned to receive the headset as shown and insert the headset into the headband. Rotate the headset up. The headband can be worn on the right or left side. To optimize the position of the headset, push the headset in so the microphone is close to your mouth.
- Page 9 Choose the size and style of the eartip that fits most comfortably. Align the eartip with the notch facing the microphone as shown. Press on to attach. NOTE Ensure the large end of the eartip points to the microphone. To position your headset correctly, first slide the stem of the headband so the headset fits comfortably.
-
Page 10: Charge Your Headset And Spare Battery
Charge Your Headset and Charge your headset Spare Battery Place the headset in the charge cradle. The headset charging LED flashes when charging the headset and turns off when the headset is fully charged. Charge for at least 20 minutes prior to the first use. - Page 11 • Hover over the Plantronics Hub system tray icon • View in Plantronics Hub app...
-
Page 12: Connect To Pc
Connect to PC ™ Your DECT USB adapter comes pre-subscribed to your headset. Turn on your headset and insert the DECT USB adapter into your laptop or PC. The USB adapter LED is solid red when inserted and then turns solid blue to indicate the headset is connected to the USB adapter. -
Page 13: Configure Usb Adapter
Configure USB adapter Your DECT USB adapter comes ready to take calls. If you want to listen to music, you will need to configure your DECT USB adapter. Windows To configure your DECT USB adapter to play music, go to Start menu > Control Panel > Sound > Playback tab. -
Page 14: Load Software
Load software Plantronics Hub for Windows/Mac is an invaluable headset tool. Download Plantronics Hub for Windows/Mac by visiting plantronics.com/software. Using Plantronics Hub, manage your headset settings. • Call control for softphones • Change headset language • Update firmware • Turn features on/off Plantronics Hub Feature Plantronics Hub tab... -
Page 15: The Basics
For Savi 8210/8220 headsets: Press the guest headset Call button for 4 seconds. Upon release, the headset LED flashes green and red. For Savi 8240/8245 headsets: Press the guest headset Volume up button for 4 seconds. Upon release, the headset LED turns on. - Page 16 Guest headsets can remain as guests through multiple calls. To remove a guest headset, either press the guest headset's Call button or dock the primary user's headset in the charge cradle.
-
Page 17: More Features
More Features Change voice prompt To change the voice prompt language on your headset, open Plantronics Hub and go to Settings > language Language You can choose from: Cantonese, Danish, English (UK, US), French, German, Indonesian, Italian, Japanese, Korean, Mandarin, Norwegian, Russian, Spanish, Swedish and Thai. Optimize audio quality There are 2 audio modes: wideband (conversation) and narrowband. -
Page 18: Troubleshooting
Troubleshooting Headset My headset is unstable. When you wear the headset, the microphone should rest as close to your cheek as possible without touching. The microphone can be adjusted inward by the pivoting earpiece to optimize the position of the headset. See Position Your Headset. - Page 19 No audio connection to PC. Unplug USB adapter and then reconnect it. Quit and then re-start your PC or softphone application.
-
Page 20: Support
Netherlands © 2019 Plantronics, Inc. All rights reserved. Poly, the propeller design, and the Poly logo are trademarks of Plantronics, Inc. DECT is a trademark of ETSI. All other trademarks are the property of their respective owners. Manufactured by Plantronics.
