Related Manuals for Maytag MGD5700TQ0
Summary of Contents for Maytag MGD5700TQ0

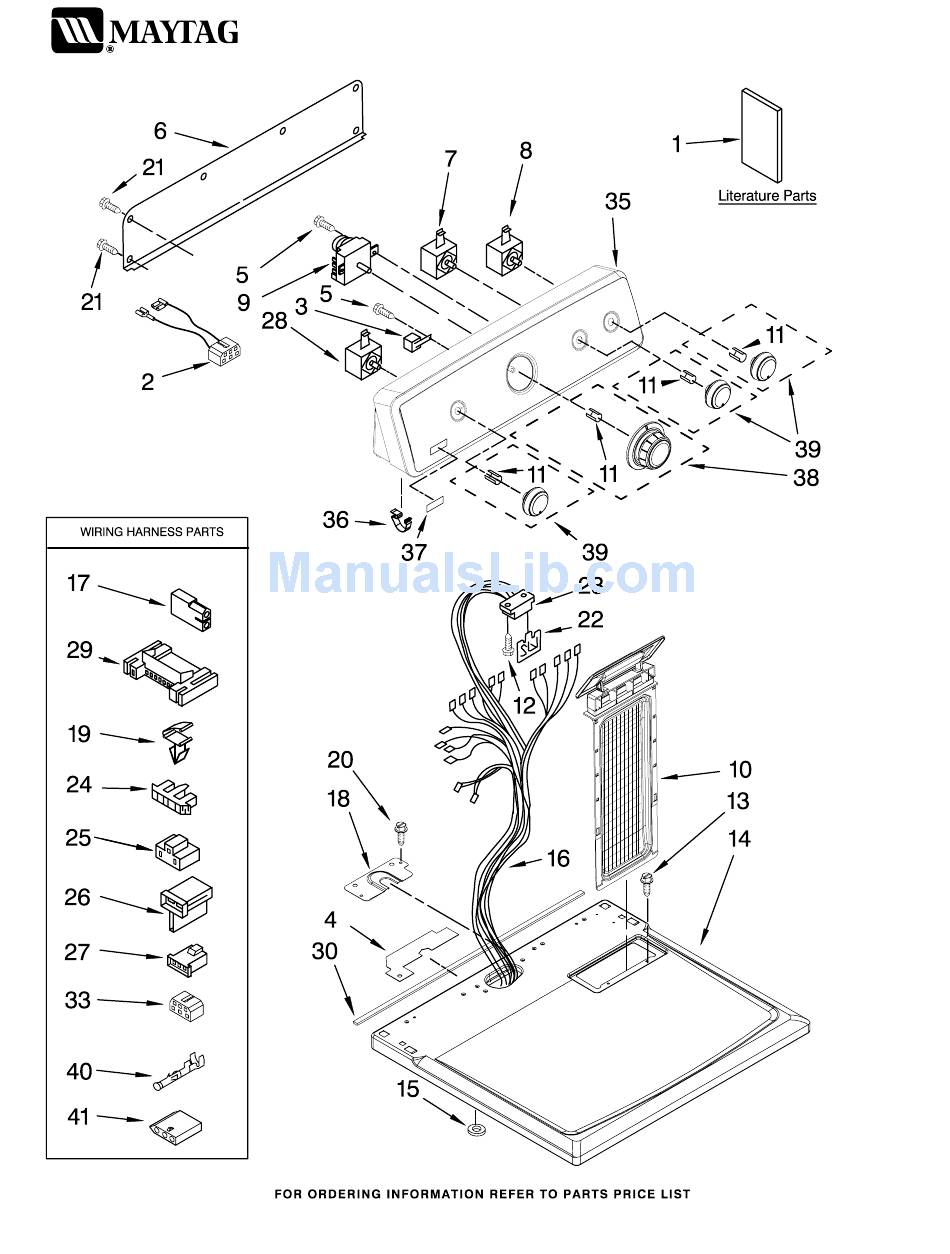

- Page 1 TOP AND CONSOLE PARTS 29"GAS DRYER For Model: MGD5700TQ0 (White) 10−07 Litho in U.S.A.(LAN) Part No. W10116425 Rev. B...
- Page 2 8 W10117655 Switch, Push−To−Start 8566184 Timer Assembly 60 HZ. 8565972 Screen, Lint 8536939 Clip, Spring 359625 Screw, 8−18 x 1/2 TOP AND CONSOLE PARTS For Model: MGD5700TQ0 (White) Illus. Part DESCRIPTION 688983 Screw, 8−18 x 5/8 14 W10112599 Top 237446 Washer (Top/chute) 16 W10120796 Harness, Wiring 717252 Plug, 2−way...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: MGD5700TQ0 (White) W10116425... - Page 4 341029 Clamp−Pipe 3404413 Plug−Hole 18849 Pad, Top Hinge 3392100 Foot, Dryer 279810 Foot−Optional (Extended Length) (Package of 2) (Not Included.) CABINET PARTS For Model: MGD5700TQ0 (White) Illus. Part DESCRIPTION 660658 Clamp, Motor 8530603 Cabinet (Includes Illus. 4) 98234 Clip, Ground (2)
- Page 5 BULKHEAD PARTS For Model: MGD5700TQ0 (White) W10116425...
- Page 6 BULKHEAD PARTS For Model: MGD5700TQ0 (White) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 489463 Screw, 8−18 x 5/8 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 487909 Screw, 8−15 x 1/2 3392519 Thermal Fuse 8066086 Drum Hole...
-
Page 7: Burner Assembly
8318272 BURNER ASSEMBLY For Model: MGD5700TQ0 (White) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−150 W10116425... - Page 8 8318272 BURNER ASSEMBLY For Model: MGD5700TQ0 USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part 8318272 Burner Assembly 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw & Washer 343641 Screw, 10−16 x 1/2 693986 Base, Burner 3387057 Screw, 8−18 x 3/8...
- Page 9 OPTIONAL PARTS (NOT INCLUDED) W10116425 For Model: MGD5700TQ0 (White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 346764 Kit, Hold−Down (Gas Dryer Mobile Home Installation) 3406839 Dry Rack 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.)
