Avery Dennison Monarch 9493 SNP Administrator's Manual

Avery Dennison Monarch 9493 SNP Administrator's Manual

Hide thumbs Also See for Monarch 9493 SNP:
Table of Contents

Advertisement

Quick Links

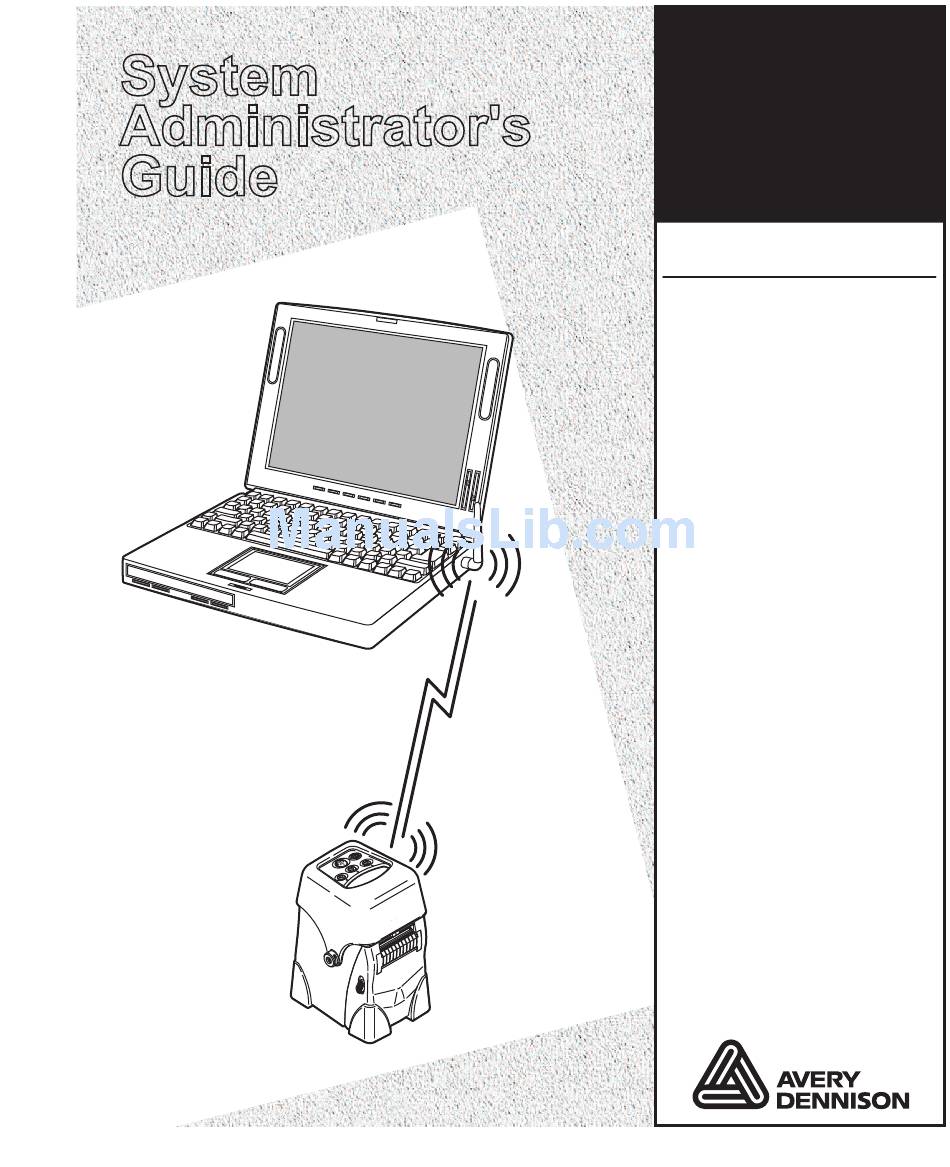

Download this manual See also: System Administrator Manual
System
Administrator's
Guide
TC9460SNPSA Rev. AE 10/08
©2007 Paxar Americas, Inc. a subsidiary of Avery Dennison Corp. All rights reserved.
Monarch
9460™ S
NP &
9
493
™ SNP
Printers
802.11b/g Wired/Wireless
• Web Browser
• Avalanche
TM
Management
Console
• Telnet
• Ethernet
®

Advertisement

Table of Contents
loading

Related Manuals for Avery Dennison Monarch 9493 SNP

Summary of Contents for Avery Dennison Monarch 9493 SNP

  • Page 1 System 9460™ S NP & Administrator's ™ SNP Guide Printers 802.11b/g Wired/Wireless • Web Browser • Avalanche Management Console • Telnet • Ethernet TC9460SNPSA Rev. AE 10/08 ©2007 Paxar Americas, Inc. a subsidiary of Avery Dennison Corp. All rights reserved.
  • Page 2 Paxar shall not be liable for any omissions or inaccuracies. Any update will be incorporated in a later edition of this manual. 2007 Paxar Americas, Inc. a subsidiary of Avery Dennison Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form by any means, without the prior written permission of Paxar Americas, Inc.

  • Page 3: Table Of Contents

    T A B L E O F C O N T E N T S GETTING STARTED ..................1-1 Overview ....................1-1 Audience ....................1-1 Using This Manual ...................1-2 System Requirements ................1-3 Network Protocols Supported ..............1-3 9493™ Printer Hardware ................1-4 CONFIGURING THE 802.11b/g AND IP SETTINGS ..........2-1 Configuring the Print Server ..............2-1 Before You Begin ..................2-2 Setting Up the 9460™...
  • Page 4 Using the Network Menu ................ 2-18 Checking the Status ................2-19 Configuring the Printer................ 2-19 Printing a Network Information Label ............ 2-26 Printing Info ..................2-26 Printing Info ..................2-27 Resetting the Radio ................2-27 SELECTING A MANAGEMENT METHOD ............3-1 HP JetAdmin Utility ..................3-1 HP Web JetAdmin Utility ................3-1 Microsoft...
  • Page 5 USING A WEB BROWSER ................4-1 Logging In ....................4-2 Contacting Us ..................4-3 Configuring the Server Settings ..............4-3 Configuring the Print Port Settings ............4-4 Configuring Print Services ................4-5 Setting Netware Parameters ..............4-6 Changing TCP/IP Settings ................4-7 Configuring PrintraNet ................4-8 Configuring Wireless Settings ..............4-9 Configuring Alerts and Traps ..............
  • Page 6 Updating Firmware ................4-23 To update from a TFTP server: ............4-23 To update from a file on your computer: ..........4-24 Loading the Firmware ................4-24 Basic Security Configurations ..............4-25 USING THE SIERRA SPORT CONFIGURATOR ..........5-1 System Requirements ................5-2 Before You Begin ..................5-3 Changing the Avalanche Directory .............5-3 Configuring Wireless Settings ..............5-4...
  • Page 7 TELNET CONSOLE COMMANDS..............6-1 Conventions ....................6-2 Settings ....................6-3 Help Commands ..................6-5 General Commands .................6-7 Avalanche Console Commands ..............6-9 Port Commands ..................6-10 802.11b/g Wireless Commands ............... 6-10 TCP/IP Commands ................6-14 SNMP Commands .................. 6-17 TROUBLESHOOTING ..................7-1 General Troubleshooting Information ............7-1 Troubleshooting Wireless Configuration Problems........7-3 Troubleshooting Network Configuration ............7-4 Technical Support..................7-4...

  • Page 9: Getting Started

    G E T T I N G S T A R T E D Use these instructions to configure your Monarch Sierra Sport2 9460 SNP printer or your Monarch® Sierra Sport4™ 9493™ SNP printer. Your printer contains an 802.11b/g print server (radio), which lets you communicate with your printer on a wired Ethernet 802.3 network (9493 printer only), or on an 802.11b or 802.11g wireless network.

  • Page 10: Using This Manual

    U s i n g T h i s M a n u a l Following is a summary of the contents of this manual. Chapter Contents Getting Started Information you should know before using the printer. Configuring the Setting communications between your network and 802.11b/g and printer.

  • Page 11: System Requirements

    S y s t e m R e q u i r e m e n t s To use the print server for printing from a wireless network, you need an 802.11b/g wireless network. The wireless network consists of either of the following: ♦...

  • Page 12: 9493™ Printer Hardware

    9 4 9 3 ™ P r i n t e r H a r d w a r e To access the Ethernet port, open the hinged door on the side of the printer by loosening the two screws with a Phillips screwdriver. Ethernet Port 1-4 System Administrator’s Guide...

  • Page 13: Configuring The 802.11B/G And Ip Settings

    C O N F I G U R I N G T H E 8 0 2 . 1 1 B / G A N D I P S E T T I N G S C o n f i g u r i n g t h e P r i n t S e r v e r To configure the print server for an 802.11b/g wireless network, you must set the wireless mode (Ad-Hoc or infrastructure), SSID, channel (Ad-Hoc mode only), data rate and security.

  • Page 14: Before You Begin

    B e f o r e Y o u B e g i n Configure your computer to communicate on a wireless network before you continue. ♦ To connect a device using an access point, set your computer to infrastructure mode. ♦...

  • Page 15: Setting Up The 9460™ Using Direct Serial Connections

    S e t t i n g U p t h e 9 4 6 0 ™ U s i n g D i r e c t S e r i a l C o n n e c t i o n s Disconnect the printer’s radio cable from the printer’s serial port.

  • Page 16: Setting Up The 9493™ Using Direct Serial Connections

    S e t t i n g u p t h e 9 4 9 3 ™ U s i n g D i r e c t S e r i a l C o n n e c t i o n s Use a serial cable or a USB cable for direct communication with the printer.

  • Page 17: Installing The Software

    I n s t a l l i n g t h e S o f t w a r e The software works with Microsoft Windows NT 4, 2000, XP, and Vista™ operating systems. Follow these steps to install the NetManager software and configure the print server.

  • Page 18: Setting Up Using The Printer's Menu

    ♦ To use TCP/IP without a DHCP server, manually assign a valid IP address, subnet mask, and gateway and then set the boot method to static. Note: If you are using DHCP on your network, the print server may have acquired valid IP settings at this point and no further configuration is necessary.
  • Page 19 Display Indicates Ready The printer is in Ready mode to send and receive data. <T> The printer is connected to a network (peer-to-peer or infrastructure mode). Press A under <T> to display the printer’s IP address, then press A under print a network information label with the device name, IP address, and MAC address as a bar code.

  • Page 20: Checking The Status

    Press D until Setup is highlighted. Setup Service Press E to select Setup. From the Setup menu, press D until you see RF Network. Press E to select RF Network. The RF Network menu allows you to check the printer’s status, configure the RF network settings, print RF settings, and reset the radio.

  • Page 21: Configuring The Printer

    Configuring the Printer The Configure menu allows you to set the printer’s IP address, subnet mask, gateway, power mode, protocol, SSID, and escape character. To exit, press F at any time. Setting the IP Address This option sets the printer’s IP address. From the RF Network menu, select Configure.
  • Page 22 Setting the Subnet Mask This option sets the printer’s subnet mask. From the Configure menu, select Subnet Mask. Subnet Mask 255.255.000.000 Use A as shown in the following table: Press A to Press A to Press A to Saves the setting Scrolls through the Increments the current positions from left to right...
  • Page 23 Setting the Power Mode This option sets the power mode. From the Configure menu, select Power Mode. Power Mode The choices include CAM (Continuous Awake Mode) or PSP (Power Save Protocol). PSP conserves battery power. CAM means the printer is continuously receiving and transmitting data. This mode uses battery power quickly.
  • Page 24 Setting the Protocol This option sets the protocol. From the Configure menu, select Protocol: TCP or LPD. Protocol Use D to select the protocol you want. For example, if you select LPD, you must specify a raw printer port: Port + 09100 Use A as shown in the following table: Press A to...
  • Page 25 Setting the SSID This option sets the SSID. The SSID is case-sensitive. From the Configure menu, select SSID. SSID ABC 1234 Use A as shown in the following table: Press A to Press A to Press A to Saves the setting Scrolls through the Increments the current positions from left to right...
  • Page 26 Setting the Command Escape Character This option allows you to set or view the Command Escape Character (CEC). Run-time messages from the radio begin with the CEC and the default is the pound sign (#), which has a decimal value of 35. You may need to change the default CEC character if it conflicts with other data, because an unexpected operation could occur.

  • Page 27: Printing A Network Information Label

    Printing a Network Information Label You can print a network information label with the device name, IP address, and MAC address as a Code 128 bar code. You can also print the network information as a Code 39 bar code with the correct MIF settings. Turn on the printer.

  • Page 28: Setting Up The 9493™ Printer

    S e t t i n g U p t h e 9 4 9 3 ™ P r i n t e r Use these instructions to set up a 9493 printer using the printer’s Network Setup menu. Turn on the printer by pressing p. The display flashes printer version information and battery charging status.
  • Page 29 Display Indicates Ready The printer is in Ready mode to send and receive data. The printer is connected to a network (peer-to-peer or infrastructure mode). Press A under M to display the printer’s IP address. Press I then E to view network information.

  • Page 30: Using The Network Menu

    Press A under T to enter the main menu. Tools is highlighted. Press e to select Tools. Press A under the corresponding number to enter the following default password: 1, 1, 1, 3, 1. Press D until Setup is highlighted. Press e to select Setup. Press D until Network is highlighted.

  • Page 31: Checking The Status

    Checking the Status This option displays the status of the network. From the Network menu, select Status. You see the printer model, firmware version, and bootloader version. Press E to move through the next four screens of information. You see the radio type and MAC address, local IP address, SSID, protocol, network mode, status, and connection speed.
  • Page 32 Setting the IP Address This option sets the printer’s IP address. From the Network Configure menu, select IP Address. Press D or U to increase or decrease the highlighted number. Press L or R to highlight a different number. When you are finished, press R until you see e. Then press e to save the address and return to the Configure menu.
  • Page 33 Setting the Gateway This option sets the printer’s router (gateway) address. From the Configure menu, select Gateway. Press D or U to increase or decrease the highlighted number. Press L or R to highlight a different number. When you are finished, press R until you see e. Press e to save the address and return to the Configure menu.
  • Page 34 Setting the Protocol This option sets the protocol to TCP or LPD. From the Configure menu, select Protocol. A checkmark indicates the current option. Press U or D until you see the protocol you need. Press e to enable it. If you select TCP, you are prompted to enter a port number.
  • Page 35 Setting the SSID This option sets the SSID. The SSID is case-sensitive. From the Configure menu, select SSID. The default or last-saved SSID appears, for example: Press D or U to change the highlighted character. Press L or R to highlight a different character.
  • Page 36 Setting the Encryption This option allows you to set the printer’s encryption method to None, WEP 64, WEP 128, WPA, WPA2, or WPA2/WPA. The default is None (no encryption). From the Configure menu, select Encryption. A checkmark indicates the current setting. Press D or U until you see the encryption you need, then press e to enable it and return to the Configure screen.
  • Page 37 Setting the Encryption Keys Use this option to set the key values for encryption. Once you save a key and exit the option, you cannot view the key values. There are four keys. Refer to “Basic Security Configurations” in Chapter 4 for more information on setting encryption key values based on your encryption method.

  • Page 38: Printing A Network Information Label

    Setting the Escape Character This option allows you to set or view the Escape Character (EC). Run-time messages from the radio begin with the EC and the default is the pound sign (#), which has a hex value of 23. You may need to change the default EC character if it conflicts with other data, because unexpected operation could occur.

  • Page 39: Printing Info

    P r i n t i n g I n f o Do not use supply smaller than 2012 or Mona rch Prin t Se rv er Status information may print off the label. MAC: 00-a0 -f8-5f-72-0b From the RF Network (9460) or Network Prin ter Mo de l: 9 493 SNP (9493) menu, select Print Info.
  • Page 40 2-28 System Administrator’s Guide...

  • Page 41: Selecting A Management Method

    S E L E C T I N G A M A N A G E M E N T M E T H O D There are a variety of ways to configure and monitor the network printer. This chapter explains how to use NetManager, HP JetAdmin, HP Web JetAdmin, UNIX, or Sun Solaris.

  • Page 42: Additional Windows Configuration Methods

    A d d i t i o n a l W i n d o w s C o n f i g u r a t i o n M e t h o d s The print server is also compatible with other methods of printing from Windows.
  • Page 43 Edit the /etc/hosts file: (or equivalent local host table). For example: 192.189.207.33 MonarchPrinter Edit the printcap file: An example of a typical entry in the printcap file is: MonarchPrinter:\ :lp=:\ :rm=MonarchPrinter:\ :rp=BINARY_P1:\ :sd=/usr/spool/lpd/MonarchPrinter: "MonarchPrinter" is the queuename. "MonarchPrinter" matches the name in the hosts file. "BINARY_P1"...

  • Page 44: Sun Solaris Configuration

    Sun Solaris Configuration To use a print server with Sun Solaris, first use the Host Manager in the Admintool utility to add the print server IP address and name to the /etc/hosts file. Click None - Use /etc files on host. Click Apply.
  • Page 45 The Print Server OS is set to BSD (this is the default setting). Select Add. 10. To print, use the standard lp command; for example: lp –dMonarchPrinter filename Notes: ♦ We recommend using the /etc/hosts file for the printer name rather than NIS or other name services.

  • Page 46: Hp/Ux Configuration

    H P / U X C o n f i g u r a t i o n To configure a print server using HP/UX 10.x, use the same program and these steps: When you get a list of options, select Printers and Plotters. Select LP Spooler.

  • Page 47: Ibm Aix Configuration

    I B M A I X C o n f i g u r a t i o n To configure a print server on IBM AIX 4.x, use the SMIT program as follows: Enter SMIT and select Devices. Select Printer/plotter. Select Manage remote printer subsystem.
  • Page 48 3-8 System Administrator’s Guide...

  • Page 49: Using A Web Browser

    U S I N G A W E B B R O W S E R You can configure and manage the printer and print server using your Web Browser: Microsoft Internet Explorer, version 6.0, or greater or Netscape Communicator, version 4.7 or greater or Mozilla Firefox®. Notes: ♦...

  • Page 50: Logging In

    L o g g i n g I n Start your Web browser. Type in your printer’s IP address and press Enter. For example, 192.0.0.192. From the side menu, click Login. 4-2 System Administrator’s Guide...

  • Page 51: Contacting Us

    Type for the password. To change the password, see “Setting access the Network Card Access Password,” for more information. The password is case-sensitive and saved in the printer’s flash memory. Click Submit. The Printer Status page appears with information about your printer, including printer name, description, firmware version and more.

  • Page 52: Configuring The Print Port Settings

    Click the reset link at the bottom of the screen. The Reset Server screen appears. 4 . Click Submit and wait five seconds for the print server to reset. Even though you submitted your changes, they do not take effect until you reset the print server.

  • Page 53: Configuring Print Services

    C o n f i g u r i n g P r i n t S e r v i c e s You can configure the service ports if necessary. From the side menu, click Print Services. The Configure Service screen appears.

  • Page 54: Setting Netware Parameters

    S e t t i n g N e t w a r e P a r a m e t e r s You can enable Netware, set frame types, and passwords. From the side menu, click NetWare. Click the name of the enabled service to modify the NetWare parameters for that service.

  • Page 55: Changing Tcp/Ip Settings

    C h a n g i n g T C P / I P S e t t i n g s You can enable TCP/IP, select applications, set the IP Address, Subnet Mask, and more. From the side menu, click TCP/IP. Click the name of the enabled service to modify the TCP/IP parameters for that service.

  • Page 56: Configuring Printranet

    C o n f i g u r i n g P r i n t r a N e t You can enable POP3, set the Server Address, Mailbox Name, Password and more. From the side menu, click PrintraNet. Enter the IP address of the POP3 or SMTP server on your network where internet print jobs are located.

  • Page 57: Configuring Wireless Settings

    C o n f i g u r i n g W i r e l e s s S e t t i n g s You can change modes, specify your SSID, modify your channel (Ad-Hoc mode only), network speed, access point density, and more. You can also configure network security.

  • Page 58: Configuring Alerts And Traps

    C o n f i g u r i n g A l e r t s a n d T r a p s You can configure email alerts and SNMP IP Traps. Email Alerts To set an email alert when the printer goes offline, has a paper jam, or other error: From the side menu, click Alerts and Traps.
  • Page 59 Click Email Alerts to setup the mail server and select users to receive messages about the printer’s status. Enter your SMTP server, email address, server port, and the trigger conditions for an email alert. You can enter up to eight email addresses. Note: The S1 port acts as a toggle switch to enable or disable the alerts.

  • Page 60: Receiving An Alert

    Receiving An Alert When the printer goes offline, has a paper jam, or any other error that you selected notification for, a similar email appears in the specified User’s inbox: The text of the email follows: Pegasus III Printer Alert Prn IP: 192.0.0.192 Prn Display: Off-line Prn MAC Addr: 10.10.1.1...

  • Page 61: Snmp Ip Traps

    SNMP IP Traps You can configure the SNMP IP traps. From the Alerts and Traps page, click SNMP IP Traps. Enter a community name, IP address, and the trigger conditions for an email alert. You can enter up to eight IP addresses. Note: The S1 port acts as a toggle switch to enable or disable the alerts.

  • Page 62: Snmp Netware Traps

    SNMP Netware Traps You can configure the SNMP Netware traps. From the Alerts and Traps screen, click SNMP Netware Traps. Enter a community name, IPX address, IPX Node address, and the trigger conditions for an email alert. You can enter up to four IPX addresses.

  • Page 63: Changing The Passwords

    C h a n g i n g t h e P a s s w o r d s You can change the network access password, network update password, configure network security, IP access or protocol, print a test page, or access the console from the Web Admin Configuration screen.

  • Page 64: Setting The Network Card Access Password

    Setting the Network Card Access Password When set, the network card access password allows you to view the Web browser and the remote console. The default is access. The password is case-sensitive and stored in the printer’s flash memory. Note: Make a note of the password if you change it.

  • Page 65: Setting The Network Card Update Password

    Setting the Network Card Update Password When set, the network card update password allows you to change variables in the Web browser and the remote console. From the side menu, click Admin. The Web Admin Configuration screen appears. Click Configure Network Card Update Password. Enter a new network update password.

  • Page 66: Configuring Network Protocols

    C o n f i g u r i n g N e t w o r k P r o t o c o l s Only configure the settings required for your network/printer. To enable or disable protocols: From the side menu, click Admin.

  • Page 67: Controlling Ip Access

    C o n t r o l l i n g I P A c c e s s You can limit which remote hosts are able to access the printer by setting up an IP address range. From the side menu, click Admin. The Web Admin Configuration screen appears.

  • Page 68: To Remove Hosts

    To Remove Hosts You can remove a range of remote IP addresses. Select a range from the drop-down menu. Click Remove. Click the reset link at the bottom of the screen. The Reset Server screen appears. Click Submit and wait five seconds for the print server to reset. Even though you submitted your changes, they do not take effect until you reset the print server.
  • Page 69 Click Configure Network Security. Assign the necessary security settings for your network. See “Basic Security Configurations” for more information. Click Submit. Click the reset link at the bottom of the screen. The Reset Server screen appears. Click Submit and wait five seconds for the print server to reset. Even though you submitted your changes, they do not take effect until you reset the print server.

  • Page 70: Printing A Test Page

    P r i n t i n g a T e s t P a g e You can use the Web browser to send a test page to the printer. From the side menu, click Admin. The Web Admin Configuration screen appears.

  • Page 71: Updating Firmware

    U p d a t i n g F i r m w a r e You can update the printer’s firmware from your Web browser by connecting to a TFTP server, or browsing to the update file on your computer. From the side menu, click Admin.

  • Page 72: To Update From A File On Your Computer

    To update from a file on your computer: Type the location of the file or click Browse and select the file location. Click Submit to load the firmware. If you lose power while updating the firmware, call Service. Note: Do not turn off the printer while it is updating firmware. It may take several minutes to complete.

  • Page 73: Basic Security Configurations

    B a s i c S e c u r i t y C o n f i g u r a t i o n s There are two main decisions to be made when choosing wireless security: encryption method and authentication protocol. The encryption method determines the algorithm used to encrypt the message.
  • Page 74 Authentication Protocol Type RADIUS User ID & Certificate Private Key Server Password Info File Protocol Enterprise LEAP PEAP* PAP or Optional* Required* Required MSCHAPv2 TTLS EAP- PAC* FAST Personal *PEAP This is only for server-side certificates. *Optional Leaving the Certificate Root Key and the Certificate CN (common) names blank, no validation of the host certificate is performed.
  • Page 75 See the following table of acceptable combinations: Encryption Authentication WPA, WPA (TKIP), WPA2 Open Static Shared LEAP PEAP Dynamic EAP-FAST TLS* TTLS Load the local key before enabling TLS. Using a Web Browser 4-27...
  • Page 76 4-28 System Administrator’s Guide...

  • Page 77: Using The Sierra Sport Configurator

    U S I N G T H E S I E R R A S P O R T C O N F I G U R A T O R Use the Sierra Sport™ Configurator (SSC) with the Wavelink Avalanche Management Console software and a Monarch 9460 printer (version 3.0 or greater firmware and version 1.4 or higher boot loader) or 9493 printer.

  • Page 78: System Requirements

    For information about using the Avalanche Management Console, refer to your Avalanche documentation. The following graphic shows how Avalanche works with the 9460 printer. Avalanche Manager Agent Console w ith Sierra Sport Configurator loaded Avalanche-Enabled Clients (Printers) Files are transferred from the console to the agent through the WAN or LAN and onto the clients.

  • Page 79: Before You Begin

    B e f o r e Y o u B e g i n Install the Avalanche Manager Agent and Console. Open the Manager Agent. Open the Avalanche Management Console. Connect the Management Console to the agent. Install the software package (SSCfg.AVA). Select Configure Utility.

  • Page 80: Configuring Wireless Settings

    C o n f i g u r i n g W i r e l e s s S e t t i n g s Use this tab to configure the wireless settings. Specify the Basic Wireless settings including Mode, Radio, SSID, Channel, Speed, Access Point Density, International Roaming, Dynamic Frequency, Country and RTS Threshold.

  • Page 81: Configuring The Print Server Settings

    C o n f i g u r i n g t h e P r i n t S e r v e r S e t t i n g s Use this tab to configure the server settings. Specify the basic Print Server settings including the System Name, Location, SNMP Community Name, and Power Level as required.

  • Page 82: Specifying The Ip Access Range

    S p e c i f y i n g t h e I P A c c e s s R a n g e Use this tab to specify a range of acceptable IP addresses and Subnet Masks. Click <<Add.

  • Page 83: Configuring Printranet Settings

    C o n f i g u r i n g P r i n t r a n e t S e t t i n g s Use this tab to configure the Printranet settings including POP3 and SMTP. C o n f i g u r i n g N e t W a r e S e t t i n g s Use this tab to configure the NetWare settings including Frame Type, Password, and Configure Bindery File Servers.

  • Page 84: Configuring Printing Settings

    C o n f i g u r i n g P r i n t i n g S e t t i n g s Use this tab to configure the printer’s supply settings, regional settings, and image adjustments. Enter any Supply Setup information including Ribbon/Energy, Supply Type, Feed Mode, and Supply Position.

  • Page 85: Updating Files

    U p d a t i n g F i l e s Use this tab to update the printer’s firmware or print server’s firmware. Select additional MPCL files to send to the printer (fonts, graphics, etc.). Select the binary Firmware File to Load. Select the Monarch Initialization File (.mif) to Load.

  • Page 86: Saving Changes

    S a v i n g C h a n g e s When you are done specifying the print server’s settings, select Write Configuration from the File menu. Exit the Sierra Sport Configurator. The print server’s configuration is set and ready for Avalanche to send to the printer.

  • Page 87: Telnet Console Commands

    T E L N E T C O N S O L E C O M M A N D S Use this chapter to configure the print server using Telnet. You must have a basic understanding of Telnet commands. For initial setup, do not use Telnet.

  • Page 88: Conventions

    C o n v e n t i o n s This section uses the following conventions: KEYwords Type the capitalized letters of each keyword instead of the whole keyword. Some keywords require more capitalized letters than others. For example, KEYVAL RAdio [options]...

  • Page 89: Settings

    S e t t i n g s To view the current wireless settings, type (show network settings) sh nw and press Enter: WiFi Mode = INFRASTRUCTURE WiFi SSID: ABC1234 Speed = 54 International Roaming: Flexible Dynamic Frequency Selection: Unsupported Regulatory Domain = USI WiFi FW Ver = 2.13.10.0 LMAC, 2.12.18.0 UMAC AP density = LOW...
  • Page 90 To show the current Avalanche settings, type (show all Avalanche sh ava properties) and press Enter. Console IP address: 192.0.0.192 Avalanche is Enabled Packages installed: SSCfg: Revision 1 Properties set: OsVer = 3.0 OsType = PHG2 ProcessorType = MC68336GCAB20 ProcessorRevision = 1F76K Processor = freescale Type = M09460 ModelCode = 22...

  • Page 91: Help Commands

    H e l p C o m m a n d s For help at any time, type “Help” and a list of available commands appears. The Help command builds on itself, because for each command you type, more details appear for each option. Syntax: help set DEFAULT...
  • Page 92 Syntax: help set ip LPD/TCP Parameters Access [EN/DIS] aa.bb.cc.dd {Mask ee.ff.gg.hh} ADdress aa.bb.cc.dd IP node address [EN/DIS] IP set via ARP BAnner [EN/DIS] LPD banner printing CHKSUM [EN/DIS] IP receive checksum BOot Number of DHCP/BOOTP tries ECHO [EN/DIS] TCP echo protocol ENable/DISable Enable or Disable IP Processing FTIme...

  • Page 93: General Commands

    G e n e r a l C o m m a n d s From the list of commands, the brackets - [] indicate to pick one of the options listed. CLear/DELete/PUrge Removes a specified parameter or configuration item. CLear FATal Deletes fatal error log.
  • Page 94 SEt DEFAULT Sets print server to factory defaults. SEt LOAd [EN/DIS] Enables or disables firmware reload after exit. SEt LOAd HOst <name> Sets node name of boot host (NetWare firmware load). SEt LOAd IP aa.bb.cc.dd Sets IP address of load host (TCP/IP firmware load). SEt LOAd SOftware <filename>...

  • Page 95: Avalanche Console Commands

    SHow SERVEr COunters Shows the server statistics. SHow SERVEr QUeue Shows the print server internal queue. SHow SERVEr SYSLog Shows the system log, if access is enabled. SHow TEstpage Prints a test page. SHow VErsion Shows the server firmware version. UNPROTect Allows the user to enter the update password (if one has been defined).

  • Page 96: Port Commands

    P o r t C o m m a n d s SEt POrt <name> Sets the name of the communications port. SHow POrt <name> STA Shows the current port status. 8 0 2 . 1 1 b / g W i r e l e s s C o m m a n d s CLear NW SSid Clears the SSID, so the server connects to any access point.
  • Page 97 SEt NW CHannel nn Sets 802.11b/g wireless channel. SEt NW ENC [DIsable/64/128/WPA/WPA2/WPA2-WPA] Sets the encryption mode. See Chapter 4, “Using a Web Browser” for more information. SEt NW ID <userID> Sets the authentication user ID. It may include the realm, separated with the at (“@”) character.
  • Page 98 SEt NW REGDOMain <countrycode> Sets the region of operation for the print server using the following table. The list of supported countries varies based on the radio type (802.11b or 802.11b/g). Country Description Country Description Code Code ALBANIA LATVIA ALGERIA LEBANON ARGENTINA LIECHTENSTEIN...
  • Page 99 Country Description Country Description Code Code DENMARK PUERTO RICO DOMINICAN REPUBLIC QATAR ECUADOR ROMANIA EGYPT RUSSIAN FEDERATION EL SALVADOR SAUDI ARABIA ESTONIA SINGAPORE FINLAND SLOVAKIA FRANCE SLOVENIA GEORGIA SOUTH AFRICA GERMANY SPAIN GREECE SRI LANKA GUATEMALA SWEDEN HONDURAS SWITZERLAND HONG KONG SYRIAN ARAB REPUBLIC HUNGARY TAIWAN...

  • Page 100: Tcp/Ip Commands

    SEt NW SPeed <1/2/5.5/6/9/11/12/18/24/36/48/54> Sets 802.11b/g wireless speed in megabits per second (Mpbs). SEt NW SSid “<ssid>” Sets 802.11b/g wireless SSID. Use quotes if there is a space in SSID. This is case sensitive. SH NW STATS Shows the network I/O statistics. SEt NW WEP [DIS/64/128] Sets wired equivalent privacy encryption level to disabled, 64-bit, or 128-bit.
  • Page 101 SEt IP CHKSUM [EN/DIS] Enables or disables IP receive checksum. SEt IP FTIme [EN/DIS] Enables or disables fast timeout. SEt IP FTP [EN/DIS] Selects whether to use the FTP protocol. SEt IP HTTP [EN/DIS] Selects whether to use the HTTP protocol. SEt IP KEepalive n Sets keep alive interval (n) in minutes.
  • Page 102 SEt IP SUbnet aa.bb.cc.dd Sets default subnet mask. SEt IP TCP [EN/DIS] Selects whether to use the raw TCP (port 9100) protocol. SEt IP TELNET [EN/DIS] Selects whether to use the Telnet protocol. SEt IP TFTP [EN/DIS] Selects whether to use the TFTP protocol. SEt IP TImeout n Sets timeout (n) in minutes.

  • Page 103: Snmp Commands

    S N M P C o m m a n d s CLear SNMP CONtact <string> Removes SNMP SysContact. CLear SNMP LOCation <string> Removes SNMP SysLocation. SEt SNMP CONtact <string> Sets SNMP SysContact. SEt SNMP LOCation <string> Sets SNMP SysLocation. SEt SNMP GETCOMM <string>...
  • Page 104 6-18 System Administrator’s Guide...

  • Page 105: Troubleshooting

    T R O U B L E S H O O T I N G Verify that the printer is operating properly, is online, and supplies are loaded correctly. G e n e r a l T r o u b l e s h o o t i n g I n f o r m a t i o n Use the following information if your print server is not operating properly.
  • Page 106 Telnet to the printer. Note: After the print server has been reset, you may need to re-enable Telnet, or connect serially. Once you have verified connectivity, Telnet to the printer. This gives you access to console operation of the printer. Press Enter (on your host) and enter access as the password.

  • Page 107: Troubleshooting Wireless Configuration Problems

    T r o u b l e s h o o t i n g W i r e l e s s C o n f i g u r a t i o n P r o b l e m s Your computer’s wireless adapter and/or access point should be configured to match your print server.

  • Page 108: Troubleshooting Network Configuration

    T r o u b l e s h o o t i n g N e t w o r k C o n f i g u r a t i o n ♦ To use TCP/IP, your computer and the print server should be on the same IP segment or can reach each other with a PING command from the host.

  • Page 109: Specifications

    S P E C I F I C A T I O N S Link Layer: 802.11b/g Protocols: TCP/IP Passthru BOOTP DHCP RARP LPD/LPR Telnet RSH or REMSH (remote shell) SNMP NetWare HP Jet Admin 8 0 2 . 3 S p e c i f i c a t i o n s ( 9 4 9 3 ™ o n l y ) Communication 10 Mbps or 100 Mbps Rate:...
  • Page 110 A-2 System Administrator’s Guide...

  • Page 111: Glossary

    G L O S S A R Y Absolute Pathname The full path of a file, including the computer system and any directories or subdirectories. For example, c:\program files\monarch softw are\mpcl toolbox\9460.phu Access Point An interface between a wireless network and a wired network.
  • Page 112 Channel or You can select which channel your network devices use to RF Channel communicate. All devices must be on the same channel to communicate in Ad-Hoc mode. Other radio devices such as Bluetooth® wireless devices, microwave ovens, or 2.4-GHz cordless phones may operate/interfere if they are on the same channel as your network.
  • Page 113 LPD/LPR A printer protocol that uses TCP/IP to establish connections between printers on a network. Also known as Line Printer Daemon/Line Printer Remote. MAC Address or A hardware address (6-byte) that uniquely identifies each Media Access node of a network. The MAC address is set during Control manufacturing and does not change.
  • Page 114 Authentication mode of WPA used in SOHO environments. (Pre-Shared Key) The key value (or pass-phrase) is used for network authentication only (not data encryption). It does not use a RADIUS server like the other modes, but uses a shared key to provide the initial authentication with the access point or host.
  • Page 115 SSID or A unique identifier that must match for all nodes on a Service Set subnetwork to communicate with each other. It consists of Identifier up to 32 characters (any printable character, including spaces). If using the space character, it must be enclosed in quotation marks.
  • Page 116 WEP or A security protocol for wireless local area networks. WEP Wired Equivalent was designed to provide the same level of security as that Privacy of a wired network, which is inherently more secure than a wireless network because wired networks are easily protected against unauthorized access.

  • Page 117: Index

    I N D E X alerts label network 4-10, 4-12, 4-13, 5-7 configuration ....2-27 authentication LEAP EAP-FAST ....4-27 authentication ....4-27 LEAP ......4-27 login password ....4-2 PEAP ......4-27 PSK......4-27 mode TLS ......4-27 encryption ....4-25 TTLS ......
  • Page 118 security......4-20 TCP/IP settings ....... 4-20 commands ....6-14 serial cable TCPIP setup ...... 2-3, 2-4 settings ....4-7, 5-5 server Telnet settings4-3, 4-4, 4-5, 4-6, 4-8, 4-18, commands ..6-1, 6-5, 6-10 4-19, 5-5 test setting label ......2-27 password ..
