Related Manuals for Hunter XC

Summary of Contents for Hunter XC

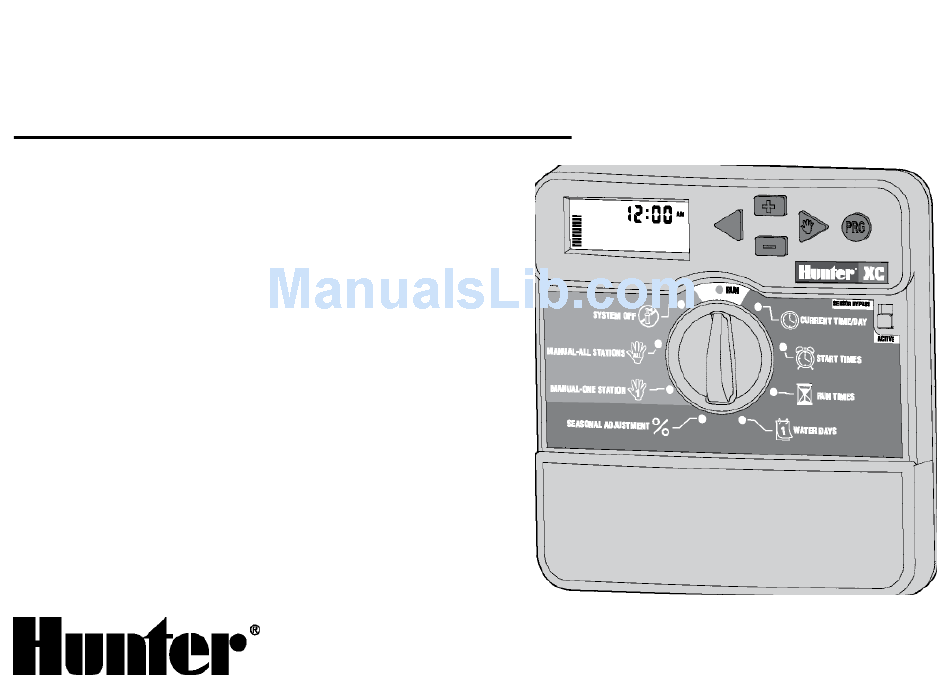

  • Page 1 Residential Irrigation Controller Owner’s Manual and Programming Instructions...

  • Page 3: Table Of Contents

    S e l e c t i n g I n t e r v a l W a t e r i n g ......9 XC Components ................1-2 S e t t i n g E v e n t D a y ( s ) O f f ......9...

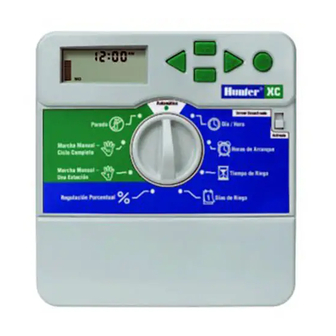

  • Page 4: Xc Components

    XC COMPOnEnTs N o t e : P l u g m a y look d iff er ent f r om I l l u s t r a t i o n . Indoor Model Outdoor Model (Internal...
  • Page 5 18.Terminal Strip – Use to attach transformer, sensor, and valve wires A – LCD Display from their source to the controller. Run Times – Allows user to set each valve station run 19.Reset Button – Use to reset the controller. time from 1 minute to 4 hours.

  • Page 6: Mounting The Controller

    COnnECTInG VALVEs AnD TRAnsFORMER Installation of the XC should only be done by trained personnel. 1. Route AC power cable and conduit through the ½" (13mm) conduit opening on the left side bottom of the cabinet.

  • Page 7: Replacing The Battery

    A high-energy lithium battery is included with your attached to the P terminal inside the controller. Tighten each terminal B a t t e r y XC controller. The battery allows the user to remotely screw. program the controller without connecting AC power. It...

  • Page 8: Connecting A Weather Sensor

    A Hunter weather sensor or other micro-switch type weather sensors wired into the sensor circuit. You can manually test proper operation of can be connected to the XC. The purpose of this sensor is to stop the rain sensor by running a...

  • Page 9: Watering Schedule Form

    WATERInG sCHEDULE HUNTER XC PROGRAM A PROGRAM B PROGRAM C DAY OF THE WEEK MO TU ODD/EVEN OR INTERVAL PROGRAM START TIMES LOCATION STATION RUN TIME STATION RUN TIME STATION RUN TIME STATION NOTES:...

  • Page 10: Programming The Controller

    PROGRAMMInG THE COnTROLLER buttons to select AM, PM, or 24 hour. The XC display shows the time and day when the controller is idle. Press the button to move to hours. Hours will The display changes when the dial is rotated to indicate the specific be flashing.

  • Page 11: Eliminating A Program Start Time

    Eliminating a Program Start Time Selecting Specific Days of the Week to Water With the dial set to position, 1. With the cursor on a specific day START TIMES push the button until you reach (the cursor will always start with MO), press 12:00 AM (Midnight).

  • Page 12: Automatic Watering

    Setting Event Day(s) Off a designated period from 1 to 7 days. At the end of the programmed The XC allows you to program a No Water Day(s). This feature is use- rain off period, the controller will resume normal ful to inhibit watering on specific day(s).

  • Page 13: Manually Run A Single Station

    Seasonal Adjustment Manually Run All Stations M A N U A L - A L L S T A T I O N S A L L Seasonal Adjust is used to make global run time changes without re- 1. Turn dial to MANUAL – ALL programming the entire controller.

  • Page 14: Advanced Features

    Test Program of All Stations ADVAnCED FEATUREs The XC allows the user a simplified method for running a test pro- Programmable Sensor Override gram. This feature will operate each station in numerical sequence, The XC allows the user to program the controller so that the sensor from the lowest to the highest.

  • Page 15: Clearing The Controller's

    Clearing the Controller's Memory/Resetting the Controller ™ The XC is capable of saving the preferred watering program into mem- If you feel you have misprogrammed the controller, there is a process ory for retrieval at a later time. This feature allows for a quick way of that will reset the memory to the factory defaults and erase all pro- resetting the controller to the original programmed watering schedule.

  • Page 16: Troubleshooting Guide

    TROUBLEsHOOTInG GUIDE PR OB L EM C A U SES SOL U T I ON S The controller is continuously watering. Too many start times have been programmed. Only one start time is necessary to activate a program. (refer to Setting Watering Start Times on page 7). Check AC power wiring.

  • Page 17: Specifications

    • Non-volatile memory for program data. • Seasonal adjustment (10% to 150%). • UL Listed. • Sensor bypass switch. • Model XC-x00 has an IP24 Rating for • XC-x00i for indoor use. XC-x00 for Pollution Degree 4. outdoor use. • Clean only with a cloth dampened with •...

  • Page 18: Ce Notice

    CERTIFICATE OF COnFORMIT TO EUROPEAn DIRECTIVEs Hunter Industries declares that the irrigation controller Model XC complies with the standards of the European Directives of “electromagnetic compatibility” 87/336/EEC and “low voltage” 73/23/EEC. This product should not be used for anything other than what is described in this document. This product should only be serviced by trained and authorized personnel.
