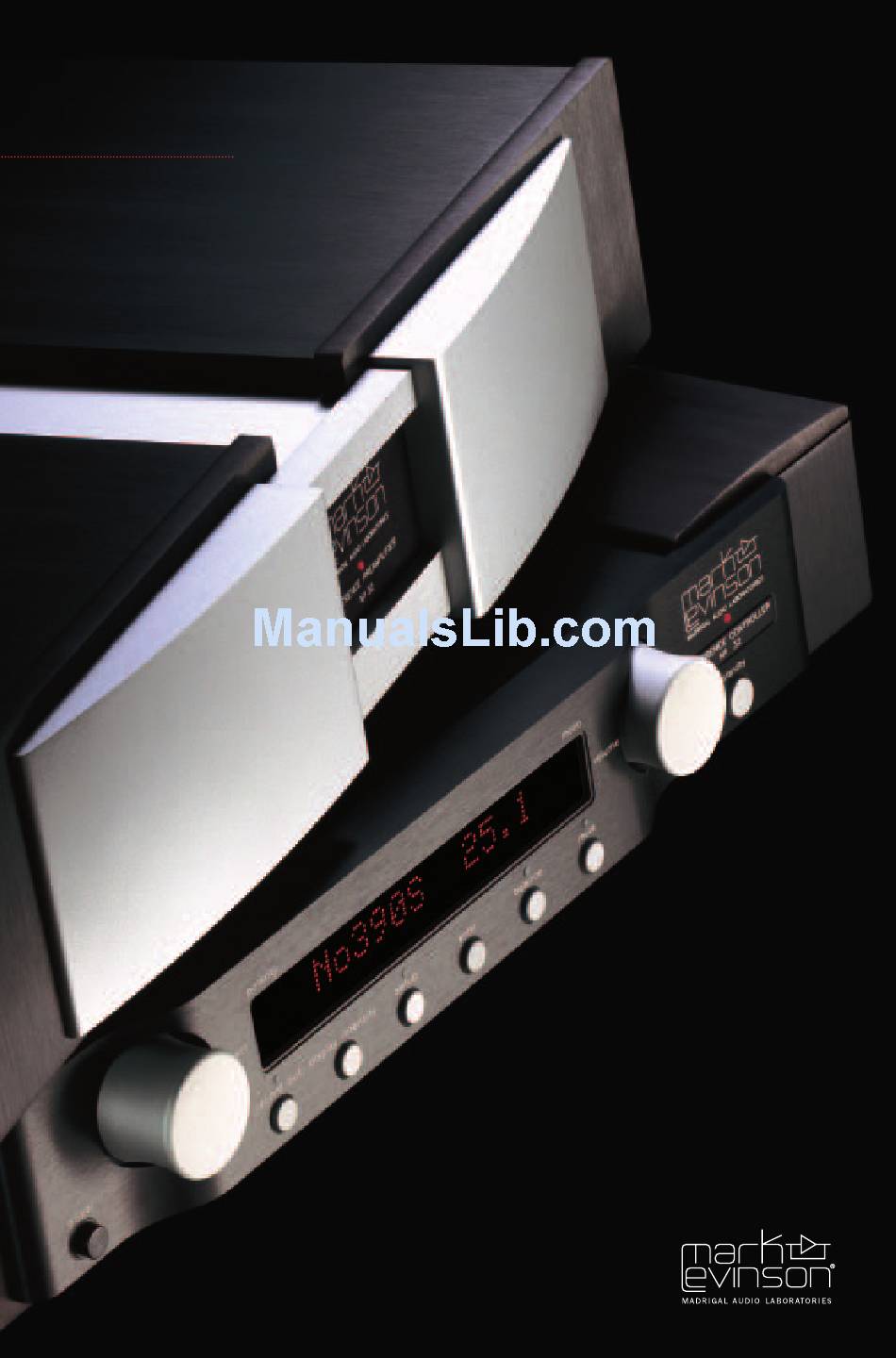

- Page 1 Nº32 REFERENCE PREAMPLIFIER...
- Page 2 The Nº32’s casework is extraordinary even by Mark Levinson standards, and, like the other aspects of its design, reflects an uncompromising...
- Page 3 Because each channel is effectively isolated from the other electrically and physically, the Nº32’s stereo separation is equivalent to that of two sepa- rate mono preamplifiers. The Nº32 is the first Mark Levinson product to use Arlon 25N ® for its circuit boards. This material’s superb dielectric properties help the...
- Page 4 attenuator modules are constructed on their own four-layer Arlon 25N circuit boards, whose local power-supply regulation and bypass capacitors guarantee the sensitive switches receive clean power and optimum isolation. An array of preci- sion resistors provides attenuation in 0.1dB steps down to –57dB, where step size is increased to 1dB.
- Page 7 Nº32 Phono Modul e s Frequency Response: RIAA response ±0.1dB RIAA/IEC response +0.1, -0.3dB Gain: either 40 or 60dB Total Harmonic Distortion (THD): less than 0.008%, 2V out, 1kHz test signal, 80kHz measurement bandwidth Residual Noise: ref to output w/500µV, 1kHz at input, unweighted -69dB Input Complement:...
- Page 8 19.5" (49.5cm) height: 3.03" (7.68cm) depth: 12.96" (32.91cm) Shipping Weight: Controller 60lbs. (27kg) Specifications are subject to change without notice. Mark Levinson ® is a registered trademark of Harman International Industries, Incorporated. Not responsible for typographic errors. Part # 072-17089 Preamplifier width: 19.5"...
