Safety ..................................4 National Conventions ............................4 Power ................................5 Installation ................................6 Cleaning ................................7 Other .................................. 8 Setup ..................................9 Content of the Box ............................. 9 Setup Stand & Base ............................10 Adjusting Viewing Angle ........................... 11 Connecting the Monitor ............................ 12 Wall Mounting ..............................
Page 3
Service ..................................59 Warranty Statement for Europe ........................59 Warranty Statement for Middle East and Africa (MEA) ..................61 AOC International (Europe) B.V........................63 Warranty Statement for North & South America (excluding Brazil) ............64 EASE PROGRAME ............................66...
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system.
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product.
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation.
Content of the Box Monitor Base Stand CD Manual Adapter Analog Cable Power Cable Not all signal cables (Adapter,power ) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.
Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor's angle from -5°...
Connecting the Monitor Cable Connections In Back of Monitor and Computer: Analog (D-Sub ) Power To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the power cable to the AC port on the back of the monitor. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.
Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Noted: VESA mounting screw holes are not available for all models,please check with the dealer or official department of AOC.
Adjusting Setting Optimal Resolution Windows 8 For Windows 8: Right click and click All apps at the bottom-right of the screen. Set the “View by” to “Category”. Click Appearance and Personalization.
Page 15
Click DISPLAY. 5. Set the resolution to Optimal preset resolution SLIDE-BAR...
6 Click SETTINGS. 7 Set the resolution SLIDE-BAR to Optimal preset resolution Windows ME/2000 For Windows ME/2000: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Double click DISPLAY. 5 Click SETTINGS. 6 Set the resolution SLIDE-BAR to Optimal preset resolution...
Hotkeys Menu/Enter 4:3 or wide /∧ Clear Vision /∨ Source/Auto/Exit Power Power Press the Power button to turn on/off the monitor. Menu/Enter Press to display the OSD or confirm the selection 4:3 or wide image ratio/∧ When there is no OSD, press ∧ hotkey continuously to change 4:3 or wide image ratio.(if the product screen size is 4:3 or input signal resolution is wide format,the hot key is disable to adjust) Auto / Exit hot key When there is no OSD, press Auto button continuously about 2 second to do auto configure.
Page 23
Clear Vision When there is no OSD, Press the “∨” button to activate Clear Vision. Use the “∧” or “∨” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. Press and hold “∨” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on”...
OSD Setting Basic and simple instruction on the control keys. Press the MENU-button to activate the OSD window. Press ∨ or∧ to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate. Press ∨ or∧ to navigate through the sub-menu. Once the desired function is highlighted, press MENU-button to activate.
Luminance Press (Menu) to display menu. Press ∨ or ∧ to select (Luminance), and press to enter. Press ∨ or ∧ to select submenu, and press to enter. Press ∨ or ∧ to adjust. (Auto) Press to exit Brightness 0-100 Backlight Adjustment.
Image Setup Press (Menu) to display menu. Press ∨ or ∧ to select (Image Setup), and press to enter. Press ∨ or ∧ to select submenu, and press to enter. Press ∨ or ∧ to adjust. (Auto) Press to exit Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise.
Color Setup Press (Menu) to display menu. Press ∨ or ∧ to select (Color Setup), and press to enter. Press ∨ or ∧ to select submenu, and press to enter. Press ∨ or ∧ to adjust. (Auto) Press to exit Warm Recall Warm Color Temperature from EEPROM.
Picture Boost Press (Menu) to display menu. Press ∨ or ∧ to select (Picture Boost), and press to enter. Press ∨ or ∧ to select submenu, and press to enter. Press∨ or ∧ to adjust. (Auto) Press to exit Frame Size 14-100 Adjust Frame Size.
OSD Setup Press (Menu) to display menu. Press ∨ or ∧ to select (OSD Setup), and press to enter. Press ∨ or ∧ to select submenu, and press to enter. Press ∨ or ∧ to adjust. (Auto) Press to exit H.
Extra Press (Menu) to display menu. Press ∨ or ∧ to select (Extra), and press to enter. Press ∨ or ∧ to select submenu, and press to enter. Press ∨ or ∧ to adjust. (Auto) Press to exit Input Select Auto/D-SUB/DVI Select input signal source.
Driver Monitor Driver Windows 8 Start Windows® 8 Right click and click All apps at the bottom-right of the screen. Click on the “Control panel”icon Set the “View by” to “Large icons” or “Small icons”.
Page 34
Click on the “Display”icon. Click on the “Change display settings” button. “ Click the Advanced Settings” button.
Page 35
button Click the “Monitor” tab and then click the “Properties” Click the “Driver” tab. 10. Open the “Update Driver Software-Generic PnP Monitor”window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button.
Page 36
11. Select "Let me pick from a list of device drivers on my computer". 12. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 13.
Windows 7 1.Start Windows® 7 2.Click on the 'Start' button and then click on 'Control Panel'. 3. Click on the 'Display'icon.
Page 38
4.Ckick on the“Change display settings”button. “ Click the Advanced Settings”button. button. Click the “Monitor” tab and then click the “Properties”...
Page 39
7.Click the “Driver” tab. 8. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “and then click the "Browse my computer for driver software" button. 9. Select "Let me pick from a list of device drivers on my computer".
Page 40
10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name(where X is the drive letter designator for the CD-ROM drive). 11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 12.
Windows Vista 1. Click "Start " and "Control Panel". Then, double-click on "Appearance and Personalization". 2. Click "Personalization" and then "Display Settings". 3. Click "Advanced Settings...".
Page 42
4. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue". 5.
Windows XP 1. Start Windows® XP 2. Click on the 'Start' button and then click on 'Control Panel'. 3. Select and click on the category ‘Appearance and Themes’ 4. Click on the 'Display' Item.
Page 44
5. Select the 'Settings' tab then click on the 'Advanced' button. 6. Select 'Monitor' tab - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active, click on 'Properties' button. Please follow the steps below.
Page 45
8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button. 9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button. 10.
Windows 2000 Start Windows® 2000 Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. Double click on the 'Display' Icon. Select the 'Settings' tab then click on 'Advanced...'. Select 'Monitor' - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active.
Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide.
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below).
Screen+ Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the...
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust.
Page 51
Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and Horizontal or vertical FOCUS. disturbances on the screen Press to auto-adjust. Use I-menu software from CD(or download from AOC official website), select “reset” option to adjust. Display not on whole screen in default resolution ration...

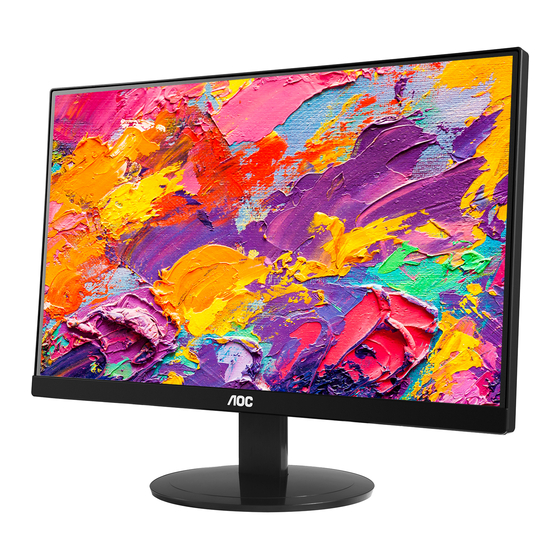

Specification General Specification Product name I2280SWD Driving system TFT Color LCD Viewable Image Size 54.61cm diagonal Pixel pitch 0.24795mm(H) x 0.24795mm(V) Panel Video R, G, B Analog lnterface,DVI Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 170MHz Horizontal scan range...
Pin Assignments 15-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Video-Red Video-Green Ground Video-Blue N.C. N.C. DDC-Serial data Detect Cable H-sync GND-R V-sync GND-G DDC-Serial clock GND-B 24-Pin Color Display Signal Cable 24-Pin Color Display Signal 24-Pin Color Display Signal Pin Number Pin Number...
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
It is the responsibilities of the user to correct such interference. It is the responsibility of the user to correct such interference Energy Star ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency.
AOC believes in protecting the environment. With a key concern for the conservation of natural resources, as well as land ll protection, AOC announces the launch of AOC monitor’s packaging recycling program. This program is designed to help you discard of your monitor carton and ller materials properly.
WEEE Declaration Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.
The freight cost for the warranty is pre-paid by AOC for the delivery and return. Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Certified or Authorized Service Center under the following condition: ...
Page 60
If your warranty has expired, you still have access to all available service options, but you will be responsible for the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified or Authorized Service Center will provide you with an estimate of service costs before receiving your authorization to perform service.
During this period, AOC International (Europe) B.V. offers a Carry-In (return to Service Center) Warranty Support at an AOC’s Authorized Service Center or Dealer and at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. As a Standard Policy,...
Page 62
Adjustment by non-authorized source Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center Improper environments like humidity, water damage and dusts Damaged by violence, earthquakes and terrorist attacks ...
No manufacturer can guarantee that all panels will be free from pixel defects, but AOC guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This Pixel Policy explains the different types of pixel defects and defines acceptable defect levels for each type.
In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty. * This limited warranty does not cover any losses or damages that occur as a result of:...
Page 65
ARGENTINA: http://ar.aoc.com/support/warranty BOLIVIA: http://bo.aoc.com/support/warranty CHILE: http://cl.aoc.com/support/warranty COLOMBIA: http://co.aoc.com/warranty COSTA RICA: http://cr.aoc.com/support/warranty DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty ECUADOR: http://ec.aoc.com/support/warranty EL SALVADOR: http://sv.aoc.com/support/warranty GUATEMALA: http://gt.aoc.com/support/warranty HONDURAS: http://hn.aoc.com/support/warranty NICARAGUA: http://ni.aoc.com/support/warranty PANAMA: http://pa.aoc.com/support/warranty PARAGUAY: http://py.aoc.com/support/warranty PERU: http://pe.aoc.com/support/warranty URUGUAY: http://pe.aoc.com/warranty VENEZUELA: http://ve.aoc.com/support/warranty IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty...
& LCD Panel) *AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unitarriving at AOC’s service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOCservice center.
