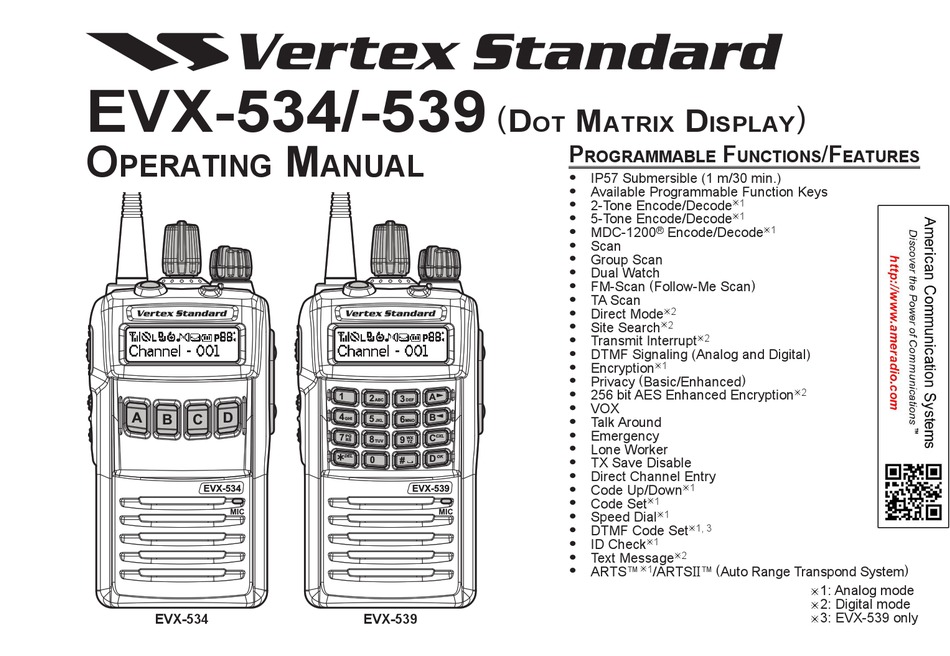

Page 1 EVX-534/-539 atrix isplay perating anual rograMMable unctions eatures IP57 Submersible (1 m/30 min.)  Available Programmable Function Keys  2-Tone Encode/Decode  ø1 5-Tone Encode/Decode  ø1 MDC-1200 ® Encode/Decode  ø1 Scan  Group Scan  Dual Watch  FM-Scan ( Follow-Me Scan )  TA Scan  Direct Mode  ø2 Site Search ...
Page 2 Battery Charging ..........6 Advanced.Operation..........18 Low Battery Indication ........7 Programmable Key Functions ......18 Belt Clip Installation and Removal .....8 Description of Operating Functions ....21 MIC/SP Cap Installation ........8 Lock................42 ARTS™/ARTSII™. ( Auto.Range.Transpond.System ) ..42 Controls.&.Connectors...........10 EVX-534 ............11 User.Set.Mode............43 EVX-539 ............12 Optional.Accessories..........44 Congratulations! You now have at your fingertips a valuable communications tool, a Vertex Standard two-way radio! Rugged, reliable and easy to use, your Vertex Standard radio will keep you in constant touch with your colleagues for years to come, with negligible maintenance down-time. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio, in case questions arise later on. Important.Note r There are no owner-serviceable parts inside the radio. All service jobs must be referred to an authorized...
Page 3 The EVX-534/-539 are full-featured Hand-Held Digital/Analog Transceiver designed for business communica- tions in the VHF/UHF Land Mobile bands. Both transceivers are designed for reliable business communications in a wide variety of applications with a wide range of operating capability provided by their leading-edge design. Both transceiver supports up to 512 channels within a maximum of 32 groups, and each channel can be pro- grammed with a unique alpha numeric tag in one of six different languages. Important channel frequency data is stored in the flash memory, and is easily programmable by a Vertex Standard licensed dealers using a personal computer with Vertex Standard Programming equipment: FIF-12 USB Program- ming Interface, and CT-106 Connection cable with CE151 Software. Or, once a single radio is programmed, clon- ing cable CT-27 can be used to program additional radios directly. The pages which follow will detail the many advanced features provided in the EVX-534/-539 transceiver. After reading this manual, you may wish to consult with your Network Administrator regarding precise details of the configuration of this equipment for use in your application.
Page 4 This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure limits for Occupational Use/Controlled exposure environment. In addition, it complies with the following Standards and Guidelines: r FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation. r FCC OET Bulletin 65 Edition 97-01 (2001) Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. r ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequen- cy Electromagnetic Fields, 3 kHz to 300 GHz. r ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electro- magnetic Fields - RF and Microwave. .WARNING: This radio generates RF electromagnetic energy during transmit mode. This radio is designed for and clas- sified as Occupational Use Only, meaning it must be used only during the course of employment by indi- viduals aware of the hazards, and the ways to minimize such hazards. This radio is not intended for use by the General Population in an uncontrolled environment. .CAUTION: To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupa- tional use, always adhere to the following guidelines:  . This.radio.is.NOT.approved.for.use.by.the.general.population.in.an.uncontrolled.exposure.environment.. This.radio.is.restricted.to.occupational.use,.work.related.operations.only.where.the.radio.operator.must. have.the.knowledge.to.control.his.or.her.RF.exposure.conditions. EVX-534/-539 O pErating anual...
Page 5  . In. front. of. the. face.. Hold. the. radio. in. a. vertical. position. with. the. microphone. (and. other. parts. of. the. radio.including.the.antenna).at.least.1.inch.(2.5.cm).away.from.the.nose.or.lips..Keeping.the.radio.at.a. proper.distance.is.important.to.ensure.compliance..  . SAR. compliance. for. body-worn. use. was. only. demonstrated. for. the. specific. belt-clip. (CLIP-20).. Other. body-worn.accessories.or.configurations.may.NOT.comply.with.the.FCC.RF.exposure.requirements.and. should.be.avoided.  . Always.use.Vertex.Standard.authorized.accessories.  . The.information.listed.above.provides.the.user.with.the.information.needed.to.make.him.or.her.aware.of. RF.exposure,.and.what.to.do.to.assure.that.this.radio.operates.with.the.FCC.RF.exposure.limits.of.this. radio.  . Electromagnetic.Interference/Compatibility During.transmissions,.this.radio.generates.RF.energy.that.can.possibly.cause.interference.with.other.de- vices.or.systems..To.avoid.such.interference,.turn.off.the.radio.in.areas.where.signs.are.posted.to.do.so. Do.not.operate.the.transmitter.in.areas.that.are.sensitive.to.electromagnetic.radiation.such.as.hospitals,. health.care.facilities,.aircraft,.and.blasting.sites. EVX-534/-539 O pErating anual...
Page 6  . The. radio. must. be. used. with. a. maximum. operating. duty. cycle. not. exceeding. 50%,. in. typical. Push-to- Talk.configurations. DO.NOT.transmit.for.more.than.50%.of.total.radio.use.time.(50%.duty.cycle)..Transmitting.more.than. 50%.of.the.time.can.cause.IC.RSS.General.Requirement.to.be.exceeded..To.keep.the.Body.Worn.configu- ration.with.the.Vertex.Standard.CLIP-20.belt-clip,.reduce.the.maximum.operating.duty.cycle.still.more. The.radio.is.transmitting.when.the.red.LED.on.the.top.of.the.radio.is.illuminated...You.can.cause.the.ra- dio.to.transmit.by.pressing.the.P-T-T.button.  . SAR. compliance. for. body-worn. use. was. only. demonstrated. for. the. specific. belt-clip. (CLIP-20).. Other. body-worn.accessories.or.configurations.may.NOT.comply.with.the.IC.RSS.General.Requirement.and. should.be.avoided.  . When.operate.the.radio.with.the.Vertex.Standard.CLIP-20.belt-clip,.make.the.transmission.time.as.short. as.possible,.to.keep.the.Body.Worn.configuration. EVX-534/-539 O pErating anual...
Page 7 Les types d’antenne non inclus dans cette liste, ou dont le ATV-16B: −2.15 dBi, 50-ohm ATU-16C: −2.15 dBi, 50-ohm ATV-16C: −2.15 dBi, 50-ohm ATU-16F: −2.15 dBi, 50-ohm gain est supérieur au gain maximal indiqué, sont strictement ATV-16XL: −2.15 dBi, 50-ohm ATU-16BS: −2.15 dBi, 50-ohm interdits pour l’exploitation de l’émetteur.  . Pour.émettre,.tenez.votre.radio.verticalement.en.plaçant.le.microphone.entre.2,5.cm.de.la.bouche..L’an- tenne.doit.toujours.être.à.plus.de.2,5.cm.de.votre.tête.  . . L e.temps.total.d’émission.de.la.radio.ne.doit.pas.dépasser.50%.du.temps.de.fonctionnement.dans.une.confi- guration.normale.avec.alternat..Par.conséquent,.vous.ne.devez.PAS.émettre.pendant.plus.de.50%.du.temps. total.d’utilisation.de.la.radio..Si.cette.règle.n’est.pas.respectée,.vous.exposez.à.un.dépassement.de.l’exposi- tion.aux.fréquences.électromagnétiques.telle.que.définie.par.la.norme.de.sécurité..La.radio.émet.lorsque.le. voyant.LED.rouge.(situé.au.sommet.de.la.radio).est.allumé..Vous.pouvez.déclencher.l’émission.en.appuyant. sur.le.bouton.Alternat.ou.avec.un.micro-casque.VOX,.si.la.radio.permet.d’utiliser.cet.accessoire.  . La.conformité.SAR.pour.utilisation.sur.le.corps.n’a.été.confirmée.que.pour.l’attache.ceinture.de.nomen- clature.CLIP-20..L’utilisation.de.tout.autre.accessoire.pour.port.sur.le.corps.PEUT.être.non.conforme. aux.normes.d’exposition.aux.radio-fréquences.et.doit.donc.être.évitée.  . N’opérez.pas.votre.radio.en.mode.d’émission.lorsque.vous.la.portez.fixée.sur.le.corps.à.l’aide.de.l’acces- soire.suivant.:.CLIP-20.attache.ceinture. EVX-534/-539 O pErating anual...
Page 8 Latch on the bottom of the radio toward the front panel while sliding the battery down about 1/2 inch (1.5 cm). Then lift the battery out from the radio. PA-55 Do. not. attempt. to. open. any. of. the. re- chargeable. Lithium-Ion. packs,. as. they. could.explode.if.accidentally.short-circuited. CD-58 EVX-534/-539 O pErating anual...
Page 9 V133LI-UNI or FNB-V134LI-UNI Lithi- voltage is low. um-Ion Battery Pack. You may confirm the battery condition by the Battery 2) Use only the Vertex Standard CD-58 Desktop Icon on the display. See page 13 for more informa- Charger and the Vertex Standard PA-55 AC Adapter. tion. 3) To reduce the risk of explosion, recharge the bat- teries outside of hazardous locations.
Page 10 Belt Clip, then slide the Belt Clip upward to remove it. Belt Clip Tab r Use. only. the. supplied. screws. when.install.the.MIC/SP cap. r This. radio. does. not. keep. the. submersible. Rating. (IP57:. 1. meter./.30.minutes).when.the. MIC/SP. cap. is. not. installed. in.the.MIC/SP.jack. EVX-534/-539 O pErating anual...
Page 11 EVX-534/-539 O pErating anual...
Page 12 ( eVx-534 ) & c ontrols onnectors VOL ( Volume ) /PWR ( Power ) Knob LED Indicator ( Programmable ) Default settings are: Transmitting in progress ( Analog ) CH ( Channel ) Selector Steady Red: Steady Blue: Transmitting in progress ( Digital ) Blinking Green: Busy Channel Antenna Jack Steady Green: Tone Squelch in defeated condition...
Page 13 CH ( Channel ) Selector Steady Red: Steady Blue: Transmitting in progress ( Digital ) Blinking Green: Busy Channel Antenna Jack Steady Green: Tone Squelch in defeated condition TOP SEL ( Top Select ) Key LCD ( Liquid Crystal Display ) 16-Button DTMF Keypad PTT Switch MIC/SP Jack ( External MIC/SP ) SIDE-1 Button SIDE-2 Button EVX-539 Speaker Battery Pack Latch Microphone EVX-534/-539 O pErating anual...
Page 14 & i cons nDicators : “Scan” is enabled : “Priority Scan” is activated “CALL” Indicator Receiver Monitor : “Dual Watch” is activated “5-tone Status Call” or : “Talk-Around” is enabled “Digital Text Message” is received Low Transmit Power Mode “On” Battery Icon “Privacy” or “Encryption” is activated Priority-2 Channel TX Power & RSSI Indicator (four steps) Group Number “VOX” is activated “Group Scan” is enabled Dot Matrix Display attery Full Battery Power Moderate Battery Power Low Battery Power w/blink : Poor Battery Power (Charge the Battery) EVX-534/-539 O pErating anual...
Page 15 Battery pack is attached to the transceiver; ” function to change desired Channel r Antenna is connected to the antenna jack; Group before selecting the operating channel. r and MIC/SP cap is installed in the MIC/ Note: Some models are programmed so that the SP jack. operating channels are selected by the Program- r Use of a speaker microphone in the acces- sory connector negates the IP57 rating. mable key and the Channel Group is selected by EVX-534/-539 O pErating anual...
Page 16 Programmable key again to quiet the noise and resume normal (quiet) monitoring. EVX-539 r To transmit, monitor the channel and make sure it is clear. Press and hold the PTT switch. Speak into the microphone area of the EVX-534 front panel grille in a normal voice level. To re- EVX-534/-539 O pErating anual...
Page 17 (CTCSS tone or DCS code) on an analog channel or correct code on a r EVX-534/-539 radios have two modes of DMR operation to maximize spectrum efficiency. Stan- digital channel. dard operation requires use of a TDMA repeater...
Page 18 Automatic.Time-Out.Timer If the selected channel has been programmed for au- tomatic time-out, you must limit the length of each transmission. While transmitting, a beep will sound 10 seconds before time-out. Another beep will sound just before the deadline; the top panel’s red LED (“TX” indicator) will disappear and transmission will cease soon thereafter. To resume transmitting, you must re- lease the PTT switch and wait for the “penalty timer” to expire. EVX-534/-539 O pErating anual...
Page 19 Programmable.Key.Functions In this chapter, the following icons are used to indi- cate features supported in either the “Analog” mode The EVX-534 provides seven programmable func- or “Digital” mode: tion ( PF ) keys: TOP SEL, SIDE-1, SIDE-2, [ A ] , [ B ] , [ C ] , and [ D ] keys. EVX-539 also includes the [ Ý...
Page 20 --- / Lone Worker Group Up Group Down Channel Up Channel Down Speed Channel Up --- / --- / --- / --- / --- / --- / --- / --- / --- / Speed Channel Down --- / --- / --- / --- / --- / --- / --- / --- / --- / PRI-1 PRI-2 PRI-2 Set PRI-2 Disable Direct CH 1 Direct CH 2 Direct CH 3 Direct CH 4 Direct CH Entry Scan EVX-534/-539 O pErating anual...
Page 21 Code Up Code Down Code Set Speed Dial DTMF Code Set ø Call Status Set Status Up Status Down Status Check Duty ID Check ARTS Login Text Message Remote Halt TX [ Transmit Interrupt ] Option SW1 /--- /--- /--- /--- /--- /--- /--- /--- /--- Option SW2 TX Save Disable Lock ø : activated in EVX-539 EVX-534/-539 O pErating anual ø : activated in EVX-539...
Page 22 The “ ” icon will be indicated on the display while vacy feature initiates an encryption algorithm that canceling any signaling features. will protect your communication from unauthorized eavesdropping. Press, (or press and hold), the assigned PF key to The “ ” icon will be indicated on the display when toggle the back light of the display and keypad “On” the Privacy feature is activated. and “Off”. EVX-534/-539 O pErating anual...
Page 23 [ C ] key. In this case, the display indicates The “ ” icon will be blinked on the display while opening the SQL. “-.Cancel.-” briefly. ncryption When the Voice Scrambler feature is enabled, press, (or press and hold), the assigned PF key to toggle the Voice Encryption “On” and “Off”. The “ ” icon will be indicated on the display when the Voice Scrambler is activated. EVX-534/-539 O pErating anual...
Page 24 Press, (or press and hold), the assigned PF key, the the [ C ] key. In this case, the display indicates display indicates “AF.ATT. ON” briefly, and reduce “-.Cancel.-” briefly. the audio output to the (lower) level programmed. Again press, (or press and hold), the assigned PF key, the display indicates “AF.ATT.OFF” briefly, and re- sume normal audio output level. You may change the programmed (lower) level by the “User Set (Menu)” mode. See page 42 for more information. EVX-534/-539 O pErating anual...
Page 25 You may cancel the new setting by pressing activate the VOX function; allowing hands-free, au- the [ C ] key. In this case, the display indicates tomatic activation of the transmitter, based on voice “-.Cancel.-” briefly. input into the microphone. You may disable the VOX function temporarily by pressing the PTT switch. EVX-534/-539 O pErating anual...
Page 26 Press and hold the assigned PF key for a pre-pro- select a different group of channels. A group number grammed period to initiate an emergency call on the will appear at the upper right corner and a group pre-defined channel. The “-.Emergency.-” indication name will appear briefly on the display. will be indicated on the display. For further details contact your Vertex Standard dealer. To revive the radio from the Emergency mode, just press and hold again the assigned PF key or turn off the radio. EVX-534/-539 O pErating anual...
Page 27 Press, (or press and hold), the assigned PF key to recall the pre-programmed channel by your Vertex recall the pre-programmed Priority Channel of the Standard dealer directly. current group (Priority-2) by your Vertex Standard dealer directly. When PRI-2 channel is recalled, the “P” icon will appear on the display. EVX-534/-539 O pErating anual...
Page 28 A tone will sound, and the current group/channel activate scanning. will appear on the display. r The scanner will search the channels of each r In the EVX-534, select the desired digit of the channel, looking for active ones; it will pause group number and channel number using the each time it finds a channel on which someone is [ A ] / [ B ] keys, then change the number using the speaking.
Page 29 When the Group Scan is activated, the display in- To stop Dual Watch: dicates “Group. Scan”, and current group channel r Press, (or press and hold), the assigned PF key to number will appear at the upper right corner on the disable the Dual Watch feature. display. r The radio receives the channel which was chosen when pressed the PF key. EVX-534/-539 O pErating anual...
Page 30 Note 2: when delete a channel from your scanning When the scanner stops on an “Active” channel, the list, the display indicates “Scan.Skip” briefly and the user-assigned priority channel will automatically be “ ” icon will disappear from the display. checked every few seconds; if activity is found on the user-assigned priority channel, the radio will switch between it and the dealer-assigned priority channel, if any. EVX-534/-539 O pErating anual...
Page 31 “Talk Around” channels by programming “repeater” pears. When a signal is encountered on the transmit and “Talk Around” frequencies on two adjacent chan- frequency, the transceiver will check for activity on nels. If so, the key may be used for one of the other the receive frequency every few seconds (interval Pre-Programmed Functions. EVX-534/-539 O pErating anual...
Page 32 Site Search enables the radio to move between mul- tiple sites seamlessly by identifying the strongest, closest site signal. The EVX-534/-539 portable will You can change the desired digit of the 5-Tone en- dynamically change it’s pre-programmed home site to code code using this function: the site with the strongest signal in range when Site r Press, (or press and hold), the assigned PF key.
Page 33 To dial a number: When using the DTMF Paging System ( eVx-539 ) In the EVX-534, press, (or press and hold), the as- This feature, if enabled, allows the user to send any signed PF key, then press the SIDE-1/SIDE-2 but- 3-digit Page Call code, used to call other similarly- tons (or [ A ] / [ B ] keys) to select the Auto-Dial memory equipped stations. Press, (or press and hold), the as-...
Page 34 Describes these two  Press the [ C ] key to cancel the “Call” feature and functions later. return to the normal operation, if desired. r Press the [ D ] key to accept the selection. Call.Alert: You may contact with the selected You may cancel the selection by pressing the [ C ] key. Contact Alias. EVX-534/-539 O pErating anual...
Page 35 [ Ý ] key, or the new setting. You may cancel the new setting insert the space by pressing the [ # ] key. Press the by pressing the [ C ] key. [ D ] key again, the display indicates “-Saved-” Delete..List: You may delete the desired Contact briefly and store the new setting. You may cancel Alias from the contact list if your transceiver is EVX-534/-539 O pErating anual...
Page 36 Press the [ D ] key to remote-control the desig- command and stuns it. If not, your radio’s display nated radio. If the designated radio is alive, the indicates “No.Response”, the stun command did designated radio will automatically transmit for not succeed. EVX-534/-539 O pErating anual...
Page 37 “-Saved-” briefly and store the new setting into r Press the [ D ] key, The display indicates “-.Set.-” the contact list as the Private Call. You may can- briefly and store the new number to the 5-tone cel the new setting by pressing the [ C ] key. status code. You may cancel the new setting by pressing EVX-534/-539 O pErating anual...
Page 38 (depending on the sub-audio signaling) all traf- You may cancel the Call back sending by press- fic on the paging channel. The radio will sound the ing the [ C ] key. In this case, the display indicates paging alert when it receives the programmed 2-tone, “-.Cancel.-” briefly. 5-tone, or MDC1200 ® EVX-534/-539 O pErating anual...
Page 39 [ C ] key to return to the top functions are “Inbox”, “Write” (EVX-539 only), of the “IN BOX” function. and “Select.Message”. Delete (Individual message) r Press the [ D ] key to accept the selected function.  Press the [ A ] / [ B ] keys to select the received mes- Refer to follows for detailed operation of each sage you wish to delete. function. EVX-534/-539 O pErating anual...
Page 40 Write: If your transceiver is EVX-539, you may cre- “Manual” menu which is located at the last “Call ate a sending message and send/save it in this func- ID” loop. tion. The EVX-539 can memorize up to 24 messages  Press the [ D ] key, then enter the “Call ID” using include pre-programmed message which determined the [ 0 ] - [ 9 ] key. by the CE151 Programming Software. EVX-534/-539 O pErating anual...
Page 41 Delete the message buttons) to select the “Manual” menu which Important Note: You can not delete the message is located at the last “Call ID” loop. which determined by the CE151 Programming Soft- l Press the [ D ] key, then enter the “Call ID” us- ware. ing the [ 0 ] - [ 9 ] key. EVX-534/-539 O pErating anual...
Page 42 When the Transmit Battery Saver is “on” and “off”, ption Witch the display indicates “Tx. Save. ON” and “Tx. Save. Activates the optional accessory while pressing the OFF” briefly. assigned PF key. EVX-534/-539 O pErating anual...
Page 43 DVanceD peration Press (or press and hold) the assigned PF key to lock the CH Selector knob, Programmable keys, and PTT switch. You may change the lockout configuration by the “User Set (Menu)” mode. See page 43 for more information. EVX-534/-539 O pErating anual...
Page 44 To locked out the key locking, turn the radio off. incoming ARTS™ signal, a short beep will sound and Now, press and hold the PTT and SIDE-2 key while “IN. Service” will be indicated on the display for 2 turning the radio on again. seconds. If you move out of range for more than two minutes, your radio senses that no signal has been re- To cancel locking, repeat this process. ceived; a short triple-beep will sound and “OUT.Ser- vice” will be indicated on the display for 2 seconds. If you move back into communication range, as soon as the other station transmits, a short beep will sound again and “IN.Service” will be indicated again on the display for 2 seconds. arts ange ransponD ysteM ARTS is an enhanced feature of the ARTS sys- tem which identifies the radio id’s both in and out of range indvidually using either digital mode, or MDC- 1200 encode/decode in analog mode. ® EVX-534/-539 O pErating anual...
Page 45 Enables/Disables the Key Beeper. ON, OFF Bell Enables/Disables the Bell function (Alert tone activated by incoming signaling). ON, OFF Light Enables/Disables the back light of the display and keypad. ON, OFF Enables/Disables the Key Lock function. Free, Lock Enables/Disables the PTT Lock function. Free, Lock Scan Engages/Disengages Scanning. Group Scan , FM Scan, Dual.Watch Engages/Disengages Dual Watch. ON, OFF AF.Minimum.Volume Sets the minimum Audio Volume level. 000 ~ 255 Contrast Sets the LCD Contrast level 00 ~ 15 Sets the VOX sensitivity. –8 ~ 0 ~ +8 This Set Mode Item is appeared on the VOX function enabled channel only. Tx.Save Enables/Disables the TX Save function. ON, OFF Encryption Enables/Disables the Encryption (for analog) or Privacy (for digital) function. ON, OFF This Set Mode Item is appeared on the Encryption/Privacy function enabled channel only. EVX-534/-539 O pErating anual...
Page 46 Availability of accessories may vary; some acces- MH-360S Compact Speaker Microphone sories are supplied standard per local requirements, MH-450S Speaker Microphone others may be unavailable in some regions. Check MH-66 Submersible Speaker Microphone with your Vertex Standard Dealer for changes to MH-37 Earpiece Microphone A4B-1 this list. ATV-16A VHF Antenna (136-150 MHz) ATV-16B VHF Antenna (150-162 MHz)
Page 47 arranty olicy Vertex Standard warrants, to the original purchaser only, its Vertex Standard manufactured communications prod- ucts against defects in materials and workmanship under normal use and service for a given period of time from the date of purchase. Limited Warranty Details: Ÿ North America customers (USA and Canada): http://www.vertexstandard.com/lmr/warranty-terms.aspx Ÿ Customers outside of North America: contact the authorized dealer in your country. The AMBE+2™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Pat. Nos. #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. Isposal yoUr lectronIc lectrIc...
Page 48 No portion of this manual may be reproduced without the per- Vertex Standard LMR, Inc. mission of Vertex Standard LMR, Inc. 4-6-8 Shibaura, Minato-ku, Tokyo 108-0023, Japan Vertex Standard is a trademark of Vertex Standard LMR, Inc. All other trademarks are the property of their respective owners. ©2015 Vertex Standard LMR, Inc. All rights reserved.
