Partner OT-110 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OT-110
User Manual

Advertisement

Table of Contents
loading

Summary of Contents for Partner OT-110

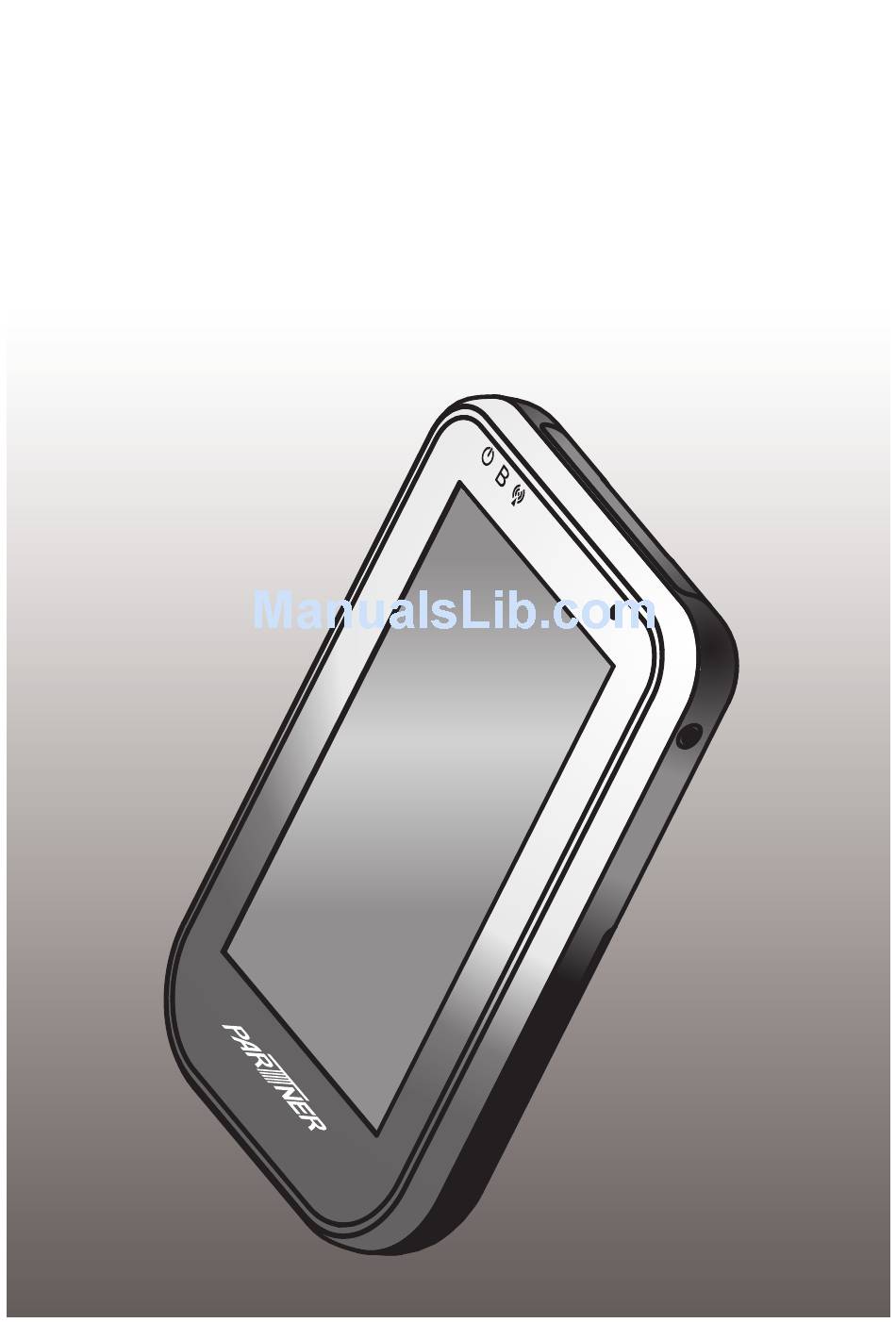

  • Page 1 OT-110 User Manual...

  • Page 3: Declaration Of Conformity

    This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of PARTNER Tech Corp. Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.
  • Page 4 FCC RF Radiation Exposure Statement This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device was tested for handheld operations with the device contacted directly to the human body. To maintain compliance with FCC RF exposure compliance requirements, avoid direct contact to the transmitting antenna during transmitting.

  • Page 5: Revision History

    This section provides information on how to use the accessories. Chapter 4 Installing The Optional Modules: This section provides steps to install and test the optional modules. Appendix: The appendix covers troubleshooting, information on having the OT-110 serviced and technical specifications.

  • Page 6: Safety Information

    Safety information Before installing and using the OT-110, take note of the following precautions: Request service for damaged products: Turn off the product, unplug it from the electrical outlet, and request service from a service partner under the following conditions: •...
  • Page 7 Battery Handling Precaution • Do not attempt to disassemble or reconstruct the packs. The battery has integrated protection circuits and safety functions to avoid danger. If battery is damaged, it may rupture, generate heat, or cause smoke and flame. • Do not short circuit battery. Do not short connect the positive terminal and negative terminal with metals.
  • Page 8 • Do not use an abnormal battery. If battery has a bad smell, changes color, deforms, or causes something wrong during usage, remove it from equipment or charger, and do not use. If an abnormal battery is used, it may cause battery to rupture, generate heat, or cause smoke and flame. Warning! Batteries may explode if not handled properly.

  • Page 9: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1 GETTING STARTED ..........1 Unpacking the OT-110 ..................1 Checking the package contents ..............2 Identifying components .................4 Charging Cradle .....................8 Setup the OT-110 ...................9 Using the cradle ...................12 Charge the device in cradle .................12 Charge the battery in cradle .................12 Changing the battery ..................13...
  • Page 10 Setting ADMIN/USER Utility .................48 Configure users’ programs and desktop ..........49 Synchronization....................50 Copy or move files between the computer and OT-110 .......52 Install and remove programs................53 Backup data ....................55 Restore data....................57 Upgrading Operating System ...............59 Resetting to Factory Default.................61 CHAPTER 3 USING THE ACCESSORIES ....... 63 Attaching the stylus cord ................63...

  • Page 11: Chapter 1 Getting Started

    CHAPTER 1 GETTING STARTED This chapter describes the procedures from unpacking the OT-110, to powering it on. The following topics are described. • Unpacking the OT-110 on page 1 • Checking the package contents on page 2 • Identifying components on page 4 •...

  • Page 12: Checking The Package Contents

    Checking the package contents After you unpack the device check that the following items are included. Quick start guide Stylus OT-110 High quality stylus 2 screws Battery Hand strap Plastic hinge Stylus cord AC adaptor mini-USB to USB cable C H A P T E R 1 G E T T I N G S T A R T E D...
  • Page 13 Optional Leather pouch cord Leather pouch Cradle Shoulder strap If any item is missing or appears damaged, contact your dealer immediately.

  • Page 14: Identifying Components

    Identifying components This section describes the parts and connectors on the OT-110. Front panel components Figure 1.2 Front view Component Description Power indicator (Green: charging full, Red: charging) Bluetooth indicator (Blue: Bluetooth is Disabled) WiFi indicator (Green: WiFi is enabled) Light sensor 4.3-inch touch screen...
  • Page 15 Top and bottom panel components Figure 1.3 Top and bottom view Component Description Top hand strap eyelet 2.5mm microphone jack Mini-USB port Cradle connector DC power jack 3.5mm headphone jack...
  • Page 16 Left and right side components Figure 1.4 Left and right side view Connector Description Reset button Leather pouch strap eyelet Power button Stylus dock C H A P T E R 1 G E T T I N G S T A R T E D...
  • Page 17 Back panel components Figure 1.5 Back view Connector Description Top hand strap eyelet Speaker Battery cover Bottom hand strap eyelet...

  • Page 18: Charging Cradle

    Charging Cradle This section introduces the charging cradle for the OT-110. The charging cradle is used to charge the OT-110. A second slot is also available for charging a spare battery. Top and front view of the cradle Figure 1.6 Top view of the cradle Figure 1.7 Front view of the cradle...

  • Page 19: Setup The Ot-110

    Setup the OT-110 Refer to the following to setup the OT-110. 1. Remove the battery cover. Slide the cover downwards to open. The battery cover hinge is small and fragile, don’t break it by forcing the battery cover off. OT-110 can’t be powered on without the hinge.
  • Page 20 2. Install the battery. Align the battery connectors on the battery with the pins in the battery compartment and insert the battery. 3. Replace the battery cover and align hinge on the cover to the sensor hole in the battery compartment. Slide the battery cover back until it locks.
  • Page 21 Open the power jack cover. Plug the AC adaptor power cord into an electrical outlet, then connect the DC plug of the adaptor cable to the OT-110. It takes approximately 6 hours to fully charge the battery for the first time. Subsequent charges might take longer.

  • Page 22: Using The Cradle

    Using the cradle The charging cradle allows a more convenient way to charge OT-110. You can charge a spare battery (optional) individually or simultaneously as well. Charge the device in cradle 1. Plug the AC adaptor power cord into an electrical outlet, then connect the DC plug of the adaptor cable to the power jack at the back of cradle.

  • Page 23: Changing The Battery

    IMPORTANT Changing the battery Refer to the following to change the battery. 1. Press the Power button to turn off the OT-110. 2. Remove the plastic hinge or the bottom of the hand strap. Slide the plastic hinge or hand strap down and away from the battery cover.
  • Page 24 4. Remove the battery cover. Slide the cover down, then lift up to remove. 5. Remove the battery by pulling on the plastic flap. 6. Install the new battery. Align the battery connectors on the battery with the pins in the battery compartment and insert the battery.
  • Page 25 7. Replace the battery cover by sliding it until it locks. Breaking the battery cover hook can cause the device cannot detect the battery installation status. Please follow the step instructions and install the battery cover carefully to avoid device failure. IMPORTANT 8.

  • Page 26: Using Microsd Cards

    Using microSD cards Use microSD cards for: • Expanding the memory of the OT-110 • Adding functionality The OT-110 supports SDHC microSD cards. microSD cards must be purchased separately and are not included with the OT-110. NOTE Installing a microSD card Refer to the following to install a microSD card.
  • Page 27 Slide the cover down, then lift up to remove. The battery cover hinge is small and fragile, don’t break it by forcing the battery cover off. OT-110 can’t be powered on without the hinge. CAUTION 5. Remove the battery by pulling on the plastic flap.

  • Page 28: View The Contents Of A Microsd Card

    → Programs → Windows Explorer. 2. Double tap SD Card to see a list of files and folders. • If the OT-110 does not recognize your MicroSD card, make sure you have firmly pushed the MicroSD card into the slot.

  • Page 29: Chapter 2 Using The Device

    CHAPTER 2 USING THE DEVICE This chapter describes how to use OT-110 features. The following topics are described. • Entering text on page 19 • Shortcut menus on page 19 • Windows CE help on page 20 • Performing a reset on page 20 •...

  • Page 30: Windows Ce Help

    Windows CE help Read the help information when you want to learn more about the program by tapping the on the left top of the program window. The help window will pop-up. Performing a reset A reset stops all running applications, but does not erase any programs, saved data, or registry information.

  • Page 31: Adjusting The Volume

    Adjusting the volume 1. Tap → Settings → Control Panel. 2. Double tap the Volume & Sounds icon.

  • Page 32: Setting The Power Schemes

    3. Select the Volume tab. 4. Move the system volume slider on the screen to the required volume level. 5. Tap the OK button. Setting the power schemes 1. Tap → Settings → Control Panel. C H A P T E R 2 U S I N G T H E D E V I C E...
  • Page 33 2. Double tap the Power icon. 3. Select the Schemes tab. 4. Select desired options for entering reduced power states. 5. Tap the OK button. The time choices represent the amount of time that must pass before the system will switch to the next power conservation state. For example, if “Switch state to System Idle:”...

  • Page 34: Changing The Device Name

    Changing the device name The device name is used to identify the OT-110 in the following situations: • Connecting with a computer • Connecting to a network Refer to the following to change the device name. 1. Tap → Settings → Control Panel.

  • Page 35: Entering Owner Information

    5. Tap the OK button. Entering owner information Enter your personal information, such as your name and address, so that the OT-110 can be returned to you if it is lost. Refer to the following to enter the information. 1. Tap...
  • Page 36 2. Double tap the Owner icon. 3. On the Identification tab, enter your personal information. C H A P T E R 2 U S I N G T H E D E V I C E...

  • Page 37: Recalibrating The Screen

    Recalibrating the screen If your stylus seems to be out of sync with the screen, then recalibrate the screen using your stylus. 1. Tap → Settings → Control Panel. 2. Double tap the Stylus icon.

  • Page 38: Setting The Date And Time

    3. Select the Calibration tab then tap the Recalibrate button. 4. Follow the displayed instructions to recalibrate. Please use the stylus to calibrate the screen for better accuracy. Setting the date and time Refer to the following to set date and time. 1.
  • Page 39 2. Double tap the Date/Time icon. 3. Change the date or time and select the correct time zone. 4. Tap the Apply button.

  • Page 40: Using Settings Manager

    Using Settings Manager Settings Manager controls settings for Modules, WLAN, Bluetooth, screen rotation, backlight and vibration. To enter Settings Manager 1. Tap → Settings → Control Panel. 2. Double tap the Setting Manager icon. C H A P T E R 2 U S I N G T H E D E V I C E...
  • Page 41 Modules tab This tab consists of blocks which are Key wedge, Setting utilities, Test utilities and Com port power setting. You can enable Key wedge feature, test optional modules and set power status for Com ports. Item Description Check the box and tap the Apply button to enable MSR/ 1D BCR/ 2D BCR key wedge mode.
  • Page 42 WLAN tab In the WLAN control panel, you can set up WLAN related functions. Item Description This block allows you to turn WLAN on/off. This feature allow you to set the WLAN roaming. When the signal strength of the old access point drops below the threshold setting value, the device will attempt to connect to the new access point.
  • Page 43 Bluetooth tab In the Bluetooth control panel, you can set up Bluetooth related functions. Item Description This block allows you to turn Bluetooth on/off. Check this box to enable Bluetooth when device boots up. Check this box to use BT manager, and also run BT manager when device boots up. When it is enabled, the BT manager icon will appear on the taskbar.
  • Page 44 Screen Rotation tab This device supports screen rotation, you can set the screen rotation in the tab. Item Description Screen rotation can be changed by select the different options (0, 90, 180, 270, Auto). Once Auto Rotation is enabled, the screen will rotate automatically when the device is turned sideways.
  • Page 45 Backlight tab This device has an ambient light sensor automatically adjust the backlighting, you can adjust different levels of the light sensor and set up brightness in the tab. Item Description Check this box to enable the light sensor. The light sensor has nine values. With this panel you can adjust your backlight levels according to the values.
  • Page 46 Battery tab In the Battery control panel, you can read battery status and configure it. Item Description The bar displays remaining capacity of the battery . It shows estimated remaining battery time. It shows estimated time needed to fully charge. It shows the current battery voltage.

  • Page 47: Setting Dar Fon Battery Gaugeic

    For DAR FON BAT2200 BATTERY(3.5).exe” file. 2. Copy the file to a Micro SD card. 3. Insert the Micro SD card to your OT-110. 4. Power on, Tap → Programs → Windows Explorer. 5. Double tap SD Card icon. 6. Double tap OT-110_Set Gauge IC For DAR FON BAT2200 BATTERY(3.5) icon.

  • Page 48: Other Tab

    Other tab In the Other control panel, you can enable Lock Screen, Vibration, PC get battery information, read the OS version and check the serial number. Item Description Check this box to enable Lock Screen when backlight off. Check this box to enable the vibration feature. Check this box to enable PC get battery information.

  • Page 49: Pc Getinfomation

    PC GetInfomation With PC GetInfomation, administrator can monitor the battery information of devices via network. To use the PC GetInfomation: Both your PC and the device must be in the same IP subnet. For example the IP of your PC is 192.168.1.1 and the device is 192.168.1.2 •...

  • Page 50: Lock Screen

    Lock Screen When activated, Lock Screen will disable audio and lock the screen. User will see the following when touch the screen. Connecting to a WLAN network With wireless access, you can connect the device to the Internet. The device can connect to an IEEE 802.11b/g device or connect directly to other WLAN-enabled devices.
  • Page 51 3. Select the Wireless Information tab. 4. Select an available network. 5. Tap the Connect button. 6. Set the properties. Normally, all settings will be detected automatically. If necessary, you can change settings as follow. • To use data encryption, select an encryption method from the Encryption list.

  • Page 52: Manually Connect To A Wlan Network

    Manually connect to a WLAN network A wireless network can be added manually by entering the settings information to add the network. Contact your network administrator to determine if authentication information is needed before trying to connect to a WLAN network. To manually connect to a WLAN network: 1.

  • Page 53: Lock Ssid

    Lock SSID SSID Lock allows device to only connect to a defined SSID network. This feature saves time as device no longer searches for available networks, and also saves battery power. 1. Turn on the WLAN. 2. Double tap on the taskbar.

  • Page 54: Specify The Ip Address And Domain Name Servers (Dns)

    Specify the IP address and domain name servers (DNS) The IP address and name server addresses are automatically assigned if DHCP in enabled on the wireless access point or network server. If your network does not automatically assign the addresses, ask your network administrator for the information and follow the instructions below.
  • Page 55 3. Double tap the WLAN connection icon. 4. Tap Specify an IP address. 5. Enter IP address, Subnet Mask, Default Gateway. 6. Tap the Name Servers tab on top 7. Enter the DNS or WINS addresses. 8. Tap the OK button.

  • Page 56: Find Your Ip Address

    Information tab. Using BT Manager BT Manager is a small utility which allows OT-110 to search and connect to Bluetooth devices using the SPP profile (Serial Port Profile). To use the BT Manager, please enable it via the Settings Manager.
  • Page 57 Connect button. 5. The Bluetooth device may ask for a PIN number to authenticate with OT-110. Enter the same PIN number on both devices. For Partner Tech MP-300 Bluetooth mobile printer, the default PIN number is 0000.

  • Page 58: Setting Admin/User Utility

    Setting ADMIN/USER Utility This utility is used to specific programs and desktop shortcuts for users. Users are allowed to use limited features by system default. An administrator can use the ADMIN/USER utility to set password, add or delete programs for users. 1.

  • Page 59: Configure Users' Programs And Desktop

    3. Setting password, When you use ADMIN/USER utility at the first time, it requires the password setting and confirmation. 4. Select ADMIN or USER mode. 5. Tap the OK button. Configure users’ programs and desktop Administrators can use ADMIN/USER utility to redirect users’ program and desktop. To create the shortcuts for users’...

  • Page 60: Synchronization

    Synchronization By synchronizing OT-110 with your computer, you have access to the same information—your Microsoft Office Outlook e-mail messages and calendar, your media files, your work documents, and more—on OT-110 or your computer. It’s a good idea to synchronize regularly.
  • Page 61 Windows Mobile Device Center (WMDC). You can also visit http://www.microsoft.com/windowsmobile to download WMDC. 2. Connect the OT-110 to the computer by using the Mini-USB to USB cable. 3. Sync your e-mail, contacts, and calendar appointments (if you use the calendar in your e-mail account).

  • Page 62: Copy Or Move Files Between The Computer And Ot-110

    2. Click File Management to open the Mobile Device folder for OT-110. 3. In the Mobile Device folder, navigate and select the file that you want to copy on OT-110 or computer. 4. Right-click the file that you want to copy or move, then click Copy or Cut.

  • Page 63: Install And Remove Programs

    2. Follow the instructions in the Installation Wizard provided with the program you want to install. 3. Check the screen on the OT-110 to see if any further steps are necessary to complete the program installation. To remove programs from the OT-110: 1.
  • Page 64 2. Double tap the Remove Programs icon. 3. Select the programs you want to remove, and then tap the Remove button. C H A P T E R 2 U S I N G T H E D E V I C E...

  • Page 65: Backup Data

    Backup data Backup request the MicroSD card installed 1. Tap → Settings → Control Panel. 2. Double tap the Backup icon.
  • Page 66 3. Select Backup. 4. Select SD card • To use SN protection, check the box of Need to match S/N. When restore, the device serial number must match the serial number embedded in the backup. • To backup all files on device, check the box of Backup all files on device.

  • Page 67: Restore Data

    Restore data To restore the backup data: 1. Tap → Settings → Control Panel. 2. Double tap the Backup icon.
  • Page 68 3. Select Restore. 4. Click the File... button. 5. Select the backup file. 6. Click the OK button. 7. Wait period for restore process. 8. When restore is complete, the system will prompt you to reboot the device. 9. Click OK. C H A P T E R 2 U S I N G T H E D E V I C E...

  • Page 69: Upgrading Operating System

    1. Fully charge the battery 2. Copy new OS files to the root directory of your Micro SD card. 3. Power off OT-110. 4. Open the battery compartment cover and remove the battery. 5. Insert the Micro SD card into OT-110.
  • Page 70 7. Use a paper clip press and hold the update button on the battery cover and then press the power button. 8. Press the power button to select “01. UPGRADE IMAGE VIA SD/ MMC” and then press and hold the power button for three seconds to confirm.

  • Page 71: Resetting To Factory Default

    Resetting to Factory Default To reset the device to factory default settings: 1. Use a paper clip press and hold the update button on the battery cover and then press the power button. 2. Press the power button to select “02.
  • Page 72 C H A P T E R 2 U S I N G T H E D E V I C E...

  • Page 73: Chapter 3 Using The Accessories

    CHAPTER 3 USING THE ACCESSORIES This chapter describes how to use the device accessories. • Attaching the stylus cord on page 63 • Attaching the hand strap on page 64 • Using the leather pouch on page 65 • Attaching the leather pouch cord on page 66 •...

  • Page 74: Attaching The Hand Strap

    Attaching the hand strap Refer to the following to attach the hand strap. 1. Insert the bottom of the hand strap into the slot at the bottom of the battery cover, until it clicks into place. 2. Thread the end of the hand strap through the top hand strap eyelet on the device then fold...

  • Page 75: Using The Leather Pouch

    A belt clip located on the back of the leather pouch allows you to wear the OT-110 on your side. In addition, a shoulder strap can be attached to the two integrated rings on the back side.

  • Page 76: Attaching The Leather Pouch Cord

    Attaching the leather pouch cord A leather pouch cord is provided to attach device to the leather pouch. 1. Open the battery cover. 2. Thread the small loop of the cord through the bottom corner strap eyelet on the device. Pull the other end of the cord through the small loop until the cord is firmly secured.

  • Page 77: Using The High Quality Stylus

    Using the high quality stylus A high quality stylus is included for your convenience.
  • Page 78 C H A P T E R 3 U S I N G T H E A C C E S S O R I E S...

  • Page 79: Chapter 4 Installing The Optional Modules

    1. Turn off the device. 2. Remove the two screws on the top cover. 3. Remove the top cover. 4. Connect the MSR module to Slot A slot A of the OT-110 as shown. 5. Fix the MSR module with two screws as shown.

  • Page 80: Testing The Msr Module

    Testing the MSR module Refer to the following to check if the module working properly. 1. Tap → Settings → Control Panel. 2. Double tap the Setting Manager icon. 3. Tap MSR Setting. C H A P T E R 4 I N S T A L L I N G T H E O P T I O N A L M O D U L E S...
  • Page 81 4. Tap Default. 5. Tap Apply. 6. Tap Test. NOTE If you don’t need to mark the beginning or end of the inputting text, delete text and symbols in sentinel block , such as %;+?. Then tap Apply to confirm.
  • Page 82 7. Swipe a magnetic stripe card. 8. Check if the data appear in the text box. C H A P T E R 4 I N S T A L L I N G T H E O P T I O N A L M O D U L E S...

  • Page 83: Installing The Rfid Reader/Writer Module

    2. Remove the two screws on the top cover. 3. Remove the top cover. 4. Connect the RFID reader/ Slot B writer module to slot B of the OT-110 as shown. 5. Fix the RFID reader/writer module with two screws as shown.

  • Page 84: Testing The Rfid Reader/Writer Module

    Testing the RFID reader/writer module Refer to the following to check if the module working properly. 1. Tap → Settings → Control Panel. 2. Double tap the Setting Manager icon. 3. Tap Test RFID. C H A P T E R 4 I N S T A L L I N G T H E O P T I O N A L M O D U L E S...
  • Page 85 4. Place a RFID card on the module. 5. Tap Open on COM7 selection. 6. Tap UID or Read. 7. Check if the data appear in the text bar.

  • Page 86: Installing The 1D Barcode Scanner Module

    2. Remove the two screws on the top cover. 3. Remove the top cover. 4. Connect the Barcode Scanner Slot B module to slot B of the OT-110 as shown. 5. Fix the Barcode Scanner module with two screws as shown.

  • Page 87: Testing The 1D Barcode Scanner Module

    Testing the 1D Barcode Scanner module Refer to the following to check if the module working properly. 1. Tap → Settings → Control Panel. 2. Double tap the Setting Manager icon. 3. Tap 1D Scanner Setting.
  • Page 88 4. Tap the Barcode Type tab. 5. Select types. 6. Tap Apply. This could take several seconds to complete. 7. Tap the BCR_ SETTINGS tab. 8. Tap Default. 9. Tap Apply. 10. Tap Test. C H A P T E R 4 I N S T A L L I N G T H E O P T I O N A L M O D U L E S...
  • Page 89 11. Press the scan button on the Barcode Scanner module and scan a barcode. 12. Check if the data appear in the text box.

  • Page 90: Installing The 2D Barcode Scanner Module

    Installing the 2D Barcode Scanner module Refer to the following to install the Barcode Scanner module. 1. Turn off the device. 2. Remove the two screws on the top cover. 3. Remove the top cover. 4. Connect the Barcode Scanner Slot B module to slot B of the device as shown.

  • Page 91: Testing The 2D Barcode Scanner Module

    Testing the 2D Barcode Scanner module Refer to the following to check if the module working properly. 1. Tap → Settings → Control Panel. 2. Double tap the Setting Manager icon. 3. Tap 2D Scanner Setting.
  • Page 92 4. Tap the Barcode Type tab. 5. Select types. 6. Tap Apply. 7. Type setting could take several seconds to complete. You’ll see a prompt warning. Do not reset or power off device before the procedure is finished. C H A P T E R 4 I N S T A L L I N G T H E O P T I O N A L M O D U L E S...
  • Page 93 8. Tap the BCR_ SETTINGS tab. 9. Tap Default. 10. Tap Apply. 11. Tap Test. 12. Press the scan button on the Barcode Scanner module and scan a barcode. 13. Check if the data appear in the text box.
  • Page 94 C H A P T E R 4 I N S T A L L I N G T H E O P T I O N A L M O D U L E S...

  • Page 95: Appendix

    APPENDIX This appendix describes locating and solving problems that you may encounter while using the OT-110. Troubleshooting Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.

  • Page 96: Having The Ot-110 Serviced

    If you are unable to solve the problem, you should have the device serviced. Pack the device in the original box. (See “Unpacking the OT-110” on page 1.) Include a description of the problem and a checklist of the steps you took when trying to fix the problem. The information may be useful to the service personnel. Return the device to the place you purchased it.

  • Page 97: Specifications

    Specifications CPU Samsung S3C 6410 667 MHz Memory Mobile DDR 128MB, NAND flash 256MB 4.3” widescreen (resolution 272*480) WLAN 802.11 b/g Connection interface Mini USB 2.0 ( Client ) / 1.1 ( Host) Audio Speaker, internal microphone, earphone jack, microphone jack Storage Micro SD card (support SDHC) Vibrator motor (for alerts)
