Page 1: Preparation For Installation

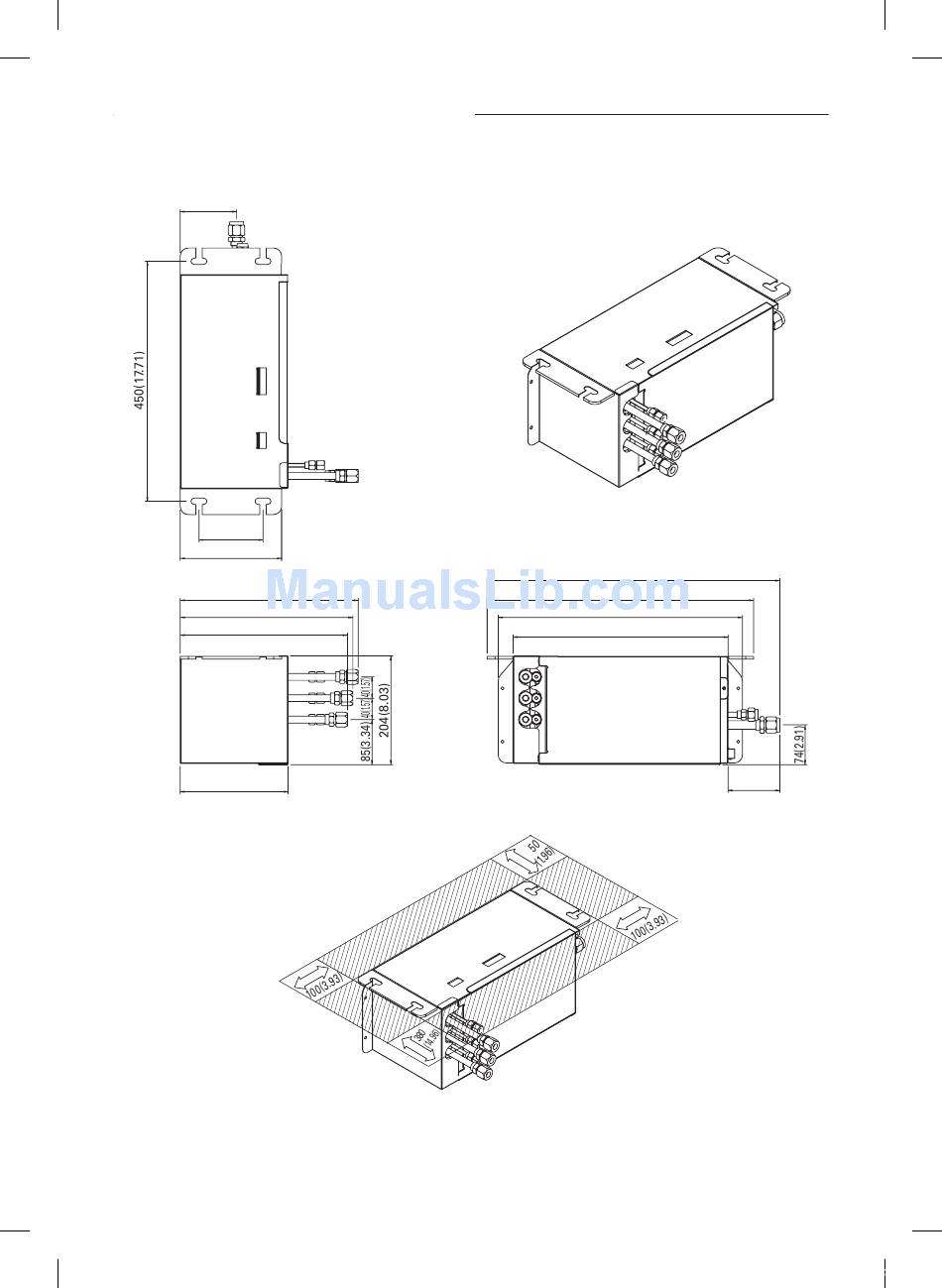

Preparation for Installation Unit : mm(inch) 105(4.13) 120(4.72) 190(7.48) 549(21.61) 333(13.11) 500(19.68) 323(12.71) 458(18.03) 313(12.32) 403(15.86) 97(3.81) Inspection area Inspection area NASA_Distributor Kit_IM_EN_03757A(1).indd 2 2013-01-18 오후 12:01:01... -

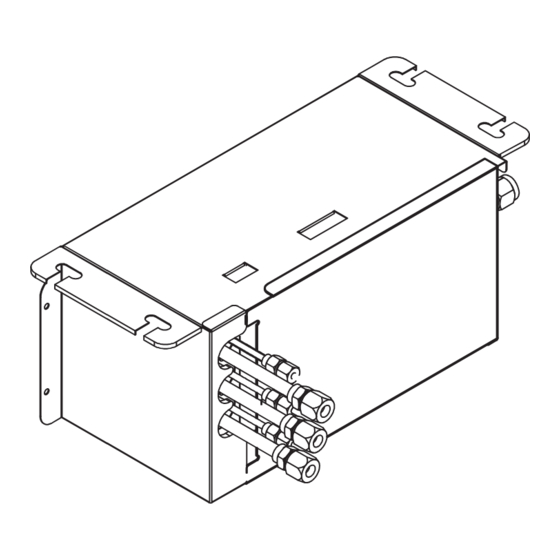

Page 2: Electronic Expansion Valve Kit Installation
Electronic Expansion Valve Kit Installation Connection of refrigerant piping & Installation 1. Decide an installation place that can support the electronic expansion valve kit. 2. Connect the “ IN” refrigerant pipe to the outdoor unit. 3. Connect the “ OUT” refrigerant pipe to each indoor unit (A, B and C). f The liquid and gas pipes should not be crossed when piping connection. 4. Insulate the connection piping. A joint part of pipe needs double thickness of insulation. 5. The expansion valve has to be installed that the user has no access to Nylon band Electronic Expansion valve body NASA_Distributor Kit_IM_EN_03757A(1).indd 3 2013-01-18 오후 12:01:02... - Page 3 Electronic Expansion Valve Kit Installation (cont.) Wiring & Assigning address Room A Room B Another distributor kit Outdoor unit Room C 1. Connect the AC power cable and communication cable from the outdoor unit to terminal, then connect the cable to another electronic expansion valve kit. 2. Connect the AC power cable and communication cable to each indoor unit (A, B and C). 3. Align the SW01/SW02, SW03/SW04 and SW05/SW06’s addresses with A, B and C indoor units’ . Appropriate indoor unit Switch No. Connector No. (Electronic expansion valve) SW01/SW02 EEV.1 CN801(YELLOW) SW03/SW04 EEV.2 CN802(BLUE) SW05/SW06 EEV.3 CN803(WHITE) NASA_Distributor Kit_IM_EN_03757A(1).indd 4 2013-01-18 오후...
-
Page 4: Key Function
Function of Display f The numbers which is displayed on left are the status of indoor unit checking status through communication with same outdoor unit. (If it indicates 1, 3 and 7 that means the ADDRESS of indoor unit is set to 1, 3 and 7.) f The numbers which is displayed on right indicate the ADDRESS of SW01/SW02, SW03/SW04 and SW05/SW06 in sequential. (If it indicates 0, 1 and 2 that means the SW01/SW02 is set to 0, the SW03/ SW04 is set to 1, and the SW05/SW06 is set to 2.) f If the communication error occurs in distributor, the Er↔C0 message will be shown on the display alternatively. KEY function f If you press a KEY on the PCB, the display will show you a step of appropriate electronic expansion valve. KEY No. Meaning Example Step of electronic expansion valve A Step of electronic expansion valve B (19 x 10 = 190 STEP) Step of electronic expansion valve C Applicable capacity Model Refrigerant 2 ~ 4.5 kW 5 ~ 9 kW MXD-E24K132✴ (7000 ~ 15500 Btu/h) (17000 ~ 31000 Btu/h) 2 ~ 4.5 kW 2 ~ 4.5 kW MXD-E24K200✴... - Page 5 NASA_Distributor Kit_IM_EN_03757A(1).indd 6 2013-01-18 오후 12:01:04...
-
Page 6: Air Conditioner
MXD-E32K Series Air Conditioner installation manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register AR DB68-03757A(1) NASA_Distributor Kit_IM_EN_03757A(1).indd 7...
