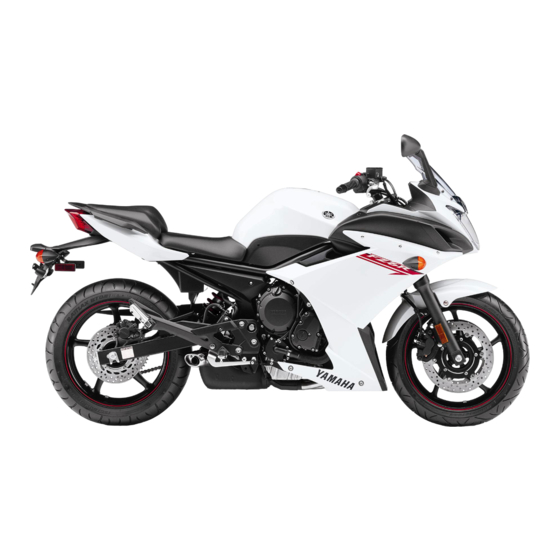

Yamaha FZ6RD(C) Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Read this manual carefully before operating this vehicle.
OWNER'S MANUAL
FZ6RD(C)
LIT-11626-26-42
36P-28199-14

Advertisement

Table of Contents
loading

Related Manuals for Yamaha FZ6RD(C)

Summary of Contents for Yamaha FZ6RD(C)

  • Page 1 Read this manual carefully before operating this vehicle. OWNER’S MANUAL FZ6RD(C) LIT-11626-26-42 36P-28199-14...
  • Page 2 EAU10042 Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold.
  • Page 3 Yamaha has met these standards without reducing the performance or economy of operation of the motorcycle. To maintain these high standards, it is important that you and your Yamaha dealer pay close attention to the recommended maintenance schedules and operating instructions contained within this manual.

  • Page 4: Important Manual Information

    IMPORTANT MANUAL INFORMATION EAU10133 Particularly important information is distinguished in this manual by the following notations: This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
  • Page 5 IMPORTANT MANUAL INFORMATION EAU10193 FZ6RD(C) OWNER’S MANUAL ©2012 by Yamaha Motor Corporation, U.S.A. 1st edition, August 2012 All rights reserved. Any reprinting or unauthorized use without the written permission of Yamaha Motor Corporation, U.S.A. is expressly prohibited. Printed in Japan.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS LOCATION OF IMPORTANT Rear view mirrors ......4-19 Checking the engine idling LABELS ..........1-1 Adjusting the shock absorber speed ........7-20 assembly ........4-19 Checking the throttle grip SAFETY INFORMATION ....2-1 Sidestand ........4-20 free play ........7-21 Ignition circuit cut-off system ..
  • Page 7 STREET AND ENDURO Battery ..........7-35 MOTORCYCLE LIMITED Replacing the fuses ......7-36 WARRANTY ......10-7 Replacing the headlight bulb ..7-37 YAMAHA EXTENDED SERVICE Replacing the tail/ (Y.E.S.) ........10-9 brake light bulb ......7-38 Replacing a turn signal light bulb ...........7-39 Replacing the license plate light bulb ...........7-39...

  • Page 8: Location Of Important Labels

    Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label is available from your Yamaha dealer. 5,6,7...
  • Page 9 LOCATION OF IMPORTANT LABELS NOTICE Cleaning with alkaline or acid cleaner, gasoline or solvent will damage windshield. Use neutral detergent. 4B5-2815K-00 WARNING Improper loading can cause loss of control. Read owner’s manual for proper loading. 3JJ-28446-A1...
  • Page 10 LOCATION OF IMPORTANT LABELS 7 California only...
  • Page 11 LOCATION OF IMPORTANT LABELS...
  • Page 12 LOCATION OF IMPORTANT LABELS 1 California only...

  • Page 13: Safety Information

    SAFETY INFORMATION ● Never operate a motorcycle with- yourself conspicuous appears to EAU1028A out proper training or instruction. be very effective in reducing the Take a training course. Beginners chance of this type of accident. Be a Responsible Owner should receive training from a cer- Therefore: As the vehicle’s owner, you are respon- tified instructor.
  • Page 14 SAFETY INFORMATION ● Many accidents involve inexperi- • Always signal before turning or Protective Apparel enced operators. In fact, many op- changing lanes. Make sure that The majority of fatalities from motorcy- erators who have been involved in other motorists can see you. cle accidents are the result of head in- accidents do not even have a cur- ●...
  • Page 15 SAFETY INFORMATION Avoid Carbon Monoxide Poisoning ● Do not run engine outdoors where When loading within this weight limit, All engine exhaust contains carbon engine exhaust can be drawn into keep the following in mind: ● monoxide, a deadly gas. Breathing car- a building through openings such Cargo accessory...
  • Page 16 Yamaha accessories, which are avail- formed to your vehicle that change any lightweight as possible and able only from a Yamaha dealer, have of the vehicle’s design or operation should be kept to a minimum. been designed, tested, and approved characteristics can put you and others •...

  • Page 17: Specifications

    SAFETY INFORMATION tor and may limit control ability, ● Check that the fuel cock (if therefore, such accessories are equipped) is in the “OFF” position not recommended. and that there are no fuel leaks. ● Use caution when adding electri- ●...

  • Page 18: Description

    DESCRIPTION EAU10410 Left view 1. Air filter element (page 7-19) 9. Engine oil drain bolt (page 7-13) 2. Seat lock (page 4-14) 3. Main fuse (page 7-36) 4. Fuse box (page 7-36) 5. Storage compartment (page 4-18) 6. Owner’s tool kit (page 7-2) 7.

  • Page 19: Right View

    DESCRIPTION EAU10420 Right view 1. Helmet holder (page 4-17) 9. Brake pedal (page 4-10) 2. Battery (page 7-35) 10.Shock absorber assembly spring preload adjusting ring (page 4-19) 3. Rear brake fluid reservoir (page 7-27) 4. Engine oil filler cap (page 7-13) 5.

  • Page 20: Controls And Instruments

    DESCRIPTION EAU10430 Controls and instruments 1. Clutch lever (page 4-9) 2. Left handlebar switches (page 4-8) 3. Main switch/steering lock (page 4-1) 4. Multi-function meter unit (page 4-5) 5. Front brake fluid reservoir (page 7-27) 6. Right handlebar switches (page 4-8) 7.

  • Page 21: Instrument And Control Functions

    INSTRUMENT AND CONTROL FUNCTIONS To lock the steering EAU10461 EAU10661 Main switch/steering lock All electrical systems are off. The key can be removed. EWA10061 WARNING Never turn the key to “OFF” or “LOCK” while the vehicle is moving. Otherwise the electrical systems will be switched off, which may result in loss of control or an accident.

  • Page 22: Indicator Lights And Warning Lights

    4. Engine trouble warning light “ ” or if the warning light remains on, have 5. Oil level warning light “ ” a Yamaha dealer check the electrical 6. Coolant temperature warning light “ ” circuit. EAU11020 Turn signal indicator light “...
  • Page 23 2.5 seconds. If this occurs, the coolant temperature in the ra- have a Yamaha dealer check the diator. vehicle. ● If the engine overheats, see page 7-46 for further instructions.
  • Page 24 INSTRUMENT AND CONTROL FUNCTIONS Display Conditions What to do Under 39 °C Message “Lo” is displayed. OK. Go ahead with riding. (Under 103 °F) 40–116 °C Coolant temperature is dis- OK. Go ahead with riding. (104–242 °F) played. Stop the vehicle and allow it to idle until 117–134 °C Coolant temperature flashes.

  • Page 25: Multi-Function Meter Unit

    ● a tachometer circuit monitoring the engine. If this oc- ● an odometer curs, have a Yamaha dealer check the ● two tripmeters (which show the self-diagnosis system. (See page 4-8 distance traveled since they were for an explanation of the self-diagnosis last set to zero) device.)
  • Page 26 INSTRUMENT AND CONTROL FUNCTIONS Tachometer Clock 5. Push the “RESET” button to set the minutes. 6. Push the “SELECT” button and then release it to start the clock. Odometer and tripmeter modes 1. Tachometer 1. Clock 2. Tachometer red zone The clock displays when the key is The electric tachometer allows the rider turned to “ON”.
  • Page 27 3 NOTICE and traveling 5 km (3 mi). seconds. If this occurs, have a Yamaha Do not continue to operate the en- dealer check the electrical circuit. gine if it is overheating.

  • Page 28: Handlebar Switches

    If the display indicates any error codes, note the code number, and then have a Yamaha dealer check the vehicle. 1. Engine stop switch “ ” 2. Start switch “...

  • Page 29: Clutch Lever

    INSTRUMENT AND CONTROL FUNCTIONS EAU12400 EAU12711 EAU12820 Dimmer switch “ ” Start switch “ ” Clutch lever Set this switch to “ ” for the high Push this switch to crank the engine beam and to “ ” for the low beam. with the starter.

  • Page 30: Shift Pedal

    INSTRUMENT AND CONTROL FUNCTIONS EAU12871 EAU26824 EAU12941 Shift pedal Brake lever Brake pedal The brake lever is located on the right side of the handlebar. To apply the front brake, pull the lever toward the throttle grip. 1. Shift pedal 1.

  • Page 31: Fuel Tank Cap

    INSTRUMENT AND CONTROL FUNCTIONS EAU13074 EAU13221 Fuel tank cap Fuel The fuel tank cap cannot be closed un- Make sure there is sufficient gasoline in less the key is in the lock. In addition, the tank. the key cannot be removed if the cap is EWA10881 WARNING not properly closed and locked.
  • Page 32 EWA15151 WARNING Your Yamaha engine has been de- Gasoline is poisonous and can signed to use unleaded gasoline with a cause injury or death. Handle gaso- pump octane number [(R+M)/2] of 86 or line with care.

  • Page 33: Fuel Tank Breather Hose And Overflow Hose

    INSTRUMENT AND CONTROL FUNCTIONS EAU51180 EAU13433 ECA10701 Fuel tank breather hose and Catalytic converter NOTICE overflow hose This model is equipped with a catalytic Use only unleaded gasoline. The use converter in the exhaust system. of leaded gasoline will cause unre- EWA10862 pairable damage to the catalytic WARNING...

  • Page 34: Seats

    INSTRUMENT AND CONTROL FUNCTIONS EAU47362 Seats Passenger seat To remove the passenger seat 1. Insert the key into the seat lock, and then turn it counterclockwise. 1. Projection 1. Rider seat 2. Seat holder 2. Bolt 2. Remove the key. To install the rider seat 1.

  • Page 35: Adjusting The Rider Seat Height

    INSTRUMENT AND CONTROL FUNCTIONS EAU47450 Adjusting the rider seat height The rider seat height can be adjusted to one of two positions to suit the rider’s preference. The rider seat height was adjusted to the lower position at delivery. 1. Seat holder 1.
  • Page 36 INSTRUMENT AND CONTROL FUNCTIONS 4. Insert the projection on the front of the rider seat into seat holder B as shown. 1. Bolt 1. Rider seat height position adjuster 2. “L” mark 6. Install the passenger seat. 3. Adjuster bracket 1.

  • Page 37: Helmet Holder

    INSTRUMENT AND CONTROL FUNCTIONS 5. Align the upper bolt holes in the EAU47351 Helmet holder rider seat with the bolt holes in the seat brackets, and then install the bolts. 1. Helmet 2. Helmet holding cable 1. Helmet holder 3. Helmet holder 2.

  • Page 38: Storage Compartment

    The handlebar can be adjusted to one FZ6RDC 187 kg (412 lb) for the of two positions to suit the rider’s pref- vehicle. erence. Have a Yamaha dealer adjust the position of the handlebar. 1. Storage compartment The storage compartment is located under the passenger seat.

  • Page 39: Rear View Mirrors

    INSTRUMENT AND CONTROL FUNCTIONS EAU47260 EAU47000 Rear view mirrors Adjusting the shock absorber assembly The rear view mirrors of this vehicle can be folded forward for parking in narrow This shock absorber assembly is spaces. Fold the mirrors back to their equipped with a spring preload adjust- original position before riding.

  • Page 40: Sidestand

    Do not tamper with or attempt to this system regularly and have a EAU15305 Sidestand open the cylinder assembly. Yamaha dealer repair it if it does not The sidestand is located on the left side ● Do not subject the shock ab- function properly.

  • Page 41: Ignition Circuit Cut-Off System

    INSTRUMENT AND CONTROL FUNCTIONS EAU44892 Ignition circuit cut-off system The ignition circuit cut-off system (com- prising the sidestand switch, clutch switch and neutral switch) has the fol- lowing functions. ● It prevents starting when the trans- mission is in gear and the side- stand is up, but the clutch lever is not pulled.
  • Page 42 INSTRUMENT AND CONTROL FUNCTIONS WARNING With the engine turned off: 1. Move the sidestand down. If a malfunction is noted, have a Yamaha 2. Make sure that the engine stop switch is set to “ ”. dealer check the system before riding.

  • Page 43: For Your Safety - Pre-Operation Checks

    • If necessary, add recommended coolant to specified level. 7-16 • Check cooling system for leakage. • Check operation. • If soft or spongy, have Yamaha dealer bleed hydraulic system. • Check brake pads for wear. Front brake • Replace if necessary.
  • Page 44 • Make sure that operation is smooth. • Check throttle grip free play. Throttle grip 7-21, 7-31 • If necessary, have Yamaha dealer adjust throttle grip free play and lubricate cable and grip housing. • Make sure that operation is smooth. Control cables 7-31 •...
  • Page 45 • Tighten if necessary. Instruments, lights, signals • Check operation. — and switches • Correct if necessary. • Check operation of ignition circuit cut-off system. Sidestand switch 4-20 • If system is not working correctly, have Yamaha dealer check vehicle.

  • Page 46: Operation And Important Riding Points

    ● a lean angle sensor to stop the en- ● understand, ask your Yamaha dealer. The transmission is in the neutral gine in case of a turnover. In this EWA10271 position.

  • Page 47: Shifting

    The neutral indicator light should come on. If not, ask a ● Even with the transmission in Yamaha dealer to check the elec- the neutral position, do not trical circuit. coast for long periods of time 3. Start the engine by pushing the with the engine off, and do not start switch.

  • Page 48: Engine Break-In

    OPERATION AND IMPORTANT RIDING POINTS 4. At the recommended shift points 3. Shift the transmission into the neu- EAU16841 Engine break-in shown in the following table, close tral position when the motorcycle There is never a more important period the throttle, and at the same time, is almost completely stopped.

  • Page 49: Parking

    Yamaha dealer check the vehi- touch them and be burned. cle. ● Do not park on a slope or on soft...

  • Page 50: Periodic Maintenance And Adjustment

    – possibly leading to pending on the weather, terrain, geo- that is certified (if applicable). Yamaha death. See page 2-3 for more in- graphical location, and individual use, dealers are trained and equipped to...

  • Page 51: Owner's Tool Kit

    If you do not have the tools or experi- ence required for a particular job, have a Yamaha dealer perform it for you.

  • Page 52: Periodic Maintenance Chart For The Emission Control System

    From 24000 mi (37000 km) or 36 months, repeat the maintenance intervals starting from 8000 mi (13000 km) or 12 months. ● Items marked with an asterisk require special tools, data and technical skills, have a Yamaha dealer perform the service. EAU17601 Periodic maintenance chart for the emission control system...
  • Page 53 PERIODIC MAINTENANCE AND ADJUSTMENT INITIAL ODOMETER READINGS 600 mi 4000 mi 8000 mi 12000 mi 16000 mi 20000 mi ITEM ROUTINE (1000 km) (7000 km) (13000 km) (19000 km) (25000 km) (31000 km) 1 month 6 months 12 months 18 months 24 months 30 months Evaporative emis-...

  • Page 54: General Maintenance And Lubrication Chart

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU32188 General maintenance and lubrication chart INITIAL ODOMETER READINGS 600 mi 4000 mi 8000 mi 12000 mi 16000 mi 20000 mi ITEM ROUTINE (1000 km) (7000 km) (13000 km) (19000 km) (25000 km) (31000 km) 1 month 6 months 12 months 18 months...
  • Page 55 PERIODIC MAINTENANCE AND ADJUSTMENT INITIAL ODOMETER READINGS 600 mi 4000 mi 8000 mi 12000 mi 16000 mi 20000 mi ITEM ROUTINE (1000 km) (7000 km) (13000 km) (19000 km) (25000 km) (31000 km) 1 month 6 months 12 months 18 months 24 months 30 months •...
  • Page 56 • Change coolant. Front and rear brake √ √ √ √ √ √ 25 * • Check operation. switches • Apply Yamaha chain and cable √ √ √ √ √ √ 26 * Control cables lube or engine oil thoroughly.
  • Page 57 PERIODIC MAINTENANCE AND ADJUSTMENT INITIAL ODOMETER READINGS 600 mi 4000 mi 8000 mi 12000 mi 16000 mi 20000 mi ITEM ROUTINE (1000 km) (7000 km) (13000 km) (19000 km) (25000 km) (31000 km) 1 month 6 months 12 months 18 months 24 months 30 months •...

  • Page 58: Removing And Installing Cowlings And Panels

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU18712 EAU46740 Removing and installing cowl- Cowling A ings and panels To remove the cowling The cowlings and panels shown need Remove the bolts, and then take the to be removed to perform some of the cowling off.
  • Page 59 PERIODIC MAINTENANCE AND ADJUSTMENT 2. Remove the quick fastener and the bolts, and then take the cowl- ing off. 1. Turn signal light lead 3. Install cowling A. 2. Guide 3. Turn signal light lead coupler EAU46770 Panel A 1. Cowling B To install a cowling 2.
  • Page 60 PERIODIC MAINTENANCE AND ADJUSTMENT 1. Panel A 1. Panel B 3. Pull the panel backward to remove 2. Bolt 2. Quick fastener 3. Quick fastener 3. Bolt 2. Slide the panel backward, and To install the panel then lift up the rear of the panel Place the panel in the original position, slightly.

  • Page 61: Checking The Spark Plugs

    Do not attempt to diagnose wipe off any grime from the spark plug such problems yourself. Instead, have threads. a Yamaha dealer check the vehicle. If a spark plug shows signs of electrode Tightening torque: Spark plug: erosion and excessive carbon or other 13 Nm (1.3 m·kgf, 9.4 ft·lbf)

  • Page 62: Canister (For California Only)

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU19681 EAU46721 Canister (for California only) Engine oil and oil filter car- If a torque wrench is not available when tridge installing a spark plug, a good estimate The engine oil level should be checked of the correct torque is 1/4–1/2 turn before each ride.
  • Page 63 PERIODIC MAINTENANCE AND ADJUSTMENT 6. Insert and tighten the engine oil dipstick, and then install and tight- en the oil filler cap. To change the engine oil (with or without oil filter cartridge replace- ment) 1. Remove cowling B. (See page 7-9.) 2.
  • Page 64 PERIODIC MAINTENANCE AND ADJUSTMENT Recommended engine oil: See page 9-1. An oil filter wrench is available at a Oil quantity: Yamaha dealer. Without oil filter cartridge replace- ment: 6. Apply a thin coat of clean engine 2.50 L (2.64 US qt, 2.20 Imp.qt)

  • Page 65: Coolant

    3. Hold the vehicle in an upright posi- 1. Coolant reservoir correct, immediately turn the engine tion. 2. Maximum level mark off and have a Yamaha dealer check 3. Minimum level mark the vehicle. ● 5. If the coolant is at or below the The coolant level must be checked 11.
  • Page 66 EAU47321 To change the coolant water has been added to the 1. Place the vehicle on a level sur- coolant, have a Yamaha dealer face and let the engine cool if nec- check the antifreeze content of essary. the coolant as soon as possible, 2.
  • Page 67 PERIODIC MAINTENANCE AND ADJUSTMENT 7. Drain the coolant from the coolant 11. Install the coolant reservoir and its reservoir by turning it upside down. cover by placing them in the origi- 8. Remove the coolant drain bolt and nal position, and then installing the its gasket to drain the cooling sys- bolts.

  • Page 68: Replacing The Air Filter Element

    19. Start the engine, and then check the vehicle for coolant leakage. If 1. Fuel tank bolt coolant is leaking, have a Yamaha 1. Air filter element 4. Remove the air filter case cover by dealer check the cooling system.

  • Page 69: Checking The Engine Idling Speed

    1. Original position (paint mark) nected and routed, and that they 9. Install the fuel tank bolts. are not pinched. If any hose is 10. Install the panels. damaged, have a Yamaha dealer 11. Install the rider seat. replace the hose before starting 7-20...

  • Page 70: Checking The Throttle Grip Free Play

    Therefore, it must be adjusted by a Yamaha dealer is essential to maintain the tires in good at the intervals specified in the periodic condition at all times and replace them maintenance and lubrication chart.
  • Page 71 * Total weight of rider, passenger, car- crosswise lines (minimum tread depth), go and accessories if the tire has a nail or glass fragments in it, or if the sidewall is cracked, con- tact a Yamaha dealer immediately and have the tire replaced. 7-22...
  • Page 72 WARNING ed below have been approved for this Tires age, even if they have not been model by Yamaha Motor Co., Ltd. This motorcycle is fitted with super- used or have only been used occasion- high-speed tires. Note the following ally.

  • Page 73: Cast Wheels

    ● Always adjust the tire air pres- er damage before each ride. If any sure according to the operating damage is found, have a Yamaha conditions. dealer replace the wheel. Do not attempt even the smallest repair to the wheel. A deformed or cracked 1.

  • Page 74: Checking The Brake Lever Free Play

    There should be no free play at the adjusting nut in direction (a). To brake lever end. If there is free play, decrease the clutch lever free play, have a Yamaha dealer inspect the turn the adjusting nut in direction brake system. (b).

  • Page 75: Brake Light Switches

    1. Brake pad wear indicator groove by a Yamaha dealer. Each front brake pad is provided with a Turn the rear brake light switch adjust- wear indicator groove, which allows...

  • Page 76: Checking The Brake Fluid Level

    Rear brake EAU39372 Checking the brake fluid level peared, have a Yamaha dealer replace Before riding, check that the brake fluid the brake pads as a set. is above the minimum level mark. Check the brake fluid level with the top...

  • Page 77: Changing The Brake Fluid

    Changing the brake fluid moving. Use only DOT 4 brake fluid level goes down suddenly, have a Have a Yamaha dealer change the fluid from a sealed container. Yamaha dealer check the cause before brake fluid at the intervals specified in ●...

  • Page 78: Drive Chain Slack

    EAU53910 2. Shift the transmission into the neu- To adjust the drive chain slack tral position. Consult a Yamaha dealer before ad- 3. Measure the drive chain slack as justing the drive chain slack. shown. 1. Loosen the locknut at each end of...

  • Page 79: Cleaning And Lubricating The Drive Chain

    PERIODIC MAINTENANCE AND ADJUSTMENT may contain substances that EAU23025 Cleaning and lubricating the could damage O-rings. drive chain [ECA11111] The drive chain must be cleaned and lubricated at the intervals specified in the periodic maintenance and lubrica- tion chart, otherwise it will quickly wear out, especially when riding in dusty or wet areas.

  • Page 80: Checking And Lubricating The Cables

    Yamaha dealer at the intervals speci- bricated if necessary. ed if necessary. If a cable is damaged fied in the periodic maintenance chart.

  • Page 81: Checking And Lubricating The Brake And Clutch Levers

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU23143 Recommended lubricant: Recommended lubricants: Checking and lubricating the Lithium-soap-based grease Brake lever: brake and clutch levers Silicone grease The operation of the brake and clutch Clutch lever: Lithium-soap-based grease levers should be checked before each ride, and the lever pivots should be lu- bricated if necessary.

  • Page 82: Checking And Lubricating The Sidestand

    The swingarm pivots must be lubricat- face and hold it in an upright posi- be checked before each ride, and the ed by a Yamaha dealer at the intervals tion. WARNING! To avoid injury, sidestand pivot and metal-to-metal specified in the periodic maintenance...

  • Page 83: Checking The Steering

    Yamaha dealer check or re- [EWA10751] tion chart. If there is play in the wheel 2. Hold the lower ends of the front pair it.

  • Page 84: Battery

    To charge the battery once a month and fully charge it if ● Electrolyte is poisonous and Have a Yamaha dealer charge the bat- necessary. dangerous since it contains sul- tery as soon as possible if it seems to 3. Fully charge the battery before in- furic acid, which causes severe have discharged.

  • Page 85: Replacing The Fuses

    PERIODIC MAINTENANCE AND ADJUSTMENT is turned to “OFF”, then con- EAU47470 Replacing the fuses nect the positive lead before The main fuse and the fuse box, which connecting the negative lead. contains the fuses for the individual cir- [ECA16840] cuits, are located under the rider seat. 4.

  • Page 86: Replacing The Headlight Bulb

    4. If the fuse immediately blows using a cloth moistened with al- again, have a Yamaha dealer cohol or thinner. check the electrical system. ● Headlight lens...

  • Page 87: Replacing The Tail/Brake Light Bulb

    5. Install the headlight bulb cover, 1. Tail/brake light bulb socket and then connect the coupler. 4. Remove the burnt-out bulb by pull- 6. Install the cowlings. ing it out. 7. Have a Yamaha dealer adjust the headlight beam if necessary. 7-38...

  • Page 88: Replacing A Turn Signal Light Bulb

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU43004 EAU24313 Replacing a turn signal light Replacing the license plate bulb light bulb 1. Remove the turn signal light unit 1. Remove the license plate light unit by removing the screw. by removing the screws. 1.

  • Page 89: Supporting The Motorcycle

    PERIODIC MAINTENANCE AND ADJUSTMENT a jack either under each side of the EAU24350 Supporting the motorcycle frame in front of the rear wheel or under Since this model is not equipped with a each side of the swingarm. centerstand, follow these precautions when removing the front and rear wheel or performing other maintenance requiring the motorcycle to stand up-...

  • Page 90: Front Wheel

    PERIODIC MAINTENANCE AND ADJUSTMENT 2. Lift the front wheel off the ground EAU24360 EAU43101 Front wheel To install the front wheel according to the procedure in the 1. Lift the wheel up between the fork previous section “Supporting the legs. EAU47421 motorcycle”.

  • Page 91: Rear Wheel

    PERIODIC MAINTENANCE AND ADJUSTMENT 6. Push down hard on the handlebar 3. Lift the rear wheel off the ground EAU25080 Rear wheel several times to check for proper according to the procedure on fork operation. page 7-40. EAU34414 4. Remove the axle nut. To remove the rear wheel 5.
  • Page 92 PERIODIC MAINTENANCE AND ADJUSTMENT 6. While supporting the brake caliper 4. Lower the rear wheel so that it is EAU34434 To install the rear wheel and slightly lifting the wheel, pull on the ground, and then put the 1. Install the wheel and the brake cal- the wheel axle out.

  • Page 93: Troubleshooting

    The following troubleshooting charts represent quick and easy procedures for checking these vital systems your- self. However, should your motorcycle require any repair, take it to a Yamaha dealer, whose skilled technicians have the necessary tools, experience, and know-how to service the motorcycle properly.

  • Page 94: Troubleshooting Charts

    Remove the spark plugs and check the electrodes. The engine does not start. Have a Yamaha dealer check the vehicle. Check the compression. 4. Compression The engine does not start. There is compression.
  • Page 95 Start the engine. If the engine overheats again, have a The coolant level Yamaha dealer check and repair the cooling system. is OK. If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant as soon as possible.

  • Page 96: Motorcycle Care And Storage

    Some models are equipped with matte colored finished parts. Be ble. Rust and corrosion can develop Cleaning sure to consult a Yamaha dealer for even if high-quality components are ECA10772 used. A rusty exhaust pipe may go un- advice on what products to use be-...
  • Page 97 ● For motorcycles equipped with ing, use Yamaha Windshield Cleaner combination with water, carry out the or another high-quality windshield a windshield: Do not use strong following steps after each ride in the cleaner.
  • Page 98 EWA11131 WARNING which does not affect your visibility and ● Consult a Yamaha dealer for ad- which cannot be easily recognized. Contaminants on the brakes or tires vice on what products to use. can cause loss of control.

  • Page 99: Storage

    MOTORCYCLE CARE AND STORAGE 2. Fill up the fuel tank and add fuel e. Remove the spark plug caps EAU26182 Storage stabilizer (if available) to prevent from the spark plugs, and then the fuel tank from rusting and the install the spark plugs and the Short-term fuel from deteriorating.
  • Page 100 MOTORCYCLE CARE AND STORAGE Make any necessary repairs before storing the motorcycle.

  • Page 101: Specifications

    SPECIFICATIONS Dimensions: Engine oil: Fuel: Overall length: Recommended brand: Recommended fuel: 2120 mm (83.5 in) YAMALUBE Unleaded gasoline only Overall width: Type: Fuel tank capacity: 770 mm (30.3 in) SAE 10W-30, 10W-40, 10W-50, 15W-40, 17.3 L (4.57 US gal, 3.81 Imp.gal) Overall height: 20W-40 or 20W-50 Fuel reserve amount:...
  • Page 102 SPECIFICATIONS Rear wheel: 2nd: Manufacturer/model: 1.947 (37/19) DUNLOP/ROADSMART Wheel type: 3rd: Loading: Cast wheel 1.556 (28/18) Maximum load: Rim size: 4th: FZ6RD 188 kg (414 lb) 17M/C x MT4.50 1.333 (32/24) FZ6RDC 187 kg (412 lb) Front brake: 5th: (Total weight of rider, passenger, cargo and Type: 1.190 (25/21) accessories)
  • Page 103 SPECIFICATIONS Electrical system: Coolant temperature warning light: Ignition system: Engine trouble warning light: Charging system: Fuses: AC magneto Battery: Main fuse: 30.0 A Model: Headlight fuse: GT12B-4 15.0 A Voltage, capacity: Signaling system fuse: 12 V, 10.0 Ah 15.0 A Headlight: Ignition fuse: Bulb type:...

  • Page 104: Consumer Information

    Record the key identification number, vehicle identification number and mod- el label information in the spaces pro- vided below for assistance when ordering spare parts from a Yamaha dealer or for reference in case the vehi- cle is stolen. KEY IDENTIFICATION NUMBER: 1.
  • Page 105 This informa- illustration. This label shows specifica- tion will be needed when ordering tions related to exhaust emissions as spare parts from a Yamaha dealer. required by federal law, state law and Environment Canada. 10-2...

  • Page 106: Reporting Safety Defects

    If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Yamaha Motor Corporation, U.S.A. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

  • Page 107: Motorcycle Noise Regulation

    CONSUMER INFORMATION EAU26560 Motorcycle noise regulation TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED: Federal law prohibits the following acts or the causing thereof: (1) The removal or rendering inoperative by any person other than for purposes of maintenance, repair, or replacement of any device or element of design incorporated into any new ve- hicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use or (2) the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

  • Page 108: Maintenance Record

    CONSUMER INFORMATION EAU26632 Maintenance record Copies of work orders and/or receipts for parts purchased and installed on your vehicle will be required to document that maintenance has been completed in accordance with the emissions warranty. The chart below is printed only as a reminder that maintenance work is required.
  • Page 109 CONSUMER INFORMATION Maintenance Date of Servicing dealer Mileage Remarks interval service name and address 36000 mi (55000 km) or 54 months 40000 mi (61000 km) or 60 months 10-6...

  • Page 110: Yamaha Motor

    CONSUMER INFORMATION EAU26663 YAMAHA MOTOR CORPORATION, U.S.A. STREET AND ENDURO MOTORCYCLE LIMITED WARRANTY Yamaha Motor Corporation, U.S.A. hereby warrants that CUSTOMER’S RESPONSIBILITY under this Engine new Yamaha motorcycles will be free from defects in warranty shall be to: Displacement Period...
  • Page 111 CUSTOMER SERVICE What costs are my responsibility during the warranty period? If your machine requires warranty service, you must take it to any authorized Yamaha The customer’s responsibility includes all costs of normal maintenance services, motorcycle dealer within the continental United States. Be sure to bring your warranty non-warranty repairs, accident and collision damages, and oil, oil filters, air filters, registration card or other valid proof of the original date of purchase.

  • Page 112: Yamaha Extended Service (Y.e.s.)

    This excellent Y.E.S. plan coverage is only available to dealer to see how comforting uninterrupted factory- Yamaha owners like you, and only while your Yamaha is still backed protection can be. within the Yamaha Limited Warranty period. So visit your authorized Yamaha dealer to get all the facts.
  • Page 113 Yamaha Limited Warranty expires. A special note: If visiting your dealer isn’t convenient, contact Yamaha with your Primary ID number (your frame number). We’ll be happy to help you get the Y.E.S. coverage you need.
  • Page 114 INDEX Engine trouble warning light ....4-5 Air filter element, replacing ....7-19 Neutral indicator light ......4-2 Front and rear brake pads, checking..7-26 Noise regulation ........10-4 Front fork, checking ......7-33 Battery........... 7-35 Fuel............4-11 Brake and clutch levers, Oil level warning light ......
  • Page 115 INDEX Tires............7-21 Tool kit ............ 7-2 Troubleshooting........7-44 Troubleshooting charts ......7-45 Turn signal indicator light......4-2 Turn signal light bulb, replacing.... 7-39 Turn signal switch........4-9 Valve clearance ........7-21 Vehicle Emission Control Information label............ 10-2 Vehicle identification number....10-1 Warranty, extended ......
  • Page 117 Yamalube – Take care of your Yamaha with legendary Yamalube oils, lubricants, and care products. They’re formulated and approved by the toughest judges we know: the Yamaha engineering teams that know your Yamaha from the inside out.
  • Page 118 PRINTED ON RECYCLED PAPER PRINTED IN JAPAN 2012.08-0.9×1 CR...
