SERVICE MANUAL
CASSETTE RECEIVER
KS-F350R / KS-F353R
KS-FX450R / KS-FX453R
Contents
Safety precaution1-2
Instructions1-3~14
Location of main parts2-1
Disassembly method2-2
Adjustment method

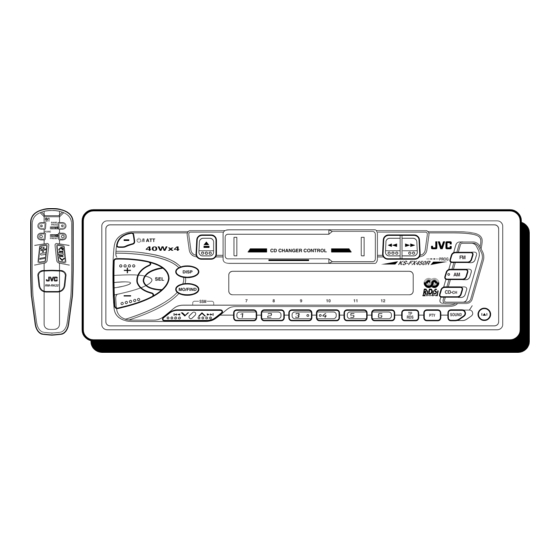

ATT
BAND
PROG
DISC
FUNC
DISC
PRESET
/I ATT
40Wx4
DISP
SEL
MO/FIND
SSM
LCD
Model
Color
KS-F350R
Ivory
KS-F353R
Amber
KS-FX450R
Ivory
KS-FX453R
Amber
2-7
This service manual is made from 100% redycled paper.
COPYRIGHT
1999 VICTOR COMPANY OF JAPAN, LTD.
KS-FX450R / KS-FX453R
E ---- Continental Europe
CD CHANGER CONTROL
FM
PROG
KS-FX450R
AM
CD-
CH
7
8
9
10
11
12
TP
SOUND
PTY
RDS
CD changer
controller
Description of major ICs2-11
Block diagram2-19
Standard schematic diagrams2-20
Printed circuit boards2-23~24
Parts list3-1~15
KS-F350R / KS-F353R
Area Suffix
No.49526
Dec. 1999

Advertisement

Table of Contents
loading

Related Manuals for JVC KS-F350R

Summary of Contents for JVC KS-F350R

  • Page 1 KS-F350R / KS-F353R KS-FX450R / KS-FX453R SERVICE MANUAL CASSETTE RECEIVER KS-F350R / KS-F353R KS-FX450R / KS-FX453R Area Suffix E ---- Continental Europe BAND PROG DISC FUNC DISC PRESET /I ATT 40Wx4 CD CHANGER CONTROL PROG KS-FX450R DISP MO/FIND SOUND CD changer...
