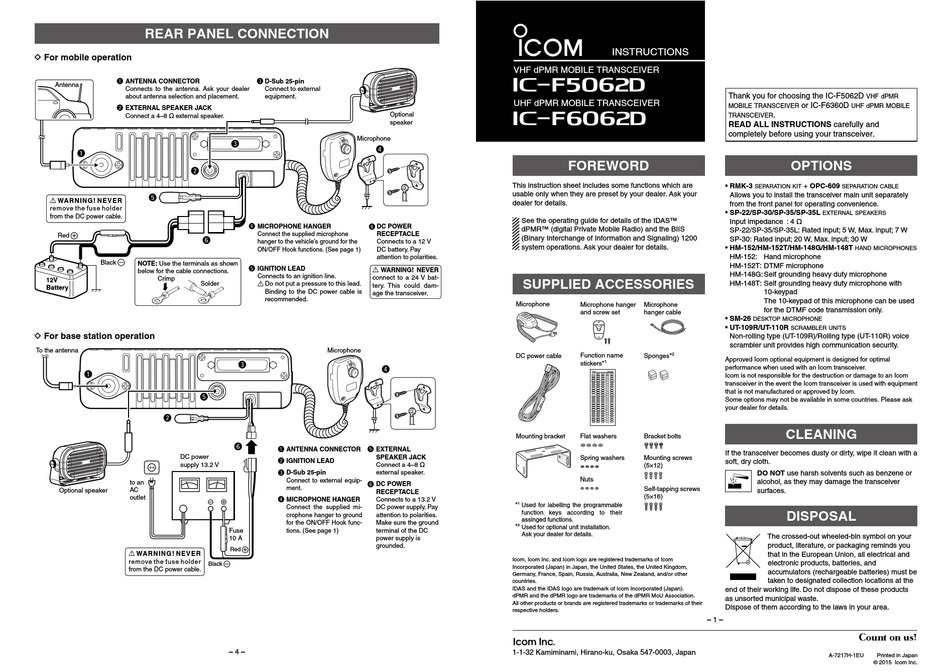

REAR PANEL CONNECTION
D For mobile operation
ANTENNA CONNECTOR
q
Antenna
Connects to the antenna. Ask your dealer
about antenna selection and placement.
w
EXTERNAL SPEAKER JACK
Connect a 4–8 ø external speaker.
q
w
t
R WA R N I N G ! N E V E R
remove the fuse holder
from the DC power cable.
Red
y
Black
NOTE: Use the terminals as shown
below for the cable connections.
Crimp
12V
Solder
Battery
D For base station operation
To the antenna
q
t
w
DC power
supply 13.2 V
to an
AC
Optional speaker
outlet
R WA R N I N G ! N E V E R
remove the fuse holder
Black
from the DC power cable.
D-Sub 25-pin
e
Connect to external
equipment.
Optional
speaker
Microphone
e
r
MICROPHONE HANGER
DC POWER
r
y
Connect the supplied microphone
RECEPTACLE
hanger to the vehicle's ground for the
Connects to a 12 V
ON/OFF Hook functions. (See page 1)
DC battery. Pay
attention to polarities.
IGNITION LEAD
t
R WARNING! NEVER
Connects to an ignition line.
connect to a 24 V bat-
R
Do not put a pressure to this lead.
tery. This could dam-
Binding to the DC power cable is
age the transceiver.
recommended.
Microphone
e
r
y
ANTENNA CONNECTOR
EXTERNAL
q
t
SPEAKER JACK
IGNITION LEAD
w
Connect a 4–8 ø
D-Sub 25-pin
external speaker.
e
Connect to external equip-
DC POWER
y
ment.
RECEPTACLE
MICROPHONE HANGER
Connects to a 13.2 V
r
Connect the supplied mi-
DC power supply. Pay
crophone hanger to ground
attention to polarities.
for the ON/OFF Hook func-
Make sure the ground
Fuse
tions. (See page 1)
terminal of the DC
10 A
power supply is
grounded.
Red
– 4 –
INSTRUCTIONS
VHF dPMR MOBILE TRANSCEIVER
Iç-F5062D
UHF dPMR MOBILE TRANSCEIVER
Iç-F6062D
FOREWORD
This instruction sheet includes some functions which are
usable only when they are preset by your dealer. Ask your
dealer for details.
See the operating guide for details of the IDAS™
dPMR™ (digital Private Mobile Radio) and the BIIS
(Binary Interchange of Information and Signaling) 1200
system operations. Ask your dealer for details.
SUPPLIED ACCESSORIES
Microphone
Microphone hanger
Microphone
and screw set
hanger cable
DC power cable
Function name
Sponges*
2
1
stickers*
Mounting bracket
Flat washers
Bracket bolts
Spring washers
Mounting screws
(5×12)
Nuts
Self-tapping screws
(5×16)
*
1
Used for labelling the programmable
function keys according to their
assinged functions.
*
2
Used for optional unit installation.
Ask your dealer for details.
Icom, Icom Inc. and Icom logo are registered trademarks of Icom
Incorporated (Japan) in Japan, the United States, the United Kingdom,
Germany, France, Spain, Russia, Australia, New Zealand, and/or other
countries.
IDAS and the IDAS logo are trademark of Icom Incorporated (Japan).
dPMR and the dPMR logo are trademarks of the dPMR MoU Association.
All other products or brands are registered trademarks or trademarks of their
respective holders.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Thank you for choosing the IC-F5062D
vhf dpmr
or IC-F6360D
mobile transceiver
uhf dpmr mobile
.
transceiver
READ ALL INSTRUCTIONS carefully and
completely before using your transceiver.
OPTIONS
• RMK-3
+ OPC-609
separation kit
separation cable
Allows you to install the transceiver main unit separately
from the front panel for operating convenience.
• SP-22/SP-30/SP-35/SP-35L
external speakers
Input impedance : 4 ø
SP-22/SP-35/SP-35L: Rated input; 5 W, Max. input; 7 W
SP-30: Rated input; 20 W, Max. input; 30 W
• HM-152/HM-152T/HM-148G/HM-148T
hand microphones
HM-152: Hand microphone
HM-152T: DTMF microphone
HM-148G: Self grounding heavy duty microphone
HM-148T: Self grounding heavy duty microphone with
10-keypad
The 10-keypad of this microphone can be used
for the DTMF code transmission only.
• SM-26
desktop microphone
• UT-109R/UT-110R
scrambler units
Non-rolling type (UT-109R)/Rolling type (UT-110R) voice
scrambler unit provides high communication security.
Approved Icom optional equipment is designed for optimal
performance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an Icom
transceiver in the event the Icom transceiver is used with equipment
that is not manufactured or approved by Icom.
Some options may not be available in some countries. Please ask
your dealer for details.
CLEANING
If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
DO NOT use harsh solvents such as benzene or
alcohol, as they may damage the transceiver
surfaces.
DISPOSAL
The crossed-out wheeled-bin symbol on your
product, literature, or packaging reminds you
that in the European Union, all electrical and
electronic products, batteries, and
accumulators (rechargeable batteries) must be
taken to designated collection locations at the
end of their working life. Do not dispose of these products
as unsorted municipal waste.
Dispose of them according to the laws in your area.
– 1 –
A-7217H-1EU
Printed in Japan
© 2015 Icom Inc.
