High wall fan coil units

Advertisement

CONTENTS
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . . . . . 1
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
II. Step 2 − Select Location . . . . . . . . . . . . . . . . . . . . 2
Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-16
I. 619E Control System . . . . . . . . . . . . . . . . . . . . . . . 13
II. Wireless Remote Controllers . . . . . . . . . . . . . . . . 13
III. After Extended Shutdowns . . . . . . . . . . . . . . . . . . 13
IV. Seasonal Changeovers . . . . . . . . . . . . . . . . . . . . . 13
V. To Turn The Unit On and Off . . . . . . . . . . . . . . . . . 13
VI. Adjusting Airflow . . . . . . . . . . . . . . . . . . . . . . . . . . 13
VII. Operating Mode Memory . . . . . . . . . . . . . . . . . . . . 14
VIII. Automatic Operation (Auto) Mode . . . . . . . . . . . . 14
IX. Operating Fault Diagnosis . . . . . . . . . . . . . . . . . . 14
X. Microprocessor Control Operation . . . . . . . . . . . 14
CLEANING AND MAINTENANCE . . . . . . . . . . . . . . . . . 16-18
I. Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
III. To Set the Current Time . . . . . . . . . . . . . . . . . . . . 17
V. To Clean Indoor Unit Front Panel . . . . . . . . . . . . . 17
VI. To Clean Indoor Coil . . . . . . . . . . . . . . . . . . . . . . . 18
VIII. Cleaning Condensate Drains . . . . . . . . . . . . . . . . 18
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-20
I. Diagnostic Codes . . . . . . . . . . . . . . . . . . . . . . . . . . 18
II. System Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
III. System Safeties and Interlocks . . . . . . . . . . . . . . 20
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-24
START-UP CHECKLIST . . . . . . . . . . . . . . . . . . . . CL-1, CL-2

SAFETY CONSIDERATIONS

Installing and servicing air-conditioning equipment can be haz-
ardous due to system pressure and electrical components. Only
trained and qualified service personnel should install or ser-
vice air-conditioning equipment.
Untrained personnel can perform basic maintenance, such as
cleaning and replacing filters. All other operations should be
installation, start-up and
service instructions
HIGH WALL FAN COIL UNITS
Page
Cancels: II 619E-18-1
performed by trained service personnel. When working on air
conditioning equipment, observe precautions in literature and
on tags and labels attached to unit.
Follow all safety codes. Wear safety glasses and work gloves.
Use quenching cloth for brazing operations. Have fire extin-
guisher available. Read these instructions thoroughly. Con-
sult local building codes and National Electrical Code (NEC)
for special installation requirements.
WARNING: Before installing or servicing system,
always turn off main power to system. There may be
more than one disconnect switch. Turn off indoor fan
coil power if applicable. Electrical shock can cause per-
sonal injury.

GENERAL

The 619E heat pump high wall fan coil units (Fig. 1) come
with supplemental electric heat. If your application requires
heating, heat pump units must be used, both outdoors and
indoors. See Table 1 for recommended system combinations.

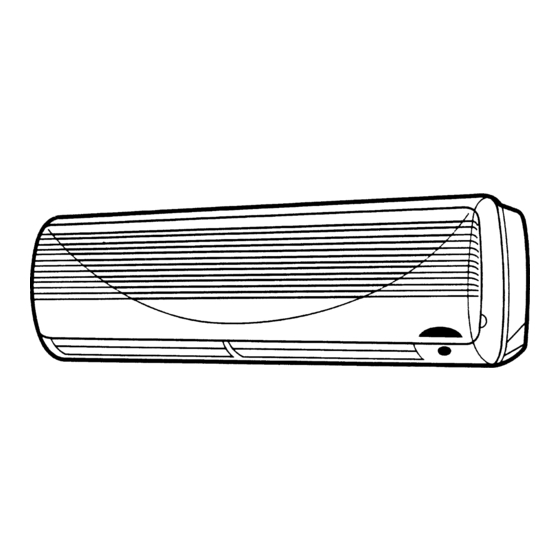

Fig. 1 - Typical 619E High Wall Fan Coil Unit
Table 1 - System Combinations for Indoor
and Outdoor Units
INDOOR UNIT
High Wall Cooling Only Systems*
619ENX018OEO
619ENX024OEO
(2) 619ENX018OEO
(4) 619ENX018OEO
(1) 619ENX024OEO, (2) 619ENX018OEO
(2) 619ENX024OEO
High Wall Heat Pump Systems**
619ENX018OHO
619ENX024OHO
*Using cooling-only fan coil units.
†Multi-split systems can accommodate up to 4 fan coil units of various
types with one condensing unit. The combinations listed in Table 1 are
those which use only high-wall units (not in combination with any other
type of fan coil unit). Refer to system presale literature for more
details.
**Using heat pump fan coil units.
NOTE: Numbers in ( ) indicate quantities of more than 1.
619E
Sizes 018 and 024
1
1
and 2 Tons
2
II 619E-18-2
6/1/99
OUTDOOR UNIT
538ANX018
538ANX024
538SNX024†
538SNX048†
538SNX048†
538SNX048†
538DNX018
538DNX024

Advertisement

Table of Contents
loading

Summary of Contents for Bryant 619E

  • Page 1: Table Of Contents

    The 619E heat pump high wall fan coil units (Fig. 1) come I. 619E Control System ..... . . 13 with supplemental electric heat.
  • Page 2: Installation

    INSTALLATION Table 2 — Application Ranges The 619E cooling only high wall fan coil unit is installed with COOLING MODE either the 538A condensing or 538S multi-split condensing Maximum Minimum outdoor unit, and the 619E heat pump unit is installed with...
  • Page 3 5. The 4 top and left side clearances are absolute minimums. Clear- ances of 10 are recommended. 6. Do not insert a trap in condensate drain line. The drain is inter- nally trapped. Fig. 2 — 619E Dimensional Drawing —3—...
  • Page 4: Step 3 - Mount Mounting Bracket On Wall

    Table 3 — High Wall Unit Package Contents ITEM QUANTITY Unit Mounting Template Unit Mounting Bracket 1-in. Lag Screws for Unit Mounting Hollow Wall Anchor Bolts for Unit Mounting Wall Sleeve with Wall Cap Infrared Wireless Remote Control Assembly AAA Batteries (for remote control) Remote Control Mounting Bracket ⁄...
  • Page 5: Step 4 - Connect Refrigerant Piping

    CAUTION: The 619E unit is shipped with a factory holding charge of R-22. DO NOT BURY MORE THAN 36 IN. OF REFRIGERANT PIPE IN THE GROUND. If any section of pipe is buried, there must be a 6-in. ver- tical rise to the valve connections on the outdoor unit.
  • Page 6 Fig. 6 — Bracket Mounting NOTE: Arrow on AccuRater body points in free flow direction away from the coil. Fig. 9 — AccuRater Metering Device in Liquid NOTE: Use either point ‘‘A’’ or point ‘‘B.’’ Line (Bypass Type Components); Cooling Fig.
  • Page 7 Table 4A — Physical Data — 538A Condensing Units UNIT 538A NOMINAL CAPACITY (Tons) ⁄ OPERATING WEIGHT (lb) REFRIGERANT TYPE R-22 Control (Cooling) AccuRater Piston at Fan Coil Unit Factory Charge (lb) COMPRESSOR TYPE Tecumseh Reciprocating Copeland Scroll Model AW5517G ZR23K1 Oil (Recharge) (oz) Crankcase Heater (Watts)
  • Page 8 Table 4C — Physical Data — 619E Cooling Only High Wall Fan Coil Units UNIT 619E, COOLING ONLY 018* 024* NOMINAL CAPACITY (Tons) ⁄ NOMINAL SIZE (Btuh) 18,000 24,000 OPERATING WEIGHT (lb) 38.5 42.9 MOISTURE REMOVAL RATE (Pints/Hr) FINISH White...
  • Page 9 Table 4E — Physical Data — 619E Heat Pump High Wall Fan Coil Units UNIT 619E, HEAT PUMP NOMINAL CAPACITY (Tons) ⁄ NOMINAL SIZE (Btuh) 18,000 24,000 OPERATING WEIGHT (lb) 38.5 42.9 MOISTURE REMOVAL RATE (Pints/Hr) REFRIGERANT R-22 Control (Cooling)
  • Page 10: Step 5 - Connect Condensate Drain Line

    NOTE: Use type NM power cable only (per NEC; provided for fan coil units only) between disconnect switch and unit. CAUTION: Do not short circuit the 619E trans- former — it is fused. The transformer can be short cir- NOTE: Install branch circuit disconnect per NEC of ad- cuited by connecting the wrong wires or by touching a equate size to handle unit starting current.
  • Page 11 Table 7 — Electric Heater Data INDOOR UNIT VOLTS-Ph (60 Hz) INPUT AMPS kW AT 230 V MIN WIRE SIZE (AWG) 619ENX018OHO 230-1 619ENX024OHO 230-1 LEGEND AWG — American Wire Gage Fig. 12 — Drainage System (Rear Piping Shown) FAN COIL UNITS LEGEND CONN —...
  • Page 12: Step 7 − Make Connections To Outdoor Unit

    1. One thermistor connection cord with a lead length of the discharge louvers are correctly positioned. 24 ft is shipped with the 619E heat pump fan coil unit. Run the connection cord from the low-voltage terminal WARNING: Never operate unit without a filter. Dam- board in the control box in the fan coil unit (TB3) to the age to the unit or personal injury may result.
  • Page 13: 619E Control System

    V. TO TURN THE UNIT ON AND OFF inlet and on the indoor coil. The 619E heat pump fan coil units also have thermistors located on the outdoor coil and in the To turn the unit on, press the orange ON/OFF button (See outdoor air inlet.
  • Page 14: Operating Mode Memory

    The con- the unit will operate for 8 minutes as follows: the com- trol is located in the 619E unit. To operate the unit, the factory- pressor and outdoor fan will operate for 3 minutes. The supplied remote controller is required.
  • Page 15 3. When the room temperature is equal to or greater than operated. When the temperature of the room is 8° F below 4° F below the selected temperature, the system oper- the selected temperature, the unit will operate in Heat Pump ates as follows: The compressor and outdoor fan oper- mode until the temperature is 6°...
  • Page 16: Cleaning And Maintenance

    • Sleep Mode — The Sleep mode timer turns the unit off when CLEANING AND MAINTENANCE the timer reaches zero minutes. The durations that can be CAUTION: To avoid the possibility of electric shock, selected are 1, 2, 3 or 7 hours. After the initial 30 minutes, before performing any cleaning and maintenance op- the user set point shifts approximately 1°...
  • Page 17: To Set The Current Time

    Table 8 — Cleaning and Maintenance Schedule TASK MONTHLY QUARTERLY YEARLY INDOOR UNIT Clean Air Filters Clean Drain Pipe Clean Condensate Drain Pan Replace Batteries in the Remote Controller Clean Indoor Unit Front Panel OUTDOOR UNIT Clean the Fins From Outside Open the Unit and Clean Fins Inside Remove Dust From Electrical Parts Check Electrical Connections are Tight...
  • Page 18: To Clean Indoor Coil

    PRESS SET TIME PRESS Fig. 23 — Setting The Current Time REMOVE FILTER VACUUM CLEAN RINSE WITH WATER Fig. 24 — Air Filter Maintenance VI. TO CLEAN INDOOR COIL problem. The control will continue to monitor the unit and, if the conditions which cause the fault are cleared, the unit will To clean the coil, remove indoor unit front panel, and vacuum return to normal operation.
  • Page 19 LED — Light-Emitting Diode *Heat pump systems only. NOTE: If the LED light continuously flashes on for one second, then off for one second, the control is functioning properly and no fault is present. Table 10 — 619E Thermistor Properties* MINIMUM NOMINAL MAXIMUM...
  • Page 20: System Safeties And Interlocks

    See Table 11 and Fig. 25-27 to assist in troubleshooting the If the indoor fan rpm shows greater than 800 rpm for 30 sec- 619E fan coil units. onds with the fan in the off mode, then this test indicates an Table 11 —...
  • Page 21 LEGEND NOTES: 1. All piping must follow standard refrigerant piping techniques. NEC — National Electrical Code 2. All wiring must comply with the applicable local and national codes. Piping 3. Liquid line need not be insulated. Line Voltage 4. Wiring and piping shown are general points-of-connection guides only and are not intended for a specific installation.
  • Page 22 LEGEND AND NOTES FOR FIG. 26 AND 27 AGING — For the Burn-In Test (short these terminals) — Outdoor-Fan Relay AS, ASS’Y — Assembly — Overload — Contactor — Printed Circuit Board — Capacitor — Start Thermistor — Crankcase Heater RA Th —...
  • Page 23 FAN COIL OUTDOOR SECTION Fig. 26 — 619E Fan Coil Unit with 538D Outdoor Heat Pump Unit...
  • Page 24 FAN COIL OUTDOOR SECTION *538A018 ONLY. Fig. 27 — 619E Fan Coil Unit with 538A Cooling Only Outdoor Condensing Unit...
  • Page 26 Copyright 1999 Bryant Heating & Cooling Systems CATALOG NO. 5361-900...
  • Page 27: Start-Up Checklist

    START-UP CHECKLIST I. PRELIMINARY INFORMATION OUTDOOR UNIT: MODEL NO. SERIAL NO. INDOOR UNIT: MODEL NO. SERIAL NO. ACCESSORIES: __________________________________________________________________________________ PISTONS (538A AND 538D SYSTEMS ONLY): INDOOR SIZE: OUTDOOR SIZE (538D SYSTEMS ONLY): REFRIGERANT PIPING: EQUIVALENT LINE LENGTH: (IF OVER 50 FT)* LIFT: FAN COIL ABOVE OUTDOOR UNIT (IF OVER 25 FT)*? FAN COIL BELOW OUTDOOR UNIT (IF OVER 25 FT)*? *APPLIES ONLY TO 538A AND 538D UNITS USING LONG-LINES APPLICATIONS.
  • Page 28 MEASURE AND RECORD THE: AIR ENTERING OUTDOOR UNIT: AIR ENTERING INDOOR UNIT: DISCHARGE LINE TEMPERATURE: VAPOR LINE TEMPERATURE: MEASURE AND RECORD THE: VAPOR LINE PRESSURE: PSIG DISCHARGE PRESSURE: PSIG CL-2 Copyright 1999 Bryant Heating & Cooling Systems CATALOG NO. 5361-900...
