Page 1

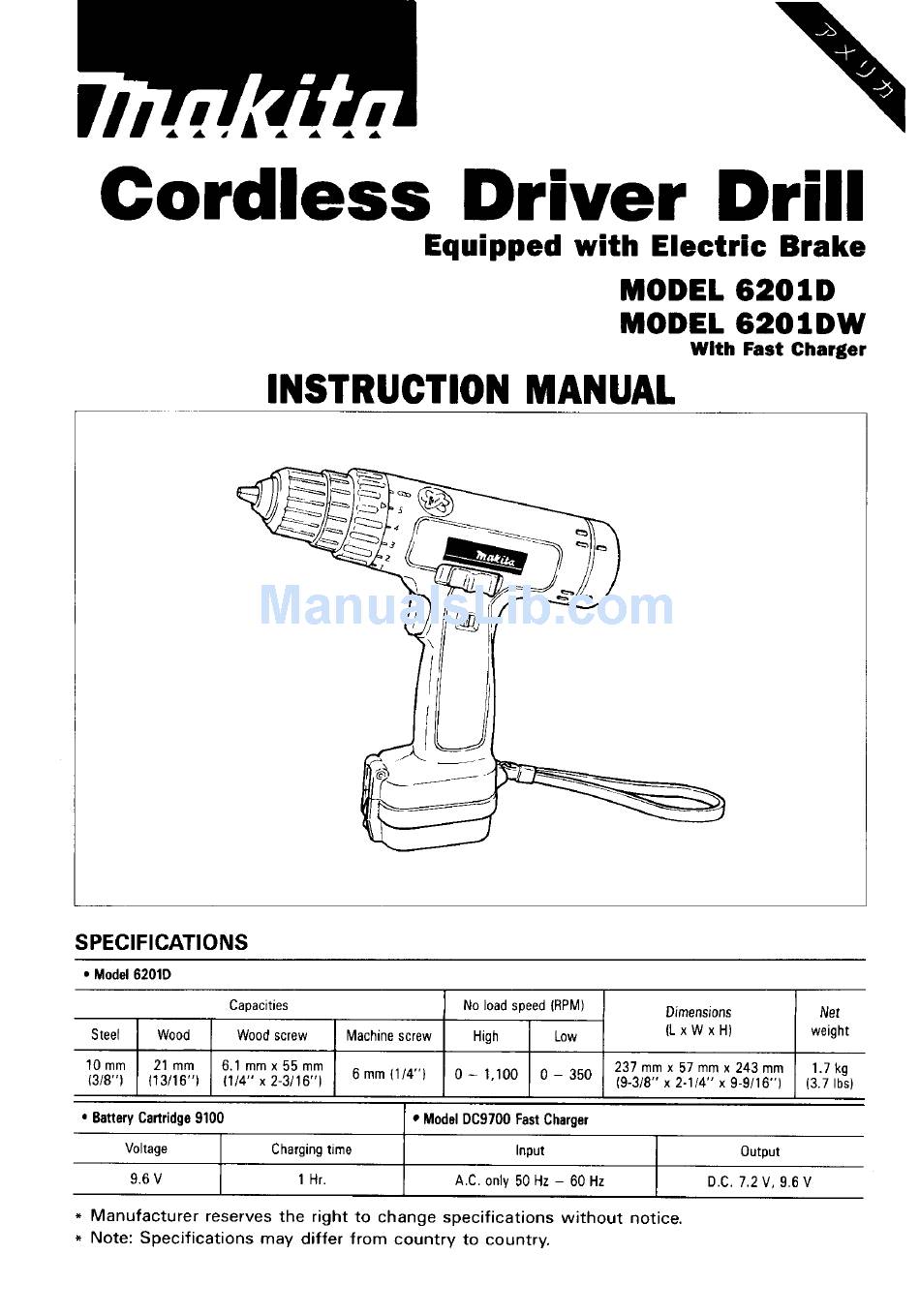

IRPM) High Machine screw 6 m m '"4'' Model DC9700 Fast Charger Input A.C. only 50 Hz 60 Hz MODEL 6201D MODEL 6201DW With Fast Charger Dimensions x W x H) weight 57 m m mm x 19-318" 2-114" 9-9/16") 13.7...
SAFETY INSTRUCTIONS WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL INJURY, INCLUDING THE FOLLOWING: READ ALL INSTRUCTIONS. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries. CONSIDER WORK AREA ENVIRONMENT.
Page 3
14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking t o see that keys and adjusting wrenches are removed from tool before turning 15. AVOID UNINTENTIONAL STARTING. Don't carry plugged-in tool with finger on switch. Be sure switch is OFF when plugging in. 16.
Page 4
SAVE THESE INSTRUCTIONS This manual Length of Cord (Feet) AWG Size of Cord...
ADDITIONAL SAFETY RULES FOR CHARGER & BATTERY CARTRIDGE 1. Do not charge Battery Cartridge when temperature is BELOW 10°C 4OoC (104OF). or ABOVE 2. Do not attempt to use a step-up transformer, an engine generator or DC power receptacle. Do not allow anything to cover or clog the charger vents. 4.
Page 6
Installing or removing battery cartridge .Always switch off the tool before insertion or removal or the battery cartridge. To remove the battery cartridge, pull out the set plate on the tool and grasp both sides of the cartridge while withdrawing it from the tool.
Page 7
Installing or removing driver bit or drill bit CAUTION : Always be sure that the tool is switched off and the battery cartridge i s removed before installing or removing the bit. To install the bit, push the sleeve up to- ward the "FREE"...
Page 8
Switch action Tool speed is increased by increasing pres- sure on the trigger. To start the tool, simply pull the trigger. Release the trigger to stop. CAUTION : Before inserting the -attery cartridge into the tool, always check to see that the trigger switch actuates properly and returns to the "OFF"...
Page 9
Adjusting fastening torque The fastenina toraue can be adiusted in six stages by turning the adjusting ring so that the pointer on the adjusting ring points t o a number on the tool body. The fastening torque is minimum when the pointer points to the number 1 and maximum when it points to the marking.
Page 10
Drilling operation First, turn the adjusting ring so that the pointer on the adjusting ring points t o the marking. Then proceed as follows. Drilling in wood When drilling in wood, best results are obtained with wood drills equipped with screw.
Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance. To maintain product SAFETY and RELIABILITY, repairs, maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.
Page 12
ACCESSORIES CAUTION These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. The accessories or attachments should be used only in the proper and intended manner.
Page 13
F e b . - 2 5 - ' 9 2 CORDLESS DRIVER DRILL Model 6201D Note: The switch and other part configurations may differ from country t o country.
Page 14
MODEL 6201D ,& I i k M DESCRIPTION Housing Set IWith Item Name Plate Pan Head Screw M4x22 IWith Washer1 Tapping Screw BT4x20 Hand Strap Plate Switch Lever Switch Lever Pan Head Screw M5x22 Keyless Drill Chuck 10 Spindle PI" 4 Bearing Retainer 14 Ball Bearing 6000LLB Stop Ring E-9...
Page 15
MAKITA LIMITED O N E YEAR WARRANTY Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted t o be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase.
