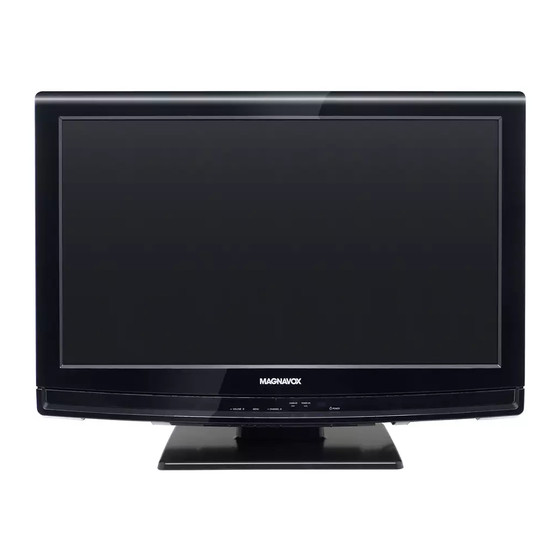

Magnavox LCD 19MF330B Owner's Manual
Magnavox flat panel television user manual
Hide thumbs
Also See for LCD 19MF330B:
- Owner's manual (121 pages) ,
- Manual de usuario (38 pages) ,
- Manuel du propriétaire (37 pages)
Related Manuals for Magnavox LCD 19MF330B
Summary of Contents for Magnavox LCD 19MF330B
- Page 1 Owner’s manual Manuel du propriétaire Manual del propietario 22MF330B 19MF330B LCD TV 1-866-341-3738 MODEL NUMBER 1-866-341-3738 1-866-341-3738 SERIAL NUMBER...
- Page 2 Return your Product Registration Card or register online at www.magnavox.com/support today to get the very most from your purchase. Registering your model with MAGNAVOX makes you eligible for all of the valuable benefits listed below, so don’t miss out. Complete and return your Product Registration Card at once,...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Trademark Information
3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected. 4) Consult the dealer or an experienced radio/TV technician for help. DECLARATION OF CONFORMITY Trade Name: MAGNAVOX Model: 22MF330B / 19MF330B This Class B digital apparatus complies with Canadian ICES-003. Standard Television Receiving Apparatus, Canada BETS-7 / NTMR-7 CAUTION : Danger of explosion if battery is incorrectly replaced. -
Page 5: Table Of Contents
• Fun-Link via HDMI Link (HDMI Cable not Included) Fun-Link allows your other HDMI link devices (such as Magnavox DVD) to be controlled by the HDMI cable connected to your TV. • HDMI Input • Component Video Input •... -
Page 6: Supplied Accessories
Supplied Accessories Owner’s manual Quick Start (1EMN26263) (1EMN26264) Remote control Batteries (NF804 UD) (AAA, 1.5V x 2) Screw kit for attaching the base (1ESA19876) • If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free customer support line found on the cover of this manual. -
Page 7: Control Panel
Control Panel STAND BY POWER ON VOLUME MENU CHANNEL POWER 2 CHANNEL +/ - Press to select channels or move up ( + ) / down (–) through the main menu items. 3 MENU 4 VOLUME +/ - Press to adjust the volume or move right ( + ) / left (–) through the main menu items. -
Page 8: Terminals
Terminals Side Panel 8 HDMI 2 Input jack 9 S-Video / Composite Video / Audio (L/R) Input jacks for VIDEO TERMINAL 10 Headphone Audio Output jack Headphone connection for personal listening. Rear Panel HDMI 2 HDMI 2 11 Antenna Input jack 12 AC power cord 13 PC (VGA) Input jack 14 HDMI 1 Input jack... -
Page 9: Remote Control Function
Remote Control Function When using a universal remote control to operate this unit. • Make sure the component code on your universal remote control is set to our brand. Refer to the manual accompanying your remote control for more details. •... -
Page 10: Preparation
PREPARATION No supplied cables are used with these connections: Please purchase the necessary cables at your local store. High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility. Before you connect: Be sure your antenna or other device is connected properly before plugging in the AC power cord. -
Page 11: External Device Connection
External Device Connection HDMI Connection HDMI connection offers the highest picture quality. HDMI transports high defi nition (High-Defi nition Multimedia Interface) video and multi-channel digital audio through a single cable. e.g.) BD/DVD recorder with the HDMI output jack TITLE CHAPTER 15 REPEAT A-B SERVICE TERMINAL... -
Page 12: Component Video Connection
No supplied cables are used with these connections: Please purchase the necessary cables at your local store. Component Video Connection Component Video connection offers better picture quality for video devices connected to the unit. If you connect to the unit’s Component Video Input jacks, connect audio cables to the Audio L/R Input jacks right beside the Component Video connector. -
Page 13: Digital Audio Output Connection
Digital Audio Output Connection (for digital broadcasting only) If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound. Use a digital audio coaxial cable to connect the unit to external digital audio devices. -
Page 14: Plug In The Ac Power Cord
Plug In the AC Power Cord Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are completed. c o m p l e t e d . AC power cord AC outlet Caution: Do not connect the AC power cord to a power supply outside the... -
Page 15: Initial Setup
These operations are accessible by remote control. Some may also be accessible by controls on the main unit. Initial Setup This section will guide you through the unit’s initial setting which includes selecting a language for your on-screen menu and autoprogram, which automatically scans and memorizes viewable channels. -
Page 16: Watching Tv
WATCHING TV Sleep Timer can be set to automatically turn off the unit after an incremental period of time. Press SLEEP repeatedly to change the amount of time (increases the time by 30 minutes up to 120 minutes) until shut off. Press SLEEP once to call up the display for checking the remaining time. -
Page 17: Tv Screen Display Mode
TV Screen Display Mode 5 types of display modes can be selected when the broadcasting station is sending 16:9 or 4:3 video signal. And 3 types of display modes can be selected for PC input signal. Press FORMAT repeatedly to switch the TV aspect ratio. For 16:9 video signal Normal Wide... -
Page 18: Tv Screen Information
You must set [On] in [Device Control] and [Fun-Link Control]. ➠ p. 30 Otherwise, FUN-LINK OPTIONS you connected our brand devices to this unit. To enjoy Fun-Link, verified and recommended devices are as follows; MAGNAVOX NB530MGX NB500MG1F ➠ MBP1100 / F7 p. 17 Press FUN-LINK OPTIONS [Fun-Link Options] menu. -
Page 19: Optional Setting
OPTIONAL SETTING Main Menu This section describes the overview of the main menu displayed when you press MENU. The main menu consists of the function setting items below. Press MENU. Picture [Picture Adjustment] Sound [Sound Adjustment] Setup [Autoprogram] • You can automatically scan the viewable channels. [Channel List] •... -
Page 20: Channel List
Channel List The channels selected here can be skipped when selecting the channels using CH + / – . Those channels can still be selected with the Number buttons. Press MENU to display the main menu. Use ▲/▼ to select [Setup], then press OK. Use ▲/▼... -
Page 21: Antenna Confi Rmation
Antenna Confi rmation ATSC This function lets you check the digital signal strength of each channel. Press MENU to display the main menu. Use ▲/▼ to select [Setup], then press OK. Use ▲/▼ to select [Antenna], then press OK. Use the Number buttons or CH + / – to select the channel for which you want to check the digital signal strength. -
Page 22: Picture Adjustment
Picture Adjustment You can adjust picture mode, or customize the picture quality as your preference. Before you begin: You must set [Home] in [Location]. ➠ p. 31 Otherwise, the settings you adjusted will not be memorized after you turn off the unit. Press MENU to display the main menu. -
Page 23: Sound Adjustment
Sound Adjustment You can adjust the sound mode, equalizer and some other sound functions. Before you begin: You must set [Home] in [Location]. ➠ p. 31 Otherwise, the settings you adjusted will not be memorized after you turn off the unit. Press MENU to display the main menu. -
Page 24: Closed Caption
Closed Caption You can view closed captioning (CC) for TV programs, movies and news. Closed caption refers to text of dialogue or descriptions displayed on-screen. Press MENU to display the main menu. Use ▲/▼ to select [Features], then press OK. Use ▲/▼... - Page 25 B. Digital Caption Service B. Digital Caption Service ATSC In addition to the basic closed caption, DTV has its own closed caption called digital caption service. Use this menu to change the settings for digital caption service. Use ▲/▼ to select [Digital Caption Service], then press Use ▲/▼...
-
Page 26: Font Style
Font Style Closed Captioning font style can be changed as illustrated. Font Size Font size of the displayed caption can be switched as illustrated. Font Color Font color of the displayed caption can be switched as illustrated. Font Opacity Font opacity of the displayed caption can be switched as illustrated. -
Page 27: Child Lock
Child Lock Child lock reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programs inappropriate for children and any channels or external input modes can be invisible. - Page 28 C. Setting TV ratings C. Setting TV ratings Use ▲/▼ to select [US TV Ratings Lock] k k , then press OK. Use ▲/▼ / ◄/► to select the desired rating, then press OK repeatedly to switch between Picture Sound TV-MA Setup TV-14...
-
Page 29: Pc Settings
PC Settings This function lets you adjust the PC screen position, clock and phase during PC input. Press MENU to display the main menu. Use ▲/▼ to select [Features], then press OK. Use ▲/▼ to select [PC Settings], then press OK. Use ▲/▼... -
Page 30: Fun-Link
Fun-Link This function allows you to operate the linked functions between our brand devices with a Fun-Link feature and this unit connecting through an HDMI cable. Press MENU to display the main menu. Use ▲/▼ to select [Features], then press OK. Use ▲/▼... -
Page 31: Energy Saving Mode
Energy Saving Mode You can set whether the power consumption is saved or not. Press MENU to display the main menu. Use ▲/▼ to select [Features], then press OK. Use ▲/▼ to select [Energy Saving Mode], then press OK. Use ▲/▼ to select the desired mode, then press OK. Picture Sound Setup... -
Page 32: Troubleshooting
TROUBLESHOOTING Troubleshooting Guide If the unit does not perform properly when operated as instructed in this manual, check the following chart and all connections once before calling for service. Symptom No power Control button does not work. Power is ON but no screen image. - Page 33 Symptom Remedy • You see "noise" or "trash" on the screen. Different color marks on the TV • screen • You switch to a different input • and the volume changes. You switch to a different input • and the screen size changes. •...
-
Page 34: Faq
Question My remote control does not work. What should I do? How come the Initial setup appears every time I turn on this unit? Why I cannot watch some RF signal TV programs. How come there is no image from the connected external devices? Whenever I entered channel number,... -
Page 35: Glossary 3
INFORMATION Glossary ATSC Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards. Aspect Ratio The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height). -
Page 36: General Specifi Cations 3
General Specifi cations TV format ATSC / NTSC-M TV standard Closed caption system §15.122 / FCC (digital CC) §15.119 / FCC (analog CC) Channel coverage (ATSC / NTSC) Terrestrial DTV (ATSC) VHF 2~13 UHF 14~51 each channel has e.g.) 2.1~2.9, 3.1~3.9, etc. Terrestrial Analog (NTSC) VHF 2~13 UHF 14~69... -
Page 37: Limited Warranty
NINETY ( 90 ) DAY LABOR / ONE ( 1 ) YEAR PARTS WARRANTY COVERAGE: This warranty obligation is limited to the terms as set forth below. WHO IS COVERED: This product warranty is issued to the original purchaser or the person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase (“Warranty Period”) from an Authorized Dealer.
