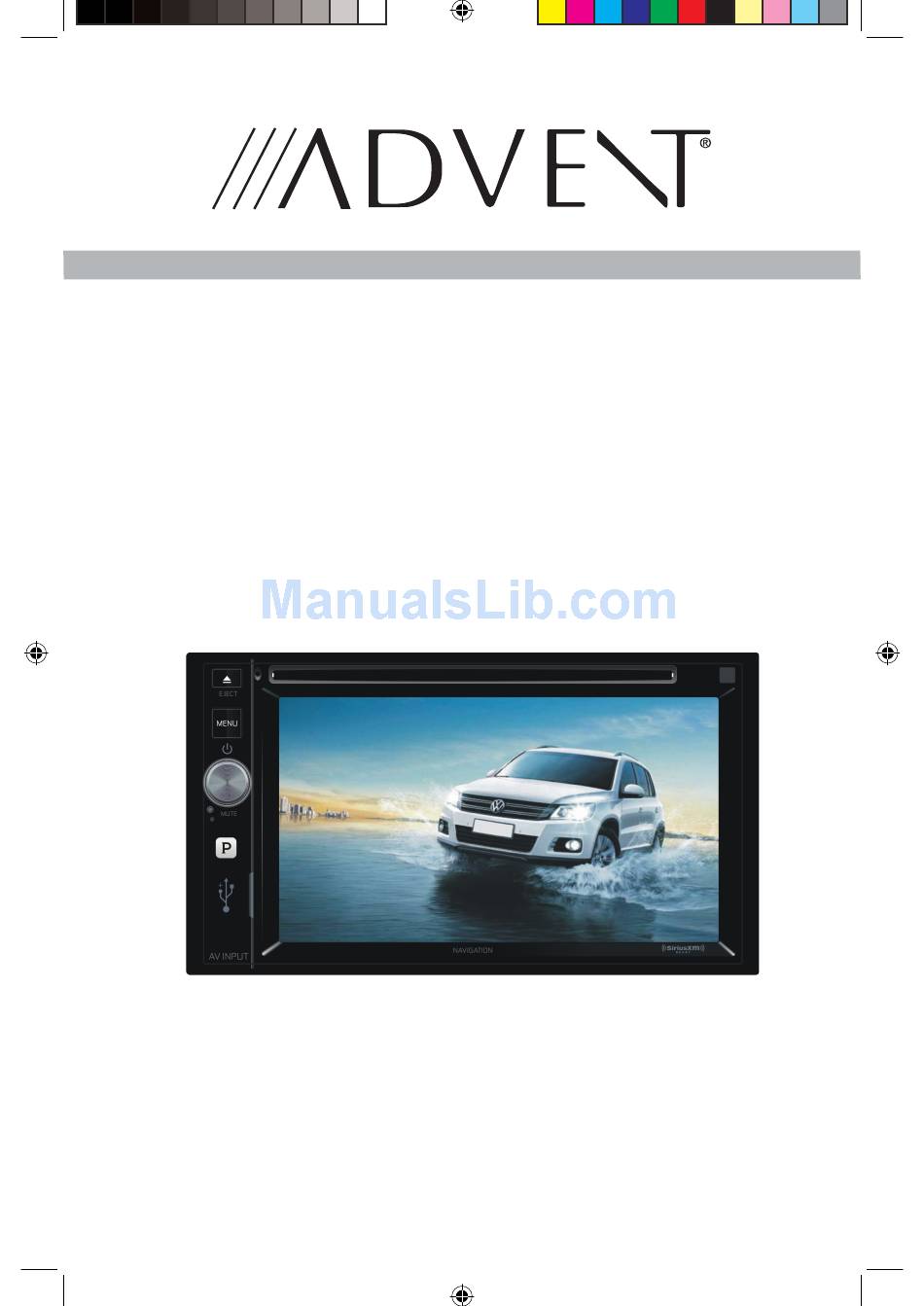

Page 1: Operating Instructions
ADVUNI300 Navigation Operating Instructions 3/17/2014 1:25:43 PM...
Page 2 This page intentionally left blank. 3/17/2014 1:25:43 PM...
Page 3: Warnings And Precautions
ADVUNI300 WARNINGS AND PRECAUTIONS WARNING! Please read and follow the following safety precautions. Failure to follow the instructions below may increase your risk of collision and personal injury. The Attention - Please Drive Safely! Screen is displayed each time the iGO primo software is turned ON as a reminder to make use of the system’s navigational aids...
Page 4: Vehicle Position
ADVUNI300 iGO primo software provides turn-by-turn visual and voice assistance to direct you to your selected destination. The software quickly calculates step-by-step directions to any destination available on the included navigation map. The iGO primo software uses Global Positioning System (GPS) satellites, and a digital roadway map database to calculate and display travel directions.
Page 5: Safety Information
ADVUNI300 SAFETY INFORMATION User Agreement to operate your navigation system appropriately: You must agree to the above notice before using the navigation software. to proceed to the Navigation Menu. 3/17/2014 1:25:44 PM...
Page 6: Driver Safety Rules
ADVUNI300 Driver Safety Rules he following safety rules must be followed to prevent accidents that can result in injury or death to yourself or others: The driver should operate the device only when the vehicle is stopped. Only a vehicle passenger should operate the device while the vehicle is moving.
Page 7: Table Of Contents
ADVUNI300 WARNINGS AND PRECAUTIONS ..........3 Vehicle Position .
Page 8 ADVUNI300 MODIFYING THE ROUTE ........... .93 Selecting a New Destination When Already Having a Route .
Page 9: Quick Start Guide
ADVUNI300 QUICK START GUIDE Follow these six easy steps and you are on your way. NOTE: Before operating your iGO Primo software, please carefully read and follow the instructions provided in the “Warnings and Precautions” section of this manual. Step 1 - Access the navigation function: You can access the navigation function by pressing the front panel NAV button.
Page 10 ADVUNI300 Step 4 - Select a Destination: You have many ways to select a destination. Select by touching screen: to select your destination by entering an address or selecting a place of interest, a location on the map or one of your Favorite destinations.
Page 11 ADVUNI300 Step 6 - Arriving at Your Destination When you are near your destination, the destination is indicated by a Refer to the rest of this manual to become more familiar with the many options available on your iGO primo software.
Page 12: Introduction
ADVUNI300 INTRODUCTION We hope that you enjoy using your new navigation system. This manual is designed to help you get the most out of your system. This navigation system leads you straight to your destination. You can navigate and plan your route with an easy-to-use and intuitive interface, plan your trip interesting destinations before you begin your trip.
Page 13: About Gps And Gnss
ADVUNI300 About GPS and GNSS The unit uses a vehicle Global Positioning System (GPS)-based navigation device which uses digital map data to guide you from your selected location A to location B, using location information obtained from a Global Navigation Satellite System (GNSS).
Page 14: Acquiring A Satellite Signal
ADVUNI300 Acquiring a Satellite Signal The initial GPS location lock is best established when your vehicle is parked. If the device is in motion, the signal can take longer to initially connect. Once the initial coordinates are established, the software will follow you as you move and navigate.
Page 15: Getting Started
ADVUNI300 GETTING STARTED iGO primo is optimized for in-car use. There is no need to use a stylus. You can use Accessing the Navigation Software Press the MENU button and touch the Navigation icon to access navigation mode. Adjusting the Navigation Voice Volume The navigation prompt volumes can be adjusted in s Menu's.
Page 16: Initial Setup
ADVUNI300 INITIAL SETUP starts automatically. Do as follows: Select the written language of the application interface. Later you can change it in Regional settings. 2. Read the End User License Agreement. Tap to continue. to continue. 4. Select the language and speaker used for voice guidance messages. Later you can change it in Sound and Warnings settings.
Page 17: Free Latest Map Guarantee
ADVUNI300 5. If needed, modify the time format and unit settings. Later you can change them in Regional settings. 6. If needed, modify the default route planning options. Later you can change them in Route settings. later from the Settings menu.
Page 18: Navigation Menu
ADVUNI300 NAVIGATION MENU You can reach all parts of iGO primo from the Navigation Menu. You have the following options: to select your destination by entering an address or selecting a place of interest, a location on the map or one of your Favorite destinations.
Page 19: Buttons And Other Controls On The Screen
ADVUNI300 BUTTONS AND OTHER CONTROLS ON THE SCREEN When you are using iGO primo, you usually tap buttons on the touch screen. data or settings. Otherwise, iGO primo saves your selections and applies the new Type Example Description How to Use It...
Page 20 ADVUNI300 List When you need to Grab the list select from several anywhere and slide options, they appear in a list. down. Depending on the speed of the sliding, the list will scroll fast or slow, only a bit or until the end.
Page 21: Using Keyboards
ADVUNI300 Using Keyboards You only need to enter letters or numbers when you cannot avoid it. You can type various keyboard layouts, for example English, Greek or numerical. Task Instruction Switching to another keyboard layout, Tap the button and for example from an English keyboard select the new keyboard layout from to a Greek keyboard.
Page 22: Beyond Single Screen Tap
ADVUNI300 Beyond Single Screen Tap You usually need to tap the screen only once. However, some useful features can be accessed with combined touch screen tapping. Those are the following: Action Details Tapping and holding the Tap and keep pressing the following buttons to reach screen.
Page 23: Map Screen
ADVUNI300 MAP SCREEN The Map screen is the most frequently used screen of iGO primo. Navigating On the Map A small live map is displayed on the startup screen, the Navigation Menu, as a part of the button. To enlarge this small map and open the Map screen, tap This map shows the current position (the Vehimarker, a red arrow by default), the recommended route (an orange line), and the surrounding map area.
Page 24 ADVUNI300 When GPS position is available, the Vehimarker is displayed in full color, now showing your current position. During navigation, the screen shows route information. 3/17/2014 1:25:50 PM...
Page 25 ADVUNI300 Field Description Shows your current speed given by the GPS receiver. Shows the speed limit of the current road if the map contains The accurate time comes from the GPS satellites, and the time zone information comes from the map or it can be set manually in Regional settings.
Page 26: Position Markers
ADVUNI300 Position Markers Vehimarker and Lock-on-Road When your GPS position is available, iGO primo marks your current position with the Vehimarker. By default, this marker is a red arrow, but you can change this icon in Settings. The exact location of the Vehimarker depends on the vehicle type used for route calculation.
Page 27: Objects On The Map
ADVUNI300 Objects On the Map Streets and Roads iGO primo shows the streets in a way that is similar to how the paper road maps show them. Their width and colors correspond to their importance: you can easily tell a freeway from a small street.
Page 28 ADVUNI300 Most of these icons are very intuitive. The following table lists some of the Icon Description Turn left. Turn right. Turn back. Bear right. Turn sharp left. Keep left. Continue straight in the intersection. Enter freeway. Exit freeway. Board ferry.
Page 29 ADVUNI300 Leave ferry. Approaching a waypoint. Approaching the destination. Lane Information and Signposts When navigating on multilane roads, it is important to take the appropriate lane in order to follow the recommended route. If lane information is available in the map data, iGO primo displays the lanes and their directions using small arrows at the bottom of the map.
Page 30 ADVUNI300 Junction View If you are approaching a freeway exit or a complex intersection and the needed information exists, the map is replaced with a 3D view of the junction. The lanes you need to take are displayed with arrows. Signposts can also be present if information is available.
Page 31 ADVUNI300 Elements of the Active Route iGO primo shows the route in the following way: Symbol Name Description Current GPS position Your current position displayed on the and Start point map. In pedestrian mode it is the exact GPS position.
Page 32: Manipulating The Map
ADVUNI300 Manipulating the Map Tap the map anywhere to browse it during navigation. The map stops following position on the screen any more) and control buttons appear to help you modify the map view. 3/17/2014 1:25:52 PM...
Page 33 ADVUNI300 Action Button(s) Description Moving the map No buttons You can move the map in any with drag & drop. direction: tap and hold the map, direction you want to move the map. Zooming in and Changes how much of the map is displayed on the screen.
Page 34 ADVUNI300 Compass in 2D The direction of the compass shows map view mode North. Tap the button to switch to North-up view, and then tap again to rotate the map in the previous direction. Compass in 3D The direction of the compass shows map view mode North.
Page 35: Quick Menu
ADVUNI300 Quick Menu The Quick menu is a selection of controls and functions that are frequently needed during navigation. It can be opened directly from the Map screen by tapping The menu will close after a few seconds of inactivity or if you tap The menu will also close if you initiate simple controls like muting the device.
Page 36 ADVUNI300 There are more functions available than the number of buttons in the menu. In Settings, you can choose the function of each button. The following options are available: Button Description Shortcut for: Master Volume slider This slider adjusts the sound More / Settings / Sound volume of the device.
Page 37 ADVUNI300 This button opens a special screen with information about the current position and a button to search for nearby emergency or roadside assistance. For details, see the next chapter. This button cancels the route My Route / Cancel and stops navigation. The...
Page 38 ADVUNI300 With this function you can My Route / More / Load replace the active route with a Route previously saved route. With this function you can Find / Find Places search for Places of Interest in This button opens the Map...
Page 39: Where Am I
ADVUNI300 Checking the Details of the Current Position (Where Am I?) Opened from the Quick menu, this screen contains information about the current position (or about the last known position if GPS reception is not available) and a button to search for useful Places nearby.
Page 40 ADVUNI300 You can also perform some actions on this screen: to save the current position as a Favorite destination. You can also search for assistance near your current position. Tap open a new screen for the Quick search: The following services can be searched around the current position or the last...
Page 41: Navigating
ADVUNI300 NAVIGATING rout f rout rout t rout rout SELECTING THE DESTINATION OF A ROUTE I t r f tur F vor t H tor Entering an Address or a Part of the Address rout ty/to 3/17/2014 1:25:58 PM...
Page 42 ADVUNI300 Entering an Address (United States) To enter an address as the destination, do as follows: If you are on the Map screen, tap to return to the Navigation menu. 2. In the Navigation menu, tap the following buttons: 3. By default, iGO primo proposes the country and state where you are. If needed, state on the keyboard, and select one from the list.
Page 43 ADVUNI300 3/17/2014 1:25:59 PM...
Page 44 ADVUNI300 6. Enter the house number: a. Tap b. Enter the house number on the keyboard. (To enter letters, tap c. Tap number cannot be found, the midpoint of the street is selected as the destination.) 7. A full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination.
Page 45 ADVUNI300 8. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. to modify route parameters, or tap and start your journey. Tip! If you know that you will use this destination frequently, before...
Page 46 ADVUNI300 Entering an Address (Canada) To enter an address as the destination, do as follows: If you are on the Map screen, tap to return to the Navigation menu. 2. In the Navigation menu, tap the following buttons: 3. By default, iGO primo proposes the country, state and city where you are. If needed, tap country or state on the keyboard, and select one from the list.
Page 47 ADVUNI300 3/17/2014 1:26:03 PM...
Page 48 ADVUNI300 6. Enter the house number: a. Tap b. Enter the house number on the keyboard. (To enter letters, tap c. Tap number cannot be found, the midpoint of the street is selected as the destination.) 7. A full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination.
Page 49 ADVUNI300 8. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. to modify route parameters, or tap and start your journey. 3/17/2014 1:26:04 PM...
Page 50 ADVUNI300 Entering an Address Starting with the Street Name (in the United States only) You can leave the city/town name empty and start the search with the street name. This way you can search in all streets of a state. Do as follows:...
Page 51 ADVUNI300 3/17/2014 1:26:05 PM...
Page 52 ADVUNI300 7. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. to modify route parameters, or tap and start your journey. 3/17/2014 1:26:05 PM...
Page 53 ADVUNI300 Entering the Midpoint of a Street as the Destination You can navigate to the midpoint of a street if the house number is not available: If you are on the Map screen, tap to return to the Navigation menu.
Page 54 ADVUNI300 5. Instead of entering the house number, tap . The midpoint of the street is selected as the destination. 6. A full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The Cursor ( appears at the new location.
Page 55 ADVUNI300 Selecting an Intersection as the Destination To enter an address as the destination, do as follows: If you are on the Map screen, tap to return to the Navigation menu. 2. In the Navigation menu, tap the following buttons: 3.
Page 56 ADVUNI300 5. Enter the intersecting street name: If only a few intersecting streets exist, their list appears immediately. In case of a longer street, the keyboard screen appears. Start entering the name of the intersecting street on the keyboard. As soon as the street names that match the entered string can be shown on one screen, their list appears automatically.
Page 57 ADVUNI300 7. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. to modify route parameters, or tap and start your journey. 3/17/2014 1:26:09 PM...
Page 58 ADVUNI300 Selecting a City/Town Center as the Destination The city/town center is not the geometric center of the city but an arbitrary point the map creators have chosen. In towns and villages, it is usually the most important intersection; in larger cities, it is one of the important intersections.
Page 59 ADVUNI300 5. Instead of entering the street name, tap . This way the center of the displayed city/town becomes the destination of the route. 6. A full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The Cursor ( appears at the new location.
Page 60 ADVUNI300 Entering an Address with a ZIP Code All of the above address searching possibilities can be performed with entering the ZIP code instead of the city name. Find below an example with a full address: If you are on the Map screen, tap to return to the Navigation menu.
Page 61 ADVUNI300 5. Enter the street name: a. Tap b. Start entering the street name on the keyboard. c. Find the street you need: To accept it, tap If the desired name does not show up, the names that match the string...
Page 62 ADVUNI300 7. A full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The Cursor ( appears at the new location. Tap or tap 8. After a short summary of the route parameters, the map appears showing the entire route.
Page 63 ADVUNI300 Tips on Entering Addresses Quickly When you are entering the name of a city/town or a street: results. All other characters are grayed out. the guess is correct, tap to select it. After entering a couple of letters, tap to list the items that contain second one faster.
Page 64: Selecting The Destination From The Places Of Interest
ADVUNI300 Selecting the Destination from the Places of Interest You can select your destination from the Places of Interest included with iGO with only a few screen taps you can search for a Place by its category you can search for a Place by its name.
Page 65 ADVUNI300 4. (Optional) The Places in the list are ordered by the length of the necessary detour (when navigating a route) or by their distance from the current position (when no destination is given). If you need to reorder the list, tap 5.
Page 66 ADVUNI300 Searching for a Place of Interest Using Preset Categories of Places. If you are on the Map screen, tap to return to the Navigation menu. 2. In the Navigation menu, tap the following buttons: 3. The preset search categories appear: If an active route exists, gas stations are searched along the route.
Page 67 ADVUNI300 4. Tap any of the quick search buttons to get an instant list of Places. 5. (Optional) The Places in the list are ordered by their distance from the current or last known position, from the destination or by the length of the necessary detour.
Page 68 ADVUNI300 9. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. to modify route parameters, or tap and start your journey. 3/17/2014 1:26:14 PM...
Page 69 ADVUNI300 Searching for a Place of Interest by Category You can search for Places of Interest by their categories and subcategories. If you are on the Map screen, tap to return to the Navigation menu. 2. In the Navigation menu, tap the following buttons: 3.
Page 70 ADVUNI300 5. (Optional) If you have selected , select the city/town to search 6. Select one of the main Place categories (e.g. Accommodation) or to list all Places around the selected location or along the route. 7. Select one of the Place subcategories (e.g. Hotel or Motel) or to list all Places in the selected main category around the selected location or along the route.
Page 71 ADVUNI300 8. Sometimes the list of brands in the selected Place subcategory appears. Select one brand or tap to list all Places in the selected subcategory around the selected location or along the route. 9. Finally, the results appear in a list.
Page 72 ADVUNI300 14. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. to modify route parameters, or tap and start your journey. 3/17/2014 1:26:16 PM...
Page 73 ADVUNI300 Searching for a Place of Interest by Name You can search for Places of Interest by their names. You can search around category or subcategory only. If you are on the Map screen, tap to return to the Navigation menu.
Page 74 ADVUNI300 5. (Optional) If you have selected , select the city/town to search 6. Tap to search in all Places, or select one of the main Place categories (e.g. Accommodation) to search in. 7. Tap to search in the selected Place category or select one of the Place subcategories (e.g.
Page 75 ADVUNI300 8. Tap if you have not done it before. 9. Using the keyboard, start entering the name of the Place. 10. After entering a few letters, tap to open the list of Places with names containing the entered character sequence.
Page 76 ADVUNI300 12. Browse the list if necessary and tap one of the list items. A full screen map appears with the selected point in the middle. The name and address of the Place is displayed at the top of the screen.
Page 77 ADVUNI300 Selecting Nearby Assistance from ‘Where Am I?’ You can quickly search for nearby assistance from the ‘Where Am I?’ screen. On the Map screen, tap to open the Quick menu. 2. Tap , and then 3. Preset search categories appear, all for searching around the current position...
Page 78 ADVUNI300 4. Tap any of the quick search buttons to get an instant list of that type of Places. 5. (Optional) The Places in the list are ordered by their distance from the current or last known position, from the selected city/town, from the destination or by the length of the necessary detour.
Page 79 ADVUNI300 8. If necessary, tap the map somewhere else to modify the destination. The Cursor ( ) appears at the new location. Tap destination, or tap 9. After a short summary of the route parameters, the map appears showing the entire route.
Page 80: Selecting A Map Location As The Destination
ADVUNI300 Selecting a Map Location as the Destination If you are on the Map screen, tap to return to the Navigation menu. 2. In the Navigation menu, tap the following buttons: 3. Locate your destination on the map: move and scale the map as needed.
Page 81: Selecting The Destination From Your Favorites
ADVUNI300 Selecting the Destination from Your Favorites You can select a location that you have already saved as a Favorite to be your destination. Access the list of Favorites: If you are on the Map screen, tap and then tap...
Page 82 ADVUNI300 5. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. to modify route parameters, or tap and start your journey. 3/17/2014 1:26:21 PM...
Page 83: Selecting One Of The Most Likely Destinations (Smart History)
ADVUNI300 Selecting One of the Most Likely Destinations (Smart History) The destinations that you have set earlier appear in the History list. Two of those recent destinations are shown in the Destination menu for easy access. Smart like the current time of day, the day of week, and the current location. The more you use the navigation software, the better it can guess your desired destination.
Page 84 ADVUNI300 5. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. to modify route parameters, or tap and start your journey. 3/17/2014 1:26:22 PM...
Page 85: Selecting A Recent Destination From The History
ADVUNI300 Selecting a Recent Destination from the History The destinations that you have set earlier appear in the History. Access the History: If you are on the Map screen, tap and then tap If you are in the Navigation menu, tap and then tap 2.
Page 86 ADVUNI300 5. After a short summary of the route parameters, the map appears showing the entire route. The route is automatically calculated. to modify route parameters, or tap and start your journey. 3/17/2014 1:26:23 PM...
Page 87: Entering The Coordinates Of The Destination
ADVUNI300 Entering the Coordinates of the Destination You can also select a destination by entering its coordinate. Do as follows: If you are on the Map screen, tap to return to the Navigation menu. 2. In the Navigation menu, tap 3.
Page 88 ADVUNI300 7. A full screen map appears with the selected point in the middle. The Cursor ( ) appears at the new location. Tap destination, or tap 8. After a short summary of the route parameters, the map appears showing the entire route.
Page 89: Building A Route From The List Of Destinations (Create Route)
ADVUNI300 Building a Route from the List of Destinations (Create Route) You can also build your route destination by destination from the My Route menu. If you are on the Map screen, tap to return to the Navigation menu. 2. In the Navigation menu, tap 3.
Page 90 ADVUNI300 7. When the new destination is selected, the list returns. 8. To add more destinations, tap where you want to insert the new route point in the list, and repeat the above procedure. 3/17/2014 1:26:37 PM...
Page 91: Viewing The Entire Route On The Map
ADVUNI300 VIEWING THE ENTIRE ROUTE ON THE MAP It is easy to get a map overview of the active route. Do as follows: If you are on the Map screen, tap to return to the Navigation menu. 2. In the Navigation menu, tap 3.
Page 92: Checking Route Parameters
ADVUNI300 CHECKING ROUTE PARAMETERS AND ACCESSING ROUTE RELATED FUNCTIONS If you are on the Map screen, tap to return to the Navigation menu. 2. In the Navigation menu, tap 3. The following pieces of information are displayed: The name and/or address of the destination.
Page 93: Modifying The Route
ADVUNI300 MODIFYING THE ROUTE When navigation is already started, there are several ways to modify the active route. The following sections show some of those options. Selecting a New Destination When Already Having a Route: New Route, Waypoint or Final Destination...
Page 94: Setting A New Starting Position For The Route
ADVUNI300 Setting a New Starting Position for the Route For normal navigation, all routes are planned from the current position. In order to check future routes, simulate them or see their length in time and distance, you If you are on the Map screen, tap to return to the Navigation menu.
Page 95 ADVUNI300 5. The Destination menu appears and you can select the start point of the route the same way you select a destination. 6. When the new start point is set, tap 7. The map returns with a transparent Vehimarker (showing that there is no GPS reception).
Page 96: Editing The List Of Destinations (Edit Route)
ADVUNI300 Editing the List of Destinations (Edit Route) You can edit the route by modifying the list of destinations. You can add or remove destinations, modify the start position or reorder the list. If you are on the Map screen, tap to return to the Navigation menu.
Page 97: Pausing The Active Route
ADVUNI300 Pausing the Active Route You do not need to pause the active route: when you start driving again, iGO primo restarts the voice instructions from your position. Canceling the Active Route To cancel the navigated route, do one of the following:...
Page 98: Checking Route Alternatives When Planning The Route
ADVUNI300 Checking Route Alternatives when Planning the Route method after you have selected a new destination. Do as follows: screen. 2. Tap 3. Tap 4. You see the basic details of three route alternatives with the selected route planning method. Tap any of them to see it on the map.
Page 99: Checking Route Alternatives For An Existing Route
ADVUNI300 and scroll down for 6. Select one of the route alternatives and tap to return to the previous screen. iGO primo recalculates the route. The orange line now shows the new recommended route. Checking Route Alternatives for an Existing Route can modify the Route settings.
Page 100 ADVUNI300 3. Tap 4. Tap 5. You see the basic details of three route alternatives with the selected route planning method. Tap any of them to see it on the map. and scroll down for 7. Select one of the route alternatives then tap and hold for a few seconds to return to the Map screen.
Page 101: Changing The Vehicle Used In Route Planning
ADVUNI300 Changing the Vehicle Used in Route Planning can also be made in Settings. On the Map screen, tap and then tap 2. Tap and then tap one of the following: 3. iGO primo recalculates the route optimized for the new vehicle type. The orange line now shows the new recommended route.
Page 102: Changing The Road Types Used In Route Planning
ADVUNI300 Changing the Road Types Used in Route Planning These changes can also be made in Settings. On the Map screen, tap and then tap 2. Tap any of the listed road types to modify the route. If needed, scroll the list for all road types.
Page 103: Saving A Location As A Favorite Destination
ADVUNI300 SAVING A LOCATION AS A FAVORITE DESTINATION You can add any location to Favorites, the list of frequently used destinations. Select a destination as described before. It can be an address, a Place, any location on the map, a previously used destination from History, a coordinate or a location where a photo was taken.
Page 104: Saving A Location As An Alert Point
ADVUNI300 SAVING A LOCATION AS AN ALERT POINT You can save any map location as an alert point (for example a speed camera or a railroad crossing). Browse the map and select a location. The red Cursor appears there. 2. Tap 3.
Page 105: Editing An Alert Point
VUNI30 EDITING AN ALERT POINT You can edit a previously saved or uploaded alert point (for example a speed camera or a railroad crossing). Browse the map and select the alert point to edit. The red circle appears around the alert point. 2.
Page 106: Watching The Simulation Of The Route
ADVUNI300 WATCHING THE SIMULATION OF THE ROUTE You can run a simulated navigation that demonstrates the active route. Do as follows: If you are on the Map screen, tap to return to the Navigation menu. 2. In the Navigation menu, tap 3.
Page 107 VUNI30 5. (Optional) You have the following controls during the simulation (the control buttons disappear after a few seconds but you can open them again if you tap the map): : Jump to the next route event (maneuver). : Pause the simulation. : Jump to the previous route event (maneuver).
Page 108 ADVUNI300 This page intentionally left blank. 3/17/2014 1:27:01 PM...
Page 109: Reference Guide
ADVUNI300 REFERENCE GUIDE menu screens of iGO primo. CONCEPTS Smart Zoom Smart Zoom provides much more than just a usual automatic zoom feature: While following a route: when approaching a turn, it will zoom in and raise the view angle to let you easily recognize your maneuver at the next junction. If the you can see the road in front of you.
Page 110: Route Calculation And Recalculation
ADVUNI300 Route Calculation and Recalculation iGO primo calculates the route based on your preferences: Route planning methods: : Gives a quick route if you can travel at or near the speed limit on all roads. Usually the best selection for fast and normal cars.
Page 111 ADVUNI300 Maneuv restric constrain ccoun route. o e . Contr r ex routes. rivat r rout aver rrival. r av ntersections. Direc constrain ccoun allo rivat r r ex routes. Maneuv restric constrain ccoun route. o e . Privat r r ex routes.
Page 112 ADVUNI300 Road types used or avoided in route calculation: at r 3/17/2014 1:27:02 PM...
Page 113: Green Routing
ADVUNI300 Green Routing some of the vehicle types, you can also check the fuel consumption and CO2 In Settings, select to enter the necessary parameters of your vehicle and the average fuel price. You can also select whether you want to see the method is not Green.
Page 114: Road Safety Cameras And Other Proximity Alert Points
ADVUNI300 Road Safety Cameras and Other Proximity Alert Points There is a special proximity warning for road safety cameras (like speed or red light cameras) and other proximity alert points (like schools or railroad crossings). These alert points are preloaded in iGO primo. You can download more from You can also add your own alert points or edit the preloaded or uploaded points.
Page 115: Gps Position Quality Indicators
ADVUNI300 GPS Position Quality Indicators In the top right corner, the GPS reception quality icon shows the current accuracy of the position information. Icon Description iGO primo has no connection to the GPS receiver: GPS navigation is not possible. Devices with a built-in GPS receiver are permanently connected.
Page 116: More' Menu
ADVUNI300 ‘MORE’ MENU The ‘More’ menu provides you with various options and additional applications. Tap the following buttons: Button Description behavior of iGO primo. Fine-tune route planning options, for details. Visit www.naviextras.com to get additional content, such as new maps or 3D landmarks and useful applications.
Page 117 ADVUNI300 If you save your trip logs when you arrive at some of your destinations or let the application automatically save the trip logs for you, those logs are all listed here. Tap one of the trips to see the trip statistics, speed and display it on the map with the selected color.
Page 118: Settings Menu
ADVUNI300 SETTINGS MENU Tap the following buttons: The Settings menu has several options. Tap full list. Button Description Adjust the sound volume, mute your device or change the voice guidance language. In addition, you The content of the Quick menu is fully customizable.
Page 119 ADVUNI300 Adjust the map view to your needs, choose suitable color themes from the list for both daytime and night use, change the red arrow to a 3D car model, show or and manage your Place visibility sets (which Places to show on the map).
Page 120: Sound And Warnings
ADVUNI300 Sound and Warnings Adjust the sound volume, mute your device or change the voice guidance Button Description sounds in the application. A new screen shows the for details. from the list of available languages and speakers. Tap any of these to hear a sample voice prompt.
Page 121 ADVUNI300 This feature allows you to receive a warning when approaching a Road Safety Camera. You must ensure on your own liability that using this feature is legal in the country where you intend to use it. This button is not displayed when GPS position is not available or if you are in certain countries where road safety camera warning is prohibited.
Page 122 ADVUNI300 You can control the volume of the following sound types: Button Description all below sounds. They can also be accessed from the Quick menu. sounds (verbal instructions). (beeps). music. Controls for each sound type: Button Description Volume Slider Adjusts the volume of the related sound.
Page 123: Customize Quick Menu
ADVUNI300 Customize Quick Menu The content of the Quick menu is fully customizable. Tap the button you want to change, and select its new function from the list. The recommended route is not always the same between two points. calculation based on the time of day and the day of week.
Page 124: Route Settings
ADVUNI300 Route Settings These settings determine how routes will be calculated. Button Description You can set the type of vehicle you will use to navigate the route. Based upon this setting, some of the road types can be excluded from the route, or some of the restrictions may not be taken into account in route calculation.
Page 125 ADVUNI300 iGO primo excludes unpaved roads by default: unpaved roads can be in a bad condition and usually you cannot reach the speed limit on them. Carpool or HOV lanes can be used if a given number of passengers are traveling in the vehicle. You should check whether you are allowed to use carpool lanes before enabling this road type.
Page 126 ADVUNI300 P v t P v t Route Planning Method Types: Button Description . T v c y. T 3/17/2014 1:27:06 PM...
Page 127: Green Routing Settings
ADVUNI300 Green Routing Settings These settings determine how Green routes will be calculated. They are also used to display the cost and CO2 emission of routes. Button Description Enter the average consumption of your vehicle when used in built-up areas.
Page 128: Map Settings
ADVUNI300 Map Settings needs, choose suitable color themes from the list for both daytime and night use, change the red arrow to a 3D car model, show or hide 3D buildings, turn track the map). change a setting. Button Description Switch the map view between a 3D perspective view and a 2D top-down view.
Page 129 ADVUNI300 Show or suppress 3D city models, 3D artistic or block representation of full city building data containing actual building size and position on the map. sequence of the locations your journeys go through. Select which Places to show on the map while navigating.
Page 130: Visual Guidance Settings
ADVUNI300 Visual Guidance Settings Settings related to guidance on the map screen can be adjusted here. Button Description be customized. Tap this button and select the values you navigate a route from when you are just cruising without a given destination. You can select general trip data like your current speed or the altitude, or waypoint on your route.
Page 131: Display Settings
ADVUNI300 Display Settings Display related settings include menu animations, separate skins for daytime and night use and the brightness of the display. Button Description When animation is turned on, buttons on menus and keyboard screens appear in an animated way. Screen transitions are also animated.
Page 132: Trip Monitor Settings
ADVUNI300 Trip Monitor Settings Trip logs and track logs contain useful information about your trips. Trip logs can be saved manually when you reach your destination or you can turn on the automatic saving here. You can access these logs in the Trip monitor. Trip monitor is available from the More menu.
Page 133: Glossary
ADVUNI300 GLOSSARY 2D/3D GPS reception The GPS receiver uses satellite signals to calculate its (your) position and needs at least four signals to give a three-dimensional position, including elevation. Because the satellites are moving and because objects can block the signals, your GPS device might not receive four signals.
Page 134 ADVUNI300 North-up map orientation In North-up mode the map is rotated so its top always faces North. This is the orientation for example in Find on Map. See also: Track-up map orientation. Road Safety Camera these cameras. Detecting the location of Road Safety Cameras is prohibited in certain countries.
Page 135: End User License Agreement
VUNI30 END USER LICENSE AGREEMENT 1 The contracting parties 1.1 This Agreement has been entered into by and between NNG Kft. (registered seat: 23 Bérc utca, H-1016 Budapest, Hungary; Company reg.no.: 01-09-891838) as Licensor (hereinafter: Licensor) and You as the User (hereinafter: User; the User and the Licensor jointly referred to as: Parties) in subject of the use of the software 2 Conclusion of the Agreement 2.1 The Parties hereby acknowledge that this Agreement shall be concluded by...
Page 136 ADVUNI300 4.5 Your rights under this Agreement will terminate immediately without notice from Licensor if you materially breach it or take any action in derogation of Licensor’s and/or its licensors’ rights to the Software Product. Licensor may terminate this Agreement should any Software Product become, or in Licensor’s reasonable opinion likely to become, the subject of a claim of intellectual property infringement or trade secret misappropriation.
Page 137 ADVUNI300 7.1.3 to translate the Software Product (including translation (compilation) to other programming languages); 7.1.4 to decompile the Software Product; 7.1.5 to evade the protection of the Software Product or to modify, circumvent or obviate such protection through technological or by any other means;...
Page 138 ADVUNI300 8.5 The Licensor also draws the attention of the User to the fact that, when using rules (e.g. use of obligatory and/or reasonable and suitable security measures, proper and generally expected care and attention in the given situation, and special care and attention required due to the use of the Software Product) is the exclusive responsibility of the User.
Page 139 ADVUNI300 9.4 Contents and services provided by the Licensor or an agent of the Licensor the User through www.naviextras.com. The User may only use these services when the User has read and understood the relevant end user license agreement(s) at www.naviextras.com and the User is obliged to use the services in line with the...
Page 140 Voxx Electronics Corporation Hauppauge, NY 11788 Technical Assistance: 1-800-323-4815 www.adventproducts.com © 2014 Printed in China...

Advent ADVUNI300 Operating Instructions Manual

Quick Links

Operating Instructions

Related Manuals for Advent ADVUNI300

Summary of Contents for Advent ADVUNI300

Table of Contents
