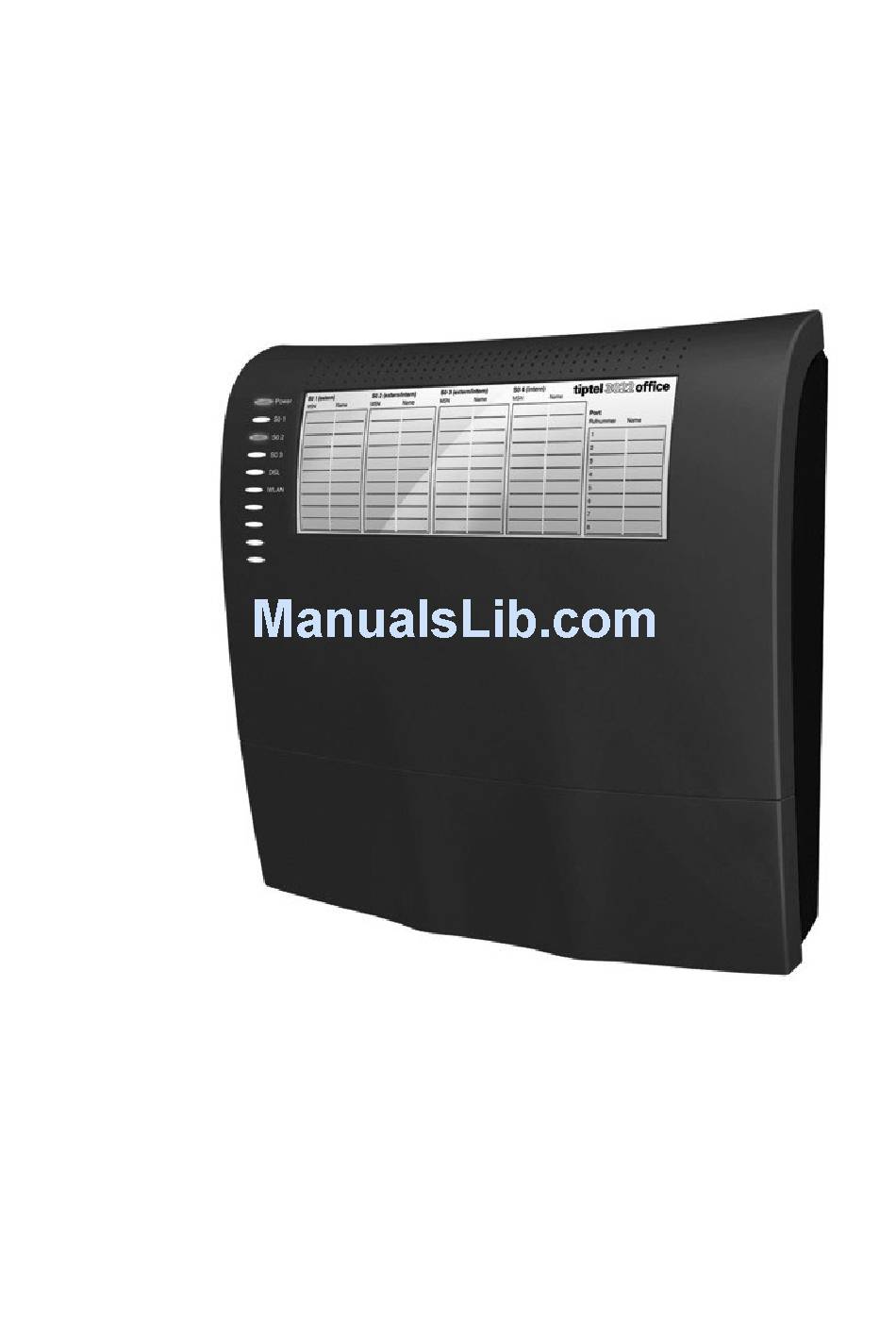

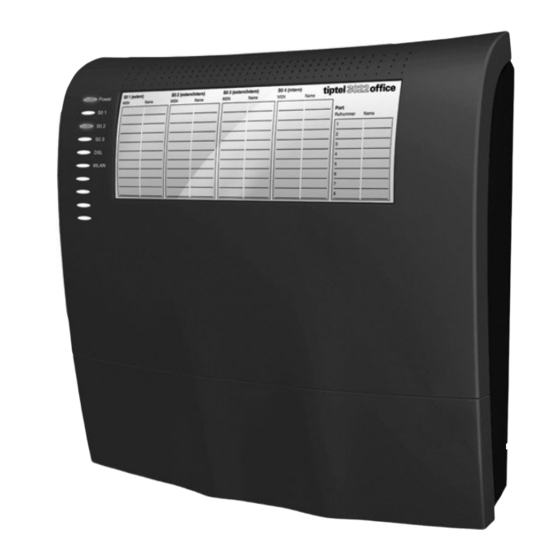

- Page 1 User’s Manual (GB) ISDN Telephone System tiptel 3022 office tiptel 3011 office tiptel...
-
Page 3: Table Of Contents
Table of contents Table of contents Table of contents ....................3 Important information ..................5 Directions for the operation of the telephone system ..........5 First calls ......................6 Internal call ......................6 External call......................6 Inquiry call......................7 Inquiry call with call transfer................. 7 Extension features .................... - Page 4 Table of contents List of operating codes for analogue terminals..........25 Index ........................26...
-
Page 5: Important Information
The current version of this user's manual is also available as .pdf-file on the Internet at www.tiptel.com. The texts and illustrations of this user's manual have been compiled with the utmost care, however, errors cannot be ruled out completely. -
Page 6: First Calls
First calls First calls Upon delivery, the automatic exchange connection is disabled within the telephone system. Dial the line prefix "0" for CO line access. If the feature automatic exchange connection has been activated, you can dial “ ” for an internal line or wait for 10 seconds after picking up the receiver until you hear the internal dialling tone. -
Page 7: Inquiry Call
First calls Inquiry call Analogue telephone 50: You hear the internal dialling tone. Pick up receiver. Dial subscriber number. Signal at telephone 51. Analogue telephone 51: Place your call with telephone 51. Pick up receiver. Initiate inquiry. You hear the internal dialling tone. ... -
Page 8: Extension Features
Features Extension features The following list describes the features provided at the individual extensions. Note: Many of the features are displayed on ISDN terminals and can be enabled directly via speed dialling keys. Because of the huge diversity of terminals available on the market, directions for operation cannot be given here. - Page 9 Features Call Forwarding No Reply (CFNR) Incoming calls are first signalled on your own terminal. If the call is not answered within a certain period of time, it will be forwarded to the programmed destination phone number. Enabled call forwarding is signalled on the terminal by a special dialling tone after picking up the receiver.
-
Page 10: Configuration Of An Analogue Extension
Configuration Configuration of an analogue extension Enabling call waiting At analogue extensions, the call waiting signal is enabled or disabled with the following key sequences: • call waiting off • call waiting on The entry is confirmed by a positive confirmation tone. Note: If ISDN telephones are connected, this feature is managed by the terminals themselves. -
Page 11: Features During Connection Setup
Features Features during connection setup Select outgoing internal number Analogue telephone for subscribers You hear the internal dialling tone. 40, 41: Pick up receiver. Dial key sequence, the internal number is You hear a positive confirmation tone. int. -
Page 12: Speed Dialling
Features Speed dialling A speed dialling list is available for frequently used telephone numbers. Up to 100 phone numbers with up to 24 digits each can be stored. These phone numbers can be dialled by every subscriber. ... -
Page 13: Completion Of Call On No Reply (Ccnr)
Features If an ISDN terminal is used and if the feature CCBS is supported, the automatic call back can be enabled via a speed dialling key. For further information, please consult the user's manual of the ISDN terminal. If an analogue terminal is used, you hear a positive confirmation tone as soon as CCBS has been registered within the telephone system. -
Page 14: Features During A Call
Features CCNR requests will be deleted after 60 min. within the telephone system. This period of time depends on the public exchange office if external subscribers shall be called. Requirements: In case of external call backs the feature CCNR must be supported and enabled by the own network provider and the network provider of the subscriber called. -
Page 15: Hold
Features If analogue terminals are used, the feature can be enabled via the following key sequences: • trace subscriber • hang up Requirement: The feature MCID must have been enabled by the network operator. Hold There are two ways to place incoming external calls on hold, depending on the setting: either externally within the exchange or internally within your telephone... -
Page 16: Terminal Portability (Tp)
Features Terminal Portability (TP) If you wish to continue an active call from another part of the building, you can park the call within the telephone system and de-park it from another extension. If you de- park the call within three minutes, you can continue your conversation. For programming this feature at an ISDN terminal, please consult the user's manual of your ISDN telephone. -
Page 17: Explicit Call Transfer
Features Hang up all receivers. Termination of call. Explicit Call Transfer This feature gives you the possibility to connect two calls. If you, e.g., have an active call and a call on hold, you can interconnect both subscribers. Analogue telephone 50: You hear the internal dialling tone. -
Page 18: Subscriber Configuration Via Pc
Subscriber configuration via PC It is possible to configure subscriber’s settings also via PC. In order to do so, you need a PC with network access to the tiptel 3022 office resp. tiptel 3011 office, your user name and your password. - Page 19 Configuration via PC...
-
Page 20: General
Configuration via PC General Settings Automatic exchange connection After picking up the receiver, the telephone system will automatically perform a standard exchange connection, i.e. the telephone system imperceptibly dials "0". If a CO line is available, you will immediately hear the external dialling tone. If all external lines assigned to the subscriber are busy, the internal busy tone is heard. -
Page 21: Follow-Me
Configuration via PC Follow-me This function allows to transfer the call forwarding of your internal number to the phone number where you currently are. Press the following buttons to realise the call forwarding to the other extension: • follow me (individual phone number) Password... -
Page 22: Charge Account
Configuration via PC Charge account Here you can see the current credit on your charge account. -
Page 23: Internet Dialling-In
Internet dialling-in Provided that your administrator has authorised you to manually access the Internet, you can initiate the manual dialling-in of your tiptel 3022 office / tiptel 3011 office here. In order to do so, please select the desired provider from the "provider” menu and then select one of the possible connections. -
Page 24: List Of Operating Codes For Analogue Terminals
Operating codes List of operating codes for analogue terminals Functions without an active call • internal dialling tone in case of automatic exchange connection • Call Forwarding Unconditional (CFU) off • Call Forwarding Unconditional (CFU) on with destination phone number destination •... - Page 25 Operating codes List of operating codes for analogue terminals Functions during an active call • Initiating a conference • Accepting a waiting call / switching between lines • Accepting a waiting call and terminating an active call •...
- Page 26 Index Index Automatic exchange connection ..20 Configuration of an analogue extension Call.............14 ............10 Call back no reply ......13 Configuration via PC......18 Call back on busy ......12 Establishment of connection .....11 Call deviation ........8 External call..........6 Call forwarding........21 First calls..........6 Call forwarding when busy ....21 Follow me ........11, 21 Call forwarding when no reply ...21 Hold ...........15...
- Page 28 Halskestraße 1 D - 40880 Ratingen Tel.: 0 18 05 – 84 78 35 (0,12 € pro Minute) anity Tel.: 0 18 05 – TIPTEL (0,12 € pro Minute) Fax: 0 18 05 – 84 78 49* E-mail: support@tiptel.de Internet: www.tiptel.de...
