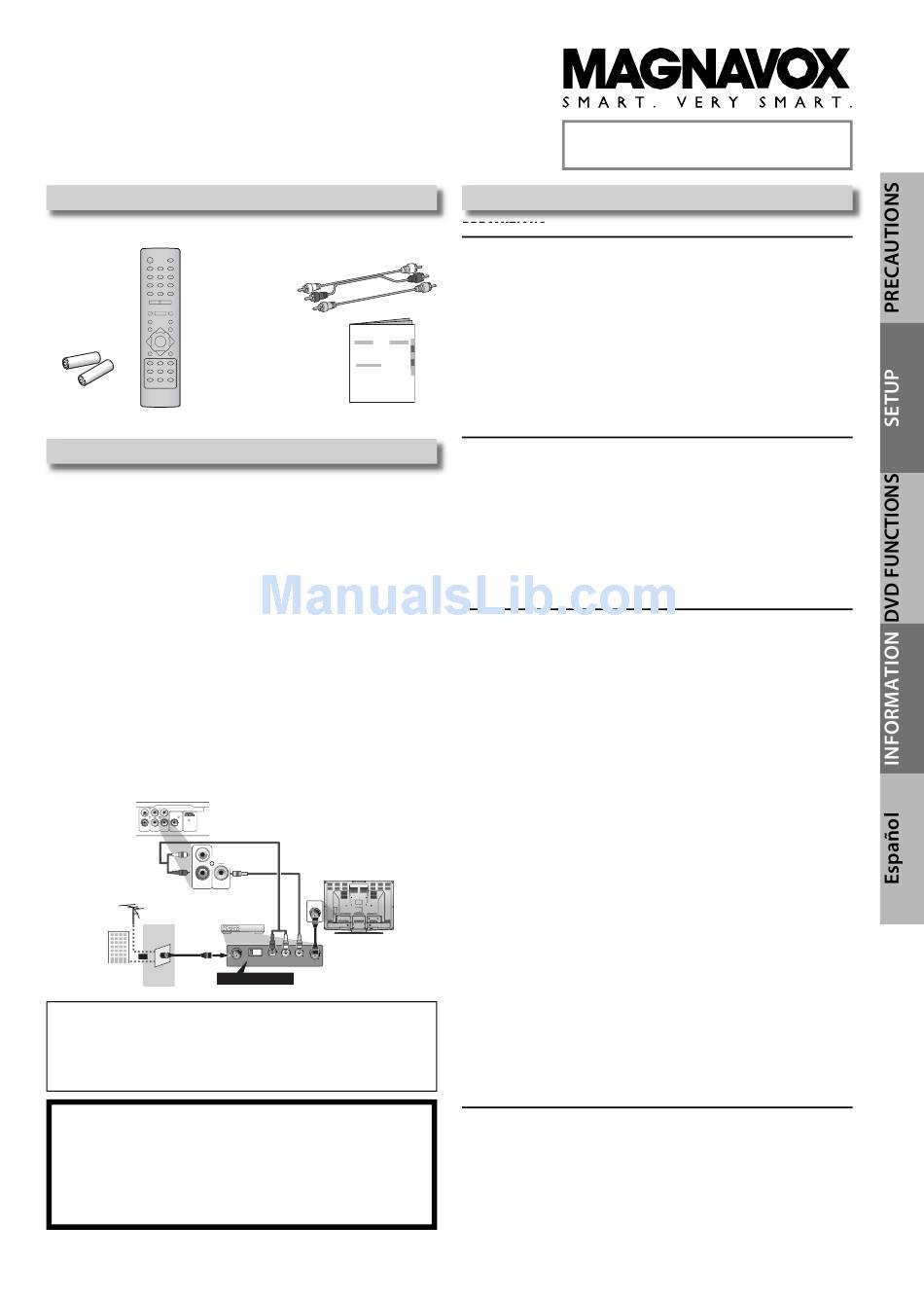

Owner's Manual
Please read before using this unit.
DVD/CD Player
DP170MW8
Supplied Accessories
remote control
(NA475UD)
batteries
(AAA x 2)
Connecting to RF Modulator (Not Supplied)
If your TV has antenna in jack only, it is still possible to
connect this unit to your TV by using an RF modulator. In
this case, follow the instructions below.
1) Disconnect the power cords of the devices from the AC
outlet.
2) Make the connection as illustrated below.
3) Set your RF modulator's channel 3/4 switch to either
3 or 4, whichever the TV channel is least used in your
area. If your RF modulator has a modulator/antenna
switch, set it according to the manual supplied with the
RF modulator.
4) Plug in the power cords of the devices to the AC outlet.
5) Turn on your TV and choose the same channel as
you set the RF modulator's channel 3/4 switch to. For
more details, follow the manual supplied with the RF
modulator.
rear of this unit
L
Y
C
R
/P
R
COMPONENT VIDEO OUT
COAXIAL
R
AUDIO
VIDEO
DIGITAL
HDMI OUT
C
B
/P
B
OUT
OUT
AUDIO OUT
L
R
AUDIO
VIDEO
OUT
OUT
RCA audio cable
rear of your RF
VHF / UHF
antenna
or
RF coaxial
cable TV
cable
company
Set channel 3 or 4
Note:
• RF modulator is not supplied with this unit. You need to
purchase it at your local store.
• The quality of picture may become poor if this unit is
connected to an RF modulator.
If you need additional operating assistance after
reading this owner's manual, please call
1-800-605-8610
TOLL FREE :
or visit our web site at
http://www.funai-corp.com
© 2007 Funai Electric Co., Ltd.
RCA audio/video cables
(WPZ0102TM018 /
WPZ0102LTE01)
owner's manual
Owner's Manual
(1VMN23650A)
RCA video cable
rear of TV
ANT. IN
modulator
RF coaxial cable
3
4
R
L
ANT. IN
CHANNEL
AUDIO IN
VIDEO IN
TO TV
INSTRUCCIONES EN
ESPAÑOL INCLUIDAS.
Contents
PRECAUTIONS
Laser Safety ...............................................................................................2
Important Safeguards .............................................................. 3
Location and Handling .........................................................................4
Avoid the Hazards of Electrical Shock and Fire ...........................4
Moisture Condensation Warning ......................................................4
About Copyright......................................................................................4
Notice for Progressive Scan Outputs ...............................................4
Symbols Used in this Manual .............................................................4
Maintenance .............................................................................................4
About the Discs ......................................................................... 5
Playable Discs ...........................................................................................5
Unplayable Discs .....................................................................................5
Connections .............................................................................. 6
Connection to a TV .................................................................................6
Connection to a TV with an HDMI Compatible Port ..................7
Connection to an Audio System .......................................................8
Function Overview ................................................................... 9
Rear Terminals ..........................................................................................9
Front Panel Indicator .............................................................................9
HDMI Setup ...............................................................................................9
Remote Control ......................................................................................10
Installing the Batteries for the Remote Control ..........................10
Playback .................................................................................. 11
MP3, JPEG Playback ................................................................ 12
Kodak Picture CD ..................................................................... 12
Dual Playback .......................................................................... 13
Transition Mode ...................................................................... 13
Adjustment of Picture Size ...................................................... 13
Folder Playback ....................................................................... 13
On-Screen Display ................................................................... 14
Search Functions ..................................................................... 15
Using Track Search ................................................................................15
Using Title / Chapter Search ..............................................................15
Using Time Search .................................................................................15
Marker Setting .........................................................................................15
Repeat / Random / Programmed Playback ............................ 16
Repeat Playback .....................................................................................16
Repeat A-B Playback .............................................................................16
Random Playback ..................................................................................16
Programmed Playback .........................................................................16
Special Settings ....................................................................... 17
Subtitle Language..................................................................................17
Audio Language .....................................................................................17
Camera Angles ........................................................................................17
Black Level Setting.................................................................................17
Stereo Sound Mode ..............................................................................17
Virtual Surround .....................................................................................17
DVD Setting ............................................................................. 18
LANGUAGE Setting ................................................................................18
DISPLAY Setting ......................................................................................19
AUDIO Setting .........................................................................................20
PARENTAL Setting .................................................................................21
OTHERS Setting.......................................................................................22
Troubleshooting Guide ........................................................... 23
Specifications .......................................................................... 24
Language Code List ................................................................. 24
LIMITED WARRANTY ................................................................ 24
Español .................................................................................... 27
Quick Use Guide............................................................ Back Cover
Advertisement
Table of Contents
Related Manuals for Magnavox DP170MW8
Summary of Contents for Magnavox DP170MW8
-
Page 1: Table Of Contents
Owner’s Manual Please read before using this unit. DVD/CD Player DP170MW8 Supplied Accessories remote control RCA audio/video cables (NA475UD) (WPZ0102TM018 / WPZ0102LTE01) batteries owner’s manual (AAA x 2) (1VMN23650A) Connecting to RF Modulator (Not Supplied) If your TV has antenna in jack only, it is still possible to connect this unit to your TV by using an RF modulator. -
Page 2: Laser Safety
WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. -
Page 3: Important Safeguards
Important Safeguards Read Instructions - All the safety and operating instructions should be read before the appliance is operated. Retain Instructions- The safety and operating instructions should be retained for future reference. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to. -
Page 4: Location And Handling
‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p DVD player, please contact our customer service center. Symbols Used in this Manual The following symbols appear in some headings in this manual. -
Page 5: About The Discs
About the Discs Playable Discs Type of Mark (logo) media DVD-video *1, 2, 3, 5, 9 DVD-RW DVD-R *1, 3, 4, 5, 6, 7, 8, 9, 10 DVD+RW DVD+R *1, 3, 4, 5, 8, 9 video CD *3, 5, 9, 11 audio CD *3, 5, 9 CD-RW... -
Page 6: Setup
Curtis Mathis: LINE1, LINE2, 00, 90, 91, 92, 93 INPUT, TV/VCR, 00, 90, 91, 92, 93 Hitachi: INPUT, AUX JVC: VIDEO, VIDEO1, VIDEO2, VIDEO3 Kenwood: LXI-Series: Magnavox: AUX CHANNEL SETUP good picture VIDEO IN S-video cable AUDIO VIDEO S-VIDEO VIDEO OUT... -
Page 7: Connection To A Tv With An Hdmi Compatible Port
Connection to a TV with an HDMI Compatible Port A simple 1-cable connection with a device having an HDMI (High-Definition Multimedia Interface) connector allows digital transfer of the digital images of DVD-video and other devices. best picture HDMI IN HDMI cable This unit HDMI OUT When connecting with an HDMI cable, the audio signal will be output as the digital audio signal simultaneously, so you... -
Page 8: Connection To An Audio System
Connection to an Audio System Analog Audio Connection stereo system RCA audio cable COMPONENT VIDEO OUT COAXIAL AUDIO VIDEO DIGITAL HDMI OUT AUDIO OUT AUDIO AUDIO OUT Supplied cables used in this connection are as follows: • RCA audio cable (L/R) x 1 Please purchase the rest of the necessary cables at your local store. -
Page 9: Function Overview
Function Overview Rear Terminals COAXIAL AUDIO VIDEO 1: AUDIO OUT jacks Connect an RCA audio cable from here to the audio input jack of your television or audio device. 2: COMPONENT VIDEO OUT jacks Connect a component video cable from here to the component video input jacks of your television. -
Page 10: Remote Control
Remote Control STANDBY-ON OPEN/CLOSE CLEAR NEXT PREV PLAY STOP PAUSE RETURN TITLE DISC SETUP MENU ZOOM REPEAT REPEAT AUDIO SUBTITLE ANGLE MODE DISPLAY SEARCH Installing the Batteries for the Remote Control Install the batteries (AAAx2) matching the polarity indicated inside battery compart- ment of the remote control. -
Page 11: Dvd Functions
Please note : most instructions in this manual refer to remote control use. Playback Before: Turn on the TV, amplifier and any other components which are connected to this unit. Make sure the TV and audio receiver (not supplied) are set to the correct channel. -
Page 12: Mp3, Jpeg Playback
Zoom 1) Press [ZOOM] during playback. 2) Press [ZOOM] repeatedly to select the required zoom factor: 2x, 4x or off. 3) Press [K / L / s / B] to slide the zoomed picture across the TV screen. 4) To exit zoom mode, press [ZOOM] to select off. Note: •... -
Page 13: Dual Playback
Dual Playback This unit allows you to play back MP3 and JPEG files simultaneously. Available only when “DUAL PLAYBACK” is “ON”. Refer to pages 18- 22 on how to set “DUAL PLAYBACK” to “ON” or “OFF”. Press [DISC MENU] during MP3/JPEG playback. DISC PLAY MENU... -
Page 14: On-Screen Display
On-Screen Display You can check the information about the current disc by pressing [DISPLAY] on the remote control. appears only in a case multi-angle is available on the DVD. DISPLAY current playback status 11/16 0:00:00 - 0:03:30 remaining time of the current chapter elapsed time of the current chapter... -
Page 15: Search Functions
Search Functions Search function does not work during programmed or random playback. Using Track Search Press [SEARCH]. SEARCH Select track number by using [the Number buttons] within 30 seconds. • For the disc with less than 10 tracks, press the track number directly. •... -
Page 16: Repeat / Random / Programmed Playback
Repeat / Random / Programmed Playback Repeat Playback Repeat function is available only during playback. Press [REPEAT] during playback. PLAY REPEAT Each time you press [REPEAT], repeat function changes as example below. (repeat off) (current chapter repeat) CHAPTER (current title repeat) TITLE (repeat off) (current track repeat) -
Page 17: Special Settings
Special Settings Subtitle Language This unit allows you to select a subtitle language (if available) during DVD playback. Press [SUBTITLE] during playback. PLAY SUBTITLE Each time you press [SUBTITLE], subtitle language changes as example below. (no subtitles) (English subtitles) (French subtitles) To cancel subtitle Press [SUBTITLE] during playback. -
Page 18: Dvd Setting
DVD Setting QUICK Menu You can select the “PLAYER MENU”, “TV ASPECT”, “PROGRESSIVE”, “HDMI MODE” or “DOLBY DIGITAL” from “QUICK” menu quickly. Press [SETUP] in the stop mode. STOP SETUP SETUP menu Confirm that “QUICK” is selected. QUICK SETUP PLAYER MENU ENGLISH TV ASPECT 4:3 LETTER BOX... -
Page 19: Display Setting
DISPLAY Setting You can change the display functions. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 18. Select the desired item. TV ASPECT: (Default: 4:3 LETTER BOX) See note on the right. TV ASPECT STILL MODE PROGRESSIVE DISPLAY menu HDMI MODE... -
Page 20: Audio Setting
Follow steps 1 to 3 in the “CUSTOM menu” section on page 18 and step 4 on page 19. PROGRESSIVE: QUICK (Default: OFF) See note on the right. 4:3 LETTERBOX TV ASPECT 4:3 LETTERBOX AUTO STILL MODE AUTO PROGRESSIVE 480p HDMI MODE 480p AUTO 1... -
Page 21: Parental Setting
PARENTAL Setting This function prevents unit from playing material inappropriate for children. Parental Levels Parental level allows you to set the rating levels of your DVD software. Playback will stop if the ratings exceed the levels you set. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 18. Enter your desired 4-digit password (expect for 4737). -
Page 22: Others Setting
OTHERS Setting You can change the other functions. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 18. Select the desired item. OTHERS menu OTHERS ANGLE ICON AUTO POWER OFF ON DUAL PLAYBACK SLIDE SHOW 5sec ANGLE ICON: (Default: ON) Set to “ON”... -
Page 23: Reset To The Default Setting (Except For Parental Setting)
Reset to the Default Setting (Except for PARENTAL Setting) Press [SETUP] in the Select “INITIALIZE”. stop mode. STOP SETUP SETUP menu QUICK SETUP PLAYER MENU ENGLISH TV ASPECT 4:3 LETTER BOX PROGRESSIVE HDMI MODE 480p DOLBY DIGITAL BITSTREAM Troubleshooting Guide If this unit does not perform properly when operated as instructed in this manual. -
Page 24: Specifications
Specifications Output signal format : NTSC color Power source : 120 V AC +/- 10%, 60 Hz +/- 0.5% Power consumption : 10W (standby : 0.8W) Language Code List Language Code Language French [FRE] Abkhazian 4748 Frisian Afar 4747 Galician Afrikaans 4752 Georgian... - Page 25 MEMO – 25 –...
- Page 26 MEMO – 26 –...
-
Page 27: Español
Conexiones Si su televisor tiene entradas de audio/ video vea la sección “Connection to a TV” en la página 6 en el manual de manejo. En caso contrario, vea la sección “Connecting to RF Modulator (Not Supplied)” en la página del frente en el manual de manejo. -
Page 28: Quick Use Guide
Quick Use Guide Connections If your TV has audio/video input jacks, see the section “Connection to a TV” on page 6 of the owner’s manual. If not, see the section “Connecting to RF Modulator (Not Supplied)” on the front page of the owner’s manual.
