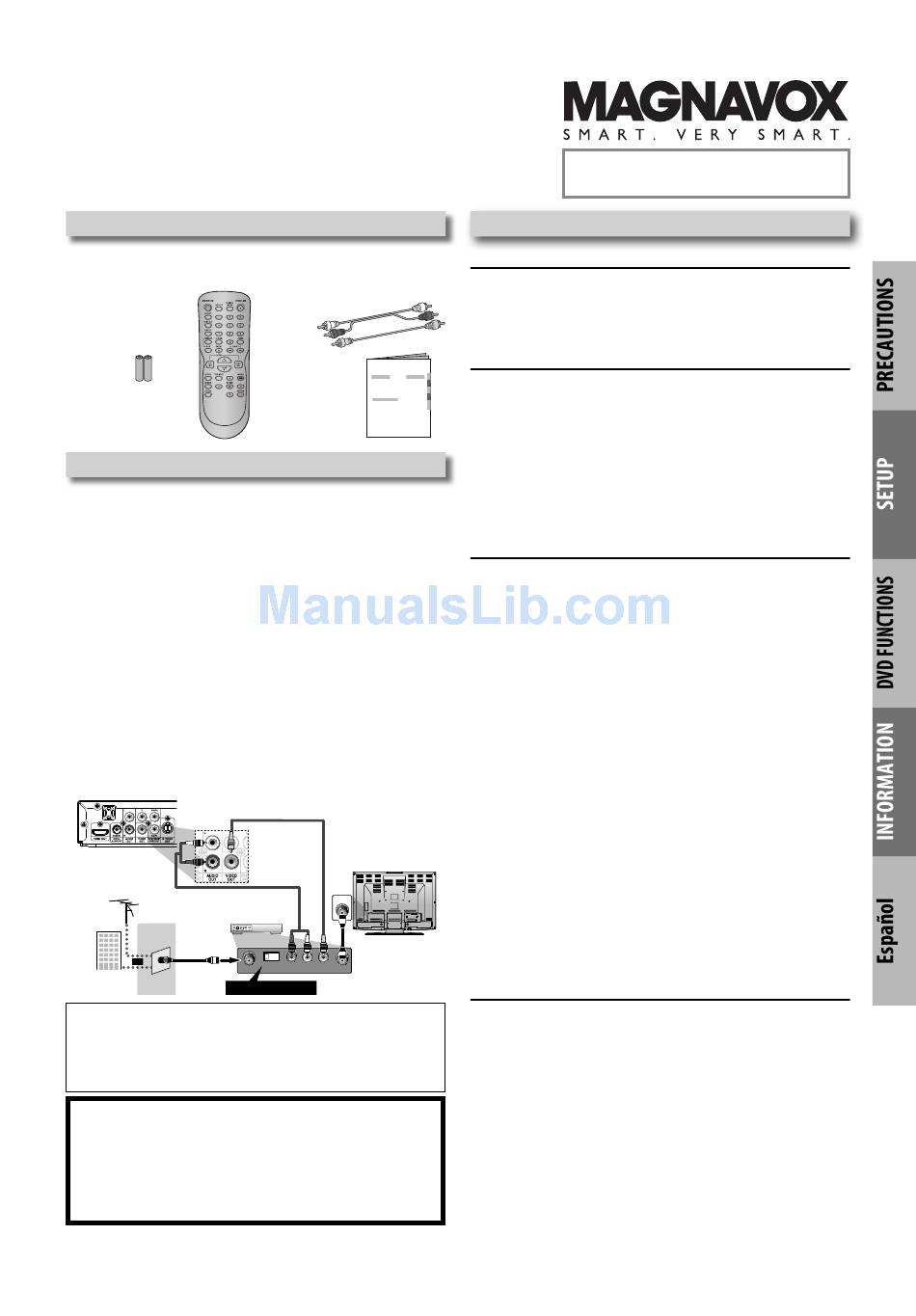

Owner's Manual
Please read before using this unit.
DVD / CD Player
DP170MGXF
Supplied Accessories
remote control (NB098UD)
AA (1.5 V DC) battery x 2
Connecting to RF Modulator (Not Supplied)
If your TV has antenna in jack only, it is still possible to
connect this unit to your TV by using an RF modulator. In
this case, follow the instructions below.
1) Disconnect the power cords of the devices from the
AC outlet.
2) Make the connection as illustrated below.
3) Set your RF modulator's channel 3/4 switch to
either 3 or 4, whichever the TV channel is least used in
your area. If your RF modulator has a
modulator / antenna switch, set it according to the
manual supplied with the RF modulator.
4) Plug in the power cords of the devices to the AC outlet.
5) Turn on your TV and choose the same channel as
you set the RF modulator's channel 3/4 switch to.
For more details, follow the manual supplied with the
RF modulator.
rear of this unit
RCA audio cable
rear of your RF
VHF / UHF
modulator
antenna
or
RF coaxial
cable TV
cable
company
Set channel 3 or 4
Note:
• RF modulator is not supplied with this unit. You need to
purchase it at your local store.
• The quality of picture may become poor if this unit is
connected to an RF modulator.
If you need additional operating assistance after
reading this owner's manual, please call
TOLL FREE : 1-800-605-8610
or visit our web site at
http://www.magnavox.com/support
© 2009 Funai Electric Co., Ltd.
RCA audio / video cables
(WPZ0102TM018 /
WPZ0102LTE01)
owner's manual
Owner's Manual
(1VMN27833)
RCA video cable
rear of TV
ANT. IN
RF coaxial cable
3
4
R
L
ANT. IN
CHANNEL
AUDIO IN
VIDEO IN
TO TV
INSTRUCCIONES EN
ESPAÑOL INCLUIDAS.
Contents
PRECAUTIONS
IMPORTANT SAFETY INSTRUCTIONS ....................................... 2
About the Discs ......................................................................... 5
Playable Discs ...........................................................................................5
Unplayable Discs .....................................................................................5
SETUP
Connections .............................................................................. 6
Connection to a TV .................................................................................6
HDMI Audio ...............................................................................................7
HDMI Mode and Actual Output Signals .........................................7
Connection to an Audio System .......................................................8
Rear Terminals ..........................................................................................8
About the Remote Control ....................................................... 9
Remote Control .......................................................................................9
Installing the Batteries for the Remote Control ...........................9
Playback .................................................................................. 10
MP3 / JPEG Playback ................................................................ 11
Search Functions ..................................................................... 11
Using Track / File / Folder Search .....................................................11
Using Title / Chapter Search ..............................................................11
Using Time Search .................................................................................11
On-Screen Display ................................................................... 12
Repeat / Random / Programmed Playback ............................ 13
Repeat Playback .....................................................................................13
Repeat A-B Playback .............................................................................13
Random Playback ..................................................................................13
Programmed Playback .........................................................................13
Special Settings ....................................................................... 14
Subtitle Language..................................................................................14
Audio Language .....................................................................................14
Camera Angles ........................................................................................14
Stereo Sound Mode ..............................................................................14
DVD Setting ............................................................................. 15
Language Setting ...................................................................................15
Display Setting ........................................................................................16
Video Setting ...........................................................................................16
Audio Setting ...........................................................................................17
Others Setting .........................................................................................18
INFORMATION
Troubleshooting Guide ........................................................... 19
Specifications .......................................................................... 19
LIMITED WARRANTY ................................................................ 20
Español .................................................................................... 23
Quick Use Guide.......................................................... Back Cover
Advertisement
Table of Contents
Related Manuals for Magnavox DP170MGXF
Summary of Contents for Magnavox DP170MGXF
-
Page 1: Table Of Contents
Owner’s Manual Please read before using this unit. DVD / CD Player DP170MGXF Supplied Accessories remote control (NB098UD) RCA audio / video cables AA (1.5 V DC) battery x 2 (WPZ0102TM018 / WPZ0102LTE01) owner’s manual (1VMN27833) Connecting to RF Modulator (Not Supplied) If your TV has antenna in jack only, it is still possible to connect this unit to your TV by using an RF modulator. -
Page 2: Important Safety Instructions
The model and serial numbers of this unit may be found on the cabinet. You should record and retain those numbers for future reference. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. - Page 3 In case of picture problems with 525(480) progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p (480p) DVD player, please contact our customer service center. – 3 –...
- Page 4 TRADEMARK INFORMATION HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Products that have earned ENERGY STAR designed to protect the environment through superior energy efficiency.
-
Page 5: About The Discs
About the Discs Playable Discs Type of Mark (logo) Region code media DVD-video *1, 2, 4, 6, 8 DVD+RW DVD+R *1, 4, 5, 6, 7, 8 audio CD *4, 6, 8 CD-RW CD-R *4, 5, 6, 7, 8 Kodak Picture CD *4, 5, 6, 7, 8 is a trademark of DVD Format / Logo Licensing Corporation. -
Page 6: Connections
LINE1, LINE2, 00, 90, 91, 92, 93 INPUT, TV / VCR, 00, 90, 91, 92, 93 Hitachi: INPUT, AUX JVC: VIDEO, VIDEO1, VIDEO2, VIDEO3 Kenwood: LXI-Series: Magnavox: AUX CHANNEL SETUP Method 2 Method 3* good picture better picture COMPONENT S-VIDEO IN... -
Page 7: Hdmi Audio
HDMI Audio Media Audio Recording Format DVD-Video audio CD HDMI Mode and Actual Output Signals Press [HDMI] to change the resolution of the video signal being output from the HDMI OUT. The video resolution changes as follows every time [HDMI] is pressed. Or change the setting in the “Resolution” in the settings menu. 480p 480p 720p... -
Page 8: Connection To An Audio System
Connection to an Audio System Analog Audio Connection stereo system Audio RCA audio cable This unit AUDIO OUT Supplied cables used in this connection are as follows: • RCA audio cable (L/R) x 1 Please purchase the rest of the necessary cables at your local store. -
Page 9: About The Remote Control
About the Remote Control Remote Control Installing the Batteries for the Remote Control Install batteries (AA x2) matching the polarity indicated inside battery compartment of the remote control. Keep in mind the following when using the remote control: • Make sure that there are no obstacles between the remote control and the remote sensor on the unit. -
Page 10: Playback
Please note : most instructions in this manual refer to remote control use. Playback Before: Turn on the TV, amplifier and any other device which are connected to this unit. Make sure the TV and audio receiver (not supplied) are set to the correct channel. ⇒... -
Page 11: Mp3 / Jpeg Playback
MP3 / JPEG Playback MP3 / JPEG is a method of compressing files. You can copy MP3 / JPEG files on DVD or CD-RW/-R from the computer and play back the files on this unit. Insert an MP3 / JPEG format disc, then the file list will automatically appear on the TV screen.For a disc with MP3 or JPEG files only, all repeat playback will start automatically. -
Page 12: On-Screen Display
On-Screen Display You can check the information about the current disc by pressing [DISPLAY]. T(Title): current title number / total titles elapsed time of the current time 02/10 001/033 00:05:51 current repeat mode (Off / Title / Chapter / A-B) current chapter number / total chapters current audio... -
Page 13: Repeat / Random / Programmed Playback
Repeat / Random / Programmed Playback Repeat Playback Repeat function is available only during playback. Chapter e.g.) DVD Each time you press [REPEAT], repeat function changes as example below. (repeat off) (current title repeat) Title (current chapter repeat) Chapter (repeat off) (entire disc repeat) Track (current track repeat) -
Page 14: Special Settings
Special Settings Subtitle Language This unit allows you to select a subtitle language (if available) during DVD playback. Each time you press [SUBTITLE], subtitle language changes as example below. (no subtitles) ENG (English subtitles) FRE (French subtitles) Audio Language This unit allows you to select an audio language (if multiple languages are available on disc) during DVD playback. -
Page 15: Dvd Setting
DVD Setting You can change the settings of the unit. You cannot change the setting during playback. Setting items are displayed in gray when they are not available under the conditions at the time. Press [SETUP]. <SETUP MENU> Language Player Menu Subtitle Display Audio... -
Page 16: Display Setting
Display Setting You can change the display functions. Follow steps 1 to 2 on page 15. Select the desired item. Angle Icon: (Default: On) See note on the right. ENTER Display menu Angle Icon Language Screen Saver Screen Saver: (Default: On) Display See note on the right. -
Page 17: Audio Setting
Audio Setting Choose the appropriate audio settings for your device. It only affects during the playback of DVD. Follow steps 1 to 2 on page 15. Select the desired item. Dual mono: (Default: Stereo) This unit allows you to select a sound mode during CD playback. ENTER Language Display... -
Page 18: Others Setting
Others Setting Follow steps 1 to 2 on page 15. Select the desired item. Auto Power Off : (Default: On) Set to “On” to turn this unit off automatically after 30 minutes of ENTER no use. Others menu Language Auto Power Off HDMI Display Parental... -
Page 19: Troubleshooting Guide
Troubleshooting Guide If the unit does not perform properly when operated as instructed in this owner’s manual, refer to the following. Problem No power No sound or picture Distorted picture Completely distorted picture or black / white picture with DVD No sound or distorted sound No audio at digital output No DTS audio is output. -
Page 20: Limited Warranty
To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at: FUNAI SERVICE CORPORATION Customer Service Tel :1-800-605-8610 http://www.magnavox.com/support 2200 Spiegel Drive, Groveport, OH 43125 – 20 –... - Page 21 Memo – 21 –...
- Page 22 Memo – 22 –...
-
Page 23: Español
Español Conexiones Si su televisor tiene entradas de AUDIO / VIDEO vea la sección “Connection to a TV” en la página 6 en el manual de manejo. En caso contrario, vea la sección “Connecting to RF Modulator (Not Supplied)” en la página del frente en el manual de manejo. -
Page 24: Quick Use Guide
Quick Use Guide Connections If your TV has AUDIO / VIDEO input jacks, see the section “Connection to a TV” on page 6 of the owner’s manual. If not, see the section “Connecting to RF Modulator (Not Supplied)” on the front page of the owner’s manual.
