Dimplex EUL-B Series Installation Instructions

Electric Unit Heaters
EUL-B & EUS-B Series

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic precautions should always
be followed to reduce the risk of fire, electric shock, and injury to
persons, including the following:
1. Read all instructions before using the heater.
2. The heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. The trim around the heater outlet be-
comes hot during heater operation. Keep combustible materials,
such as furniture, pillows, bedding, papers, clothes, and curtains
at least 3 ft (0.9 m) from the front of the unit and keep them away
from the sides and rear.
3. Extreme caution is necessary when any heater is used by or
near children or invalids and whenever the unit is left operating
and unattended.
4. Do not operate any heater after it malfunctions. Disconnect
power at the service panel and have the heater inspected by a
reputable electrician before reusing.
5. Do not use outdoors.
6. To disconnect the unit, turn the controls off, and then switch off
at main power supply panel.
7. Do not insert or allow foreign objects to enter any ventilation or
exhaust opening as this may cause an electric shock or fire, or
damage to the heater.
8. To prevent a possible fire, do not block air intake or exhaust in
any manner.
9. All electrical heaters have hot and arcing or sparking parts in-
side. Do not use in areas where gasoline, paint, or flammable
liquids are used or stored.
10. Do not modify this heater. Use it only as described in this man-
ual. Any other use not recommended by the manufacturer may
cause fire, electric shock or injury to persons.

SAVE THESE INSTRUCTIONS

Installation Instructions

WARNING: Wiring procedures and connections should be in ac-
cordance with the National Electric code (NEC) and local codes.
WARNING: To reduce the risk of fire, do not store or use gasoline
or other flammable vapors or liquids in the vicinity of the heater.
CAUTION: High temperature, risk of fire, keep electrical cords,
drapery, furnishings, and other combustibles at least 3 ft (0.9 m)
from the front of the heater.
HEATER LOCATION
Unit heaters should be located along outside walls to provide perim-
eter air circulation. The discharge air should wipe the walls without
blowing directly on them. (Figure 1)
• Small rooms - can be heated by one or two units. Locate the
unit heater(s) to set up circular air movement within the space.
• Large rooms - requiring multiple unit installations. Units should
be located so that the discharge air from one unit supports the
discharge from another unit and sets up a circular movement.
• Remove Thermostats - should be located on interior walls or
posts away from heat sources, cold drafts, and away from heater
discharge air streams.
MOUNTING UNIT HEATER(S)
CAUTION: Heater must be mounted a minimum of 10 in (25.4
cm) from walls and 6 ft (183 cm) above floor with discharge parallel
to or away from wall.
• Ceiling Mounting - The heater comes equipped with a mount-
ing bracket. Fasten to or suspend the heater from the ceiling
using the holes provided in the bracket.
• Wall Mounting - The heater may also be mounted to a wall with
accessory wall bracket, catalogue EULSWB. The wall bracket
attaches to the centre hole of unit mounting bracket.
WIRING
WARNING: BE SURE ELECTRICITY IS TURNED OFF AT
MAIN SWITCH BEFORE WIRING. ALL WIRING TO BE IN
ACCORDANCE WITH LOCAL AND NATIONAL ELECTRIC
CODES. HEATER MUST BE GROUNDED AS A PRECAUTION
AGAINST ELECTRIC SHOCK.
1. Connect heater only to the voltage and frequency specified on
the nameplate.
2. All wiring to be inaccordance with local codes and National Elec-
trical Code.
3. Remove screws securing access door and swing door down to
expose wiring and control compartment.
4. Knockouts are provided at the back of and one side of the heater
for power and control wiring. (Figure 2) In combinations of: 1
⅜ in (35mm) and 1 ⅛ in (29mm), and 1 ⅛ in (29mm) and ⅞ in
(22mm).
5. A ground terminal is provided. The ground wire should be con-
nected before making other connections.
6. Rough-in branch circuit wiring to the heater using wire rated for
140°F (60 °C). Wire heater according to diagram attached to
the access door.
7. Electrical accessory options are shown on the heater wiring dia-
gram connected by a dashed line.
Figure 1
EXPOSED OUTSIDE WALL
SMALL ROOM
EXPOSED OUTSIDE WALL
Figure 2

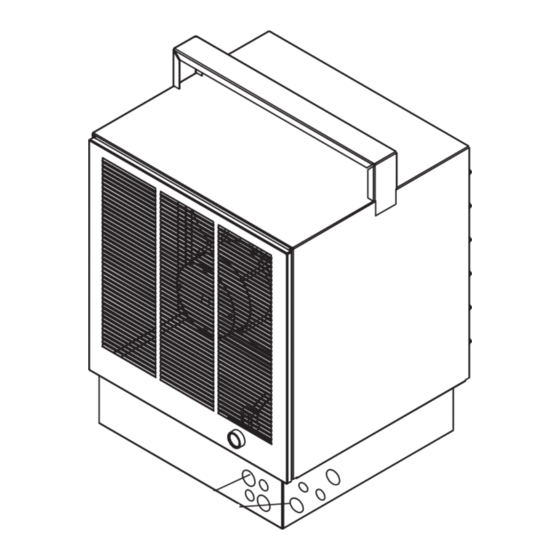

Knockouts
LARGE ROOM
7202460001R04
