HGW-308
Wall Mountable Micathermic Heater
3092402
Model No. HGW-308
© 2009 Soleus Air International

Advertisement

Table of Contents
loading

Related Manuals for Soleus Air HGW-308

Summary of Contents for Soleus Air HGW-308

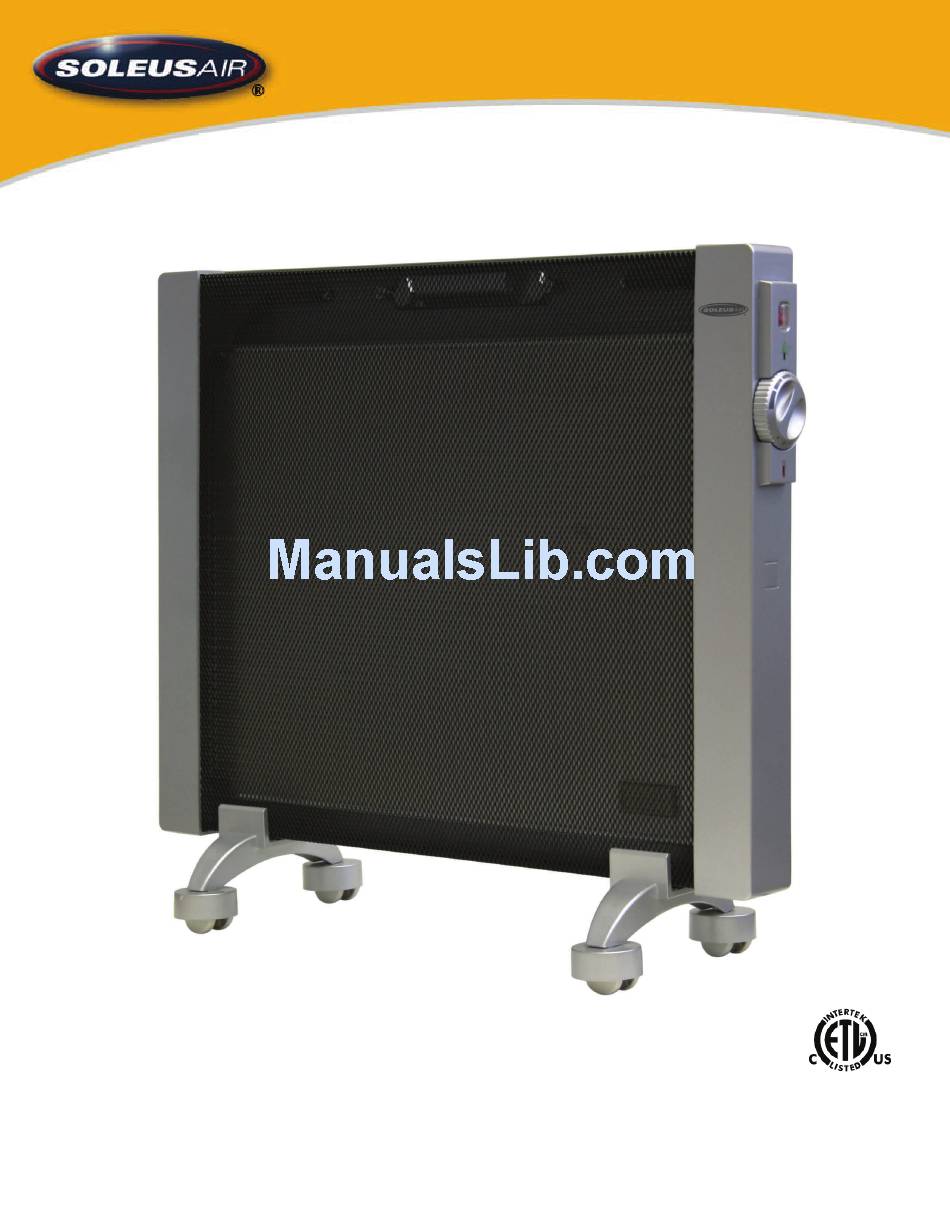

  • Page 1 HGW-308 Wall Mountable Micathermic Heater 3092402 Model No. HGW-308 © 2009 Soleus Air International...

  • Page 2: Important Instructions

    Serial Number (located on back of unit): ______________________________ IMPORTANT INSTRUCTIONS Before using your Soleus Air personal heater, please read this owner’s manual carefully. Store this manual in a safe place for future reference. 1. Read ALL instructions before using this unit.

  • Page 3: Product Information & Specifications

    12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive and/or flammble liquids are used or stored. Keep unit away from heated surfaces and open flames. 13. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire. However, if you have to use an extension cord, the cord shall be No16.AWG minimum size and rated not less than 1500W.

  • Page 4: Safety Features

    SAFETY FEATURES Tip-Over Safety Feature This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will automatically shut the heater off. Once the heater is restored to an upright position, the heater will reset. To continue operation, turn on the heater using the supplied remote control or the control panel on the heater.

  • Page 5: Product Diagram

    PRODUCT DIAGRAM 1. Power Switch 2. Temperature Control Knob 3. Temperature Control Red Light Indicator 4. Power Supply Cord 5. Foot with Caster 6. Metal Grille 7. Built-in Handle 8. Mounting Hole 9. Mounting Support 10. Screws 11. Mounting Anchor for Wall Mounting...

  • Page 6: Assembly - Removing The Heater From The Packaging

    ASSEMBLY - REMOVING THE HEATER FROM THE PACKAGING Remove the heater from the box. NOTE: Product drawings may slightly differ from actual product. Assembly and packaging are the same as depicted in the drawings Remove the Styrofoam from both ends of the heater, and remove the plastic bag.

  • Page 7: Assembly & Installation

    ASSEMBLY - INSTALLATION Required Tools for Floor Use: Phillips screwdriver (not supplied) Estimated Assembly Time for Floor Use: 1 minute Assembly Instructions for Floor Use: Insert the feet and bolts onto the unit as shown in the diagram. Required Tools for Wall Mounting: Phillips screwdriver (not supplied) Drill (not supplied) Hammer (not supplied)

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS BEFORE OPERATING HEATER! Make sure the Temperature Control Knob is at the " " position. [Fig 1] Make sure the power switch is at off position. [Fig 2] Plug the power cord into a suitable electri- cal outlet.

  • Page 9: Optimal Operating Conditions

    DO NOT cover the heater. OPTIMAL OPERATING CONDITIONS To get the most out of your Soleus Air Micathermic heater, follow these helpful hints: 1. All electric heaters are limited to maximum of 1500 watts (per UL and ETL requirements). Due to this limitation all electric heaters can heat approximately 150 square feet.

  • Page 10: Maintenance

    MAINTENANCE 1. Unplug the unit and let it cool completely. 2. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let liquid enter the heater.

  • Page 11: Warranty

    One Year Limited Warranty Soleus International Inc. warrants the accompanying Soleus Air heater to be free of defects in material and workman- ship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original re- tail purchase in the United States.
