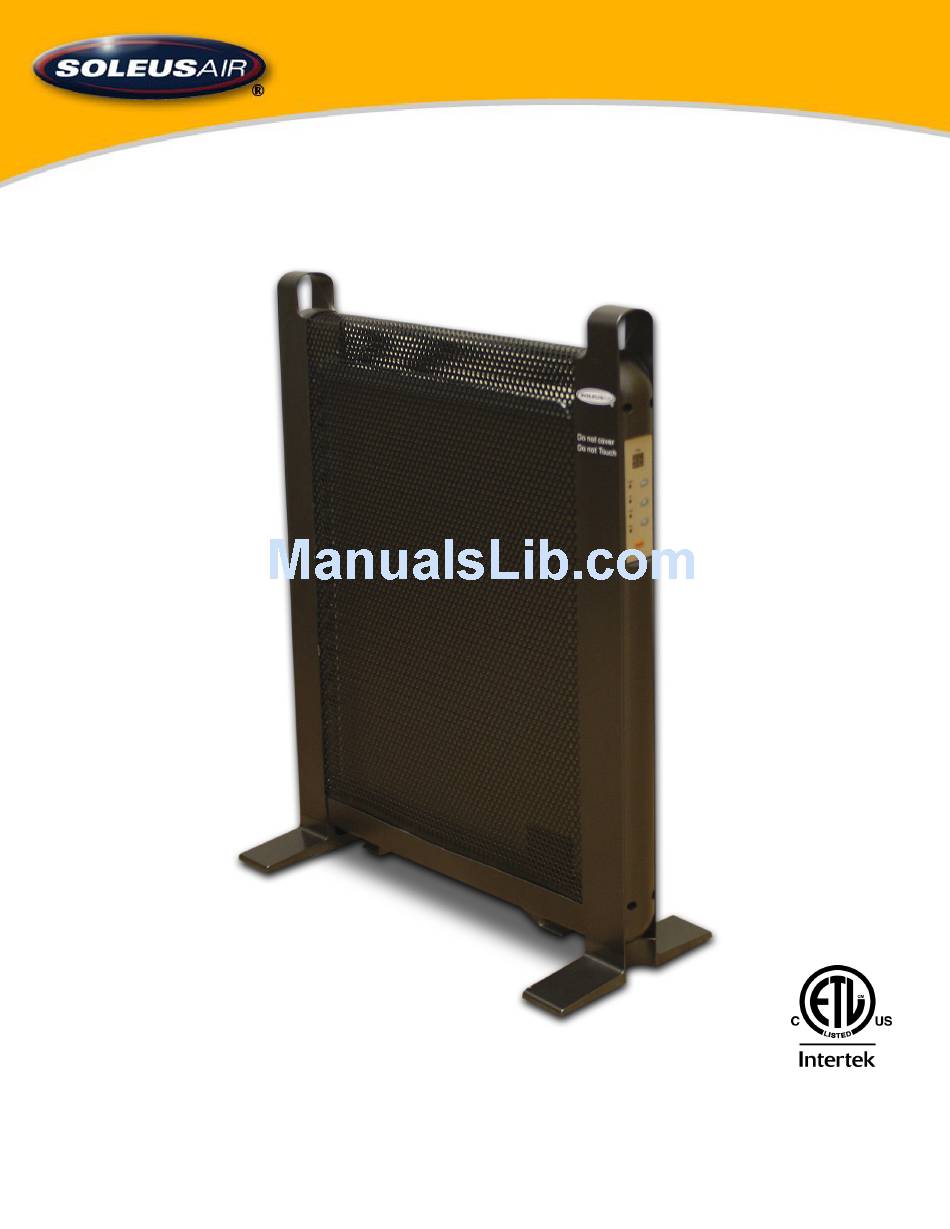

- Page 1 HM10-15E-32 Ultra-Thin Micathermic Heater 3092402 Model No. HM10-15E-32 V130724 To Buy: Contact Sylvane at 800-934-9194 or visit www.sylvane.com For Product Support: Contact Soleus Air at (888) 876-5387...
-
Page 2: Important Instructions
Serial Number (located on back of unit): ______________________________ IMPORTANT INSTRUCTIONS Before using your Soleus Air personal heater, please read this owner’s manual carefully. Store this manual in a safe place for future reference. 1. Read ALL instructions before using this unit. -
Page 3: Product Information & Specifications
12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames. 13. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocat- able power tap (outlet/power strip). -
Page 4: Safety Features
SAFETY FEATURES Tip-Over Safety Feature This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will automatically shut the heater off. Once the heater is restored to an upright position, the heater will reset. To continue operation, turn on the heater using the control panel on the heater. -
Page 5: Product Diagram
PRODUCT DIAGRAM Carry Handles Control Panel Base Brackets... - Page 6 ASSEMBLY 1. Be certain the heater is unplugged and the controls are set to off. Set the heater on the floor upside down. 2. Attach a base bracket to each end of the heater body using the supplied standard screws. Standard Screws Base Brackets MICATHERMIC...
-
Page 7: Control Panel
OPERATING INSTRUCTIONS CONTROL PANEL 1. Place the heater on a firm, level surface and plug into a grounded 120V 60Hz power outlet. Only operate heater in upright position with base brackets attached. 2. Turn the heater on by pressing the ON/OFF button on the control panel. 3. -
Page 8: Optimal Operating Conditions
OPERATING INSTRUCTIONS (CONTINUED) OPTIMAL OPERATING CONDITIONS To get the most out of your Soleus Air Micathermic Heater, follow these helpful hints: 1. All electric heaters are limited to maximum of 1500 watts* (per UL and ETL requirements). Due to this limitation, all electric heaters can heat approximately 150 square feet. -
Page 9: Maintenance
MAINTENANCE 1. Unplug the unit and let it cool completely. 2. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let liquid enter the heater. -
Page 10: Warranty
One Year Limited Warranty Soleus International Inc. warrants the accompanying Soleus Air heater to be free of defects in material and workman- ship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original re- tail purchase in the United States.
