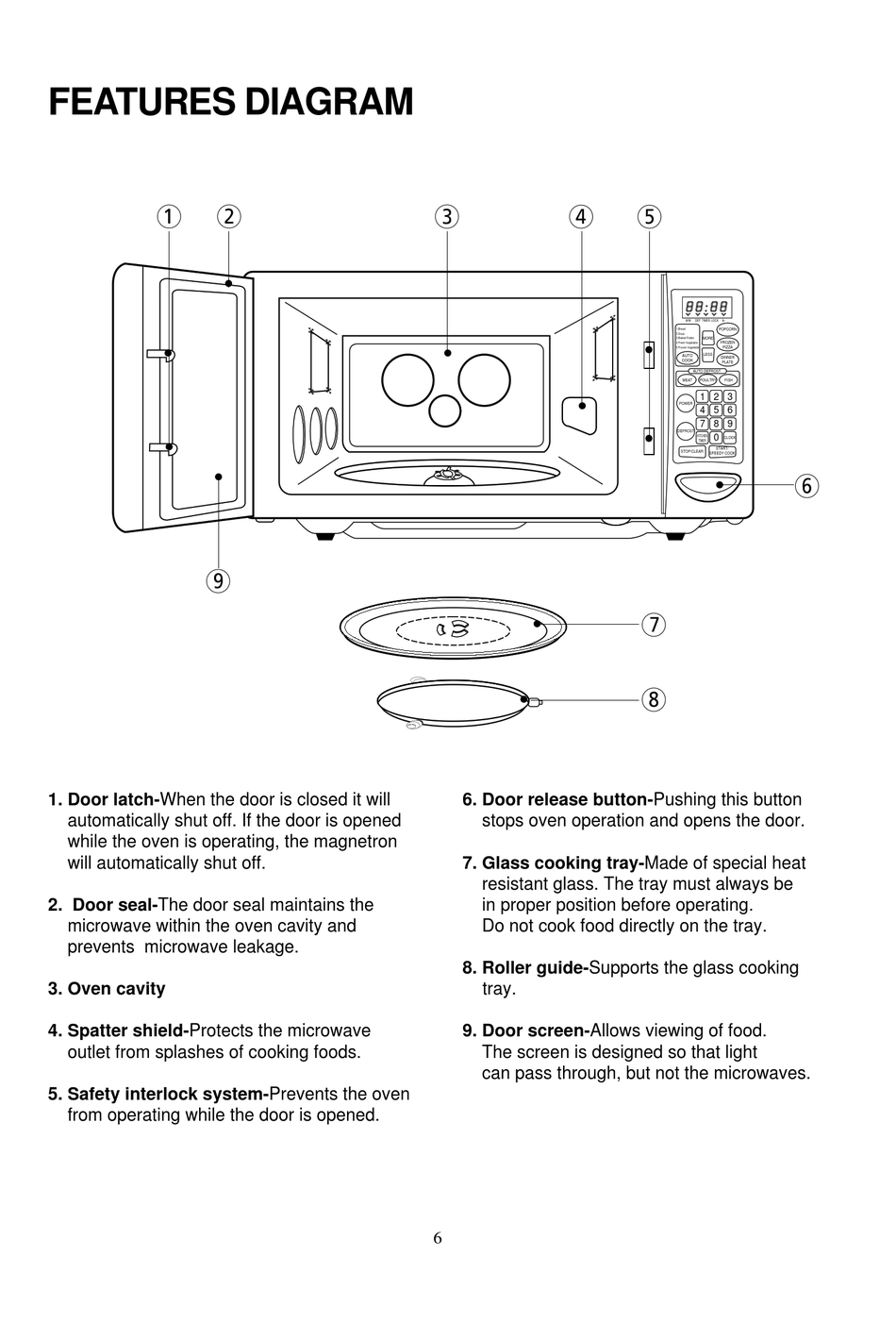

FEATURES DIAGRAM

1
9
1. Door latch-When the door is closed it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron
will automatically shut off.
2. Door seal-The door seal maintains the
microwave within the oven cavity and
prevents microwave leakage.
3. Oven cavity
4. Spatter shield-Protects the microwave
outlet from splashes of cooking foods.
5. Safety interlock system-Prevents the oven
from operating while the door is opened.
2
3
4
6. Door release button-Pushing this button
stops oven operation and opens the door.
7. Glass cooking tray-Made of special heat
resistant glass. The tray must always be
in proper position before operating.
Do not cook food directly on the tray.
8. Roller guide-Supports the glass cooking
tray.
9. Door screen-Allows viewing of food.
The screen is designed so that light
can pass through, but not the microwaves.
6
5
M/W
DEF
TIMER
LOCK
lb
1.Bread
POPCORN
2.Soup
3.Baked Potato
MORE
FROZEN
4.Fresh Vegetable
PIZZA
5.Frozen Vegetable
LESS
AUTO
DINNER
COOK
PLATE
AUTO DEFROST
MEAT
POULTRY
FISH
1 2 3
POWER
4 5 6
7 8 9
DEFROST
KITCHEN
0
CLOCK
TIMER
START/
STOP/CLEAR
SPEEDY COOK
6
7
8
