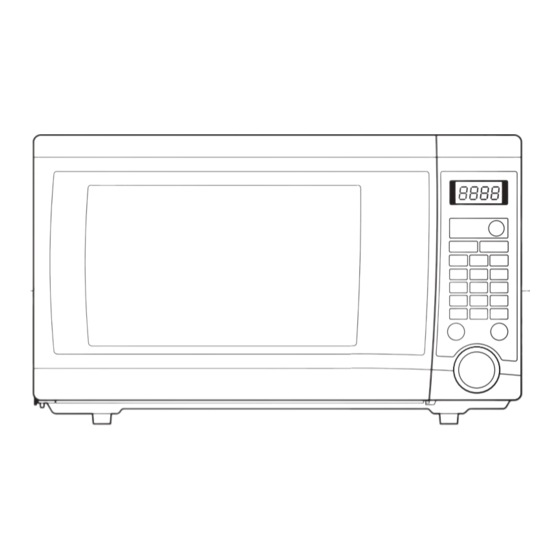

- Page 1 MICROWA VE OVEN MCD1110WB / MCD1110BB OPERATING INSTRUCTIONS & COOK BOOK Before operating this oven, please read these instructions completely.
-
Page 2: Table Of Contents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed, including the following: WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 11. Read all instructions before using the appliance. c) If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the 12. -
Page 4: Federal Communications Commission Radio Frequency Interference Statement
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type-tested and found to comply with limits for an ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. -
Page 5: Installation
INSTALLATION 1. Examine the oven after unpacking. Check for damage such as a misaligned door, broken door or dent in the cavity. If any damage is visible, DO NOT INSTALL, and notify your dealer immediately. 2. Level, flat location. Install the microwave oven on a level, flat surface. 3. -
Page 6: Specifications
SPECIFICATIONS 120V AC, 60Hz SINGLE PHASE WITH POWER SUPPLY GROUNDING INPUT POWER 1500 W MICROWAVE ENERGY OUTPUT 1000 W FREQUENCY 2,450MHz OUTSIDE DIMENSIONS (W 20.3 x 12.0 x 14.8 in. CAVITY DIMENSIONS (W 14.0 x 9.4 x 14.1 in. CAVITY VOLUME 1.1 cu.ft NET WEIGHT APPROX. -
Page 7: Features Diagram
FEATURES DIAGRAM 1 Door latch - When the door is closed, it will 8 Waveguide cover - Protects the microwave outlet automatically shut off. If the door is opened while from splashes of cooking foods. the oven is operating, the magnetron will 9 Roller guide - This must always be used for automatically shut off. -
Page 8: Features Diagram (Continued)
FEATURES DIAGRAM (continued) AUTO COOK MENU 1. Bread 2. Soup 3. Baked Potato 4. Fresh Vegetables 5. Frozen Vegetables Stop Start Clear + 30sec 1 DISPLAY - Cooking time, power level, indicators 6 POWER - Used to set power level. and current time are displayed. -
Page 9: Operation Procedure
OPERATION PROCEDURE This section includes useful information about oven operation. Plug power supply cord into a standard 3-pronged Time clock returns to the present time when the 15 Amp, 120V AC 60Hz power outlet. cooking time ends. After placing the food in a suitable container, When the STOP/CLEAR pad is touched during the open the oven door and put it on the glass tray. -
Page 10: Controls
CONTROLS SETTING THE CLOCK When the oven is first plugged in, the display will show “:0” and a tone will sound. If the AC power ever goes off, the display show “ : 0” when the power comes back on. 1. -
Page 11: Weight Defrosting
WEIGHT DEFROSTING When DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off. 1. Touch the DEFROST pad. The display will show you " 0.0 " . This is the weight defrosting mode. -
Page 12: Cooking In One Stage
COOKING IN ONE STAGE 1. Touch the POWER pad. The display will show what you touched. (Select the desired power level.) NOTE: If step 1 is omitted, the oven will cook at full power. 2. Touch the TIME SET pads for the The display will show what you touched. -
Page 13: +30 Sec
+30 sec +30 sec allows you to reheat for 30 seconds at 100% (full power) by simply touching the +30 sec pad. By repeatedly touching the +30 sec pad, you can also extend reheating time to 5 minutes by 30 second increments. -
Page 14: One Touch Cooking (Continued)
ONE TOUCH COOKING (CONTINUED) 1. Touch Dinner Plate pad once When you touch Dinner pad once, “12” is for 12 oz of dinner plate or displayed. twice for 15 oz of dinner plate. After 1.5 seconds, the display is changed into the cooking time and the oven starts cooking. -
Page 15: Child Safety Lock
CHILD SAFETY LOCK The safety lock prevents unwanted oven operation such as by small children. To set, touch and hold the STOP/CLEAR pad for 3 seconds, a beep sounds. To cancel, touch and hold the STOP/CLEAR pad for 3 seconds, a beep sounds. TO SET POWER SAVE MODE 1. -
Page 16: Care Of Your Microwave Oven
CARE OF YOUR MICROWAVE OVEN The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Turn the oven off before cleaning. -
Page 17: Before You Call For Service
BEFORE YOU CALL FOR SERVICE Refer to following checklist, you may prevent an unnecessary service call. * Sparking in the cavity; * The oven doesn’t work : 1. Check that the power cord is securely plugged in. 1. Check utensils. Metal containers or dishes with 2. -
Page 18: Questions And Answers
QUESTIONS AND ANSWERS * Q : I accidentally ran my microwave oven without * Q : What does “standing time” mean? any food in it. Is it damaged? A : “Standing time” means that food should be removed A : Running the oven empty for a short time will not from the oven and covered for additional time to damage the oven. -
Page 19: Microwave Oven Warranty
Microwave Oven Warranty Unless otherwise prohibited, MC Appliance Corporation warrants each new Microwave Oven to be free from defects in material and workmanship and agrees to remedy any such defect or to furnish a new part(s) (at the company’s option) for any part(s) of the unit that has failed during the warranty period.
