EN
User Manual
L75670WD
Washer Dryer

Advertisement

Table of Contents
loading

Related Manuals for AEG L75670WD

Summary of Contents for AEG L75670WD

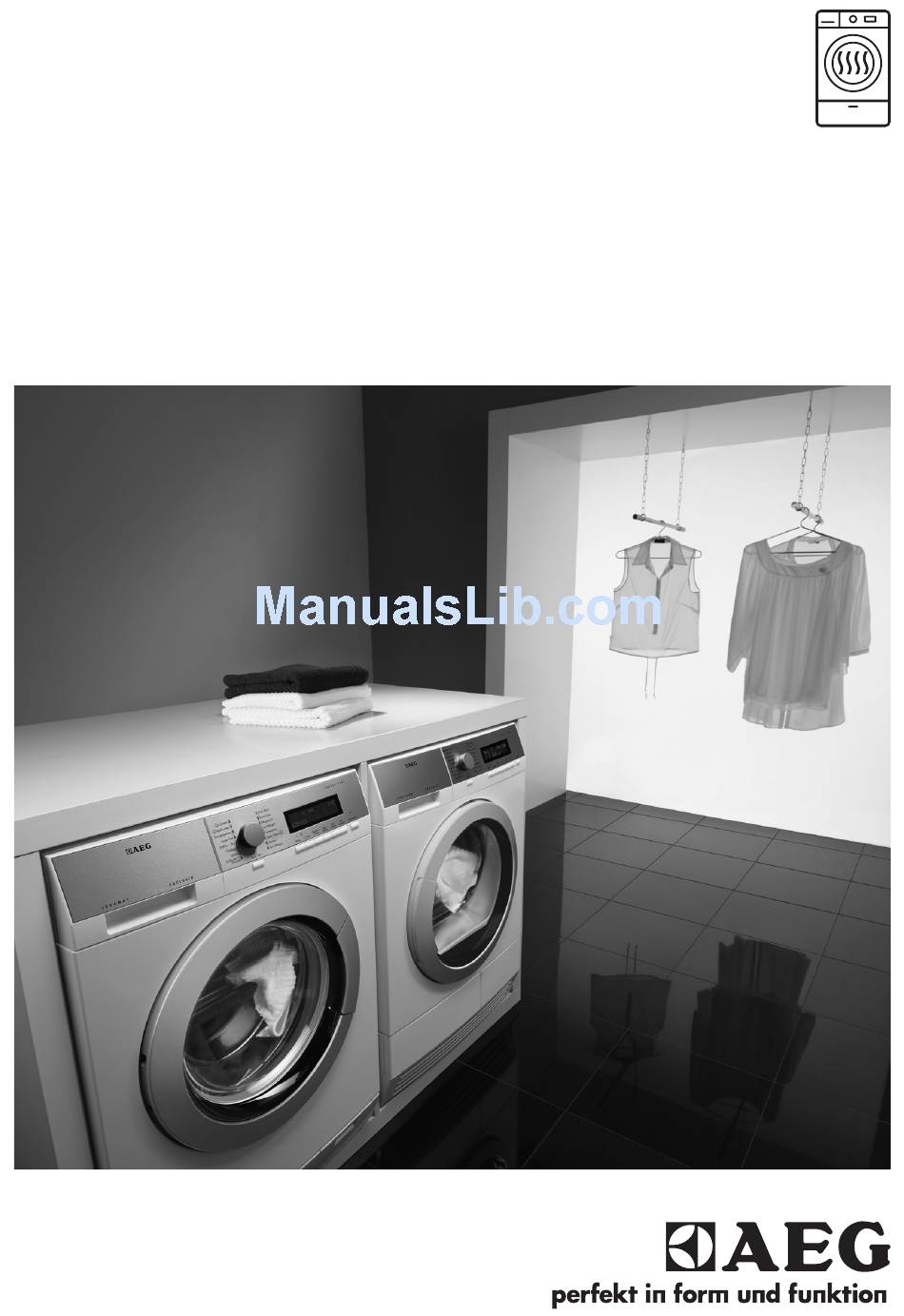

  • Page 1 User Manual L75670WD Washer Dryer...

  • Page 2: Table Of Contents

    19. TECHNICAL DATA..................... 32 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.
  • Page 4 Connect the mains plug to the mains socket only at • the end of the installation. Make sure that there is access to the mains plug after the installation.

  • Page 5: Safety Instructions

    ENGLISH or pillows fitted with foam rubber pads should not be dried in the wash dryer. Fabric softeners, or similar products, should be used • as specified by the fabric softener instructions. Remove all objects from pockets such as lighters and •...

  • Page 6: Water Connection

    • Always use a correctly installed • Do not put flammable products or shockproof socket. items that are wet with flammable • Do not use multi-plug adapters and products in, near or on the appliance. extension cables. • Do not touch the glass of the door •...

  • Page 7: Product Description

    ENGLISH 3. PRODUCT DESCRIPTION 3.1 Appliance overview Worktop Detergent dispenser Control panel Door handle Rating plate Drain pump filter Feet for the appliance level 3.2 How to activate the child To close the door, turn the device anticlockwise until the groove is vertical. safety device 3.3 Fixing plate kit This device prevents children or pets to...

  • Page 8: Control Panel

    4. CONTROL PANEL 4.1 Control panel description On/Off button (Ein/Aus) Drying time button (Trocknenzeit) Programme knob Automatic drying button (Trocknengrad) Display Spin reduction button (U./Min.) Start Pause button (Start/Pause) Temperature button (Temp.) Delay start button (Zeitvorwahl) Time save button (Zeit Sparen) 4.2 Display...
  • Page 9 ENGLISH Spin area: Spin speed indicator No Spin indicator Rinse Hold indicator 1) Only available for Spin/Drain programme. Dryness level symbols Iron dry Cupboard dry Extra dry Display indicators Door locked - You cannot open the door when this symbol is on. You can open the door only when the symbol goes off.

  • Page 10: Programmes

    Time area: Programme duration (washing and/or drying phase) When the programme starts, the time decreases with steps of 1 mi- nute. Delay start When you press the delay start button, the display shows the delay start time. Alarm codes If the appliance has a malfunction, the display shows alarm codes.
  • Page 11 ENGLISH Programme Maximum load Programme description Temperature Maximum spin (Type of load and soil level) range speed Synthetic items to be gentle washed. Normal and 3 kg 800 rpm light soil. Leichtbügeln 60°C - Cold 3 kg Delicate fabrics as acrylics, viscose, polyester items.
  • Page 12 Programme Maximum load Programme description Temperature Maximum spin (Type of load and soil level) range speed White cotton and colour-fast cotton. Normal soil. 7 kg 1600 rpm The energy consumption decreases and the time of Energiesparen the washing programme is extended.

  • Page 13: Programmes For Automatic Drying

    ENGLISH 6. PROGRAMMES FOR AUTOMATIC DRYING Dryness Level Type of fabric Load Cottons and Linen up to 4 kg Extra Dry (bathrobes, bath towels, etc) For towelling materials Cottons and Linen up to 4 kg Cupboard Dry (bathrobes, bath towels, etc) For items to put away Synthetics and mixed fabrics up to 2 kg...

  • Page 14: Woolmark Certificate

    8. WOOLMARK APPAREL CARE - BLUE issued by the manufacturer of this washing machine. Follow the garment care label for drying and other laundry instructions. M1380 • The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of wool garments labelled as «hand wash»...

  • Page 15: Options

    ENGLISH Programmes Load Energy Water con- Approximate pro- (kg) consump- sumption (li- gramme duration tion (kWh) tre) (minutes) Wool/Handwash 30 °C 0.45 1) «Cotton Energy Saving programme » at 60°C with a load of 7 kg is the reference programme for the data entered in the energy label, in compliance with EEC 92/75 standards.

  • Page 16: Settings

    10.6 Zeitvorwahl The display shows the related indicator and delay time. With this option you can delay the start of a programme from 30 minutes to 20 hours. 11. SETTINGS 11.1 Acoustic signals • To activate/deactivate this option, press Temp. and U./Min. at the same...

  • Page 17: Daily Use

    ENGLISH 13. DAILY USE 13.1 Filling the detergent and additives 3. To use powder detergent, turn the flap up. Compartment for prewash phase, soak programme or stain remover. Compartment for washing phase. Compartment for liquid additives (fabric conditioner, starch). Maximum level for quantity of liquid additives.
  • Page 18 13.5 Starting a programme With the flap in the position DOWN: without the delay start • Do not use Press button Start/Pause to start the gelatinous or thick programme. liquid detergents. The relevant indicator stops to flash and • Do not put more stays on.

  • Page 19: End Of Cycle

    ENGLISH 13.8 Cancelling the delay start In the display the related door lock indicator goes off. To cancel the delay start: 2. Open the appliance door. 3. Close the door and press button 1. Press button Start/Pause to set the Start/Pause.

  • Page 20: Daily Use - Drying

    The appliance drains the water and • You do not use the appliance for 5 spins. minutes before you press Start/Pause 3. When the programme is completed button. Press the button Ein/Aus to activate and the door lock indicator goes the appliance again.

  • Page 21: Daily Use - Washing & Drying

    ENGLISH 14.3 Timed Drying 14.4 End of the drying programme The laundry can also be dried with a manual timed drying: The appliance stops automatically. 1. Press Trocknenzeit again and again • The acoustic signals operate (if they to set the time value (see the are active).

  • Page 22: End Of The Programme

    15.2 Washing & Automatic If you set only 10 minutes of drying drying after washing, the appliance calculates also the 1. Press Trocknengrad again and again duration of the anti-crease until the display shows one of the and the cooling phases.

  • Page 23: Hints And Tips

    ENGLISH 15.6 How to remove the fluff in the garments To remove the fluff inside the drum, set a special programme: 1. Empty the drum. 2. Clean the drum, the gasket and the door with a wet cloth. 3. Set the rinse programme. 4.

  • Page 24: Ecological Hints

    (supplied by the • Fabrics with residue of hair sprays, nail detergent's manufacturer). solvents or similar. • Garments with foam-rubber or 16.4 Ecological hints materials similar to foam-rubber. • Set a programme without the 16.8 Garment labels prewash phase to wash laundry with normal soil.

  • Page 25: Care And Cleaning

    ENGLISH When the drying programme is completed remove the laundry in a short time. 17. CARE AND CLEANING 17.3 Maintenance wash WARNING! Refer to Safety chapters. With the low temperature programmes it is possible that some detergent stays in 17.1 External cleaning the drum.

  • Page 26: Cleaning The Drain Filter

    17.6 Cleaning the inlet hose and the valve filter 45° 20° 17.7 Cleaning the drain filter WARNING! Do not clean the drain filter if the water in the appliance is hot.
  • Page 27 ENGLISH...

  • Page 28: Troubleshooting

    17.8 Emergency drain 0° C, remove the remaining water from the inlet hose and the drain pump. Because of a malfunction, the appliance 1. Disconnect the mains plug from the cannot drain the water. mains socket. If this occurs, do steps (1) through (9) of 2.
  • Page 29 ENGLISH • - The anti-flood device is on. WARNING! Disconnect the appliance and close Deactivate the appliance the water tap. Contact the Authorised before you do the checks. Service Centre. 18.2 Possible failures Problem Possible solution The programme does Make sure that the mains plug is connected to the mains sock- not start.
  • Page 30 Problem Possible solution Adjust manually the items in the tub and start the spin phase again. This problem may be caused by balance problems. There is water on the Make sure that the couplings of the water hoses are tight and floor.
  • Page 31 ENGLISH Problem Possible solution Reduce the laundry load. Make sure you have set the correct cycle. if necessary ,set again a short drying time. The laundry is full of dif- The fabrics washed in the previous cycle released fluff of a dif- ferent colours fluff.

  • Page 32: Technical Data

    19. TECHNICAL DATA Dimension Width/ Height/ Depth/ 600 mm/850 mm/ 522 mm/ 540 mm Total depth Electrical connection Voltage 230 V Overall power 2200 W Fuse 10 A Frequency 50 Hz Level of protection against ingress of solid particles...
  • Page 33 ENGLISH...
  • Page 34 www.aeg.com...
  • Page 35 ENGLISH...
  • Page 36 www.aeg.com/shop...
