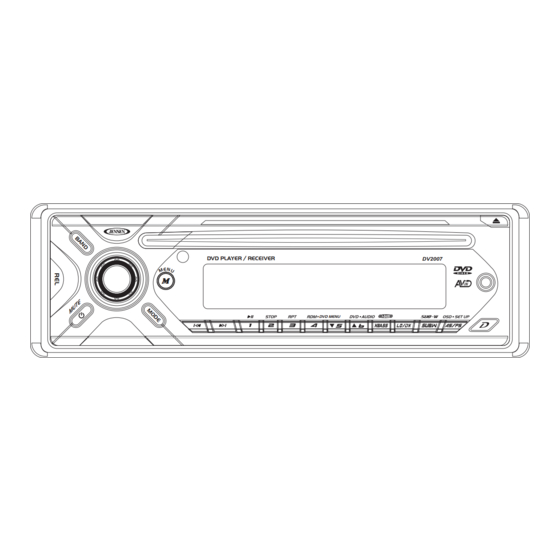

- Page 1 DV2007 CD / MP3 / WMA / DVD PLAYER / RECEIVER Installation and Operation Manual DV2007 DVD PLAYER / RECEIVER MENU STOP DVD AUDIO OSD SET UP...
-
Page 2: Safety Information
Incompatible Disc Types • 8 cm disc • CD ROM • CDV, CDI, CDG • • DVD ROM • DVD RAM NOTE: DVD-R and DVD-RW discs will not play unless the recording session is closed and the DVD is finalized. DV2007... - Page 3 DV2007 Table 1: General Disc Information Diameter/ Disc Type Logo Playable Sides DVD Video 12 cm single/double side (1 layer & 2 layer) Audio CD 12 cm single side REWRITABLE MP3/MWA Disc CD-Rs or CD-RWs recorded in MP3, MPEG1 or 2, 2.5 Audio Layer 3 and WMA Version 7 and 8.
- Page 4 • If the DCP is dirty, remove debris with a soft, dry cloth only. You can use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the DCP. DV2007 Screws Dashboard Factory...
- Page 5 DV2007 WIRING Audio/Video Connections SUB-WOOFER OUTPUT BLUE SUB-W OUT (Optional) PINK EXTERNAL REMOTE JACK REMOTE VIDEO (1) INPUT YELLOW VIDEO IN AUDIO (1) INPUT (RIGHT) AUDIO IN R WHITE AUDIO (1) INPUT (LEFT) AUDIO IN L YELLOW VIDEO (1) OUTPUT...
-
Page 6: Basic Operation
Press the DIM button (9) on the control panel (or the DIMMER button on the remote control) to adjust the dimmer level. DV2007 Display Options Press the D/MENU button (18) on the control panel (or the DISPLAY/MENU button on the remote control) repeatedly to choose from the following display options: spectrum mode 1 >... -
Page 7: Audio Menu
DV2007 • Local / Distance Selector: Use the volume control knob to choose between Local or Distance mode. This feature is used to designate the strength of the signals at which the radio will stop during automatic tuning. "Distance" is the default setting, allowing the radio to stop at a broader range of signals. -
Page 8: Tuner Operation
The unit will automatically pick up a stereo signal, when available. When in stereo mode, the “ST” icon appears in the display. When no stereo signal is available, the unit will automatically DV2007 revert to mono operation, and no icon will be displayed. -
Page 9: Accessing Ipod Mode
Playback begins when the button is released. Playing Video Files The DV2007 will not select video files regardless of whether a video file was the last file playing when the iPod was plugged into the radio. To play a video file, press and hold the AS/PS button (11) for more than three seconds to de- activate the front panel control feature. - Page 10 Press the 4/RDM button (15) during disc play to play all tracks on a CD in random, shuffled order. Press 4/RDM again to stop random play. on the remote control) to suspend disc button is pressed, the disc will resume DV2007 DVD PLAYER / RECEIVER STOP DVD AUDIO...
- Page 11 DV2007 PROGRAMMED MEMORY PLAYBACK The DV2007 allows you to store CD, MP3 or WMA tracks in a favorites playlist for easy recall. Menu Button Functions You can use the following control panel buttons to navigate the on-screen menus. • Use the volume control knob (6) to move the cursor up/down and highlight fields.
- Page 12 Press the 4/RDM (15) button to randomly play all files on the disc. Press 4/RDM again to resume normal play. Press 4/RDM for more than three seconds to randomly play all files in the current folder. Press 4/RDM again for more than three seconds to resume normal play. DV2007 DV2007 MENU...
-
Page 13: Dvd Operation
DV2007 DVD OPERATION Once a DVD disc is inserted into the unit, the unit will automatically start playback from the beginning of the disc. The DVD MENU, ROOT or TITLE of the DVD disc will appear on the TFT monitor and “ROOT” will be displayed on the LCD panel. - Page 14 DVD AUDIO but- ton. Press the left/right arrow keys or press the SUBTITLE but- ton. DV2007 Table 2: DVD OSD (Console) Menu Function Selection Method Displays the current angle Press the left/right and number of available arrow keys or press angles.
- Page 15 DV2007 Set Up Menu (AS/PS/SET UP) Press and hold the AS/PS/SET UP button (11) on the control panel (or the DVD OSD button on the remote control) to bring up the System Setup menu. Menu navigation methods are listed below: •...
-
Page 16: Exiting The Setup Menu
OTHERS Menu You can use the “OTHERS” menu to modify settings for Load Default and Screen Saver. Exiting the Setup Menu Press the AS/PS button or the 1/ button to exit the System Setup menu and resume DVD playback. Select DV2007... -
Page 17: Specifications
DV2007 SPECIFICATIONS DVD/CD Signal to Noise Ratio..........> 90dB Dynamic Range. - Page 18 DV2007 ASA Electronics Corporation www.asaelectronics.com © 2006 ASA Electronics Corporation v.071806...
