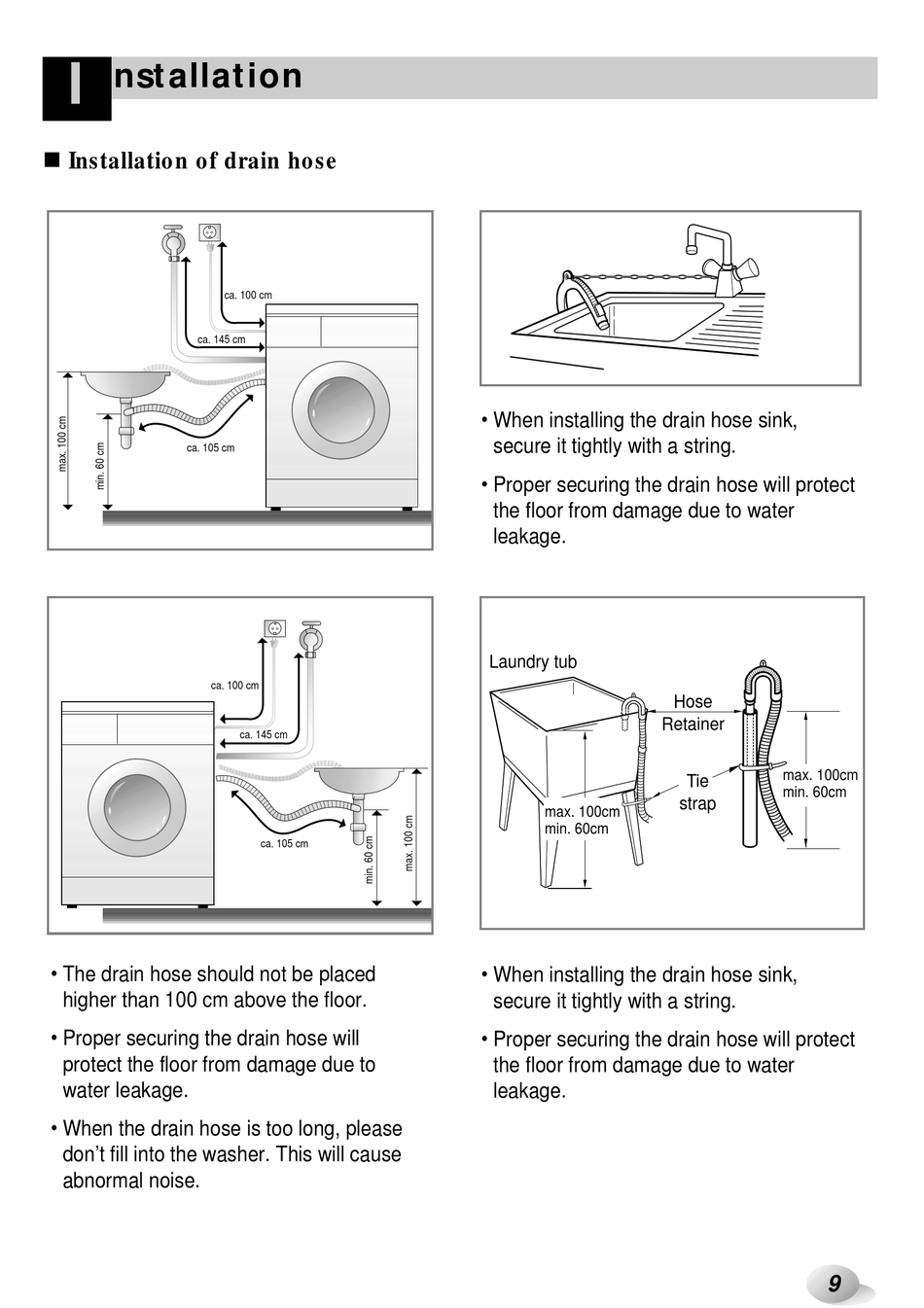

" Installation of drain hose

ca. 145 cm
ca. 105 cm
ca. 100 cm
• The drain hose should not be placed
higher than 100 cm above the floor.
• Proper securing the drain hose will
protect the floor from damage due to
water leakage.
• When the drain hose is too long, please
don't fill into the washer. This will cause
abnormal noise.
ca. 100 cm
ca. 145 cm
ca. 105 cm
• When installing the drain hose sink,
secure it tightly with a string.
• Proper securing the drain hose will protect
the floor from damage due to water
leakage.
Laundry tub
max. 100cm
min. 60cm
• When installing the drain hose sink,
secure it tightly with a string.
• Proper securing the drain hose will protect
the floor from damage due to water
leakage.
Hose
Retainer
max. 100cm
Tie
min. 60cm
strap
