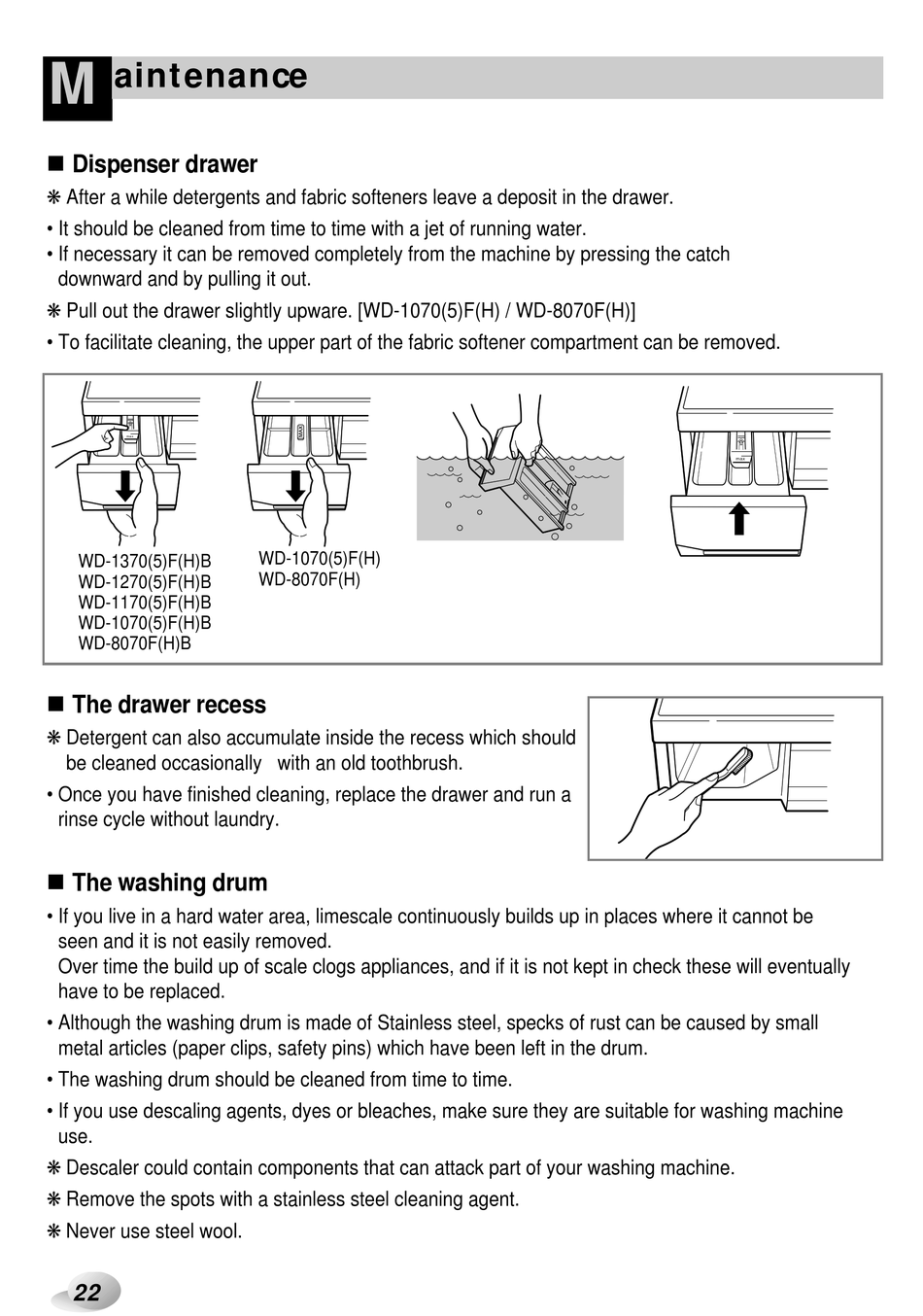

Dispenser Drawer; The Washing Drum - LG WD-1370 Series Owner's Manual

M aintenance

" Dispenser drawer

After a while detergents and fabric softeners leave a deposit in the drawer.
• It should be cleaned from time to time with a jet of running water.
• If necessary it can be removed completely from the machine by pressing the catch
downward and by pulling it out.
Pull out the drawer slightly upware. [WD-1070(5)F(H) / WD-8070F(H)]
• To facilitate cleaning, the upper part of the fabric softener compartment can be removed.
max
WD-1370(5)F(H)B
WD-1270(5)F(H)B
WD-1170(5)F(H)B
WD-1070(5)F(H)B
WD-8070F(H)B
" The drawer recess
Detergent can also accumulate inside the recess which should
be cleaned occasionally with an old toothbrush.
• Once you have finished cleaning, replace the drawer and run a
rinse cycle without laundry.

" The washing drum

• If you live in a hard water area, limescale continuously builds up in places where it cannot be
seen and it is not easily removed.
Over time the build up of scale clogs appliances, and if it is not kept in check these will eventually
have to be replaced.
• Although the washing drum is made of Stainless steel, specks of rust can be caused by small
metal articles (paper clips, safety pins) which have been left in the drum.
• The washing drum should be cleaned from time to time.
• If you use descaling agents, dyes or bleaches, make sure they are suitable for washing machine
use.
Descaler could contain components that can attack part of your washing machine.
Remove the spots with a stainless steel cleaning agent.
Never use steel wool.
22
WD-1070(5)F(H)
WD-8070F(H)
max
