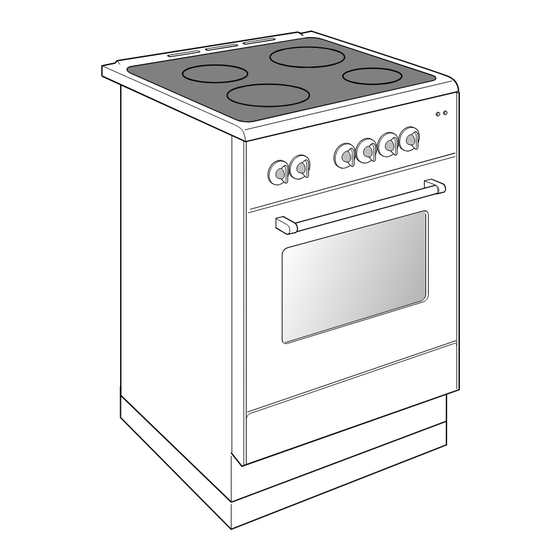

- Page 1 ESS 601 ceramic cooker Users Operating Instructions Before operating this cooker, please read these instructions carefully...
-
Page 2: Table Of Contents
De Longhi Contents Models: ESS 601 W, ESS 601 Page Number Introduction ........... . . 3 Installation . -
Page 3: Introduction
Introduction Congratulations on your purchase of this De Longhi ceramic cooker which has been carefully designed and produced to give you many years of satisfactory use. Before using this appliance it is essential that the following instructions are carefully read and fully understood. -
Page 4: Installation
Installation Electrical requirements The appliance must be connected to the mains checking that the voltage corresponds to the value given in the rating plate and that the electrical cable sections can withstand the load specified on the plate. The appliance must be connected directly to the mains placing an omnipolar switch with minimum opening between the contacts of 3 mm between the appliance and the mains. -
Page 5: Location
FOR THE INSTALLER Location Important – The appliance should be installed by a qualified technician in compliance with the laws in force in your country and in observation of the instructions supplied by the manufacturer. Failure to comply with this condition will render the guarantee invalid. –... -
Page 6: Stability Bracket
Levelling The cooker is equipped with a 4 levelling feet which must be fitted to the base of the cooker in the following manner: – Place the cooker on its back as shown in the figure 3. – Screw the 4 leveling feet to the cooker. –... -
Page 7: Features And Technical Data
Features and technical data Cooking zones (Fig. 4) 1. 3 circuits hotplate Ø 180 1700 W 2. 3 circuits hotplate Ø 145 1200 W 3. 3 circuits hotplate Ø 180 1700 W 4. 3 circuits hotplate Ø 145 1200 W Attention: Detach the appliance from the mains if the ceramic hob is cracked. -
Page 8: How To Use The Vitroceramic Hob
Fig. 5 3 circuits hotplate Model: ESS 601 W Incorporating 3 heating elements you can control and light up all together or sepa- rately by a 6 position switch. Reaches the working temperature in a very short time. -
Page 9: Cooking Hints
Cooking hints Cooking plate controlled by a 6 position switch Position Type of cooking of switch Switched OFF For melting operations (butter, chocolate). To maintain food hot and to heat small quantities of liquid (sauces, eggs). To heat bigger quantities; to whip creams and sauces. - Page 10 Cooking hints – To reduce the cooking time, you can turn the control knob to the max when you switch the plate on. After a short time you set the control knob to the required position for the cooking. – You should use pots and pans with flat bases. The diameter of the pan should match that of the cooking plate (or be slightly bigger) to make the most of the energy.
-
Page 11: Cleaning The Hob
Cleaning the hob Safety hints: Before you begin cleaning make sure – Before you switch the hob on, make sure that the appliance is switched off. you know which knob controls the required cooking plate. We advise you to Remove spillages and other types of sit the pan over the cooking plate before incrustations by using a scraper. -
Page 12: How To Use The Fan Oven
It is possible to cook several dishes simultaneously. b. by radiation The heat is radiated by the infra red grill element. Model: ESS 601 Fig. 10a Fig. 11a... -
Page 13: Oven Light
Rotate the knob clockwise to set the oven for one of the following functions. OVEN LIGHT By setting the knob to this position, only the oven light comes on (15 W). It remains on in all the cooking modes. Model: ESS 601 W Fig. 11b Fig. 10b... -
Page 14: Cooking Advice
DEFROSTING FROZEN FOODS Only the oven fan comes on. Use with the thermostat knob set to “ ” - other positions have no effect. The food is thawed by ventilation without heating. Recommended for: Quick thawing of frozen foods; one kg requires approximately 1 hour. Thawing times vary according to the quantity and type of food to be thawed. - Page 15 REGENERATION Set the switch to position and the thermostat knob to position 150° C. Bread becomes fragrant again if wet with a few drops of water and put into the oven for about 10 minutes at the highest temperature. ROASTING To obtain classical roasting, it is necessary to remember: –...
-
Page 16: Temperature Recipe Guide
Temperature recipe guide APPROX. HEAT OF TYPE OF DISH TO COOK MARK TEMPERATURE OVEN 125°C Very cool Meringue, (257°F) oven slow cooking foods. 135°C - 140°C Cool or Milk puddings, very rich fruit (275°F - 285°F) slow oven cakes, eg., Christmas. 150°C Cool or Stews, casseroles, braising,... -
Page 17: Do's And Do Not's
Do’s and do not’s General • Do read the User Instructions carefully before using the cooker for the first time. • Do not allow children near the cooker when in use. • Do not clean the hob or oven without first turning off the electricity supply. •... -
Page 18: Care And Maintenance
Care and maintenance Always switch the cooker off at the mains isolating switch before cleaning. The hob Spillage on the hob can usually be removed by a damp soapy cloth. More obstinate stains can be removed by rubbing gently with a soapy scouring pad or mild household cleaner. Avoid scratching or scraping the surface. -
Page 19: Oven Door
Preparing the oven Clean the oven thoroughly before using it for the first time; use water and soap, then rinse carefully. Once the above operations are completed, heat the oven to the max. temperature for about one and a half hours so as to eliminate any residual factory grease that might impart unpleasant smells to the meals being cooked. -
Page 20: Removing The Oven Door
TYPE A Removing the oven door To facilitate oven cleaning, it is possible to remove the door. Please follow the instructions carefully: Open the door completely. Push down the lever “L” and, keeping it in this position, slowly close the door in order to block the hinge (fig. - Page 21 TYPE B Removing the oven door Fig. 17A The oven door can easily be removed as follows: – Open the door to the full extent (fig. 17A). – Attach the retaining rings to the hooks on the left and right hinges (fig. 17B). –...
-
Page 22: After Sales Service
After Sales Service Oven light not working If the oven lights fail, you can easily change the bulb. 1. Turn off the cooker at the main power supply. 2. When the oven is cool, reach back and upwards inside the oven, the bulb is in the top left hand corner. - Page 23 Descriptions and illustrations in this booklet are given as simply indicative. The manufacturer reserves the right, considering the characteristics of the models described here, at any time and without notice, to make eventual necessary modifications for their construction or for commercial needs.
- Page 24 ESS 601 Ceramic cooker Cod. 1101828 ß5...
