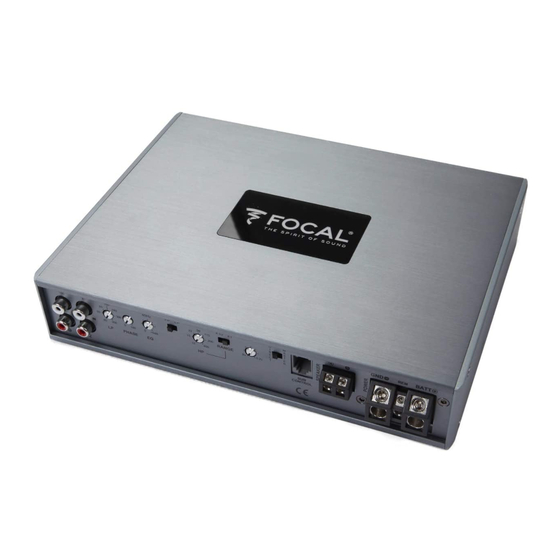

Focal FPD 900.1 Operation And Configuration Manual

One channel amplifier
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
POWER PER CHANNEL:
•
1 X 500W into 4 ohm
•
1 X 850W into 2 ohm
•
1 X 500W into 1 ohm
•
Two amplifiers can be Bridged 1 X 1700W into 4 Ohm
•
Two amplifiers can be Bridged 1 X 1000W into 2 Ohm
INPUT/OUTPUT CONFIGURATIONS
Because this is a one channel amplifier, if both left and right inputs are used, they are mixed to mono, which is useful
for subwoofers.
CROSSOVER CONFIGURATION
The 24 dB per octave crossover can be adjusted so this amplifier can function as:
1.
Full range
2.
Low Pass for a subwoofer.
3.
Band Pass for a subwoofer or midbass of a 3 way speaker.
4.
High Pass for a midbass, midrange or tweeter.
•
The amplifier can be used full range with switch in HP position and frequency set to 10 Hz.
HP is always on so it can be used as a subsonic filter.
HP X1 frequency range is 10 Hz to 400 Hz.
HP X10 frequency range is 100 Hz to 4000 Hz.
LP: Adjustment range is 30 Hz to 350 Hz.
Band Pass with switch in LP position and adjusting both HP and LP to desired frequency.
•
The remote volume control is always active.
There is a clip distortion light on the remote volume control.
If you see this light on, reduce volume until the light goes out so that you do not damage your speaker.
•
Phase is continuously adjustable between 0 degrees and 180 degrees. Adjust by measuring frequency response
at the crossover frequency. Frequency response should be as smooth as possible.
•
40 Hz EQ is adjustable between 0dB and +6dB.
Measure the subwoofer frequency response and adjust EQ to get the smoothest frequency response.
Avoid excess EQ boost because this will make the subwoofer sound "muddy" and cause the amplifier have clip
distortion prematurely.
AUTOMATIC POWER TURN ON/OFF
1.
The best way to automatically turn the amplifier power on and off is to use the REM wire from your source radio
connected to the REM amplifier terminal.
2.
If your original equipment stereo or source radio has a BTL amplifier then the RCA inputs have an auto turn
FPD 900.1 : ONE CHANNEL AMPLIFIER
Operation / Configuration
1

Advertisement

loading

Related Manuals for Focal FPD 900.1

Summary of Contents for Focal FPD 900.1

  • Page 1 FPD 900.1 : ONE CHANNEL AMPLIFIER Operation / Configuration POWER PER CHANNEL: • 1 X 500W into 4 ohm • 1 X 850W into 2 ohm • 1 X 500W into 1 ohm • Two amplifiers can be Bridged 1 X 1700W into 4 Ohm •...

  • Page 2: Setting Level

    on sensing circuit. When you connect the high level BTL speaker wires to the RCA input the REM wire is not necessary. RCA INPUT, BOTH LOW LEVEL AND HIGH LEVEL. LEVEL The amplifier control has sufficient adjustment range for both low level and high level input into the RCA jacks.
  • Page 3 40Hz +6dB 0.2v RANGE PHASE LEVEL CONTROL TWO AMPLIFIERS IN BRIDGED MODE: TWO FPD 900.1 amplifiers are required. MASTER Amplifier #1 will have “ ” switch selected. DIRECT Amplifier #2 will have “ ” switch selected. MASTER Crossover and level controls will only function on amplifier #1.
  • Page 4 LEVEL CONTROL MULTIPLE AMPLIFIERS IN PARALLEL CASCADE MODE: TWO or more FPD 900.1 amplifiers are required. • Use this mode when you have several speakers that will use the same crossover and loudness setting and will have one amplifier on each speaker.

  • Page 5: Troubleshooting

    PHASE LEVEL CONTROL TROUBLESHOOTING: > FOCAL SIGN DOES NOT LIGHT Measure the voltage at the amplifier power terminal. It should be between 12 and 15 volts. Measure the voltage at the amplifier REM terminal. It should be between 12 and 15 volts.
  • Page 6 You need to get more fresh cool air to the amplifier. Do not cover the amplifier or mount it flush into a hole. If the amp is cold and the Focal sign is flashing, there is an internal fault. The amplifier must then be returned for service.
