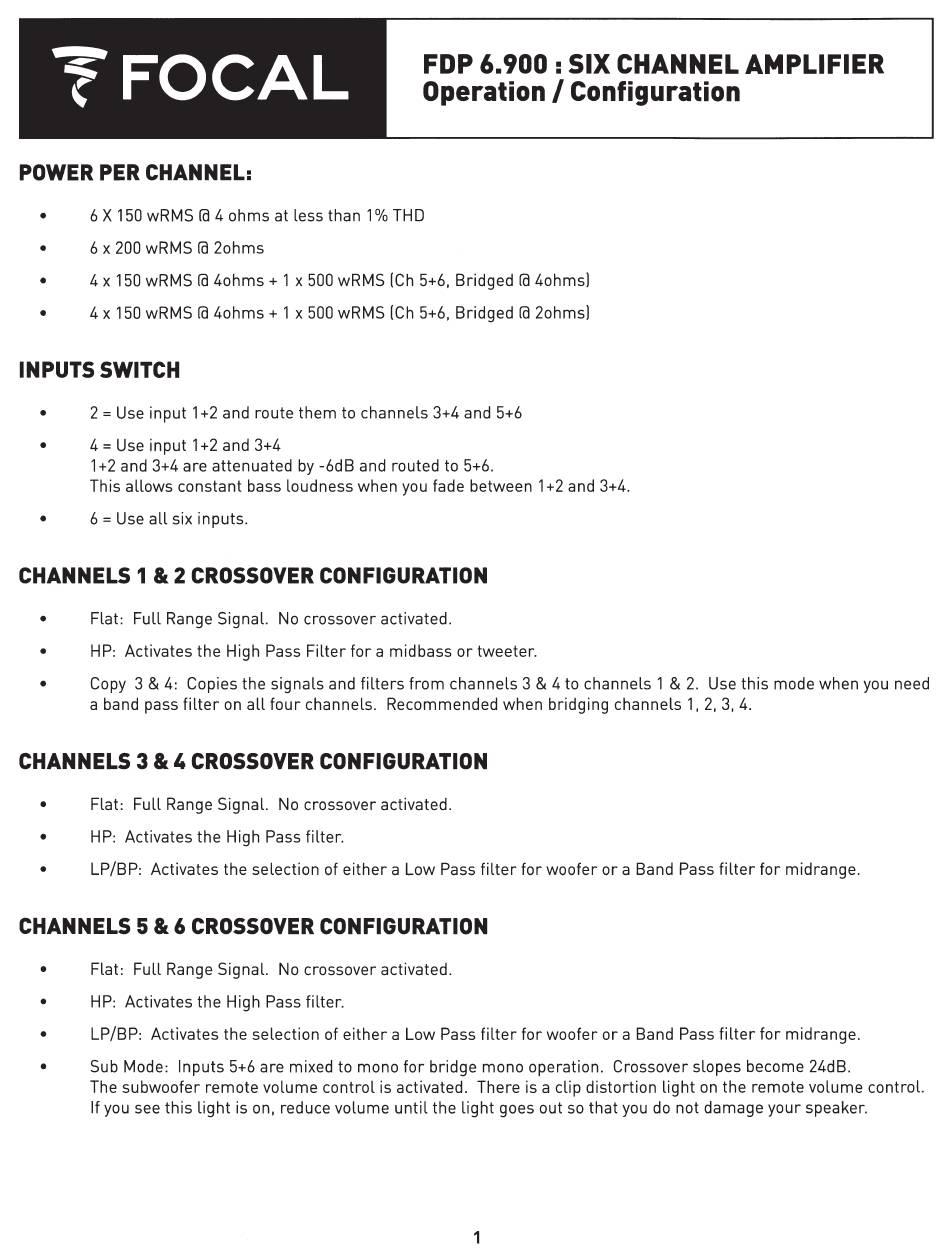

FDP 6.900: SIX CHANNEL AMPLIFIER
Operation
I
Configuration
POWER PER CHANNEL:
•
6 X 150 wRMS
0
4 ohms at less than 1% THO
•
6 x 200 wRMS
0
2ohms
•
4 x 150 wRMS
0
4ohms + 1 x 500 wRMS (Ch 5+6, Bridged
0
4ohms]
•
4 x 150 wRMS
0
4ohms + 1 x 500 wRMS (Ch 5+6, Bridged
0
2ohms]
INPUTS SWITCH
•
2 = Use input 1 +2 and route them to channels 3+4 and 5+6
•
4 = Use input 1 +2 and 3+4
1+2 and 3+4 are attenuated by -6dB and routed to 5+6.
This allows constant bass loudness when you fade between 1 +2 and 3+4.
•
6 =Use all six inputs.
CHANNELS 1
&
2 CROSSOVER CONFIGURATION
•
Flat: Full Range Signal. No crossover activated.
•
HP: Activates the High Pass Filter for a mid bass or tweeter.
•
Copy 3
&
4:
Copies the signals and
filters
from channels 3
&
4 to channels 1
&
2. Use this mode when you need
a band pass filter on all four channels. Recommended when bridging channels 1, 2, 3, 4.
CHANNELS 3
&
4 CROSSOVER CONFIGURATION
•
Flat: Full Range Signal. No crossover activated.
•
HP: Activates the High Pass filter.
•
LP/BP: Activates the selection of either a Low Pass filter for woofer or a Band Pass filter for midrange.
CHANNELS 5
&
6 CROSSOVER CONFIGURATION
•
Flat: Full Range Signal. No crossover activated.
•
HP: Activates the High Pass filter.
•
LP/BP: Activates the selection of either a Low Pass filter for woofer or a Band Pass filter for midrange.
•
Sub Mode: Inputs 5+6 are mixed to mono for bridge mono operation. Crossover slopes become 24dB.
The subwoofer remote volume control is
activated.
There is a clip distortion light on the
remote
volume control.
If you
see
this light is on, reduce volum
e
until the light goes out
so
that you do not
damage
your
spea
ker.
1
