W R S _
W I R E L E S S R E M O T E S Y S T E M
S Y S T E M G U I D E 0 9 / 2 0 0 4

Advertisement

Table of Contents
loading

Related Manuals for ARRI ARRIFLEX 435

Summary of Contents for ARRI ARRIFLEX 435

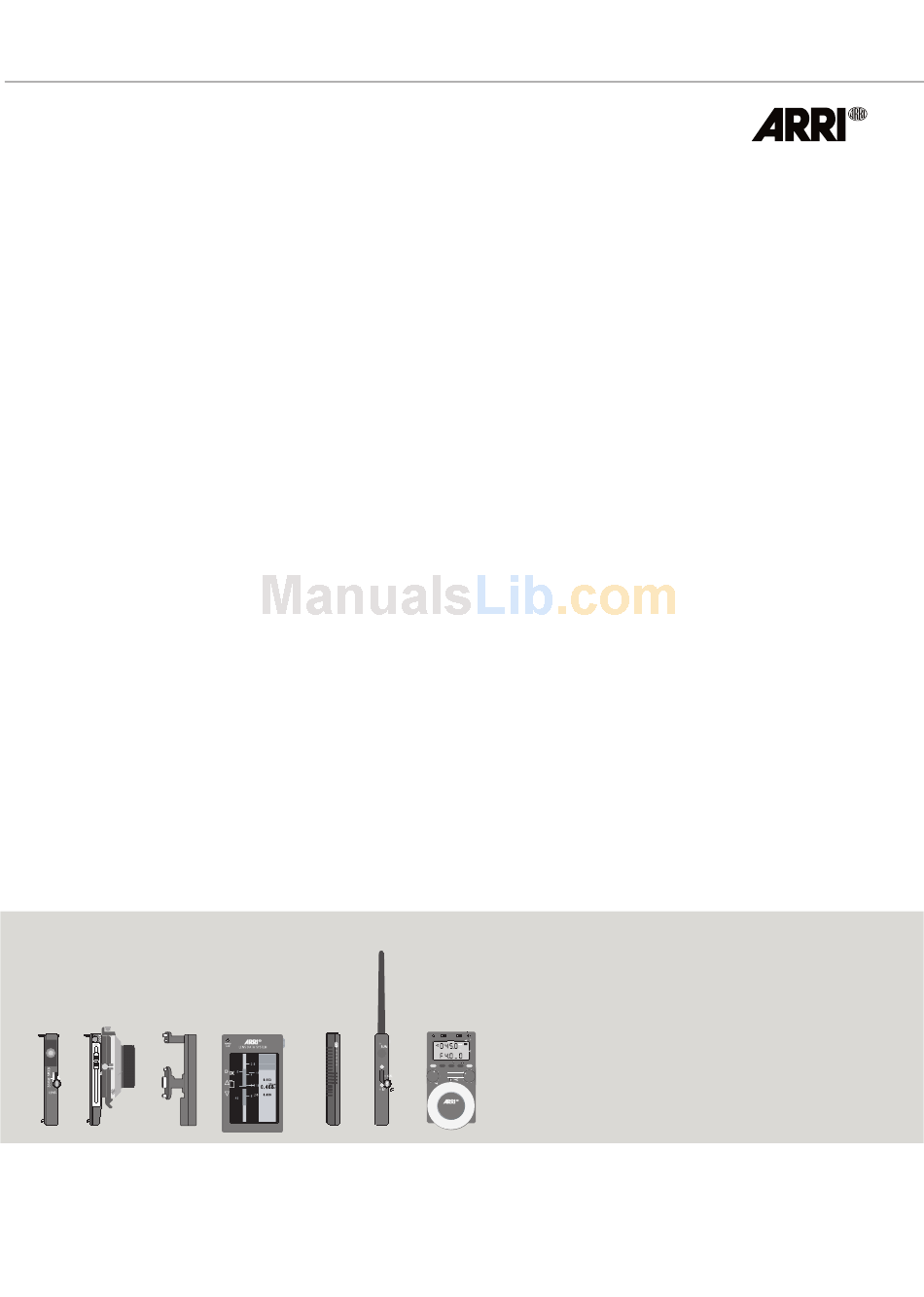

  • Page 1 W R S _ W I R E L E S S R E M O T E S Y S T E M S Y S T E M G U I D E 0 9 / 2 0 0 4...
  • Page 2 System Guide W RS 08/2004...
  • Page 3 Our new Wireless Remote System can control almost all camera and lens func- tions for ARRI cameras, including tight integration with ARRICAMs and the 435 Xtreme, and all lens functions for many other cameras. We have simplified some pro- cedures, like setting limits, and made sure the old components still fit the new gear.

  • Page 4: Table Of Contents

    Typical Configuration for ARRI Cameras: ........

  • Page 5: Introduction

    I N T R O D U C T I O N A lens and camera control system as modular and flexible as the ARRI Wireless Remote System necessarily consists of many individual parts. This guide is designed so you can easily navigate those parts and get an over- view of what is available and how the system can be configured.

  • Page 6: Notes

    Wireless Remote Control WRC-1 with cable WC-W1 to the CCU port of all models of ARRIFLEX 435, 535 and 16SR3 or to the remote port of the ARRIFLEX 235. Second, it is possible to connect a cable between the antenna connector of the hand radios and the camera radios.

  • Page 7: What About The Wired Lens Control System

    One or two Focus Iris Units (FIU-1) can be connected to a ZMU-1 or ZMU-2. From ARRICAM Software packet 03E on this configuration will also work with the ARRI- CAM system. When using the FIU-1 with the ARRICAM system, it is recommended to not use a Wireless Main Unit or WHA-2 at the same time.

  • Page 8: Typical Configuration For Arri Cameras

    Hand Controllers WBU-3 WMU-3 WFU-3 with ARRICAM Studio Studio LDB-2 or ARRICAM Lite Lite LDB-2 or ARRIFLEX 435 Xtreme FEM-2 URM-3 or all other models of ARRIFLEX 235, 435, 535 and 16SR3 RS 24V UMC-1 URM-2 WMU-3 Wireless Main Unit 3...

  • Page 9: Focus, Zoom, Iris

    WBU-3 WMU-3 WZU-3 WFU-3 with ARRICAM Studio Studio LDB-2 or ARRICAM Lite Lite LDB-2 or ARRIFLEX 435 Xtreme FEM-2 URM-3 or all other models of ARRIFLEX 235, 435, 535 and 16SR3 RS 24V UMC-1 URM-2 WMU-3 Wireless Main Unit 3...

  • Page 10: Focus & Camera Control

    Hand Controllers WBU-3 WMU-3 WRC-1 WEB-3 with ARRICAM Studio Studio LDB-2 or ARRICAM Lite Lite LDB-2 or ARRIFLEX 435 Xtreme FEM-2 URM-3 or all other models of ARRIFLEX 235, 435, 535 and 16SR3 RS 24V UMC-1 URM-2 WMU-3 WFU-3 WEB-3...

  • Page 11: Focus & Lds

    T y p i c a l C o n f i g u r a t i o n f o r A R R I C a m e r a s : F o c u s & L D S Hand Controllers WBU-3 WMU-3 LDD-FP WEB-3 WFU-3 with ARRICAM Studio Studio LDB-2 or ARRICAM Lite or ARRIFLEX 435 Xtreme FEM-2 URM-3 WMU-3 Wireless Main Unit 3 WFU-3 Wireless Focus Unit 3 WEB-3 Wireless Extension Bracket 3 WBU-3...

  • Page 12: Focus, Zoom, Iris, Lds, Camera Control

    WZU-3 LDD-FP WEB-3 WFU-3 Hand Controller Set 1 with ARRICAM Studio Studio LDB-2 or ARRICAM Lite Lite LDB-2 or ARRIFLEX 435 Xtreme FEM-2 URM-3 WMU-3 Wireless Main Unit 3 WZU-3 Wireless Zoom Unit 3 Wireless Focus Unit 3 WFU-3 WEB-3...

  • Page 13: Wrs Components

    W R S C O M P O N E N T S Wireless Main Unit 3 (WMU-3) The Wireless Main Unit is the heart of the ARRI Wireless Remote System. It accepts the hand controllers for focus and iris (WFU-1, WFU-3), zoom (WZU-1, WZU-3), camera remote control (WRC-1), the Lens Data Display for Focus Puller (LDD-FP) and it communicates with the camera.

  • Page 14: Wireless Main Unit 1 (Wmu-1)

    System Guide W RS Wireless Main Unit 1 (WMU-1) Wireless Main Unit 2 (WMU-2) Wireless Battery Unit 2 (WBU-2) Wireless Accumulator Charger 1 (WAC-1) W R S C O M P O N E N T S Wireless Main Unit 1 (WMU-1) Like the WMU-3, the Wireless Main Unit 1 is the main control unit of the Wireless Remote System.

  • Page 15: Wireless Focus Unit 3 (Wfu-3)

    0 8 / 20 0 4 W R S C O M P O N E N T S Wireless Focus Unit 3 (WFU-3) The WFU-3 is used to control focus and/or iris. Focus and iris can be assigned freely to hand wheel and slider, and electronic lens and knob limits can be easily set.

  • Page 16: Wireless Zoom Unit 1 (Wzu-1)

    System Guide W RS Wireless Zoom Unit 1 (WZU-1) Wireless Expansion Bracket 3 (WEB-3) Wireless Remote Control 1 (WRC-1) W R S C O M P O N E N T S Wireless Zoom Unit 1 (WZU-1) The WZU-1 is used to control zoom. Zoom speed can be adjusted and zoom limits can be easily set.

  • Page 17: Lens Data Display For Focus Puller (Ldd-Fp)

    0 8 / 20 0 4 W R S C O M P O N E N T S Lens Data Display for Focus Puller (LDD-FP) The LDD-FP is a small and lightweight display showing critical lens information and camera status. It can be configured to show focus scale, zoom scale, iris scale and came- ra status in any combination.

  • Page 18: Wired Handgrip Attachment 2 (Wha-2)

    Compatibility: The WHA-2 works with the ARRICAM Studio, the ARRICAM Lite and the ARRIFLEX 435 Xtreme. It can be connected to the LCS socket of an ARRI- CAM Lens Data Box or 435 Xtreme with cable LC-M1, LC-M2, LC-Z1 or LC-Z2.

  • Page 19: Wha-2 Rosette Bracket

    Radio Module (URM-1, URM-2 or URM-3) for wireless camera and lens control. Compatibility: Can be used with ARRIFLEX 435 Advanced with software version 2.73 and firmware version 2.65. Does not work with ARRIFLEX 435 and 435 ES. K2.52226.0 Functional Expansion Module 2...

  • Page 20: Universal Radio Module 1 (Urm-1)

    System Guide W RS Universal Radio Module 1 (URM-1) Universal Radio Module 2 (URM-2) Studio Lens Data Box 2 (Studio LDB-2) Studio Lens Data Box (Studio LDB) W R S C O M P O N E N T S Universal Radio Module 1 (URM-1) The Universal Radio Module 1 mounts on the UMC-1 or 435 Xtreme to allow the camera to communicate with the WMU-1.

  • Page 21: Studio Ldb Adapter

    0 8 / 20 0 4 W R S C O M P O N E N T S Studio LDB Adapter The Studio LDB Adapter allows the mounting of the Studio Lens Data Box 1m/3ft away from the camera body. This is preferable under some circumstances, most notably when using the ARRICAM Studio on a Steadicam.

  • Page 22: Controlled Lens Motor 2 (Clm-2)

    System Guide W RS Controlled Lens Motor 2 (CLM-2) W R S C O M P O N E N T S Controlled Lens Motor 2 (CLM-2) This small and lightweight motor is particularly suited to applications for which weight and size are decisive factors, e.g.

  • Page 23: Compatibility Overview

    System Guide WR S 0 8 / 20 0 4 C O M P A T I B I L I T Y O V E R V I E W S These overviews show the compatibility for all possible configurations. Since the most important factor determining compatibility is the main hand unit, there are five diagrams showing what is possible when using the WMU-1, WMU-2, WMU-3, WHA-1 or WHA-2/WHA-3.

  • Page 24: Wmu-1

    System Guide W RS C O M P A T I B I L I T Y O V E R V I E W WMU-1 (old radio modem) URM-1 UMC-1 16SR3, 235, 435 435ES, 435 Advanced, 535A, 535B WMU-1 •...

  • Page 25: Wmu-2

    0 8 / 20 0 4 C O M P A T I B I L I T Y O V E R V I E W WMU-2 (new radio modem) URM-2 URM-3 UMC-1 16SR3, 235, 435 435ES, 435 Advanced, 535A, 535B WMU-2 •...
  • Page 26 System Guide W RS C O M P A T I B I L I T Y O V E R V I E W WMU-3 (new radio modem) URM-2 URM-3 UMC-1 16SR3, 235, 435 435ES, 435 Advanced, 535A, 535B WMU-3 WEB-3 * For technical notes, please look at the next page.

  • Page 27: Wmu-3

    0 8 / 20 0 4 Notes for WMU-3 (new radio modem): • Except for the WFU, the same two hand controllers cannot be attached to the WMU-3. When two WFUs are attached, the FOCUS/IRIS switch must be switched up for one unit, and down for the other before the WMU is turned on. This will assign focus to the hand wheel of one unit and iris to the hand wheel of the other.

  • Page 28: Wha-2/Wha-3

    System Guide W RS C O M P A T I B I L I T Y O V E R V I E W S WHA-2/WHA-3 (cable) Cable LC-M1 or LC-Z1 Cable KC-70 WHA-2 or WHA-3 • The zoom knob on the WZU-3 is in a better position for use on the WHA-2 or WHA-3 than the WZU-1 zoom knob.

  • Page 29: Cable Overview

    WHA Cable to CAC WC-W1 Connects WHA-1 to camera WHA LCS Cable LC-M1-SP-S Connects WHA-2 or WHA-3 to ARRI- CAM, 435 Advanced or 435 Xtreme LC-Z1-S WHA LCS Cable Connects WHA-2 or WHA-3 to ARRI- CAM, 435 Advanced or 435 Xtreme...

  • Page 30: Compatibility Table

    System Guide W RS C O M P A T I B I L I T Y T A B L E Items marked in yellow (light grey on b/w prints) are equipped with the old radio modem and are compatible only with other yellow items. Blue marked items (dark grey on b/w prints) are equip- ped with the new radio modem and are only compatible with other blue items.
  • Page 31 0 8 / 20 0 4 Hand Radios These so called “Wireless Main Units” are held in the hand, and communicate with the camera radios. Unit Description WMU-1 Wireless Main Unit 1 WMU-2 Wireless Main Unit 2 WMU-3 Wireless Main Unit 3 Hand Controllers These attach to the hand radios or handgrip attachments and control or display aspects of the lens and camera, like focus, zoom, iris, start/stop and ramps.
  • Page 32 Camera Marketing, msmueller@arri.com Technical Data are subject to change without notice | © ARRI/2004 T Ü R K E N ST R A S S E 8 9 / D - 8 0 7 9 9 M U N I C H P H O N E + 4 9 ( 0 ) 8 9 3 8 0 9 0 / FA X + 4 9 ( 0 ) 8 9 3 8 0 9 1 2 4 4 w w w.

This manual is also suitable for:

Wmu-1Wmu-2Wmu-3Wha-1Wha-2Wha-3
