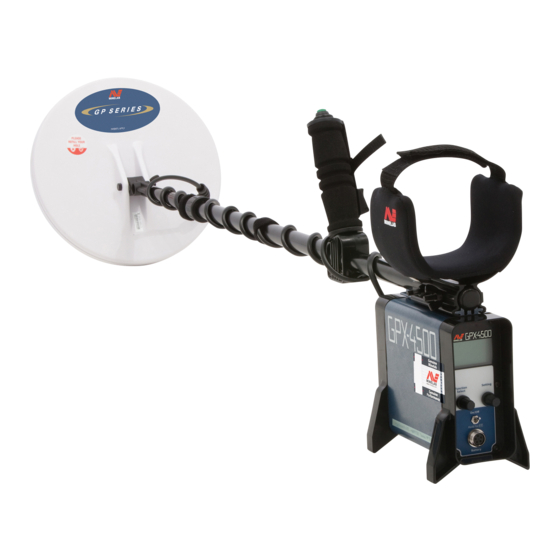

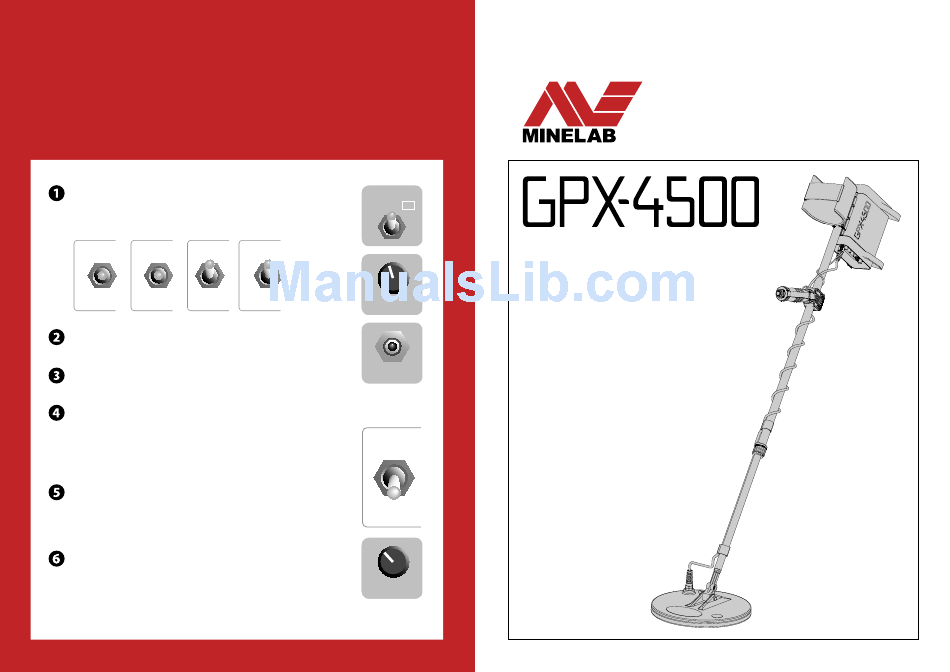

Quick Start

Set the front panel switches to the following positions:
Search
Soil /
Ground
Mode
Timings
Balance
Custom
Enhance
Fixed
G
N
Deep
Special
Tracking
Push and release the On/Off switch on the rear
control panel
(pg.
25).
Turn the Threshold
(pg. 34)
control clockwise until a hum
is audible through the headphones.
Raise the coil off the ground and Press the Auto Tune
(pg. 33)
button to reduce electrical interference. The
tuning process takes approximately 60 seconds. Do not
move the coil or pass metal objects near the coil during
the tuning process.
Whilst lowering and raising the coil between 25mm and
100mm (1" and 4") from the ground, change the Ground
Balance switch to Tracking
(pg.
Threshold will smooth out within 3–5 seconds.
Adjust the Threshold
(pg. 34)
to a very faint but still
audible level. It should be smooth with only minor
fluctuations.
You are now ready to start searching!
On/Off
Hold for
Coil /
Rx
Double D
M
Cancel
Threshold
Auto Tune
Ground
Balance
Fixed
Tracking
40). Any variations in the
Threshold
FP
Instruction Manual
