TAG Heuer HL 440 User Manual

TAG Heuer HL 440 User Manual

Minitimer
Hide thumbs
Table of Contents

Advertisement

Quick Links

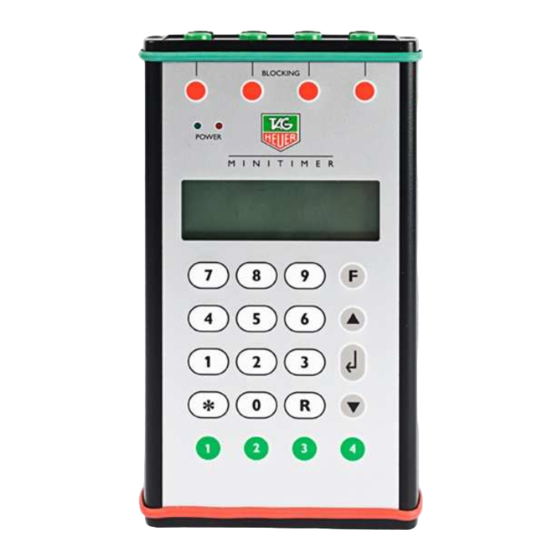

Minitimer HL 440
User Manual
Version 08/2012

Advertisement

Table of Contents
loading

Related Manuals for TAG Heuer HL 440

Summary of Contents for TAG Heuer HL 440

  • Page 1 Minitimer HL 440 User Manual Version 08/2012...

  • Page 2: Table Of Contents

    Table of contents Introduction Technical description Function Menus <F> 3.1. Power on Menu 3.2. Main Menu 3.3. Menu during a Run 3.3.1. In PTB / Split mode 3.3.2. In Training mode How to use Minitimer 4.1. Recharge the internal battery before starting a new timing session. 4.2.

  • Page 3: Introduction

    1. Introduction • The Minitimer HL 440 is a professional timing system with 4 inputs using the same « high Technology » as our Chronoprinter 540. It is an essential general-purpose timer for many applications. • The HL 440 has a high precision “time base”, ideal for communication bi-directionally with a computer. It supersedes the popular PTB 605 and 606.

  • Page 4: Technical Description

    Ex.: Manual push button (HL 18), photocells (HL 2-31/35) start gate (HL 7-1/3). Respect the correct polarity! The Minitimer HL 440 provides a visual (on the LCD) and audio alarm, should an external input remain in short-circuit. This feature allows you to observe the status of TAG Heuer’s new “direct-response”...
  • Page 5 Blocking: Manual keys to unblock and block the External inputs 1 – 4. An input is blocked when the corresponding black bar is shown on the LCD display. 7. LED Power: Two led lamps (green and red) show the battery loading progress and the external power supply function.

  • Page 6: Function Menus

    3. Function Menus <F> 3.1. Power on Menu Page 6...

  • Page 7: Main Menu

    3.2. Main Menu --- --- 16:00:00 --- --- 16/02/10 MEMORY FREE 25000 ENTER TO MENU -> F OPEN SESSION Open a new session --- --- 16:00:00 --- --- SYNCHRO 16/02/10 SYNCHRO MANUAL SYNCHRO SYNCHRO SLAVE DATE <JMA> dd/mm/aa TIME <HM> hh:mm READY FOR SYNCHRO PTB SEQUENTIAL 1-- 4...

  • Page 8: Menu During A Run

    3.3. Menu during a Run In PTB / Split mode 3.3.1. Page 8...

  • Page 9: In Training Mode

    3.3.2. In Training mode --- --- 16:25:06 --- --- CLOSE SESSION Close a session ON SCREEN RANKING TO PRINTER ON SCREEN RANK A SESSION Select a session TO PRINTER ON SCREEN LISTING Select a bib number TO PRINTER ON SCREEN LIST A SESSION Select a session Select a bib number...

  • Page 10: How To Use Minitimer

    Switch ON the Minitimer. Switch ON the Minitimer The LCD illuminates for 5 seconds • Minitimer HL 440 and the Firmware version (V.B – 06) Select how the Serial output should be used • RS232 TO PRINTER The data will be configured for a serial printer (HL 200 - Martel).

  • Page 11: Menu (F)

    Chrono Mode: Sequential: (1 to 4) or (5 to 8) Sequential recording of time-of-Day on 4 channels ( 8 channels if 2 HL 440’s are connected together with RS232 connection). This mode does not calculate Net Times! In this mode, bib number entry is not possible.
  • Page 12 To HL970/HL980: will send information to a display, including Net Time (especially for the Training Mode) – only for the training Mode • Running Time on the TAG Heuer display • Running Time of Day of the HL 440 • Blank command to the Display Running time is the default setting ▲...
  • Page 13 DOWNLOAD: TO PRINTER Print all Times and data on the serial printer. TO COMPUTER Send all data to the serial connection « Computer »in a traditional protocol TO CHRONO RS232 Send Data to another Timing device (like a CP540 or Minitimer) TO RS232 AUX Send Data through the serial output «...

  • Page 14: Opening Run And Timing

    6. Opening Run and Timing o Enter the menu (F) and select OPEN RUN Do not forget to unblock the external input (Red key 1 – 4), if necessary. o The Minitimer records sequentially the time-of-day from each input. Each time can be matched with a competitor n°...

  • Page 15: Recall Function (R)

    6.1. RECALL function (R) This allows you to: o Recall all the memorized times from any input, from the buffer, with or without competitor numbers. o Review and select times not yet identified with a bib number. Example: Press Select Input ▼...

  • Page 16: Download A New Version Of Firmware

    7. Download a new version of Firmware Program downloads and new releases of the TAG Heuer firmware “up loader” are available free of charge on our website www.tagheuer-timing.com. For this operation, you need to have: • Sub-D9p cable HL 605-10 •...

  • Page 17: Configuration

    9600 bps RS 232 AUX PRINTER Input mapping : Input 1 to 4 9.2 Two Minitimer 8 synced Inputs Settings HL 440 / 1 Synchro: Synchro Manual Setup: RS 232 PC 9600 bps RS 232 AUX TO AUX Input mapping : Input 5 to 8...

  • Page 18: Chronoprinter 540 - Minitimer - Computer (Not Synced Together)

    9.3 Chronoprinter 540 – Minitimer – Computer (not synced together) Settings CP 540 Synchro: Synchro Manual Timing mode: PTB SEQ 1 to 4 HL 440 Synchro: Synchro Manuel Settings: RS 232 PC 9600 bps RS 232 AUX VERS AUX Input mapping : Input 5 to 8 9.4 Chronoprinter 540 synced with a Minitimer to a Computer...

  • Page 19: Training

    9.5 Training Settings HL 440 Synchro: Manual Synchro Setup: RS 232 PC 9600 bps RS 232 AUX TO AUX Input mapping : Input 1 to 4 Page 19...

  • Page 20: Training With Coach

    Synchro: Manual Synchro Setup: RS 232 PC 9600 bps RS 232 AUX TO AUX Input mapping: Input 1 to 4 HL 440 / Coach’s monitor Synchro: Manual Synchro Setup: RS 232 PC 9600 bps RS 232 AUX TO AUX Input mapping: Input 1 to 4...

  • Page 21: Cable Pin-Outs

    9.7 Cable Pin-outs HL 605-10: Sub-D9p, M/F (2-2, 3-3, 5-5) HL 200-10: Sub-D9p, M/M (2-3, 3-2, 5-5, 9-9) HL540-10: Sub-D9p / RJ45 Special cable CP540 to HL440 (Synchro) RJ12 – CP540 RJ 11 Docking Sub-D9p M Désignation Rx/Tx Tx/Rx SYNC IMPORTANT No data is transmitted if the Input mapping isn’t set up correctly ! Minitimer: Parameters –...

  • Page 22: Technical Specifications

    10 Technical specifications ⇒ ⇒ ⇒ ⇒ General Stand-alone sports timing system. Timing resolution (printer – PC) from 1 sec to 1/100'000 sec Memory of 25'000 times and 99 timing sessions Sequential N° / competitor N° from 1 to 9'999 ⇒...

  • Page 23: Notes

    11 Notes Page 23...
  • Page 24 TAG Heuer PROFESSIONAL TIMING 6A Louis-Joseph Chevrolet 2300 la Chaux-de-Fonds Switzerland Tel : 032 919 8000 Fax : 032 919 9026 E-mail: info@tagheuer-timing.com http: //www.tagheuer-timing.com Page 24...
