Baxi 5117391 Installation & User's Instructions

Installation & User's Instructions
for use with all Potterton Combination Boilers
Single Channel Wireless Programmable

Room Thermostat

Kit N
BAXI
A T r a d i n g D i v i s i o n o f B a x i H e a t i n g U K L t d
Brooks House, Coventry Road, Warwick, CV34 4LL
After Sales Service 08706 096 096 Technical Enquiries 08706 049 049
Website www.potterton.co.uk
e&oe
ompany
WARNING: Isolate at supply before access.
1. Undo the screws securing the boiler outer case and remove the boiler outer case.
2. Undo the screws retaining the facia and hinge the facia down.
3. If there is a Receiver Cover Panel then undo the screws and remove it.
4. From inside the facia panel, spring the securing barbs of the facia blanking plate and push
through the facia to release.
5. Take the receiver from the box and fit it to the facia panel.
NOTE: Do not fit the batteries to the transmitter at this stage.
Receiver
Cover Panel
Receiver
Facia Blanking
Plate
Please leave these Instructions
o 5117391
Comp N o 5117490 - Iss 5 - 11/06
FITTING THE RECEIVER TO THE BOILER
Facia
Panel
KIT CONTENTS IDENTIFICATION
with the User.
Key No Description
A Instructions

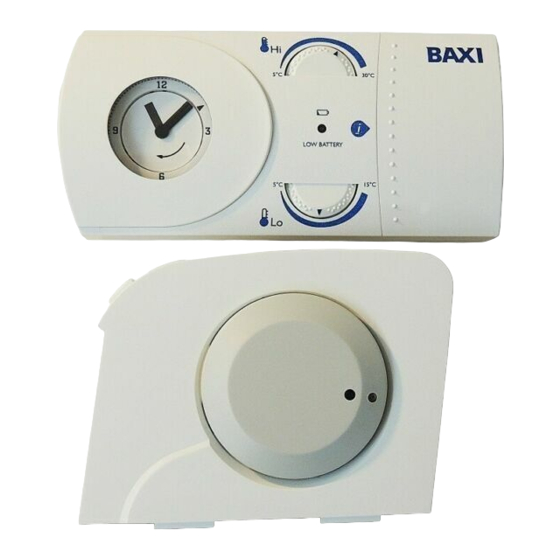

B Programmable Room Thermostat (Transmitter)
C Receiver Unit
D Battery (1.5VL26/AA)
E Screw Plastite Pozi
br - Brown
b - Blue
r - Red
PCB
Please leave these Instructions
with the User.
Installation & User's Instructions
for use with all Baxi Combination Boilers
Single Channel Wireless Programmable
Room Thermostat
Kit N o 5117391
Baxi Heating UK Limited
Brownedge Road Bamber Bridge Preston Lancashire PR5 6UP
After Sales Service 08706 096 096 Technical Enquiries 08706 049 049
Website www.baxi.co.uk
Comp N o 5117490 - Iss 1 - 12/05
A
r
b
br
1
2 3
4
5
C
1 /
Securing Screws
Receiver
Cover Panel
Receiver
SOCKET
Facia Blanking
Plate
No Off
1
1
1
2
3
B
D
E
Turn Facia
4
PCB removed
for clarity
Facia
Panel
