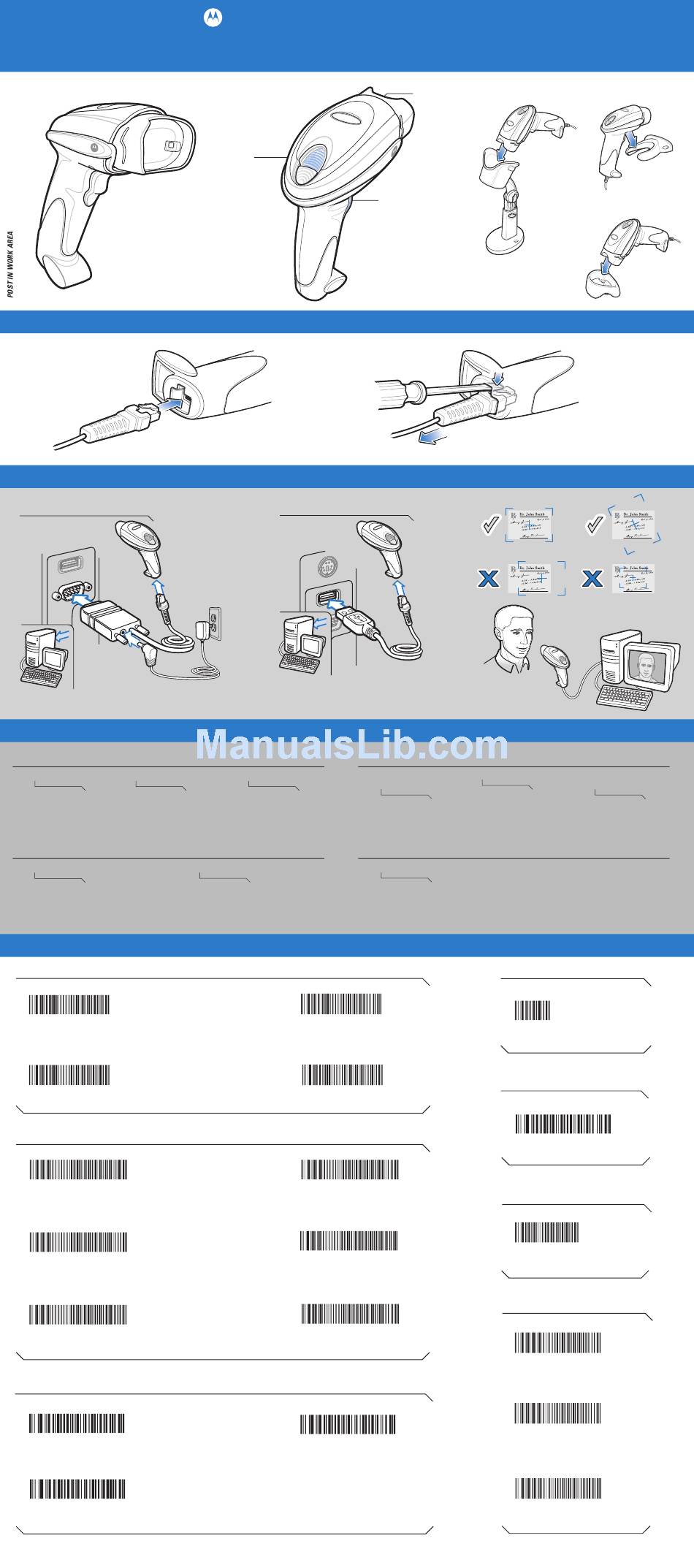

Motorola SYMBOL DS6707-DP Quick Start Manual

SYMBOL DS6707-DP
Quick Start Guide
http://www.motorola.com/ds6707 See Product Reference Guide
for detailed information
RS-232/SSI
Scanner not working
No power to scanner Incorrect interface cable used
Check system power; Ensure that correct
ensure power supply, interface cable is used
if required, is connected
Scanner decoding bar code, but data not transmitting to host
Scanner not programmed for correct host interface
Scan appropriate host parameter bar codes
USB Host Types
HID KEYBOARD EMULATION
IBM HAND-HELD USB
RS-232 Host Types
ENABLE RS-232 (NO VARIANT)
ICL RS-232
NIXDORF RS-232 MODE A
DP Illumination
Auto Illumination
Indirect Illumination
1
CORD ATTACHMENT/REMOVAL
HOST INTERFACES
NOTE: Cables may vary depending on configuration
USB
TROUBLESHOOTING
Interface/power cables are loose
Ensure all cable connections
are secure
Interface cable is loose
Ensure all cable connections are secure
SYMBOL DS6707-DP PROGRAMMING BAR CODES
2
3
1 LED Indicators
2 Scan Window
3 Scan Trigger
Scanner not decoding bar code
Scanner not programmed
for bar code type
Ensure scanner is programmed
to read type of bar code being
scanned
Scanned data incorrectly displayed on host
Scanner not programmed for correct host interface
Scan appropriate host parameter bar codes
SNAPI WITH IMAGING
SNAPI WITHOUT IMAGING
NIXDORF RS-232 MODE B
FUJITSU RS-232
OPOS/JPOS
Direct Illumination
ACCESSORIES
IntelliStand
IMAGE CAPTURE
Bar code unreadable Distance between scanner
and bar code incorrect
Ensure bar code is not defaced;
try scanning test bar code of same
Move scanner closer to
bar code type
or further from bar code
Set Defaults
SET DEFAULTS
Level
LEVEL
Enter Key (Carriage Return/Line Feed)
<DATA><SUFFIX 1>
SSI Host Types
Baud Rate 9600
Baud Rate 38,400
Baud Rate 115,200

Wall Mount

Desk Cup
