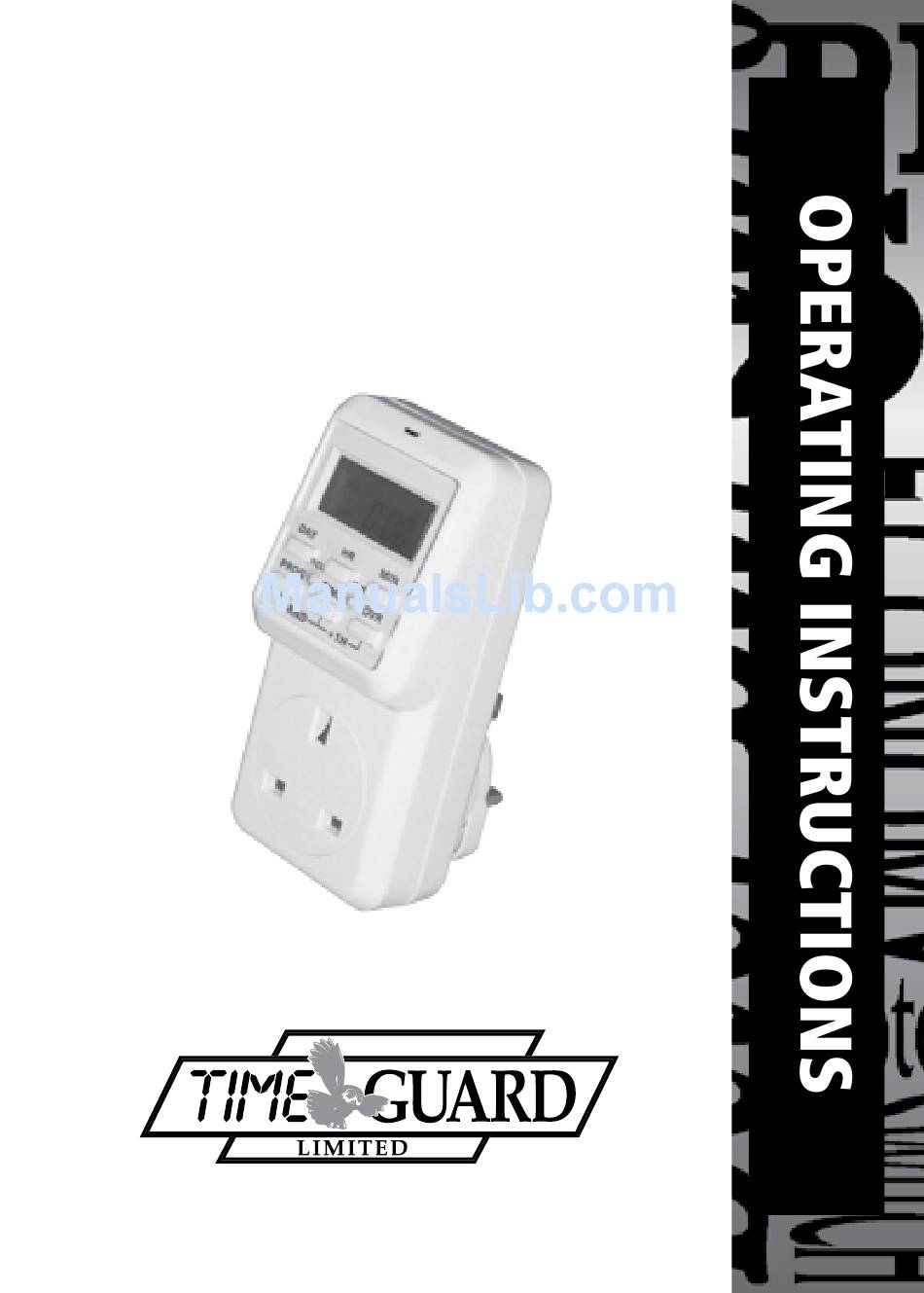

  • Page 1 24Hr / 7Day ElEctronIc tIMESWItcH Cat. No TG27 operating Instructions...
  • Page 2 TG27 24hr/7 Day Electronic Timeswitch Output ON Easy view 24hr, indicator clock/programme display Sets days or day Sets hours combinations Sets minutes Suspends and recalls PROG TIME Resets programmes (clears) clock and memory Used to review and change timer Changes...

  • Page 3: Operation

    General An easy to programme electronic time controller, with a large 24 hour display, offering both 24 hr and 7 day programming options. 6 ON/OFF switching programmes are available which can be made to operate over all seven days, six days less sunday, five weekdays, 3 days (mon, wed, fri), 3 days (tues, thurs, sat), 2 weekend days or an individual day.

  • Page 4: Setting Clock

    100 hours (in which case plug the TG27 into a live socket for four hours before resetting). Press RST using a pointed object (eg a pencil). Display will show its full set of...
  • Page 5 Note: The display will always show the numbered ON/OFF programme you are setting. v To set the unit into its operating mode always press the “Time” button after completing the ON/OFF programming. The display will then revert back to the clock display with the colon between the hours and minutes flashing - the unit’s operating mode.

  • Page 6: Summer Winter Time Change-Over

    6. Permanent ON/OFF and Self-cancelling Override These can be selected when in operating mode by using the “Ovr” button. When the ON or OFF symbols appear along with the AUTO symbol the unit is in timer mode and is ON or OFF as indicated at the current clock time.

  • Page 7: Specifications

    10. Random delay of Programme Start and Finish Programmes can be started and stopped at random delay times from those programmed giving the appearance that the lights or other appliances are not being controlled by a time switch. To do this press the “Prog” and “Time’ buttons simultaneously when in operating mode.

  • Page 8: Year Guarantee

    3 Year Guarantee In the unlikely event of this product becoming faulty due to defective material or manufacture, within 1 year of the date of purchase, please return it to your supplier with proof of purchase and it will be replaced free of charge.
