Summary of Contents for Time Guard ZV700B

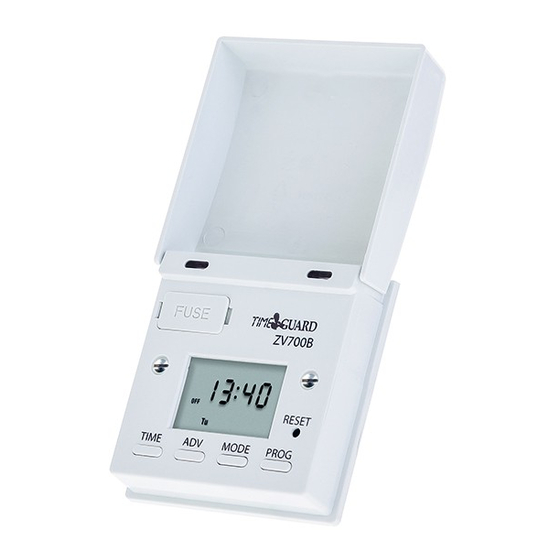

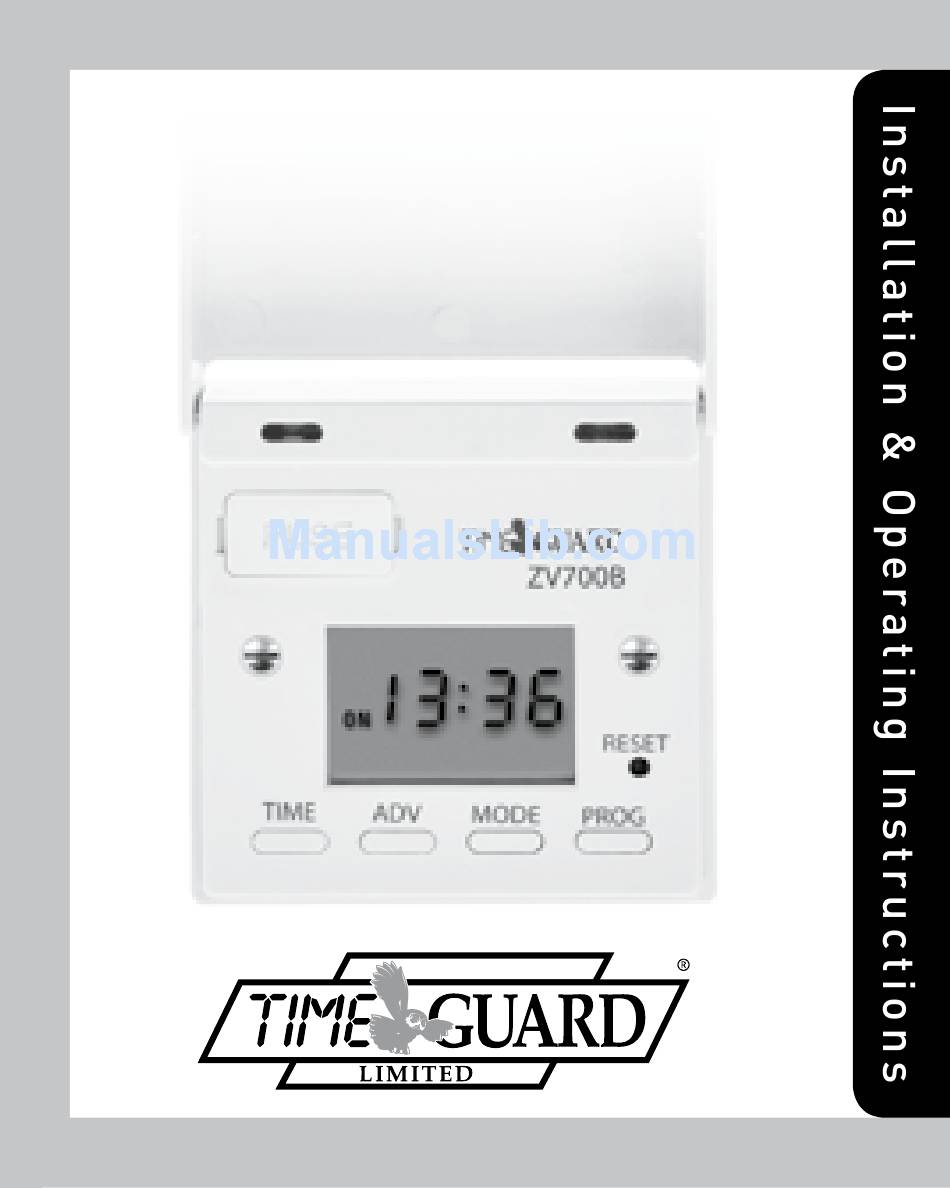

- Page 1 7 Day Digital Light Switch with Optional Dusk Start Cat No. ZV700B...
- Page 2 1. General The ZV700B combines the function of a manual light switch, with the option of automatic timed control of lighting on a weekly basis available at the press of a button. There is a further option of starting an automatic lighting period at dusk, but ending it with a timed OFF, and a random option, based around programmed times.
- Page 3 Adv button, used to change operating mode change output status The ZV700B has an internal battery back up for preserving the correct time, and the programmed times, for a period of one month. There is an option to set automatic summer/winter change over.
-
Page 4: Installation And Commissioning
If in any doubt contact the Timeguard helpline. Switch off mains electricity. Remove the existing light switch, and transfer the wires to the ZV700B according to the following instructions: If the switch is an ON/OFF type, the supply wire should be inserted into the live terminal (com), and the live out (L1) to the load terminal. -
Page 5: Programming The Time And Date
3. Programming the Time and Date: From first power up, the screen should show “––:––” Press ‘Time’ and hold for 3 seconds. Whilst holding, the word hold will show. Once in time programme mode, the first option is day light saving (summer/winter changeover), on or off. The screen should show ‘dS:Y’ , and using the ‘Adv’... - Page 6 Use ‘Adv’ or ‘Mode’ to set the month. Press ‘Time’ to set the day. The first two digits should blink. MODE Mo Tu We Th Fr Sa Su Time Use ‘Adv’ or ‘Mode’ to set the day. MODE Prog Mo Tu We Th Fr Sa Su Press ‘Time’...
- Page 7 Showing correct time/day of the week, and output status OFF. During programming, when the ‘Adv’ or ‘Mode’ buttons are held down, the adjusted setting will scroll faster. Holding down the ‘Time’ button for 3 seconds will exit the programming time/date mode. This can be done at any time during programming. 4. Programming the ON/OFF Times: Press ‘Prog’...
- Page 8 (The example shown is for 5 + 2 programme, as screen shows Mo Tu We Th Fr) MODE Mo Tu We Th Fr Sa Su For the 24hr mode, Mo Tu We Th Fr Sa Su will remain displayed during programming. Time For 7 day different mode, the default will start with Mo, and when Prog...
- Page 9 Press and hold ‘Prog’ until the programmed mode shows on the screen. This will show the mode the ZV700B was programmed in. It is possible at this stage to change this mode (say from 24 hr to 5+2) using ‘Adv’ or ‘Mode’, but this may blank any previously entered times.
-
Page 10: Operating Mode
When scrolling times in programming mode, either from 0 to 24 hours, or 00 to 59 minutes, there is the option of re-entering ”––”. Cancelling Programmes: Programmes can be cancelled by re-entering ”––”. instead of the hour and minutes. Both ON times, and OFF times need to be blanked out. 5. Operating Mode: In operating mode, ‘Adv’... -
Page 11: Specifications
Suitable for 1mm sq. and 1.5mm sq. solid conductors and stranded equivalents Fuse: 2A rated BS646 fuse, 5mm x 20mm Back box: The ZV700B requires a 25mm deep back box Not suitable for discharge lighting (eg: SON and Metal Halide) Not suitable for LED lighting... -
Page 12: Year Guarantee
3 Year Guarantee In the unlikely event of this product becoming faulty, due to defective material or manufacture, within 3 years of the date of purchase, please return it to your supplier with proof of purchase and it will be replaced free of charge. Note: A proof of purchase is required in all cases.
