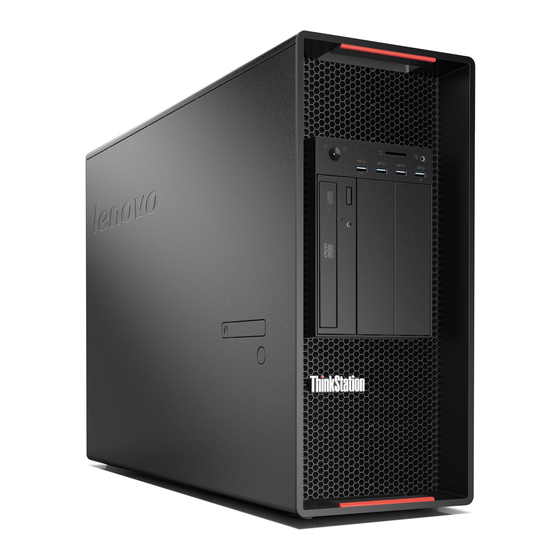

ThinkStation P900
User Guide
Machine Types: 30A4 and 30A5

Advertisement

Table of Contents
loading

Related Manuals for Lenovo ThinkStation P900

Summary of Contents for Lenovo ThinkStation P900

  • Page 1 ThinkStation P900 User Guide Machine Types: 30A4 and 30A5...
  • Page 2 Important safety information” on page v and Appendix E “Notices” on page 145. First Edition (October 2014) © Copyright Lenovo 2014. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

  • Page 3: Table Of Contents

    8.1 operating system ..Using the Setup Utility program ..An introduction to Lenovo programs ..Starting the Setup Utility program ..
  • Page 4 Safety and Warranty... Hardware diagnostics ..Lenovo Web site ... . Chapter 8. Recovery information . . . 69 Lenovo Support Web site.
  • Page 5 Recycling information for Brazil ..Battery recycling information for Taiwan ..Battery recycling information for the European Union ....© Copyright Lenovo 2014...
  • Page 6 ThinkStation P900 User Guide...

  • Page 7: Read This First: Important Safety Information

    ® Format (PDF) version from the Lenovo Support Web site at http://www.lenovo.com/UserManuals. The Lenovo Support Web site also provides the Safety, Warranty, and Setup Guide and this User Guide in additional languages. Service and upgrades Do not attempt to service a product yourself unless instructed to do so by the Customer Support Center or your documentation.

  • Page 8: Static Electricity Prevention

    Extension cords and related devices Ensure that extension cords, surge protectors, uninterruptible power supplies, and power strips that you use are rated to handle the electrical requirements of the product. Never overload these devices. If power strips ThinkStation P900 User Guide...

  • Page 9: Plugs And Outlets

    If you notice external dust accumulation, then examine and remove dust from the inside of the computer including heat sink inlet fins, power supply vents, and fans. Always turn off and unplug the computer before opening the cover. If possible, avoid operating © Copyright Lenovo 2014...

  • Page 10: Operating Environment

    • Do not remove the covers. Removing the covers of the laser product could result in exposure to hazardous laser radiation. There are no serviceable parts inside the device. • Use of controls or adjustments or performance of procedures other than those specified herein might result in hazardous radiation exposure. viii ThinkStation P900 User Guide...

  • Page 11: Power Supply Statement

    Do not spray any liquid detergent directly on the computer or use any detergent containing flammable material to clean the computer. Spray the detergent on a soft cloth and then wipe the computer surfaces. © Copyright Lenovo 2014...
  • Page 12 ThinkStation P900 User Guide...

  • Page 13: Chapter 1. Product Overview

    • Locations of parts on the system board • Locations of internal drives • Computer features • Software programs provided by Lenovo Locations This section provides the following topics: • “Locating connectors, controls, and indicators on the front of your computer” on page 2 •...

  • Page 14: Locating Connectors, Controls, And Indicators On The Front Of Your Computer

    When you lay the computer on its side, you can slightly pull out the logo plate, turn it 90° counterclockwise, and then push it back in. ThinkStation P900 User Guide...

  • Page 15: Locating Connectors On The Rear Of Your Computer

    Locating connectors on the rear of your computer The following illustration shows the locations of the connectors on the rear of your computer. Some connectors on the rear of your computer are color-coded to help you determine where to connect the cables on your computer.

  • Page 16: Locating Components

    PDA. Locating components The following illustration shows the locations of the various components in your computer. To remove the computer cover, see “Removing the computer cover” on page 77. ThinkStation P900 User Guide...

  • Page 17: Locating Parts On The System Board

    Figure 3. Component locations Power supply assembly Flex adapter (some models) M.2 solid-state drive (some models) Memory modules (amount varies by model) Multi-function bracket Front fan assembly Optical drive, flex module, or front-access storage Hard disk drive, hybrid drive, or solid-state drive (amount and combination vary by model) enclosure (amount and combination vary by model) Front fan assembly...
  • Page 18 Memory slot Memory slot Memory slot Flex adapter slot 1 4-pin power connector eSATA connector Front-access storage enclosure control connector Front-access storage enclosure control connector Front fan assembly connector Thermal sensor SATA 3.0 connector SATA 3.0 connector ThinkStation P900 User Guide...

  • Page 19: Locating Internal Drives

    29-in-1 card reader connector Front USB 3.0 connector Cover presence switch connector (intrusion switch Thunderbolt™ adapter control connector connector) Internal-storage-drive activity indicator connector SATA 1/SATA 2 connector (used only with a 9364 RAID card) SATA 3/SATA 4 connector Clear CMOS /Recovery jumper Front panel connector Seven-segment indicator PCI Express 2.0 x4 card slot...
  • Page 20 Storage drive bays (with hard disk drives, solid-state drives or hybrid drives installed in some bays) PCI Express x16 graphics card slots and PCI Express x4 card slots (with PCI Express solid-state drives or other PCI cards installed in some models) ThinkStation P900 User Guide...

  • Page 21: Locating The Machine Type And Model Label

    Locating the machine type and model label The machine type and model label identifies your computer. When you contact Lenovo for help, the machine type and model information helps support technicians to identify your computer and provide faster service. The machine type and model label is attached on the front of your computer as shown.
  • Page 22 For more information, see “Locating connectors, controls, and indicators on the front of your computer” on page 2 and “Locating connectors on the rear of your computer” on page 3. Expansion • Hard disk drive bays • Flex adapter slots ThinkStation P900 User Guide...
  • Page 23 • Optical drive bays • PCI Express x1 card slots • PCI Express x4 card slots • PCI Express x16 graphics card slots • SD card reader slot For more information, see “Locating internal drives” on page 7 and “Locating parts on the system board” on page 5.
  • Page 24 The operating system(s) listed here are being certified or tested for compatibility at the time this publication goes to press. Additional operating systems might be identified by Lenovo as compatible with your computer following the publication of this manual. This list is subject to change. To determine if an operating system has been certified or tested for compatibility, check the Web site of the operating system provider.

  • Page 25: Specifications

    Control Panel. The icon name displayed in the search result or Control Panel might be different from the program name. You can find the program by its program name or icon name as shown in the Lenovo programs available on the Windows 7 operating system table.

  • Page 26: Accessing Lenovo Programs On The Windows 8.1 Operating System

    Press the Windows key to go to the Start screen. Click a Lenovo program to launch it. If you cannot find the program you need, click the arrow icon in the bottom-left corner of the screen to go to the Apps screen.
  • Page 27 As a result, you can access, edit, and share your files from anywhere. With Lenovo Reach, you also can add your favorite Web services to your cloud desktop and stay logged-in to Web sites with the cloud password manager.
  • Page 28 • System Update (Windows 7 and Windows 8.1) The System Update program helps you keep the software on your computer up-to-date by downloading and installing software update packages. Examples of these software update packages include Lenovo programs, device drivers, UEFI BIOS updates, and other third-party programs.

  • Page 29: Chapter 2. Using Your Computer

    When you register your computer, information is entered into a database, which enables Lenovo to contact you in case of a recall or other severe problem. After you register your computer with Lenovo, you will receive quicker service when you call Lenovo for help. In addition, some locations offer extended privileges and services to registered users.

  • Page 30: Using The Fingerprint Reader

    To open Fingerprint Manager Pro or ThinkVantage Fingerprint Software and use the fingerprint reader, do the following: • On the Windows 7 operating system, see “Accessing Lenovo programs on the Windows 7 operating system” on page 13. • On the Windows 8.1 operating system, see “Accessing Lenovo programs on the Windows 8.1 operating system”...

  • Page 31: Advanced Configuration And Power Interface (Acpi) Bios

    Advanced configuration and power interface (ACPI) BIOS Being an ACPI BIOS system, the operating system is allowed to control the power management features of the computer and the setting for Advanced Power Management (APM) BIOS mode is ignored. Not all operating systems support ACPI BIOS mode. Automatic Power-on features The Automatic Power-On features within the Power Management menu allow you to enable and disable features that turn on the computer automatically.

  • Page 32: Setting The Volume From Control Panel

    • Do not insert any object other than a disc into the drive. • Do not insert damaged discs into the drive. Warped, scratched, or dirty discs can damage the drive. • Before moving the computer, remove the disc from the drive. ThinkStation P900 User Guide...

  • Page 33: Handling And Storing A Disc

    If your computer is installed with a recordable optical drive, you can use the drive to record a disc. To record a disc, do the following: • On the Windows 7 operating system, use either the Corel DVD MovieFactory Lenovo Edition program or the Power2Go program installed on your computer.

  • Page 34: Navigating Among Screens On The Windows 8.1 Operating System

    Note: Only active workspaces that you have accessed during the current Windows session are displayed along the left edge. If you close an active workspace, its representation will not be displayed along the left edge of the screen. 2. Click the representation. – Using a touch screen: ThinkStation P900 User Guide...

  • Page 35: Accessing Control Panel On The Windows 8.1 Operating System

    Chapter 8 “Recovery information” on page 69. Additionally, in case of a hard-disk-drive failure, you can order a recovery disc set from the Lenovo Customer Support Center. For information about contacting the Customer Support Center, see Chapter 10 “Getting...
  • Page 36 • To set the Start screen as your default startup screen, clear the When I sign in or close all apps on a screen, go to the desktop instead of Start check box. 4. Click OK to save the new setting. ThinkStation P900 User Guide...

  • Page 37: Chapter 3. You And Your Computer

    51–61 cm (20–24 inches). Then, position the monitor so that you can view it without twisting your body. Also, position other equipment you use regularly, such as the telephone or a mouse, within easy reach. © Copyright Lenovo 2014...

  • Page 38: Glare And Lighting

    For more information about power cords, see “Power cords and power adapters” on page vi. Accessibility information Lenovo is committed to providing people with disabilities greater access to information and technology. Some technologies are already provided in your operating system. Others can be purchased through vendors.
  • Page 39 On-screen notification On-screen notification helps hearing-impaired people be aware of the status of their computer. On-screen notification replaces sounds with visual cues or text captions to indicate that activity is happening on the computer. As a result, system alerts are noticeable even when they are not heard. For example, when you select one object with your keyboard, the object is highlighted.
  • Page 40 Screen resolution, and then adjust the settings as you prefer. Note: Setting too low of a resolution might prevent some items from fitting on the screen. For alternatives on increasing the size of text and other objects, see the following: ThinkStation P900 User Guide...
  • Page 41 • “Customizable text size” on page 28 • “Magnifier” on page 28 • “Zoom” on page 28 Ease of Access keyboard shortcuts The following table contains keyboard shortcuts that can help make your computer easier to use. Keyboard shortcut Function Windows logo key + U Open the Ease of Access Center Right Shift for eight seconds...

  • Page 42: Moving Your Computer To Another Country Or Region

    Then, you can type a message on your computer and send it to the telephone. Documentation in accessible formats Lenovo provides electronic documentation in accessible formats, such as properly tagged PDF files or HyperText Markup Language (HTML) files. Lenovo electronic documentation is developed to ensure that visually impaired users can read the documentation through a screen reader.

  • Page 43: Chapter 4. Security

    For security, store the keys in a secure place when you are not using them. Note: The key lock and keys are available only in some models. © Copyright Lenovo 2014...
  • Page 44 Figure 7. Locking the computer cover ThinkStation P900 User Guide...

  • Page 45: Attaching A Kensington-Style Cable Lock

    The cable lock also locks the buttons used to open the computer cover. This is the same type of lock used with many notebook computers. You can order such a cable lock directly from Lenovo by searching for Kensington at: http://www.lenovo.com/support Figure 8.

  • Page 46: Windows Passwords

    Your computer is preinstalled with an antivirus program to help you guard against, detect, and eliminate viruses. Lenovo provides a full version of antivirus software on your computer with a free 30-day subscription. After 30 days, you must renew the license to continue receiving the antivirus software updates.
  • Page 47 For more information about how to use your antivirus software, refer to the help system of your antivirus software. Chapter 4 Security...
  • Page 48 ThinkStation P900 User Guide...

  • Page 49: Chapter 5. Advanced Configuration

    Setup Utility program. See “Starting the Setup Utility program” on page 37. Then, follow the instructions on the screen. You can use either the keyboard or the mouse to navigate through menu choices. The keys used to perform various tasks are displayed at the bottom of each screen. © Copyright Lenovo 2014...

  • Page 50: Using Bios Passwords

    Setting, changing, and deleting a password To set, change, or delete a password, do the following: 1. Start the Setup Utility program. See “Starting the Setup Utility program” on page 37. 2. From the Setup Utility program main menu, select Security. ThinkStation P900 User Guide...

  • Page 51: Enabling Or Disabling A Device

    3. Depending on the password type, select Set Power-On Password, Set Administrator Password, or Hard Disk Password. 4. Follow the instructions on the right side of the screen to set, change, or delete a password. Note: A password can be any combination of up to 64 alphabetic and numeric characters. For more information, see “Password considerations”...

  • Page 52: Selecting A Startup Device

    41. Enabling ErP LPS compliance mode Lenovo computers meet the eco-design requirements of the ErP Lot 3 regulation. For more information, go http://www.lenovo.com/ecodeclaration You can enable ErP LPS compliance mode in the Setup Utility program to reduce the consumption of electricity when your computer is off or in sleep mode.

  • Page 53: Exiting The Setup Utility Program

    Setup Utility program. Updating or recovering the BIOS Lenovo might make changes and enhancements to the BIOS. When updates are released, they are available as downloadable files on the Lenovo Web site at http://www.lenovo.com/drivers. Instructions for using the BIOS updates are available in a TXT file that is included with the update files.

  • Page 54: Using System Programs

    Lenovo might make changes and enhancements to the POST and BIOS. When updates are released, they are available as downloadable files on the Lenovo Web site at http://www.lenovo.com. Instructions for using the POST and BIOS updates are available in a TXT file that is included with the update files.

  • Page 55: Updating The Bios From Your Operating System

    Updating the BIOS from your operating system Lenovo makes constant improvements to its Web sites. The Web page contents are subject to change without notice, including the contents referenced in the following procedure. To update the BIOS from your operating system, do the following: 1.

  • Page 56: Recovering From A Bios Update Failure

    • “Configuring SATA or SAS RAID functionality with the Intel RSTe configuration utility” on page 45 Installing SATA or SAS hard disk drives Ensure that your computer has the minimum number of SATA or SAS hard disk drives installed for the following supported levels of RAID: ThinkStation P900 User Guide...
  • Page 57 • RAID Level 0 - Striped disk array – A RAID Level 0 hard disk drive group consisting of at least two hard disk drives – Supported strip size: 4 KB, 8 KB, 16 KB, 32 KB, 64 KB, or 128 KB –...
  • Page 58 This section provides instructions on how to reset hard disk drives to non-RAID. To reset hard disk drives to non-RAID, do the following: 1. Enter the Intel RSTe configuration utility. See “Entering the Intel RSTe configuration utility” on page 45. ThinkStation P900 User Guide...

  • Page 59: Quick Raid Setup Using The Lsi Megaraid Bios Configuration Utility

    • The following steps in this section are intended to guide you through a quick setup of basic RAID functions with the LSI MegaRAID SAS adapter. For advanced setup and configuration using this adapter, refer to the complete MegaRAID SAS Software User Guide that is available at http://support.lenovo.com/en_US/guides-and-manuals/detail.page?DocID=UM007543. This section provides information about the following topics: •...
  • Page 60 • Manual Configuration: Manually create hard disk drive groups and virtual hard disk drives, and set parameters. • Automatic Configuration: Automatically create an optimal RAID configuration. 4. Select Manual Configuration, and then click Next. The Drive Group Definition window is displayed. To create hard disk drive groups, do the following: ThinkStation P900 User Guide...
  • Page 61 a. Select one or more hard disk drives for the group (keep pressing Ctrl while selecting more than one hard disk drive). b. Click Add To Array to move the selected hard disk drives to Drive Groups. c. Click Accept DG to create the hard disk drive group. d.
  • Page 62 ThinkStation P900 User Guide...

  • Page 63: Chapter 6. Preventing Problems

    This section explains how to get the latest updates for your computer. Getting the latest device drivers for your computer Note: Lenovo makes constant improvements to its Web sites. The contents on the Web page are subject to change without notice, including the contents referenced in the following procedure.

  • Page 64: Using The System Update Program

    To open System Update, see “Accessing Lenovo programs on the Windows 7 operating system” on page 13 or “Accessing Lenovo programs on the Windows 8.1 operating system” on page 14. If System Update is not currently installed on your computer, you can download it from the Lenovo Support Web site at: http://www.lenovo.com/support...

  • Page 65: Good Maintenance Practices

    1. Apply some isopropyl rubbing alcohol to a soft, dust-free cloth. 2. Wipe each keytop surface with the cloth. Wipe the keys one by one; if you wipe several keys at a time, the cloth may hook onto an adjacent key and possibly damage it. Ensure that no liquid drips onto or between the keys.

  • Page 66: Moving Your Computer

    The cause of a problem might be change in hardware, change in software, or any other actions that might have taken place. A log book can help you or a Lenovo technician determines the cause of a problem. • Create Product Recovery discs. See “Creating and using recovery media” on page 69 for more information about using Product Recovery discs to restore the hard disk drive to the factory-default settings.

  • Page 67: Chapter 7. Troubleshooting And Diagnostics

    Note: If you cannot correct the problem, have the computer serviced. For a list of service and support telephone numbers, refer to the Safety, Warranty, and Setup Guide that comes with your computer or go to the Lenovo Support Web site at: http://www.lenovo.com/support/phone...

  • Page 68: Troubleshooting Procedure

    If this does not correct the problem, continue with the next step. 6. Run the diagnostic program. See “Lenovo Solution Center” on page 66 for more information. • If the diagnostic program detects a hardware failure or if you are unable to run the diagnostic program, contact the Lenovo Customer Support Center.

  • Page 69: Audio Problems

    1. Remove the new hardware option or software. If you must remove the computer cover to remove a hardware option, ensure that you review and follow the electrical safety information provided with your computer. For your safety, do not operate the computer with the cover removed. 2.

  • Page 70: Dvd Problems

    • Use the DVD menu for the video to select a different audio track. Playback is slow or choppy Solutions: • Disable any background programs, such as AntiVirus or Desktop Themes. • Ensure that video resolution is set to less than 1152 x 864 pixels. ThinkStation P900 User Guide...

  • Page 71: Intermittent Problems

    (one to five hard disk drives) or the LSI MegaRAID SAS adapter is installed. If these actions do not correct the problem, run the diagnostic program Lenovo Solution Center. See “Lenovo Solution Center” on page 66. If you need technical assistance, see Chapter 10 “Getting information, help, and service”...

  • Page 72: Problems With The Keyboard Or Mouse

    Refer to “Installing or replacing a 3.5-inch storage drive” on page 79. If these actions do not correct the problem, run the diagnostic program Lenovo Solution Center. See “Lenovo Solution Center” on page 66.

  • Page 73: Monitor Problems

    The fingerprint reader on the keyboard does not work Solutions: • Enroll your fingerprint correctly. • Never scratch the surface of the reader with a hard, pointed object. • Never scrap the surface of the reader with your nail or anything hard. •...

  • Page 74: Networking Problems

    The adapter stops working for no reason Solution: The network driver files might be corrupt or missing. Update the driver by referring to the “Solution” description for the previous problem to ensure that the latest device driver is installed. ThinkStation P900 User Guide...

  • Page 75: I Have Connected An Option To My Computer, But It Does Not Work

    The Wake On LAN feature is not working Solution: Enable the Wake On LAN (WOL) feature in the BIOS program. My computer is a Gigabit Ethernet model and I use a speed of 1000 Mbps, but the connection fails or errors occur Solution: Connect the network cable to the Ethernet connector using Category 5 wiring and a 100 BASE-T hub/switch (not 100 BASE-X).

  • Page 76: The Printer Does Not Work

    • Connect the serial cable to the serial connector on the computer and to the serial device. If the serial device has its own power cord, attach the power cord to a grounded electrical outlet. • Turn on the serial device and keep the device online. ThinkStation P900 User Guide...

  • Page 77: Software Problems

    • Install any application programs supplied with the serial device. Refer to the documentation that comes with the serial device for more information. • If you added one serial-connector adapter, install the adapter correctly. Software problems This section provides solutions to software-related problems. When using a sort feature, dates cannot be sorted in the correct order Solution: Some programs developed before the year 2000 used only the last two digits of a year to sort dates, assuming the first two digits were 19.

  • Page 78: Lenovo Solution Center

    • If you are using a USB key, go to http://www.lenovo.com/support for information about how to read the error data on the USB key. • If you are using an Android device with the Lenovo Mobile Diagnostic application installed, open the application for details about the error.
  • Page 79 For more information about how to use the diagnostic USB connector on your computer, decipher the error codes, or use the Lenovo Mobile Diagnostic application, go to http://www.lenovo.com/support. The hardware diagnostic function is enabled on your computer by default. To disable the function, do the following: 1.
  • Page 80 ThinkStation P900 User Guide...

  • Page 81: Chapter 8. Recovery Information

    Product Recovery program installed. If the Enhanced Backup and Restore icon in the Lenovo ThinkVantage Tools program is dimmed, it indicates that you must install the Rescue and Recovery program manually before enabling its features. To install the Rescue and Recovery program, do the following: 1.

  • Page 82: Performing Backup And Recovery Operations

    Note: On the Windows 7 operating system, you can create recovery media using discs or external USB storage drives. To create recovery media on the Windows 7 operating system, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ Factory Recovery Disks. Then, follow the instructions on the screen.
  • Page 83 To perform a recovery operation using the Rescue and Recovery program on the Windows 7 operating system, do the following: 1. From the Windows desktop, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ Enhanced Backup and Restore. The Rescue and Recovery program opens.

  • Page 84: Creating And Using A Rescue Medium

    Creating a rescue medium To create a rescue medium on the Windows 7 operating system, do the following: 1. From the Windows desktop, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ Enhanced Backup and Restore. The Rescue and Recovery program opens.

  • Page 85: Reinstalling Preinstalled Programs And Device Drivers

    Reinstalling preinstalled programs and device drivers Your computer enables you to reinstall preinstalled programs and device drivers. Reinstalling preinstalled programs To reinstall programs preinstalled on your Lenovo computer, do the following: 1. Turn on the computer. 2. Go to C:\SWTOOLS.

  • Page 86: Solving Recovery Problems

    To reset your computer, do the following: 1. Move the pointer to the top-right or bottom-right corner of the screen to display the charms. Click Settings ➙ Change PC settings ➙ Update and recovery ➙ Recovery. ThinkStation P900 User Guide...

  • Page 87: Using The Advanced Startup Options

    2. In the Remove everything and reinstall Windows section, click Get started. Using the advanced startup options Advanced startup options enable you to change the startup settings of your Windows operating system, start the computer from an external device, or restore the Windows operating system from a system image. To use the advanced startup options, do the following: 1.
  • Page 88 ThinkStation P900 User Guide...

  • Page 89: Chapter 9. Installing Or Replacing Hardware

    Important safety information” on page v. Notes: • Use only computer parts provided by Lenovo. • When installing or replacing an option, use the appropriate instructions in this section along with the instructions that come with the option.

  • Page 90: Installing Or Replacing An Internal Storage Drive

    Depending on your computer model, your computer might come with one or more of the following internal storage drives: • 3.5-inch hard disk drive • 3.5-inch hybrid drive • 2.5-inch hard disk drive • 2.5-inch solid-state drive • M.2 solid-state drive ThinkStation P900 User Guide...
  • Page 91 • PCI Express solid-state drive To install or replace an internal storage drive, refer to one of the following topics: • “Installing or replacing a 3.5-inch storage drive” on page 79 • “Installing or replacing a 2.5-inch storage drive” on page 84 •...
  • Page 92 • If you are replacing a storage drive, flex the sides of the bracket to release the four pins from the storage drive. Then, remove the storage drive from the bracket. Figure 11. Removing the storage drive from the bracket ThinkStation P900 User Guide...
  • Page 93 6. Hold the storage drive so that the connectors face towards the rear of the bracket and the circuit board faces upward. Then, flex the sides of the bracket and align the four pins on the bracket with the corresponding holes in the storage drive. Note: Do not touch the circuit board of the storage drive.
  • Page 94 • If you are installing a storage drive, do the following: a. Press the clip on the bottom of the optical drive bay so that the plastic cover is ejected out of the bay. Then, remove the metal static shield from the bay. ThinkStation P900 User Guide...
  • Page 95 b. Press the tab as shown to open the cover of the front-access storage enclosure. Figure 14. Opening the cover of the front-access storage enclosure c. Open the handles on both sides of the hard disk drive bracket. Then, pull the bracket out of the front-access storage enclosure.
  • Page 96 3. Locate the hard disk drive bay in which you want to install or replace a storage drive. See “Locating internal drives” on page 7. 4. Remove the storage drive bracket from the hard disk drive bay. See step 4 on page 79. ThinkStation P900 User Guide...
  • Page 97 5. Depending on whether you are installing or replacing a storage drive, do one of the following: • If you are installing a storage drive, go to step 6. • If you are replacing a storage drive, flex the sides of the bracket to release the four pins from the storage drive.
  • Page 98 7. 4. Remove the storage drive bracket from the hard disk drive bay. See step 4 on page 79. 5. Depending on whether you are installing or replacing a storage drive, do one of the following: ThinkStation P900 User Guide...
  • Page 99 • If you are installing a storage drive, pivot tab on the metal adapter upward. Then, push the adapter to the rear of the converter as shown until the four tabs on the adapter are slide into the four notches .
  • Page 100 6. Note the orientation of the connector on the new storage drive. Then, flex the sides of the adapter and align the four pins with the corresponding holes in the storage drive. Note: Do not touch the circuit board (if accessible) of the 2.5-inch storage drive. Figure 22. Installing the storage drive into the adapter ThinkStation P900 User Guide...
  • Page 101 7. Align the four tabs on the adapter with the corresponding notches in the converter. Then, slide the storage drive as shown until the tab snaps into position. The adapter with the storage drive is installed into the converter. Figure 23. Installing the adapter into the converter 8.
  • Page 102 Locate the M.2 slot into which you want to install an M.2 solid-state drive on the flex adapter. Note: If the flex adapter is new, ensure that you install M.2 solid-state drives in the numerical order printed on the flex adapter (SLOT 1 and SLOT 2). ThinkStation P900 User Guide...
  • Page 103 c. Remove the screw that is aligned with the M.2 slot. Figure 24. Removing the screw that is aligned with the M.2 slot • If you are replacing an M.2 solid-state drive, do the following: a. Remove the flex adapter. See “Installing or replacing a flex adapter” on page 104. b.

  • Page 104: Replacing The Cover Presence Switch (Intrusion Switch)

    6. Pivot the tab on the cover presence switch bracket to the left as shown. Then, remove the bracket together with the cover presence switch from the chassis. Figure 27. Removing the cover presence switch bracket ThinkStation P900 User Guide...
  • Page 105 7. Pivot the clip on the bracket outward, and then disengage the failing cover presence switch from the circle clip to remove it from the bracket. Figure 28. Removing the cover presence switch from the bracket 8. Insert the end of the new cover presence switch with the post into the circle clip .

  • Page 106: Removing And Reinstalling The Direct Cooling Air Baffle

    1. Remove all media from the drives and turn off all attached devices and the computer. Then, disconnect all power cords from electrical outlets and disconnect all cables that are connected to the computer. 2. Remove the computer cover. See “Removing the computer cover” on page 77. ThinkStation P900 User Guide...
  • Page 107 3. Pull the direct cooling air baffle outward by its handle to remove it from the chassis. Figure 31. Removing the direct cooling air baffle Chapter 9 Installing or replacing hardware...

  • Page 108: Removing And Installing A Device In An Optical Drive Bay

    Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. Depending on your computer model, the following devices might be installed in the optical drive bays: ThinkStation P900 User Guide...
  • Page 109 • Optical drive • Front-access storage enclosure • Flex module Note: The flex module might be installed with the following: – IEEE 1394 connector – eSATA connector – 29-in-1 card reader – Slim optical drive To remove and install a flex module and a front-access storage enclosure, follow the steps of removing and installing an optical drive.

  • Page 110: Removing And Reinstalling The Multi-Function Brackets

    4. Locate the multi-function bracket you want to remove. See “Locating components” on page 4. 5. If you are replacing the multi-function bracket installed in the upper position of the chassis, remove the power supply assembly. See “Replacing the power supply assembly” on page 101. ThinkStation P900 User Guide...
  • Page 111 6. Remove the front fan assembly in the bracket you want to remove. See “Replacing the front fan assemblies” on page 100. 7. Lay the computer on its side for easier access to the bracket. 8. Hold the handle and the foot at the same time and then pull the bracket to the rear of the chassis to remove the bracket.

  • Page 112: Replacing The Front Fan Assemblies

    3. Locate the failing front fan assembly. See “Locating components” on page 4. 4. Press the tab and slide the front fan assembly outward by the handle to remove it from the chassis. Figure 37. Removing the front fan assembly ThinkStation P900 User Guide...

  • Page 113: Replacing The Power Supply Assembly

    5. Slide the front fan assembly into the multi-function bracket until it snaps into position. Figure 38. Installing the front fan assembly What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 125. Replacing the power supply assembly Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information”...
  • Page 114 4. Pivot the handle to the left at an angle of about 90 degrees. Then, pull the handle as shown to remove the power supply assembly from the chassis. Figure 39. Removing the power supply assembly ThinkStation P900 User Guide...

  • Page 115: Replacing The Battery

    5. With the handle open, slide the power supply assembly into the power supply assembly bay until it snaps into position. Pivot the handle to the closed position to ensure that the new power supply assembly is fully installed into position. Figure 40.

  • Page 116: Installing Or Replacing A Flex Adapter

    • Flex adapter with one SATA 3.0 connector, one USB 2.0 connector, and two mini-SAS HD connectors • Flex adapter with two M.2 slots (with the M.2 solid-state drive installed in some models) To install or replace a flex adapter, do the following: ThinkStation P900 User Guide...
  • Page 117 1. Remove all media from the drives and turn off all attached devices and the computer. Then, disconnect all power cords from electrical outlets and disconnect all cables that are connected to the computer. 2. Remove the computer cover. See “Removing the computer cover” on page 77. 3.
  • Page 118 – The flex adapter might fit tightly into the flex adapter slot. If necessary, alternately move each side of the adapter a small amount until it is removed from the slot. Figure 44. Removing the flex adapter ThinkStation P900 User Guide...
  • Page 119 6. Align the notch on the new flex adapter with the slot key in a flex adapter slot. Then, slide the plastic retainer of the new flex adapter downward into the corresponding slot in the multi-function bracket. Then, insert the adapter into the flex adapter slot until it is secured tightly. Notes: •...

  • Page 120: Installing Or Replacing A Pci Card

    5. If necessary, remove the direct cooling air baffle for easier operation. See “Removing and reinstalling the direct cooling air baffle” on page 94. 6. Depending on whether you are installing or replacing a PCI card, do one of the following: ThinkStation P900 User Guide...
  • Page 121 • If you are installing a PCI card, do the following: a. On the left of the PCI card slot, lift the handle until it stops, and then pivot it to the left until it stops. The PCI card latch is opened.
  • Page 122 On the left of the PCI card slot, lift the handle until it stops, and then pivot it to the left until it stops. The PCI card latch is opened. Figure 49. Opening the PCI card latch ThinkStation P900 User Guide...
  • Page 123 b. Grasp the card that is currently installed and gently pull it out of the slot. Notes: – If the card is connected to other device, disconnect the cables from the card. – If the card is held in place by a retaining latch, press the card retaining latch as shown to disengage the latch.
  • Page 124 Then, insert the new PCI card downward into the card slot until it is secured tightly. See “Locating parts on the system board” on page 5. Note: Do not touch the circuit board of the PCI card. Figure 51. Installing the PCI card ThinkStation P900 User Guide...

  • Page 125: Installing Or Replacing A Full-Length Pci Express Card

    8. Pivot the handle to the right until it stops, and then press it downward until the latch snaps into position. Figure 52. Closing the PCI card latch 9. If the new PCI card needs to be connected to other device, connect the cable of the device to the card. 10.
  • Page 126 94. 6. Depending on whether you are installing or replacing a full-length PCI Express card, do one of the following: • If you are installing a full-length PCI Express card, do the following: ThinkStation P900 User Guide...
  • Page 127 a. On the right of the PCI card slot, pivot the tab outward until it stops. The card latch opened. On the left of the PCI card slot, lift the handle until it stops, and then pivot it to the left until it stops.
  • Page 128 Grasp the card and gently pull it out of the slot. – The card fits tightly into the card slot. If necessary, alternate moving each side of the card a small amount until it is removed from the card slot. ThinkStation P900 User Guide...
  • Page 129 Figure 56. Removing the full-length PCI Express card Chapter 9 Installing or replacing hardware...
  • Page 130 PCI card slot. Then, insert the new card downward into the card slot until it is secured tightly. See “Locating parts on the system board” on page 5. Note: Do not touch the circuit board of the PCI card. Figure 57. Installing the full-length PCI Express card ThinkStation P900 User Guide...

  • Page 131: Installing Or Replacing A Memory Module

    8. Pivot the handle to the right until it stops, and then press it downward until the latch snaps into position. Pivot the tab inward until it snaps into position. Figure 58. Closing PCI card latches 9. Connect the power cable of the full-length PCI Express card to the new card. See “Locating parts on the system board”...
  • Page 132 6. Depending on whether you are installing or replacing a memory module, do one of the following: • If you are installing a memory module, open the retaining clips of the memory slot into which you want to install the memory module. Figure 60. Opening retaining clips ThinkStation P900 User Guide...

  • Page 133: Replacing The Heat Sink And Fan Assemblies

    • If you are replacing a memory module, open the retaining clips and gently pull the memory module out of the memory slot. Figure 61. Removing the memory module 7. To install a new memory module, position the new memory module over the memory slot. Ensure that the notch on the memory module aligns correctly with the slot key on the system board.
  • Page 134 The four screws cannot be removed from the heat sink and fan assembly. Figure 63. Removing the heat sink and fan assembly 8. Lift the failing heat sink and fan assembly off the system board. ThinkStation P900 User Guide...

  • Page 135: Replacing The Rear Fan Assembly

    Notes: • You might have to gently twist the heat sink and fan assembly to free it from the microprocessor. • Do not touch the thermal grease while handling the heat sink and fan assembly. 9. To install the new heat sink and fan assembly, position the new heat sink and fan assembly on the system board so that the four screws are aligned with the holes on the system board.
  • Page 136 7. Reinstall the direct cooling air baffle. See “Removing and reinstalling the direct cooling air baffle” on page 94. What to do next: • To work with another piece of hardware, go to the appropriate section. ThinkStation P900 User Guide...

  • Page 137: Replacing The Keyboard Or Mouse

    • To complete the installation or replacement, go to “Completing the parts replacement” on page 125. Replacing the keyboard or mouse Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. To replace the keyboard or mouse, do the following: 1.

  • Page 138: Obtaining Device Drivers

    7. To update your configuration, refer to “Using the Setup Utility program” on page 37. Note: In most areas of the world, Lenovo requires the return of the defective Customer Replaceable Unit (CRU). Information about this will come with the CRU or will come a few days after the CRU arrives.

  • Page 139: Chapter 10. Getting Information, Help, And Service

    You can use the information in this section to access useful resources relating to your computing needs. Lenovo ThinkVantage Tools The Lenovo ThinkVantage Tools program provides easy access to various tools to help you work more easily and securely. To access the Lenovo ThinkVantage Tools program, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools.

  • Page 140: Lenovo Support Web Site

    Most computers come with a diagnostic program that help you identify hardware problems. You can also get the latest technical information and download device drivers and updates from Lenovo Support Web site at: http://www.lenovo.com/support...

  • Page 141: Using Other Services

    • Replacement or use of parts not manufactured for or by Lenovo or non-warranted Lenovo parts • Identification of software problem sources • Configuration of BIOS as part of an installation or upgrade • Changes, modifications, or upgrades to device drivers •...
  • Page 142 Service availability and service name might vary by country or region. For more information about these services, go to the Lenovo Web site at: http://www.lenovo.com ThinkStation P900 User Guide...

  • Page 143: Chapter 11. System Memory Speed

    Intel Xeon E5-2699 v3, E5-2698 v3, E5-2697 v3, E5-2695 V3, E5-2690 v3, E5-2685 v3, E5-2683 v3, E5-2680 v3, 1.2 V 2133 MHz E5-2670 v3, E5-2667 v3, E5-2660 v3, E5-2650 v3, E5-2643 v3, E5-2637 v3, E5-2650L v3, E5-1680 v3, E5-1660 © Copyright Lenovo 2014...
  • Page 144 E5-1650 v3, E5-1630 v3, E5-1620 1.2 V Intel Xeon E5-2640 v3, E5-2630 v3, E5-2623 v3, E5-2620 v3, E5-2630L 1866 MHz v3, E5-1607 v3, E5-1603 v3 1.2 V Intel Xeon E5-2609 v3, E5-2603 v3 1600 MHz ThinkStation P900 User Guide...

  • Page 145: Appendix A. Regulatory Information

    • Consult an authorized dealer or service representative for help. Lenovo is not responsible for any radio or television interference caused by using other than specified or recommended cables and connectors or by unauthorized changes or modifications to this equipment.
  • Page 146 Geräte der Klasse B. Dieses Gerät ist berechtigt, in Übereinstimmung mit dem Deutschen EMVG das EG-Konformitätszeichen - CE - zu führen. Verantwortlich für die Konformitätserklärung nach Paragraf 5 des EMVG ist die Lenovo (Deutschland) GmbH, Gropiusplatz 10, D-70563 Stuttgart. Informationen in Hinsicht EMVG Paragraf 4 Abs. (1) 4: Das Gerät erfüllt die Schutzanforderungen nach EN 55024 und EN 55022 Klasse B.

  • Page 147: Eurasian Compliance Mark

    All regulatory notices are available on the Lenovo Support Web site in electronic format. To access electronic copies of the documentation, go to http://www.lenovo.com/UserManuals.
  • Page 148 ThinkStation P900 User Guide...

  • Page 149: Appendix B. Weee And Recycling Information

    Collecting and recycling a disused Lenovo computer or monitor If you are a company employee and need to dispose of a Lenovo computer or monitor that is the property of the company, you must do so in accordance with the Law for Promotion of Effective Utilization of Resources.

  • Page 150: Recycling Information For Brazil

    If you need to replace it with a new one, contact your place of purchase or contact Lenovo for service. If you need to dispose of a disused lithium battery, insulate it with vinyl tape, contact your place of purchase or an industrial-waste-disposal operator, and follow their instructions.
  • Page 151 Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances. For proper collection and treatment, go to: http://www.lenovo.com/recycling Appendix B. WEEE and recycling information...
  • Page 152 ThinkStation P900 User Guide...

  • Page 153: Appendix C. Restriction Of Hazardous Substances Directive (Rohs)

    (RoHS) European Union RoHS Lenovo products sold in the European Union, on or after 3 January 2013 meet the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS recast” or “RoHS 2”).

  • Page 154: Ukraine Rohs

    Ukraine RoHS India RoHS RoHS compliant as per E-Waste (Management & Handling) Rules, 2011. ThinkStation P900 User Guide...

  • Page 155: Appendix D. Energy Star Model Information

    For more information about ENERGY STAR, go to: http://www.energystar.gov Lenovo encourages you to make efficient use of energy an integral part of your day-to-day operations. To help in this endeavor, set the following power-management features to take effect when your computer has been inactive for a specified duration: Table 5.
  • Page 156 ThinkStation P900 User Guide...

  • Page 157: Appendix E. Notices

    Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead.

  • Page 158: Trademarks

    Trademarks The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo Rescue and Recovery The Lenovo logo The ThinkStation logo ThinkStation ThinkVantage Microsoft, Windows, and Windows Media are trademarks of the Microsoft group of companies.

  • Page 159: Index

    CMOS, clearing replacing components, internal flex module computer cover installing removing removing computer cover, reinstalling front connector connectors, controls, indicators connectors front fan assembly rear replacing connectors, controls, indicators front-access storage enclosure front installing considerations, passwords removing © Copyright Lenovo 2014...
  • Page 160 Hard disk installing options Power-on password memory module setting, changing, deleting internal drives passwords internal storage drive erasing installing lost or forgotten replacing PCI card installing replacing PCI Express solid-state drive Kensington-style installing cable lock replacing ThinkStation P900 User Guide...
  • Page 161 PCI Express solid-state drive power supply assembly rear fan assembly storage drive updating Rescue and Recovery system programs workspace, Rescue and Recovery the BIOS Rescue and Recovery workspace updating the BIOS resources, information USB 2.0 connector USB 3.0 connector © Copyright Lenovo 2014...
  • Page 162 BIOS passwords diagnostic program documentation other services Setup Utility video features viewing and changing settings warranty information workspace, backup and recovery ThinkStation P900 User Guide...
